Setting new bit in cabinet vision

6/23/16
Bob Member

I'm trying to add 5/16 bit to cabinet vision and somehow S2M center keep pickup my DOVETAIL bit . Any idea what i'm doing wrong ?

%
O0001 (R250101N)
(CREATED ON 23 JUN 16 - 08:59)
(MATERIAL: 5/8 HARD ROCKMelamine)
(LOAD: Material face UP)
G0 G21 G91 G28 Z0 M15
G90 G40 M22
M88 B0
M89 B0
G08 P1
M25
(ROUTE TOOL #8: DOVETAIL 3_8 DOWN)
(DIAMETER: 9.4488)
G0 G54 G90 X0. Y0.
T8
G0 G54 G90 X1112.8362 Y2449.4744 M13 S18000
G43 H8 Z41.6712
G0 Z22.6212
G1 G42 D-2 X1086.6438 Z9.525 F300.
X935.0375 F1400.
Y2452.7256
X1238.25
Y2449.4744
X1086.6438
X1077.195
G40 X1051.0025 Z22.6212
G0 Z41.6712
X1060.4513 Y2066.168 Z41.6712
Z22.6212
G1 G42 D-2 X1086.6438 Z9.525 F300.
X1238.25 F1400.
Y2062.9168
X935.0375
Y2066.168
X1086.6438
X1096.0926
G40 X1122.285 Z22.6212
G0 Z41.6712
G80
G17 G91 G28 Z0 M95
M92
(ROUTE TOOL #13: 3/8 COMPRESSION)
(DIAMETER: 9.525)
G0 G54 G90 X1122.285 Y2066.168
T13
G0 G54 G90 X930.275 Y2297.9837 M13 S18000
G43 H13 Z41.6712
G0 Z22.6212
G1 G42 D3 Y2257.8212 Z9.4056 F14000.
Y2066.1299 F11562.65
X947.7375
Y2059.7799
X1243.0125
Y2455.8625
X947.7375
Y2449.5125
X930.275
Y2257.8212
Y2248.2962
G40 Y2208.1337 Z22.6212
G0 Z41.6712
X930.275 Y2297.9837 Z41.6712
Z15.7556
G1 G42 D3 Y2257.8212 Z2.54 F14000.
Y2066.1299 F11562.65
X947.7375
Y2059.7799
X1243.0125
Y2455.8625
X947.7375
Y2449.5125
X930.275
Y2257.8212
Y2248.2962
G40 Y2208.1337 Z15.7556
G0 Z41.6712
X1243.0125 Y2206.5462 Z41.6712
Z22.6212
G1 G42 D3 Y2252.5825 Z-0.3969 F14000.
Y2455.8625 F11562.65
X947.7375
Y2449.5125
X930.275
Y2066.1299
X947.7375
Y2059.7799
X1243.0125
Y2263.06
G40 Y2309.0962 Z22.6212
G0 Z41.6712
G80
M22
G91 G28 Z0 M15
G90 H0 M25
M88 B0
M89 B0
G91 G28
G90 X24. Y96.
M07
G08 P0
M30
%

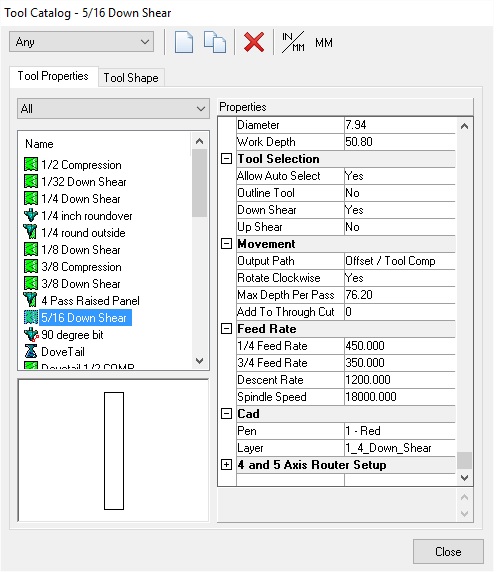

View higher quality, full size image (498 X 572)

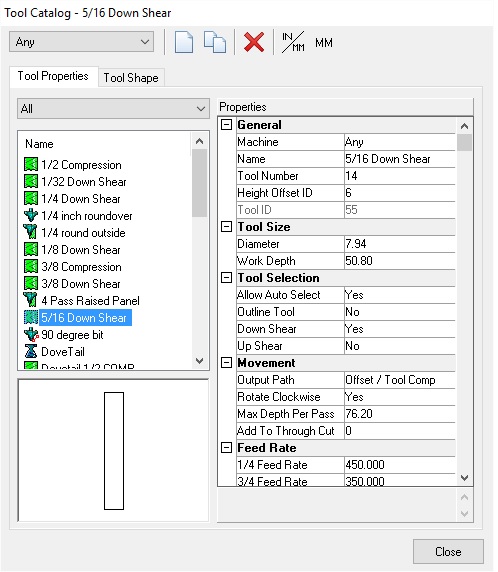

View higher quality, full size image (498 X 572)

6/24/16       #2: Setting new bit in cabinet vision ...
Jimbob Member

Change the allow auto select setting for your dovetail bit.

6/25/16       #3: Setting new bit in cabinet vision ...
Bob Member

It works like that . But how come that s2m want to pick dovetail bit ? And any idea what setting for speed and feed i need to put ?

6/25/16       #4: Setting new bit in cabinet vision ...
Jimbob Member

I'm not 100% sure but it could be that they have the same depth or another similar setting. Vortex has a free app for a smartphone that calculates feeds, speeds, and rpms for you. You can call too, they have great customer service.
