Cnc Advices

5/25/16
anthony Member

hello all
i am looking for a cnc that is > x:3600 (mm)
>y:1800(mm)
where i can nest a full melamine sheet and i can work with my doors (horizontal work)
does it has to be pod and rail?
and if not pod and rail i would like to ask if i can lift my doors off the flat table so i can do door lock hols....?

5/25/16       #2: Cnc Advices ...
alex

Get a nesting machine with suction cups that fit into the nesting table. I setup a wine cellar business for an associate and i bought a Homag nesting machine with 4-axis(aggregate capability). They nest cabinets 80% of the time, sometimes they use pods i made for them(you can buy ready made pods as well) that elevated the work 100mm and do entry door locks and hindges machining with horizontal aggregates. You need to have a decent enough clearance in Z-axis and a stroke large enough.

5/25/16       #3: Cnc Advices ...
alex

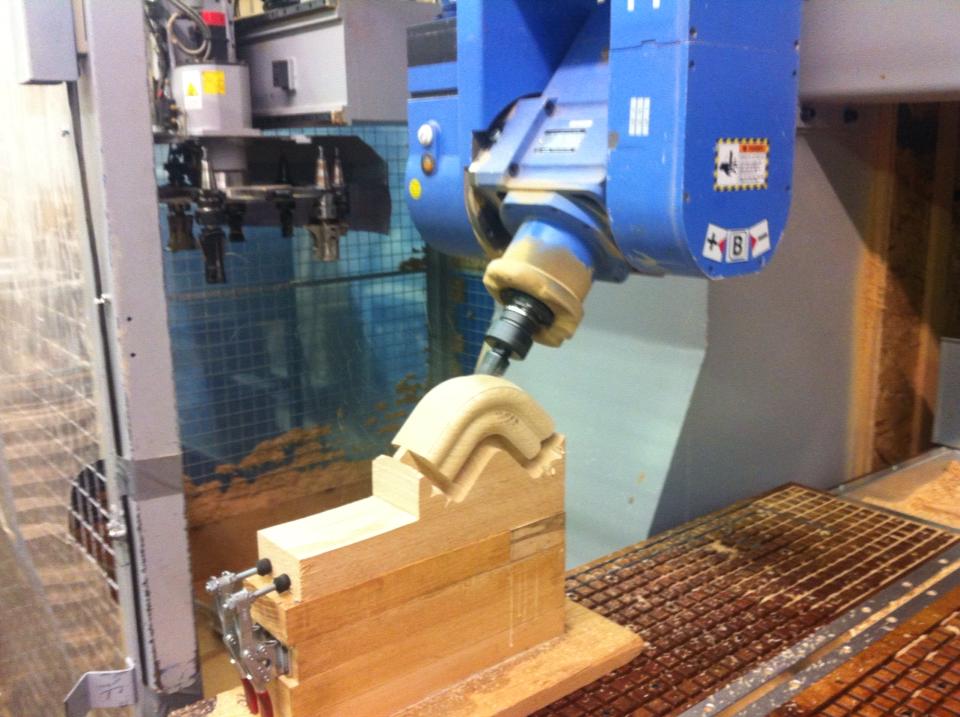

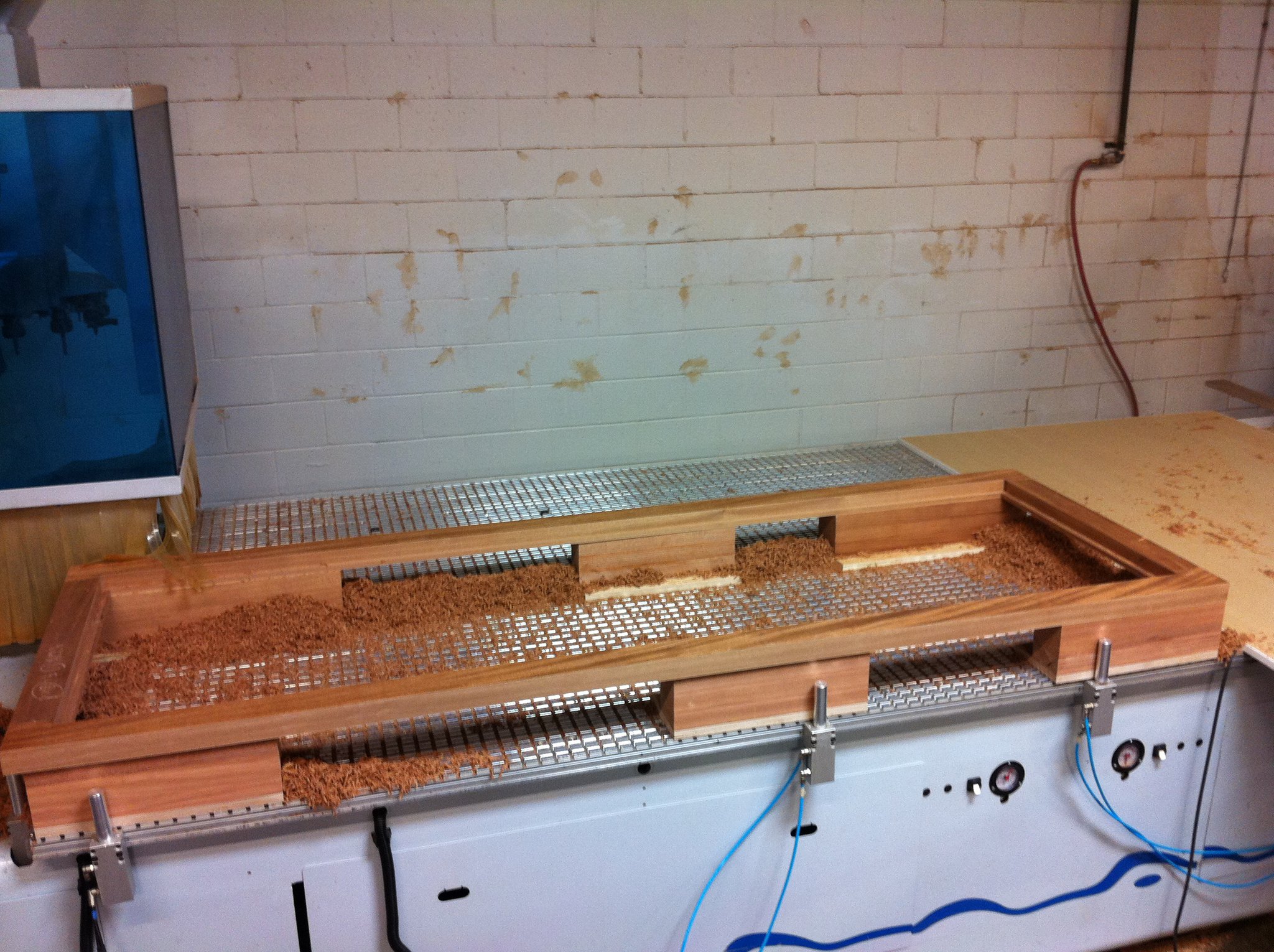

see attached image of the project and machine


View higher quality, full size image (960 X 717)


View higher quality, full size image (2048 X 1530)

5/25/16       #4: Cnc Advices ...
Mike

Anthony,
After market pods are available for most if not all nested routers equipped with a grid table, either aluminum or phenolic. After market pods aren't necessary if you don't mind building your own pressure fixture that elevates the material for horizontal work. I have made hundreds of custom fixture over the years out of scrap material. With the vacuum options available you will have no problem, just make sure you state your intentions when specifying the machine, new or used. Some basic, open plenum tables will not get you what you obviously need. An optional manifold to access vacuum may also be of interest to you. This makes angled or vertical fixture easier to plumb vacuum to.

5/26/16       #5: Cnc Advices ...
anthony Member

thank you for your responses Alex and Mike
i found couple of cnc that are are found locally in my country
1-scm patrix s18
2-busellato Easy Jet 6.12
3-format 4 profit h10
they all are 3 axis cnc
i would like to ask is 100mm Workpiece clearance enough ?
and are c axis the way to go if i want to make horizontal work for my doors ?
and does Electrospindle power make big diffrence for switching from melamine to hardwood?

sorry if my questions are dumm but i am new in this field and i am making sure to make the right decision
thank you again for your help

5/26/16       #6: Cnc Advices ...
Mike

If you want to do more than drilling horizontally, you will need a C axis to get a single output aggregate on more than a single face. If you have no C axis and a fixed torque arm positioning ring, you would need a duo or quad output aggregate to do multiple faces. A fixed position ring would have to be added to your 3 axis set up.

Solid wood cutting is typically done at lower rpm's than cutting melamine. Based on the power curve of many spindles, you will hit the maximum horsepower in the 11,000 to 14,000 range. After that, the horsepower falls off. If the machine has a minimum of 11 h.p., you should be ok cutting both hardwood and melamine at speeds you want to cut.

12/8/17       #7: Cnc Advices ...
Ag Member

Great advice
I would like to ask another question a flat table that big should have multiple working area ?? So u can cut off vacuuming on one side and work on a small area ?? Does it save energy ??
