Omnitech with Siemens Controllers (2004)

1/7/17
Agustus Member

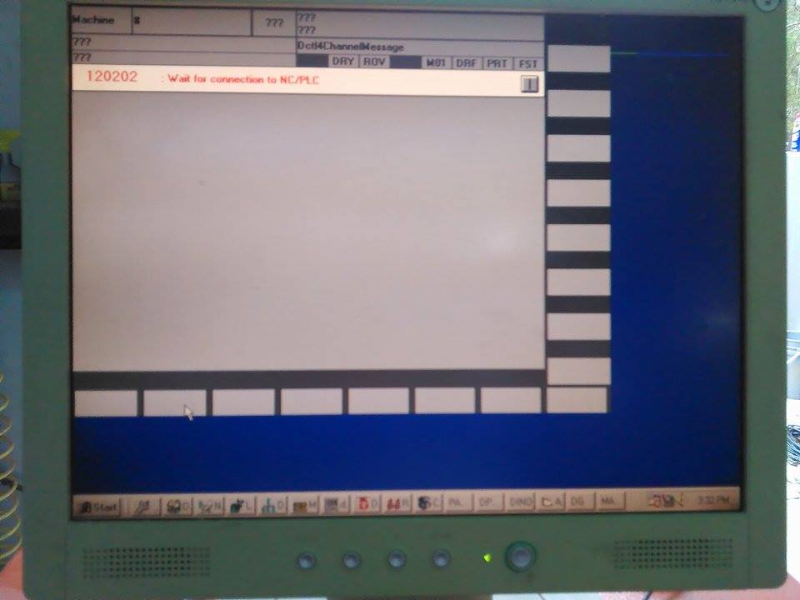

I trying to find someone who has a Anderson Omnitech with the Siemens 810d Controllers. I am in the process of relocating and recomission a 2004 Omnitech Selexx Pal and could use some assistance. I spoke with Gibson Tech but was referred to Siemens because they were unsure of how to direct me. I will be calling Siemens later next week but after reviewing their website I see I need a little more understanding of the CNC terminology. When I open the CNC program on the computer that connect to the CNC I am getting the following message:....................."120202 Wait for connection to NC/PLC
I have read other post related to this issue however I do not understand exactly where to find the backup file (if it exist )and how to restore it.If someone could tell me the probable file name or extension could attempt to locate it before I call Siemens . If someone knows how to read the diagnostic lights on the controller it would be helpful also.


View higher quality, full size image (800 X 600)


View higher quality, full size image (800 X 600)


View higher quality, full size image (720 X 960)

1/9/17       #2: Omnitech with Siemens Controllers ( ...
cabinetmaker

Call Jack @ Limtech he can send you in the right direction for help

1/9/17       #3: Omnitech with Siemens Controllers ( ...
Johann Huck  Member

Website: http://www.themachinewarehouse.com

Your PLC is not running and the software cannot talk to it. You have a system fault meaning it can't find one of the modules. More thank likely one of the cable connections is loose from the PLC to a remote station. You first need to fix it so you only have green lights on the Siemens PLC.

Johann Huck
The Machine Warehouse, LLC.
704-839-6615

1/19/17       #4: Omnitech with Siemens Controllers ( ...
Agustus

I went through and check all the cables and connectors I could find, but still no luck. I put in a call to Jack @ Limtech and I'm hoping he can steer me in the right direction. Thanks for you input.

12/22/18       #5: Omnitech with Siemens Controllers ( ...
Agustus Member

Apparently, the battery in the controller died and the parameters were lost. Replaced the battery then a Clearing & Re-loading of NC & PLC solved the problem.

10/19/22       #7: Omnitech with Siemens Controllers ( ...
Gus

Website: http://www.gecabinets.net

Can you provide an image of the control you replaced the battery on? I recently installed a 2003 Selexx pal and encounter the same problem.
