Making A 53" Raised Panel Radius For An Island
Listing #2306   Listed on: 09/21/2009

This is the first time that I've ever done this, and I am pretty sure that I am fumbling it up. I am concerned that Titebond2 wont be strong enough and that my jigs may be a little off. There are some things that I would do differently, but overall I am pleased with the end result. When all is said and done after finishing and installation the radius turned out great.

View Larger, Higher Quality Image

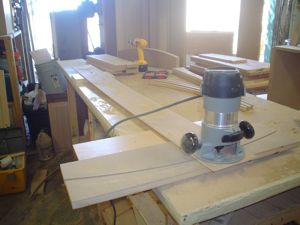

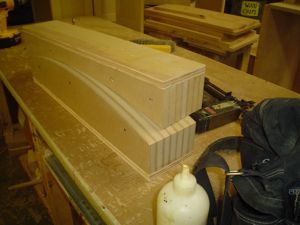

This is the router jig I used to cut out the 3/4" MDF parts for my jigs.


View Larger, Higher Quality Image

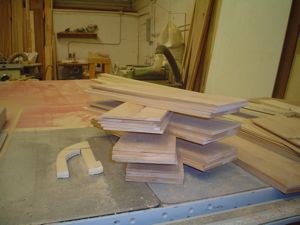

I have my jigs glued and screwed. Now I need to cut out my slats for clamping.


View Larger, Higher Quality Image
I have eight 5" rails to cut out for my four panels. They are ripped from 13/16" and sanded to 3/16".


View Larger, Higher Quality Image

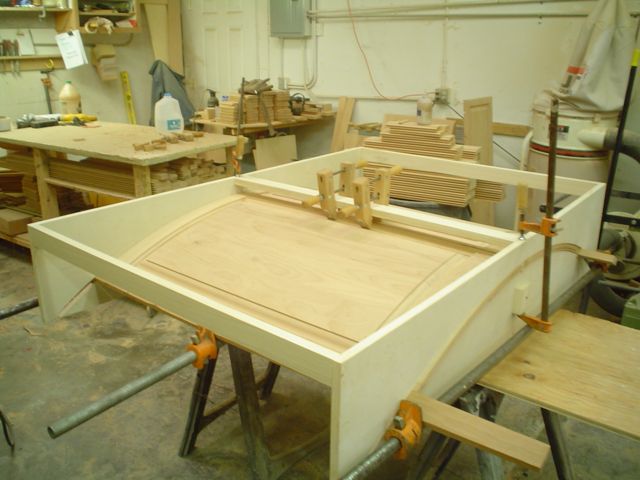

Here''''''''s one of the panels in the clamping jig. I used packing wrap to keep the parts from sticking to the jig. It worked great!


View Larger, Higher Quality Image

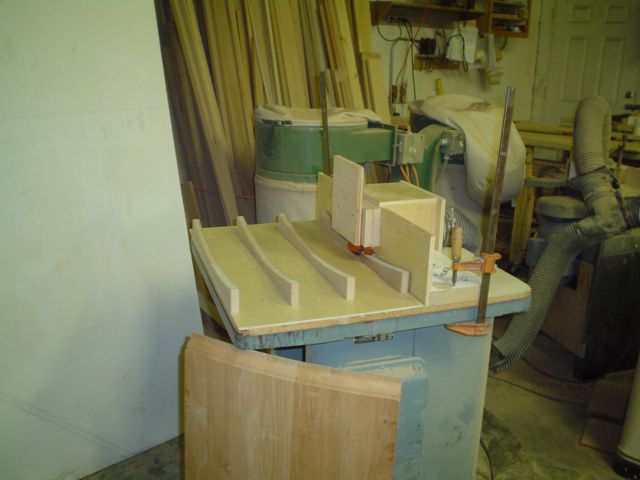

I made this jig to slide the raised panels over the shaper knife.


View Larger, Higher Quality Image
All ready for sanding.


View Larger, Higher Quality Image
I made these 5" biscuits to help strengthen the joint where the panels go together.


View Larger, Higher Quality Image

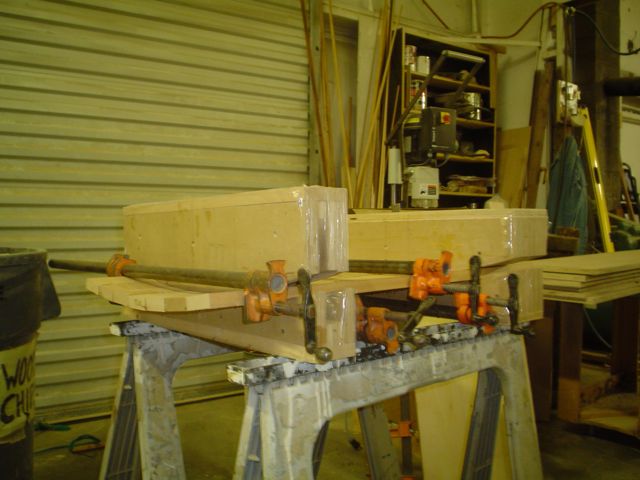

I''''''''m not totally satisfied with the clamping process here, but it got the job done.


View Larger, Higher Quality Image

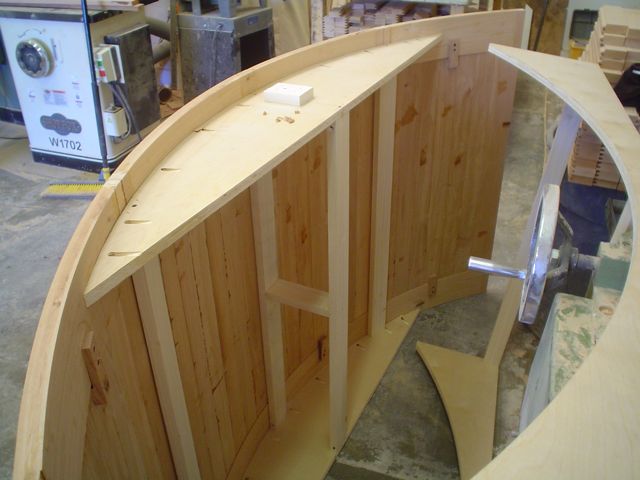

You can see the boning on the back. I used this during the panel clamping process and screwed it to all the panels to keep it rigid in transport.


View Larger, Higher Quality Image

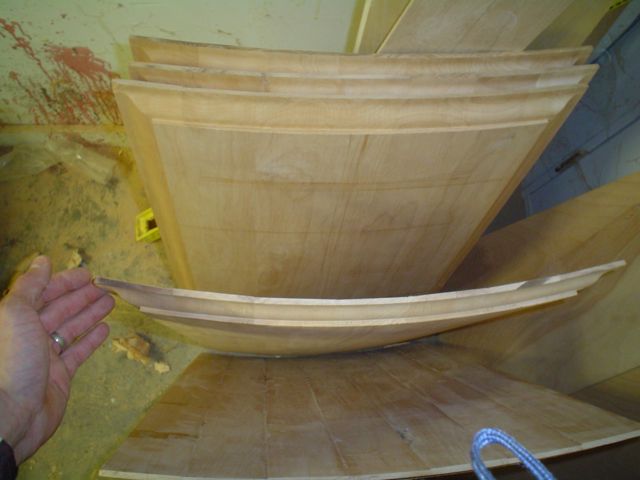

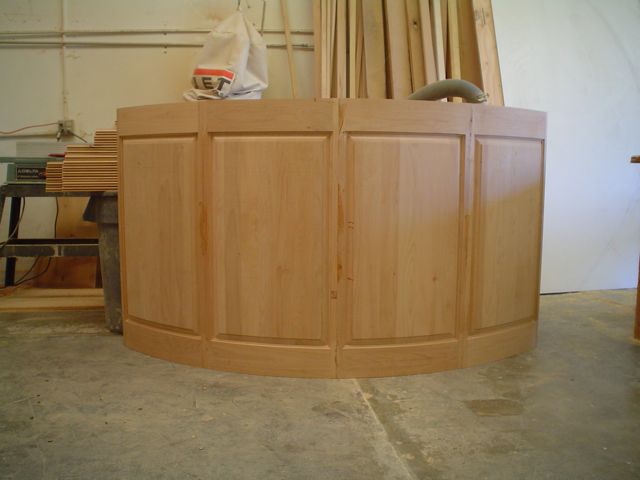

Ta Da! I''''ll try to get some photos after it goes to our finishing dept.


View Larger, Higher Quality Image

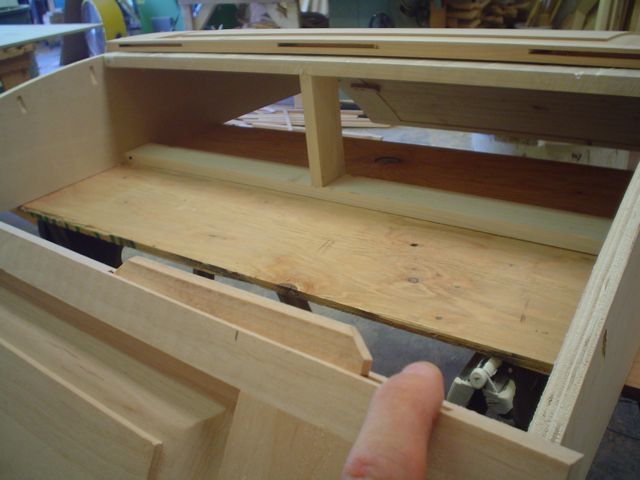

Unfinshed and with the two extensions on the radius, here you can see ruffly how the island is going to fit together.


View Larger, Higher Quality Image

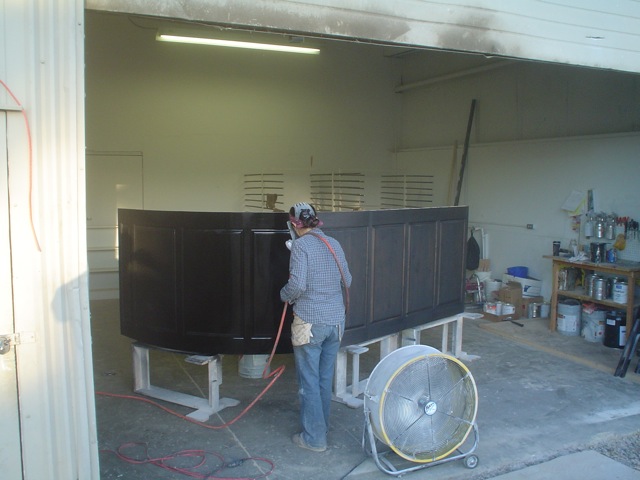

My sister-in-law (wonder-woman) runs the finishing department at the shop. Here she is applying the tinted sealer after the radius back has been stained black. After sealing, she will distress and apply a top coat.


View Larger, Higher Quality Image

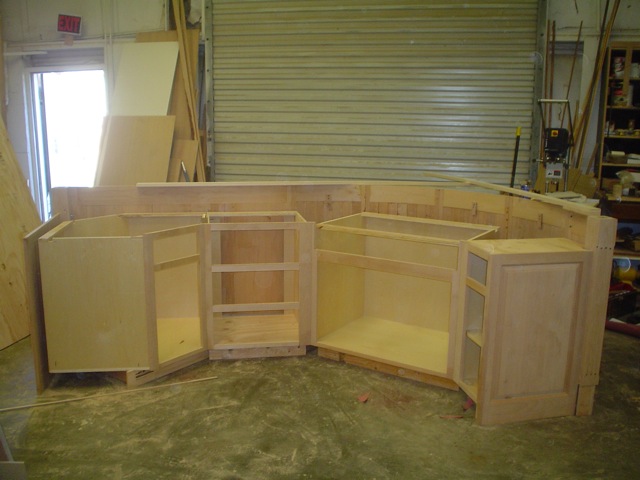

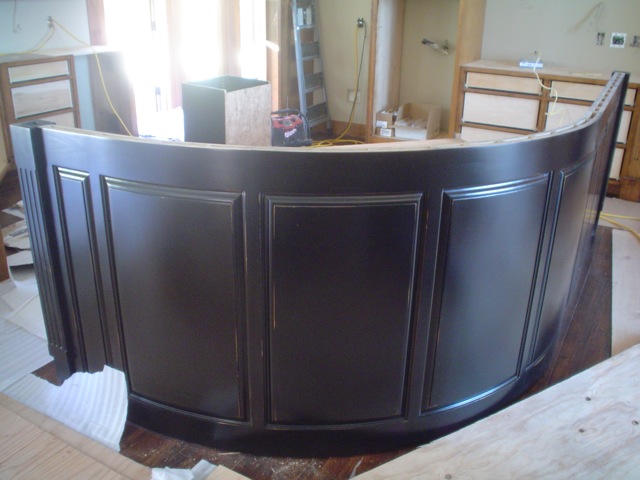

On the job site and ready to be screwed to the floor. Finally out of my hands...
