Curved Bamboo Island

Listing #4195   Listed on: 08/24/2013

Company Name: David Thiessen Woodworker, LLC

Contact Name:   David Thiessen

Click to View Member Profile Member Photo Member Contact Info Forum Posts Shop Gallery Project Gallery Categories
My assistants and I recently had an opportunity to do a curved front island. The architect specified a curved counter top. The builder and homeowner could not imagine that the island could be curved as well. They thought we would make the front with some flat panels angled around the front. I decided to make the front curved and surprise them. They were pleasantly surprised upon installation! What follows is the process for laminating and veneering a curved front island. I post this out of appreciation for those who have posted before me and how much I have learned from their postings. We learn a lot from one another. Cheers!

View Larger, Higher Quality Image

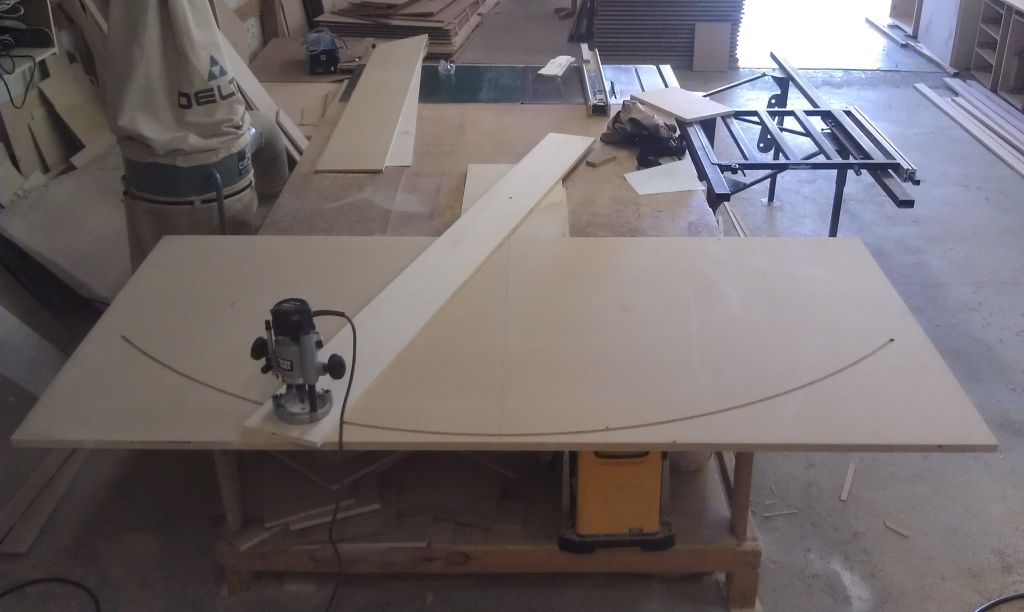

First we used a router compass to cut a perfect radius for the form pieces.

View Larger, Higher Quality Image
After the form was built we laminated a sandwich of veneer, bending ply, veneer, bending ply, and veneer in the vacuum bag outside the form.

View Larger, Higher Quality Image

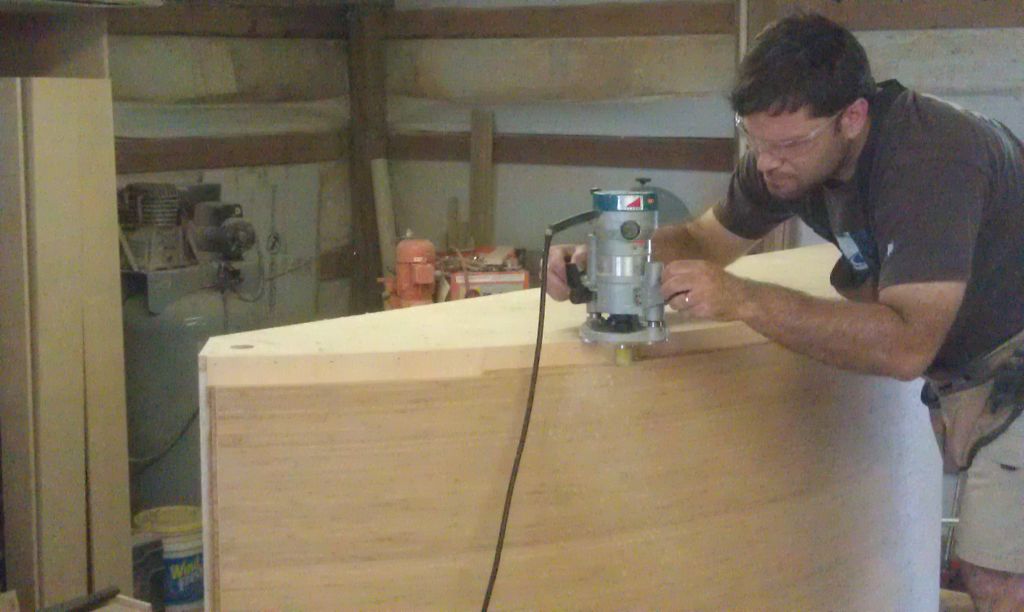

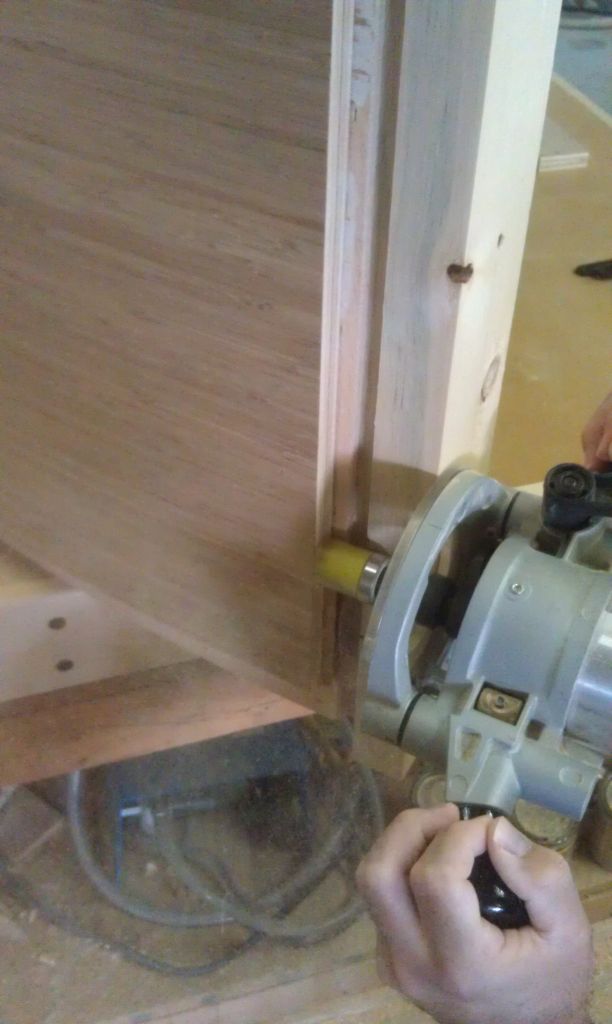

We use the form itself and a pattern bit in the router to trim and square up the panel.

View Larger, Higher Quality Image
Also the ends.

View Larger, Higher Quality Image

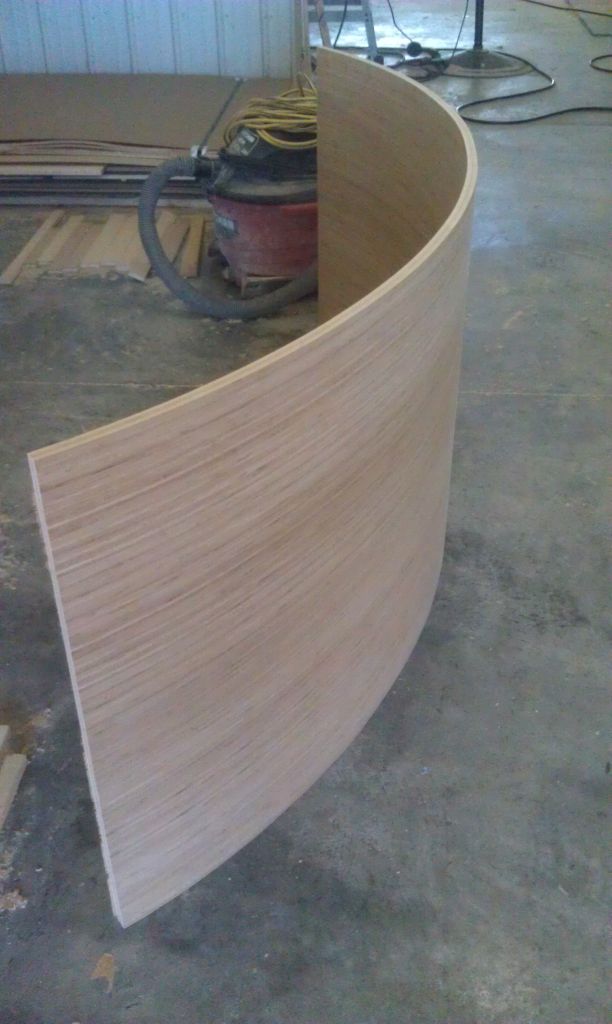

Now we have a stable, square core.

View Larger, Higher Quality Image

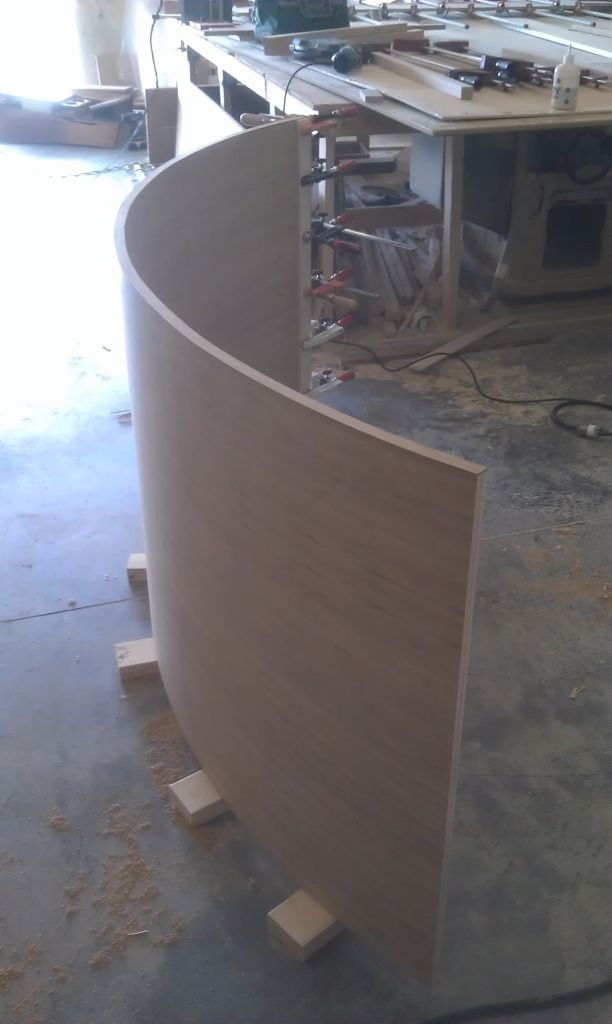

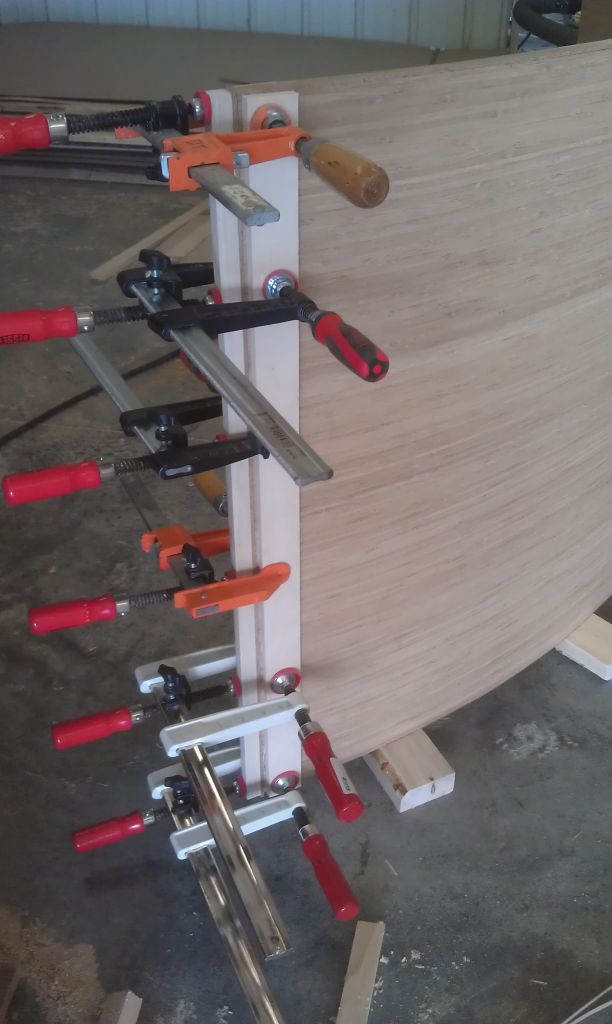

Next we glue and clamp on 1/8

View Larger, Higher Quality Image
After the edging is on we flush it and put the face veneers on running perpendicular to the ones on the core, and put them in the vacuum bag and over the form again.

View Larger, Higher Quality Image

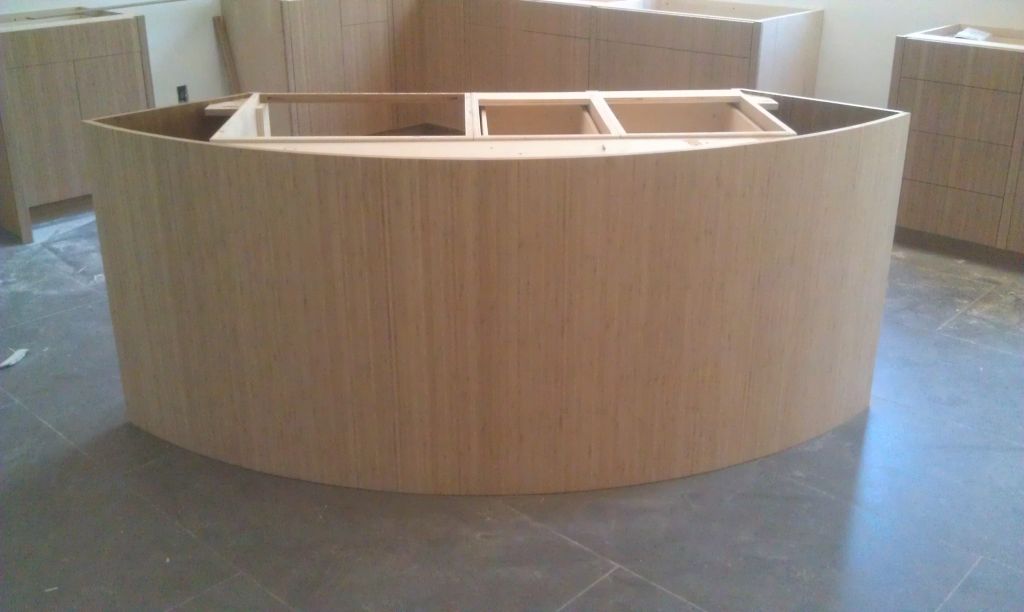

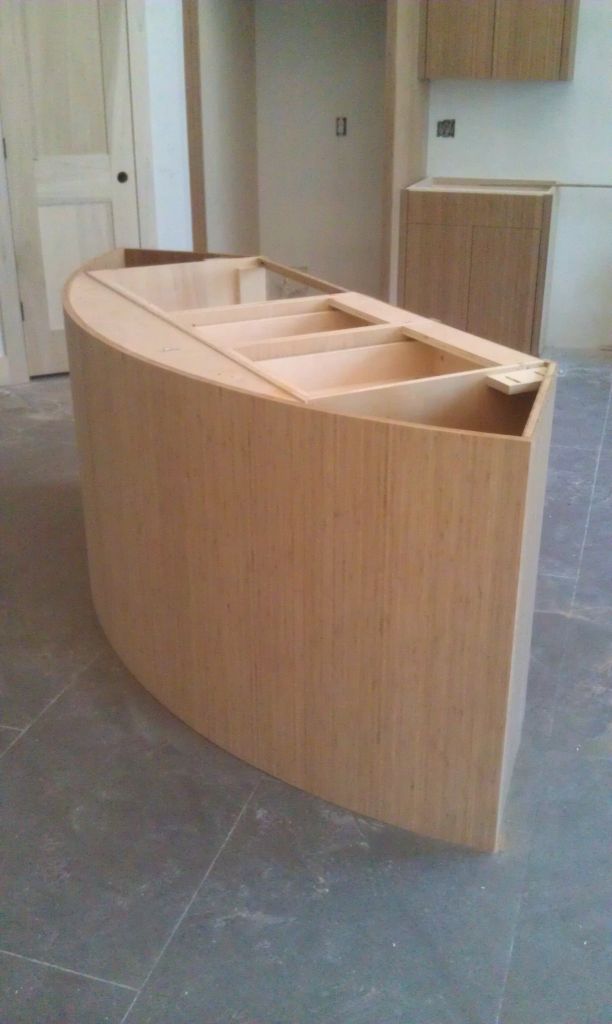

Here is the panel attached to the cabinet to create the island.

View Larger, Higher Quality Image

View Larger, Higher Quality Image

View Larger, Higher Quality Image

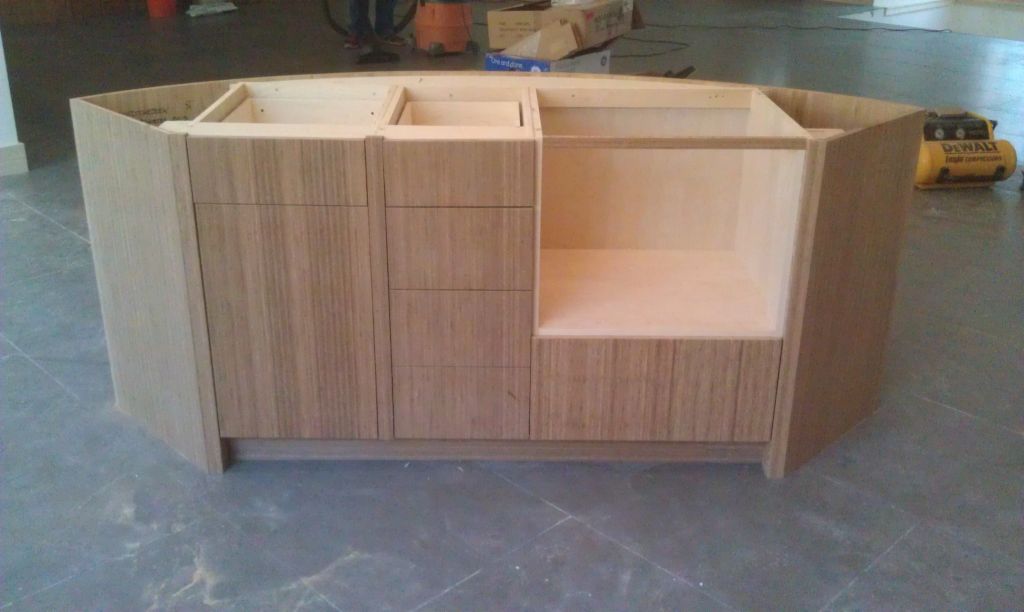

Working side.

Viewer Comments:

Posted By: Brian     [08/31/2013]
Perfect job and appreciate the photographs and timeline. Very clean look.
Thanks for taking the time to post.

Posted By: David     [09/07/2013]
Thanks Brian

Posted By: Ronald Naumann     [09/16/2013]
Love this idea (curved) and a great job. Might try something like this in my own kitchen.

Posted By: Linda     [09/18/2013]
Great job!!

Posted By: ness     [09/19/2013]
Nice job. Can I use your post as an example on my cabinet software website? I would like to show how to design a bowed back like this and don't have any real life examples.

Posted By: David     [09/20/2013]
Thank you all for your kind remarks and for checking out this posting!

Posted By: roger watson     [09/22/2013]
very nice, not the easiest way to do it but probably the best. nice to able to do things right

Posted By: Bob     [10/05/2013]
Looks very contemporary with nice clean lines. Well done. What's the reason for using the vacuum bag outside of the form as to using the form inside the bag. Wouldn't using it inside the bag yield better results by limiting clamping?

Posted By: David     [10/06/2013]
Good question Bob. The reason for using the bag out side the form is that the form is a little too tall to get into the bag easily. The clamps are only used during the initial evacuation of air from the bag. Once it is under vacuum the clamps can come off and the panel can be taken off the form and set aside to dry. I do try to use the form inside the bag when I can but outside the form works just as well and allows for the pressing of very large panels.

Posted By: David     [10/06/2013]
You can see the completed island and cabinets in my posting on 9/7/13.

Posted By: Jalvis     [10/12/2013]
Thank you for your article.

What was your reason for routing the panel square? My first thought would be the panel saw.

Posted By: David     [10/13/2013]
Jalvis, thanks for checking out the post. I do smaller curved panels on the saw using a simple positioning system for them. This panel was almost 8' along its length and would have required a special form or jig to trim the ends at the correct angle. It was seemed faster to use the original form which I took care to build square as a guide for my router. Perhaps there is an easier way.
