Attaching a Tabletop with a Wide Overhang
As an alternative to support brackets, pros suggest a stiff plywood subtop. April 4, 2011

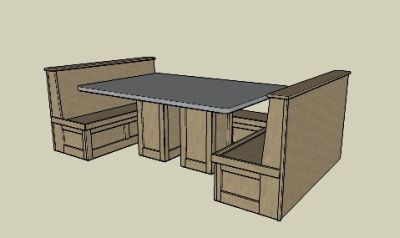

I am installing a 1 1/2" thick laminated tabletop that will have a 14" - 15" overhang. Do I need supports for the overhang? I was planning to use 90 degree angle brackets dadoed in the bases to attach the top. The bases will be attached to the floor.

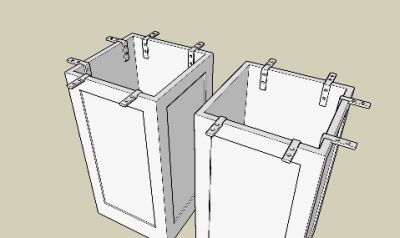

Here are the angle brackets.
(Cabinet and Millwork Installation Forum)
From contributor K:
Anything beyond 12", yes.
From contributor J:

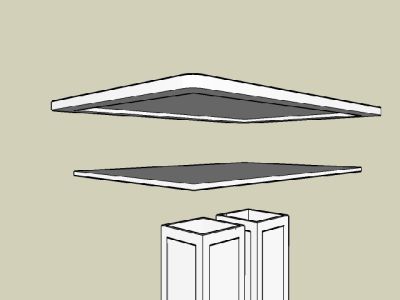

Instead of the brackets, add a sub top which is 3/4" thick. Screw it down to the base and attach top from underneath. Spreads the weight and attaches it all together.
From the original questioner:
Would I still need supports for the overhang?
From contributor J:
Nope. We install pass-throughs and lots of tops this way.
From contributor M:
I agree with contributor J: no brackets needed. But I would use some good stiff plywood such as Baltic birch for the subtop.
From contributor P:
If you plan on going with more than a 16" overhang, you would need some additional supports. As it's only 14-15", it is fine. Other post right on with sub top.
