ADA guideline standards

11/23/15
Mike

Does anyone have a link that I may view the cabinetry ADA standards.. For items such as, but not limited to:

Counter heights inside and out
Desk heights
Bathroom door openings to a bathroom or stall, etc

Thx

11/23/15       #2: ADA guideline standards ...
Alan F.

That's not a simple answer; its not broken out by casework but type of access.

it depends on
1) where you are

a) if you are in California its different

and every city /county is different

depending on version of the state

code they have enacted.

2) what version of the code is enacted locally

http://www.ada.gov/ta-pubs-pg2.htm

11/23/15       #3: ADA guideline standards ...
Mike

Thx alan.

Im in chicagoland. Im trying to help out a hair salon friend who just had her franchise store remodeled and I'm concerned the spacing and countertop heights inside and out don't meet ADA.

From what i remember....

Counters need to be 34" and desk counters need to be 28

Additionally, openings and walk ways need to be a min of 36"

11/23/15       #4: ADA guideline standards ...
Alan F.

34" max for reception and all other counters, that's the top of the sink rim from the LOW spot in the floor.

27" min clearance at the desk, 29" in the restroom or any single purpose sink. 27" min at a multipurpose sink (easier to do 29" everywhere.) It all subject to local interpretation.

11/23/15       #5: ADA guideline standards ...
Mike

Thx Alan. The 27" is free and clear space, right?

Situation....a friend is a franchise owner of a major hair salon here in the chicago market...

The area the girls stand behind has a wall behind it and without measurung, im guessing there MIGHT be 36" of free walking space, but are there any general rules about that?

Also, the counter where people pay, im not so certain it's 29". I think it may be a bit higher. What is the min/max from finished floor to top of or underside of check out counter?

Thx

11/23/15       #6: ADA guideline standards ...
Larry

Like Alan said, it varies by jurisdiction. We ship nationwide and have had problems with what passes, where. In a job we did in Washington state they only had 34" going into the service counter area but it opened up to more than 36" 2' into the space. It was an architectural screw-up. Unforeseen obstacles in a remodel. We cut the wall so that there was only 6" that was narrower than 36" and they agreed to pass it. There was a steam pipe in the wall. In restrooms here: 36" door, 34" clear, a clear 60" circle inside, grab bars by local code.

11/23/15       #7: ADA guideline standards ...
Bruce H

In Oregon reception counter heights can be gotten around if the receptionist will hand the customer a clip board with whatever is needed to be fill out.

11/23/15       #8: ADA guideline standards ...
Pat Gilbert

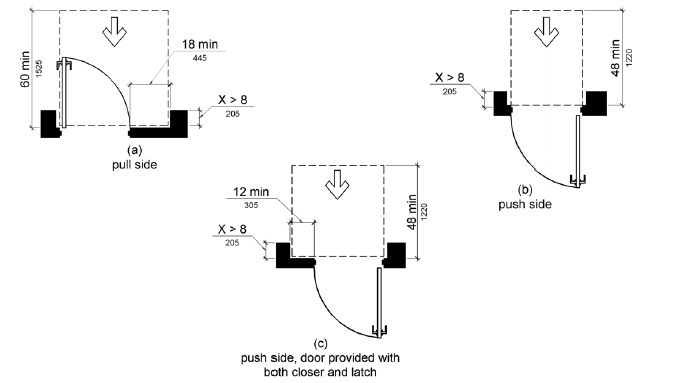

Don't forget about the 18" space to pull a door open.


View higher quality, full size image (428 X 349)


View higher quality, full size image (674 X 383)

11/24/15       #9: ADA guideline standards ...
Mike

Thx so far everyone.

Pat or anyone...imagine this...the gal checking someone out walks into a space that is basically surrounded on 3 walls.

So my concerns are

1. Does there need to be enough room for the wheel chair to be able to fully turn around and or if so, whats the minimum amount of space required?

2. Does that drawing apply to reception counters both interior and exterior?

Thx!

11/24/15       #10: ADA guideline standards ...
Larry

The clip board trick will not work in most jurisdictions! Yes the space requirement applies to both front and back of sales counters in most new work, in most locations. That means the clerk must have a 60" circle clear to rotate her wheel chair. Like said earlier, each location can vary the requirements, check ahead of time.

11/24/15       #11: ADA guideline standards ...
Mike

Thx larry. So my next question to solve all of these mysteries in my Chicagoland market would be to ask how I can obtain this info for my area?

11/24/15       #12: ADA guideline standards ...
Alan F.

Start with Illinois, I imagine the City of Chicago has its own rules. Also find a set of plans from a major architect, they usually have two -3 pages on local ADA in the plans

start here
