Can't find out the name of this hardware for shelves

4/8/15
Mike Member

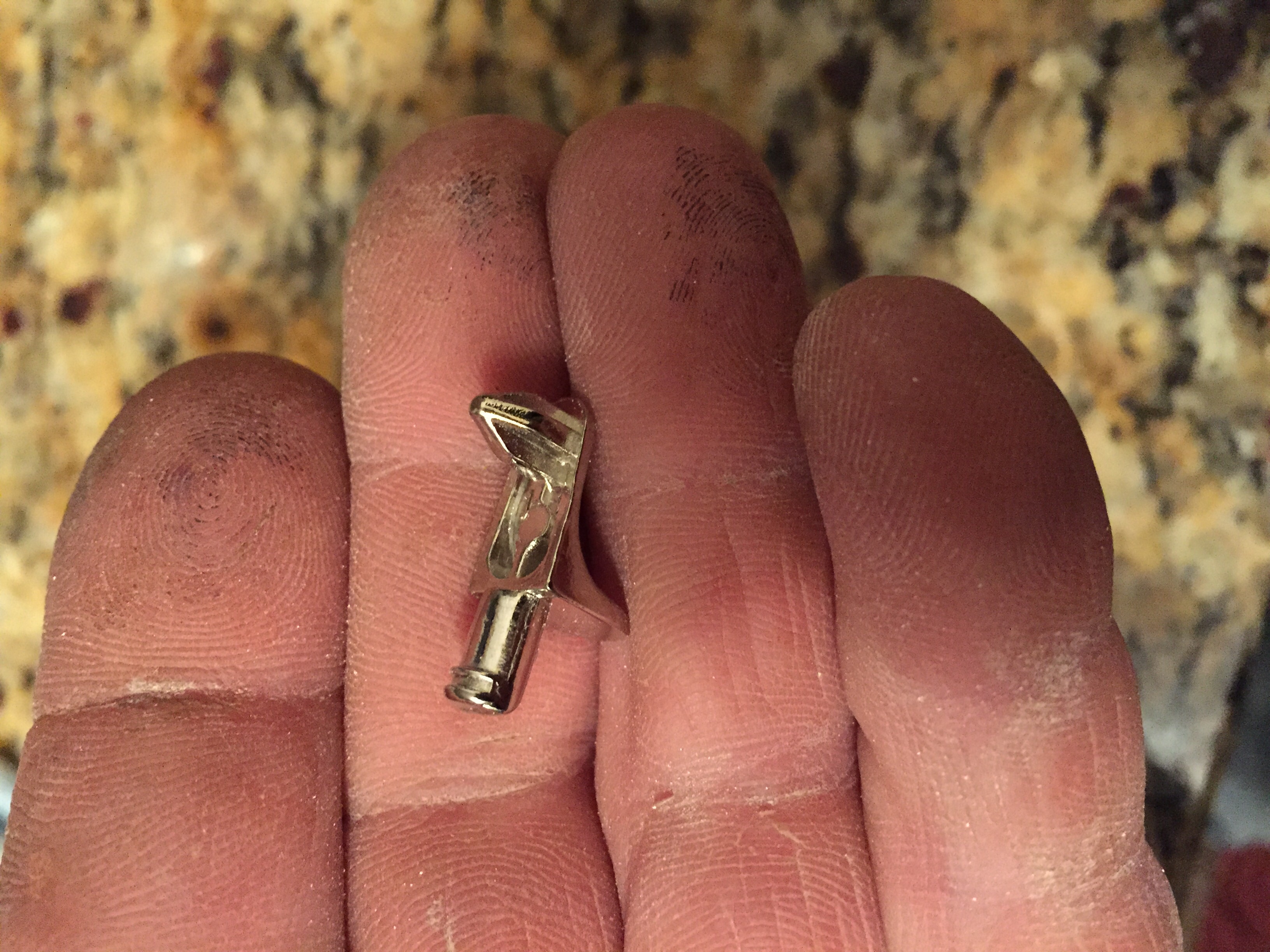

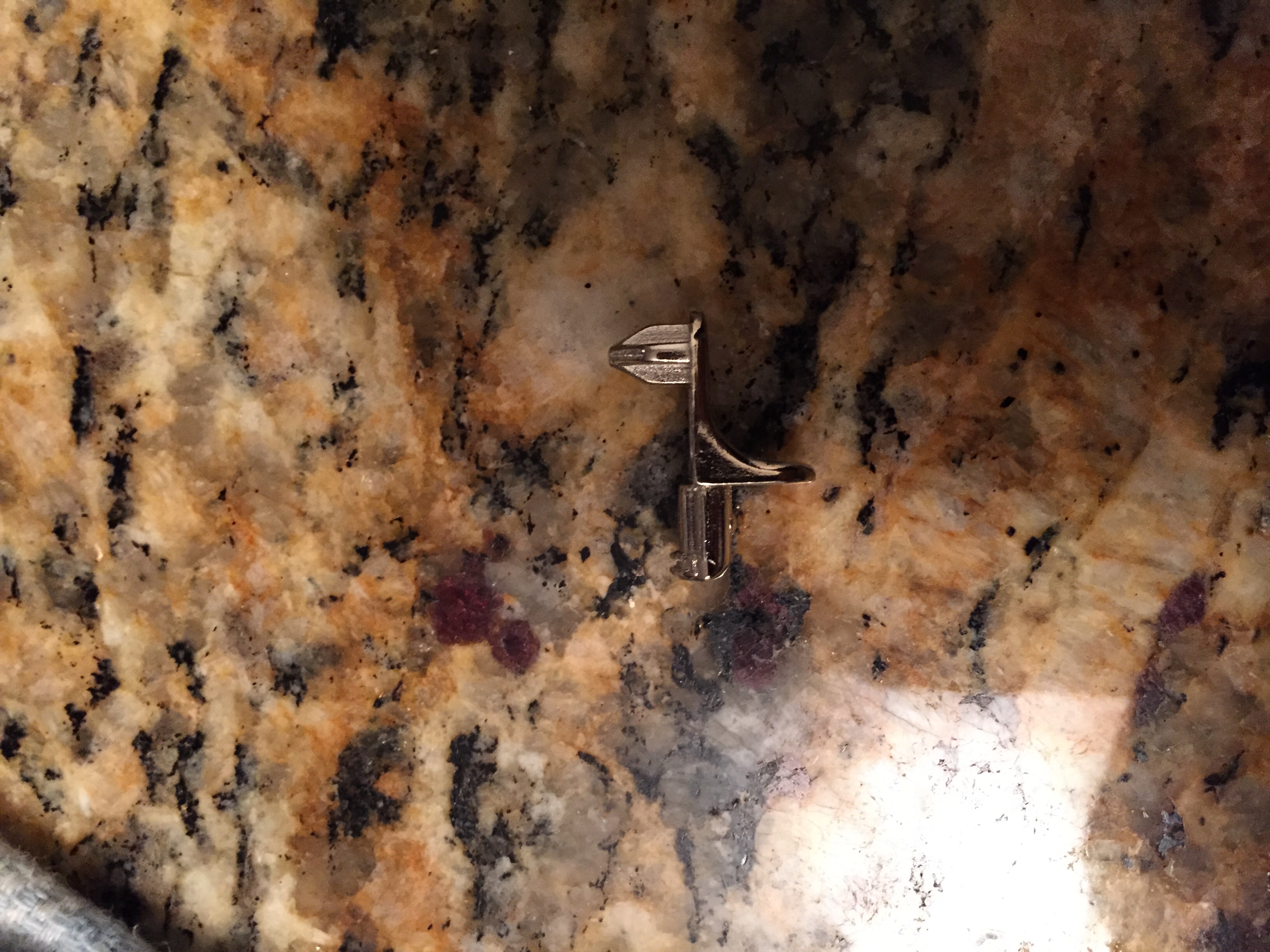

I can't find out where to buy this "shelf pin". A major closet company i use to work for calls it Pin In Place shelves. It goes into a std normal 5mm hole and then the cnc drills a hole in the bottom of the shelf for the pointed part of this pin to lock onto.

Has anyone seen, have a name and a source?


View higher quality, full size image (3264 X 2448)


View higher quality, full size image (3264 X 2448)

4/8/15       #2: Can't find out the name of this har ...
Rich Kuban  Member

Website: closetexperts.com

Hafele item

Item

4/8/15       #3: Can't find out the name of this har ...
Mike Member

Awesome! Thx rich!

For someone who doesn't have a CNC, how difficult do you think making an accurate jig to use them on a 32mm system?

4/8/15       #4: Can't find out the name of this har ...
Alan F.

Ther shouldn't be an issue to jig this up, we use it all the time but with CNC

Hafele 282.24.720 Shelf support

4/8/15       #5: Can't find out the name of this har ...
Bernie

Out of curiosity, how snug does that fit into the hole in the side panel?

At times we have situations where we want a shelf to be 'semi' fixed, but that customer could adjust if needed. I'm wondering if these might suit that need

4/8/15       #6: Can't find out the name of this har ...
Mike Member

If drilled properly, they're very snug but easy to lift off the pin. I loved them

4/8/15       #7: Can't find out the name of this har ...
Alan F.

We use them in a retail fixture, hundreds of employees are able to move and adjust shelves without issue. They get reset about every 3-6 weeks. Its a two sided fixture so it keeps the shelf from going anywhere when customers pick up / put back merchandise.

4/15/15       #8: Can't find out the name of this har ...
antonio

any of you guys know the hafele part # for this? or the name that hafele has for it? This looks like exactly what we need. For years we have been using the standard 5mm shelf pins, the clear plastic ones with the metal dowel ,, but they dont seem to ever fit snug enough and if the shelf isnt cut EXACTLY to the right size, it seems to allow enough play where the shelf could just kind of fall :(

4/15/15       #9: Can't find out the name of this har ...
Mike

Look at the links others provided

4/15/15       #10: Can't find out the name of this har ...
antonio

totally overlooked that, thanks!
