dark color euro hinge 1-1/4 thk door3/10
Looking for a euro hinge in a darker color like Salice's Titanium that will give me 1/2" overlay on a 1-1/4" thick door.

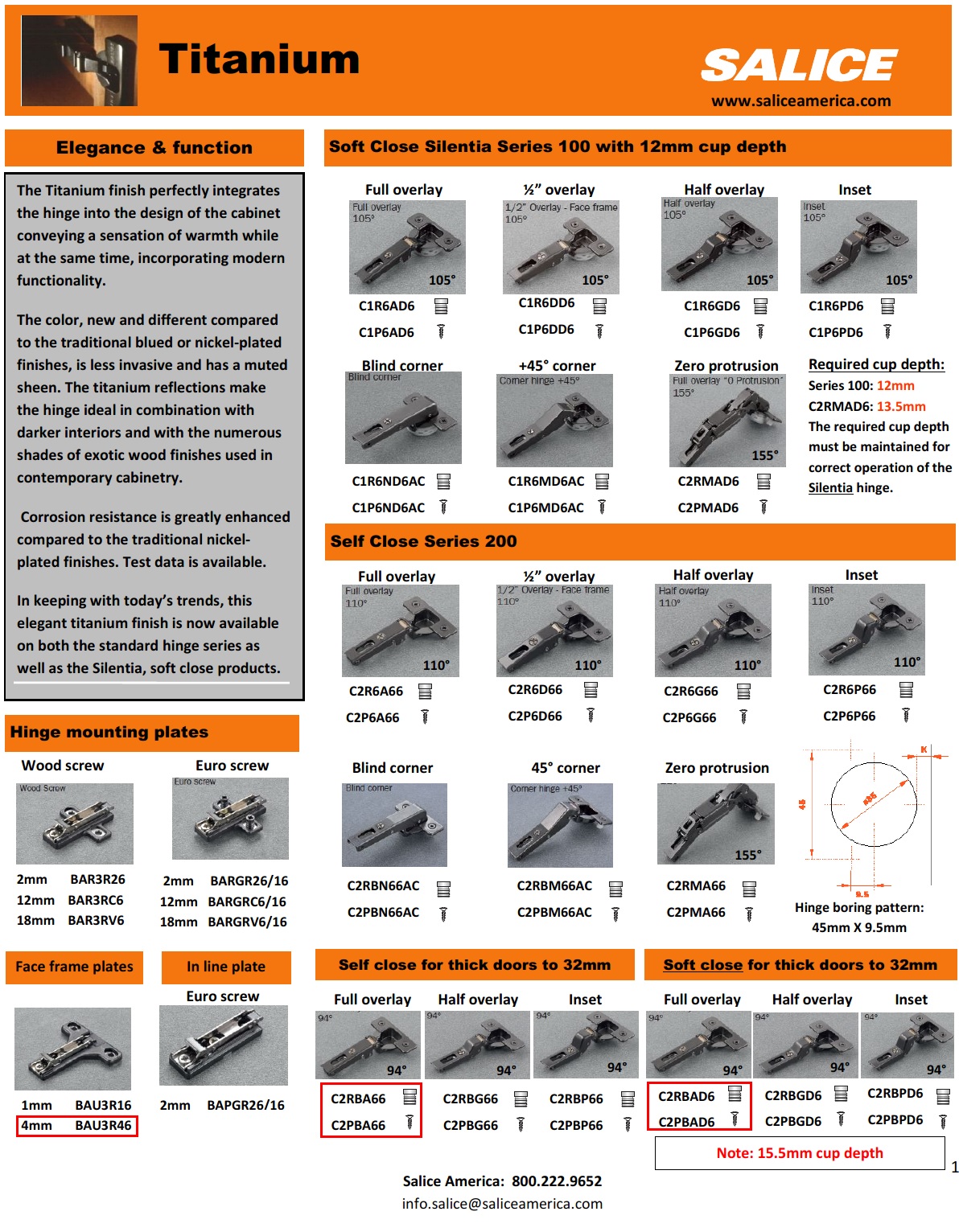

You can use the combination of hinge and mounting plate highlighted on the attached product bulletin. If you drill your doors with a 4mm tab distance, this combination will give a 9/16” overlay. You can easily adjust down to a ½” overlay.
This hinge is suitable for door thickness up to 1-1/4”. A 3mm gap is possible, if desired between doors as well.
Best of luck,
