Lamello Releases New Connector for Lightweight panels

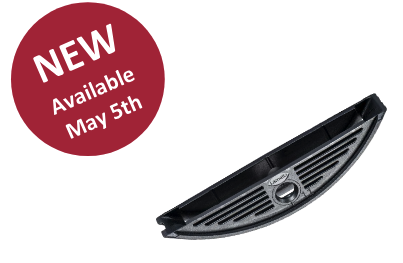

LAMELLOS NEWEST CONNECTOR: LC P-16 Joining system for lightweight panels without the need for concealed solid edges
Whether for furniture, store fixtures or vehicle interiors lightweight construction enables flexible, resilient and sustainable solutions. It opens up new design possibilities and promotes efficient, future-oriented construction.
Lamello is expanding its product range with a ground-breaking solution for lightweight construction: The new LC P-16 enables strong, detachable connections without concealed solid edging and combines efficiency with aesthetics. With the LC P-16, Lamello sets new standards in joining technology for lightweight construction materials.
P-System connection for lightweight materials and speedy installation
The LC P-16 combines the advantages of lightweight construction with efficient Clamex technology. Due to its width, the LC P-16 is anchored in the surface layers and acts as an adapter where a Clamex P-14 connector can be inserted. The LC P-16 thus enables extremely strong, detachable connections in lightweight construction without the time-consuming use of concealing solid wood edges or adhesives.
Optimization of the manufacturing process thanks to easy assembly
The LC P-16 lightweight connector significantly improves the machining and assembly process. The time- consuming use of a concealed solid edge is eliminated, which speeds up the production process and also saves material. The connector is simply slid into place - which completely eliminates waiting times due to gluing. The result is a fast, smooth process that reduces time and costs in both manufacturing and assembly without compromising on aesthetics, stability and quality.
Perfect compatibility with the Clamex P family
The LC P-16 provides strong anchorage for the Clamex P-14 connector halves in the edges of the lightweight panel. The Clamex P-10 connector half can be inserted directly into the surface. Alternatively, the Clamex P-14 Flexus or Clamex P-14 CNC connectors can also be used. The Clamex P-10 connector half is best suited for the surface. If the surface layer is more than 4 mm thick, the Clamex P-14 connector half with its offset profile is also an excellent choice
Three product sizes for maximum flexibility
Lamello offers the LC P-16 in three sizes: LC P-16 Χ 11, LC P-16 Χ 17 and LC P-16 Χ 22. These variants enable precise joints for the most common lightweight panels. Machining is carried out either with the Zeta P2 or with a CNC router. The LC P-16 configurator determines the right product size and milling positions for each application.
Applications: For lightweight construction materials made of cardboard or plastic honeycomb, wood fiber or hard foam (e.g. XPS) with surface layers made of wood composites (e.g. MDF, HDF, chipboard, HPL) For light chipboard with a weak middle layer with additional fastening using glue channels For floating shelves In furniture-making for wide shelves with a span of more than 3 due to the high rigidity In exhibit construction or store fixtures to reduce transport weight, ideal for flat-pack furniture RV and boat/yacht interiors Butt joints with a minimum material thickness of 12 mm Surface connections with a minimum material thickness of 16 mm With the LC P-16, Lamello sets new standards in lightweight construction technology for aesthetic, strong and efficient joints that meet the highest demands. Starting May 5, 2025, the new connector will be available from all authorized distribution partners.
