Stock Number: 104285

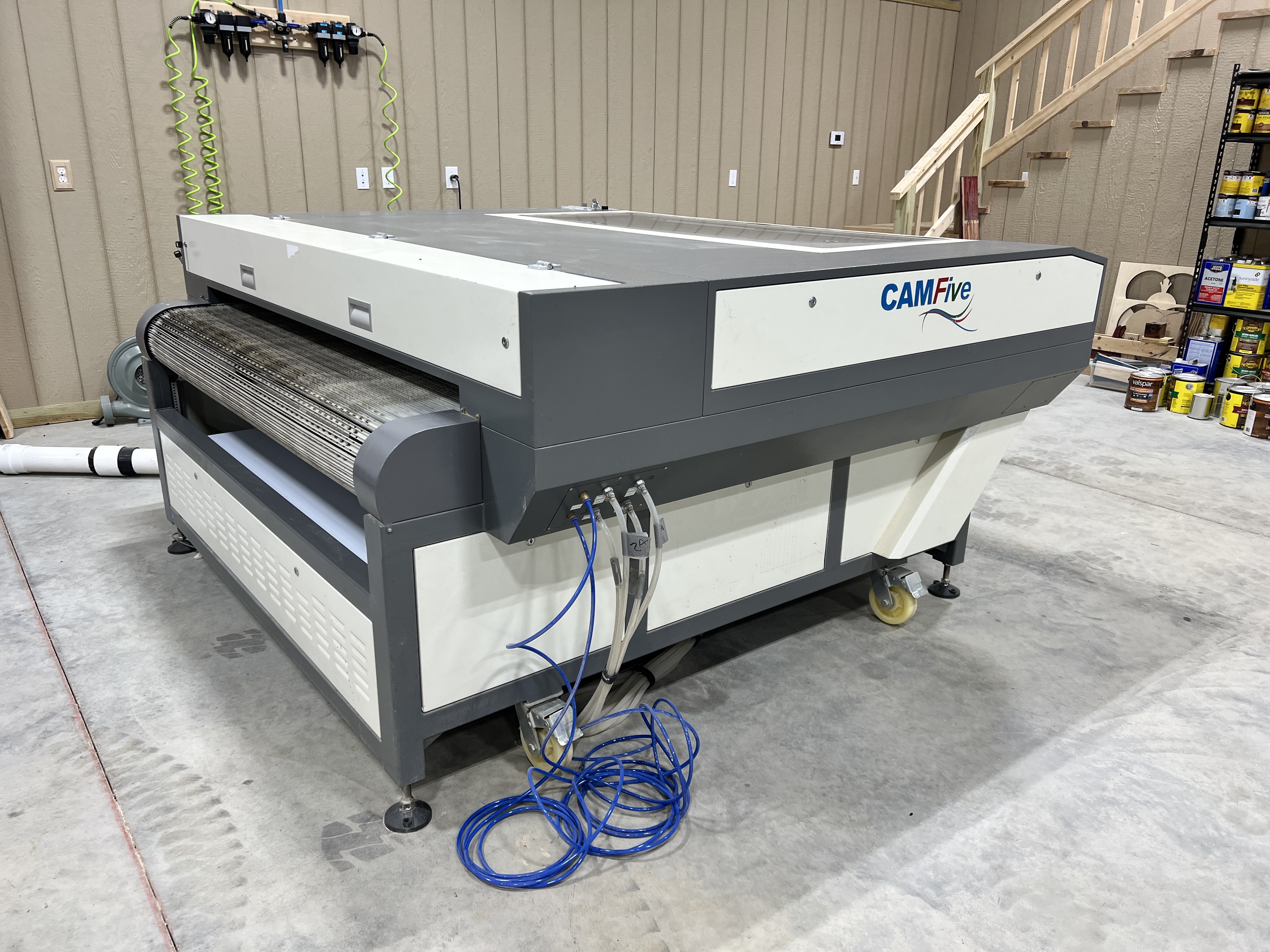

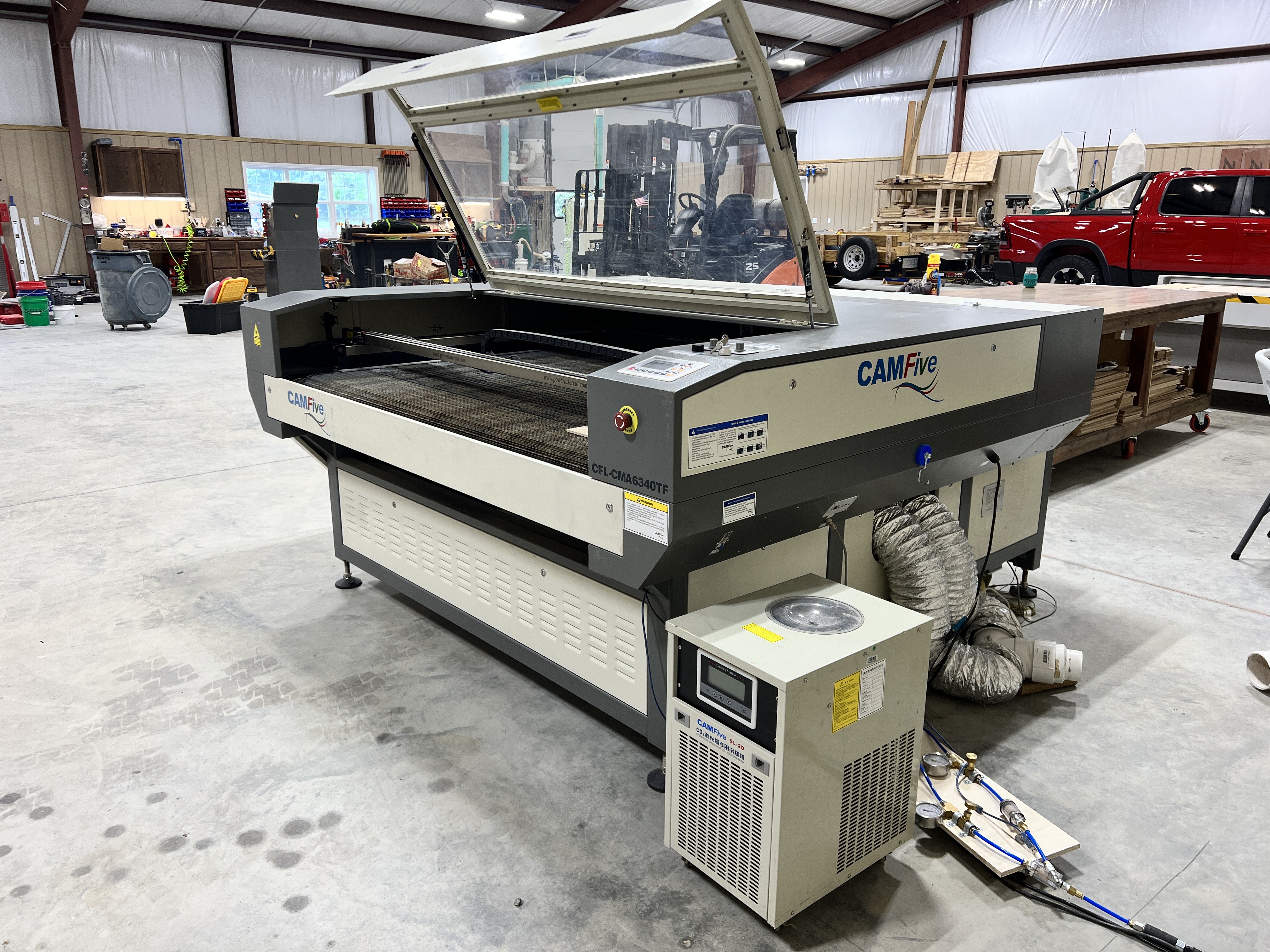

CAMfive Model CMA6340TF Automatic CO2 Laser Cutter
Condition: As Is

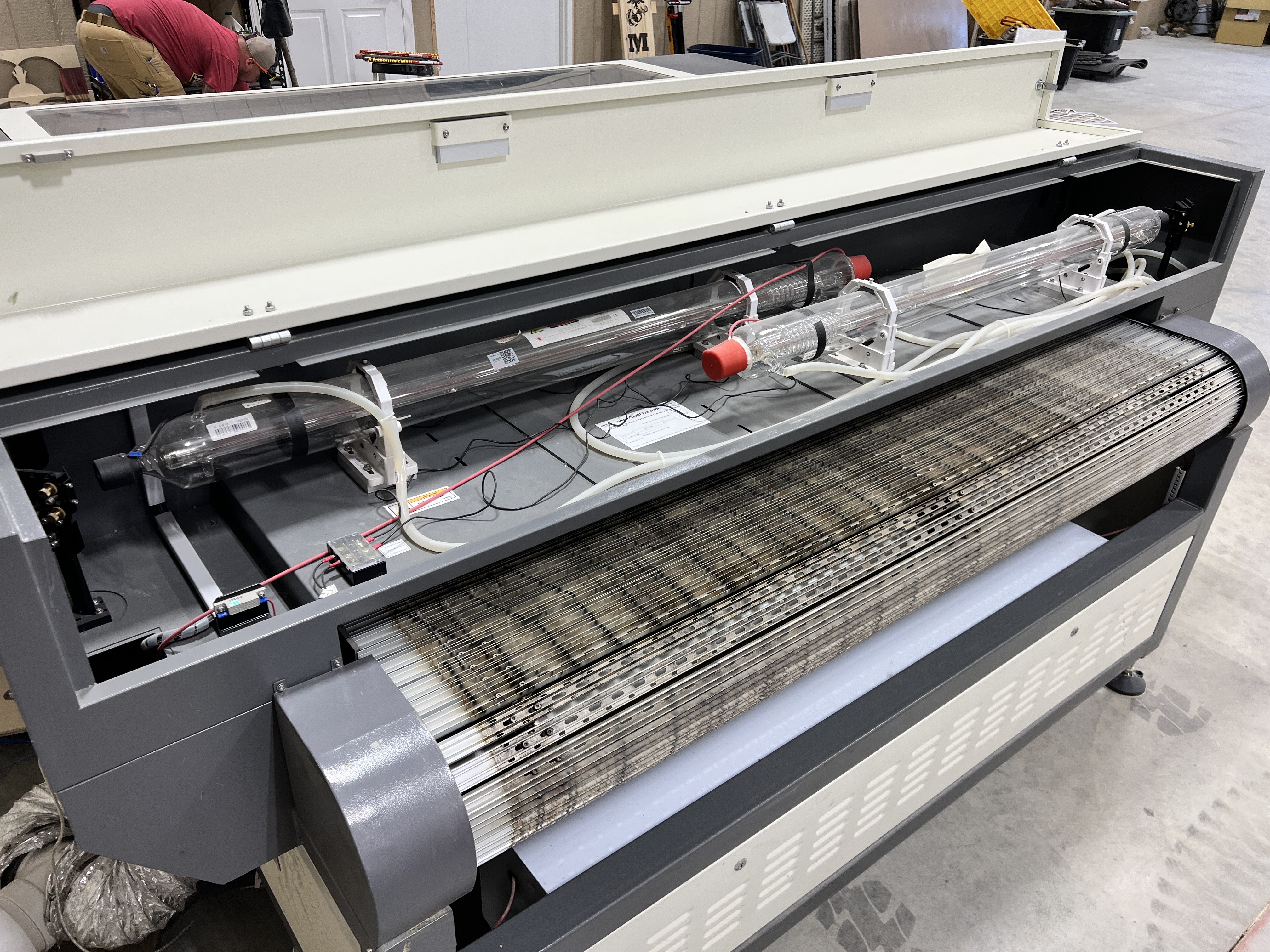

Laser Type: CO2 High-temperature resistant glass tube.
Laser Power: 2 x 80W (Available Upgrade to 100w, 130w and 150w).
Working Area:63 inch x 40 inch (160 cm x 100 cm).
Work Table Type: Aluminum Conveyor Worktable and Automatic Roll Feeder.
Machine Weight:1,130 Pounds (512 kg) Only Machine Body
Camera System: CCD Scan Camera for reading patterns (Optional)
Machine Dimensions: 90” Length x 67” Width x 53” Height.
Driving System: 2-phase high precision micro step motor driver
Resolution Ratio: 4000 DPI
Control Software: SmartCarve Last Version (included) for vectors and graphics processing.
Graphics Format Supported: BMP, JPG, GIF, JPEG, and JPE.
Vector format supported: ai, cut, dsb, dst, dxf, nc, oux, out, plt, smc, yln, ymd, saw, dat.
Connection Port: USB (Wireless Option Available).
Working Voltage: 220V 50 - 60 Ghz.
Power Consumption: 1550 W.
Operation Temperature: 2°C - 30°C (35 °F- 86 °F).
Operating humidity: 5 - 95% Non condensing.
CAMfive Model CMA6340TF Automatic CO2 Laser Cutter
