This machine was doing production runs until the day the business closed earlier this year.

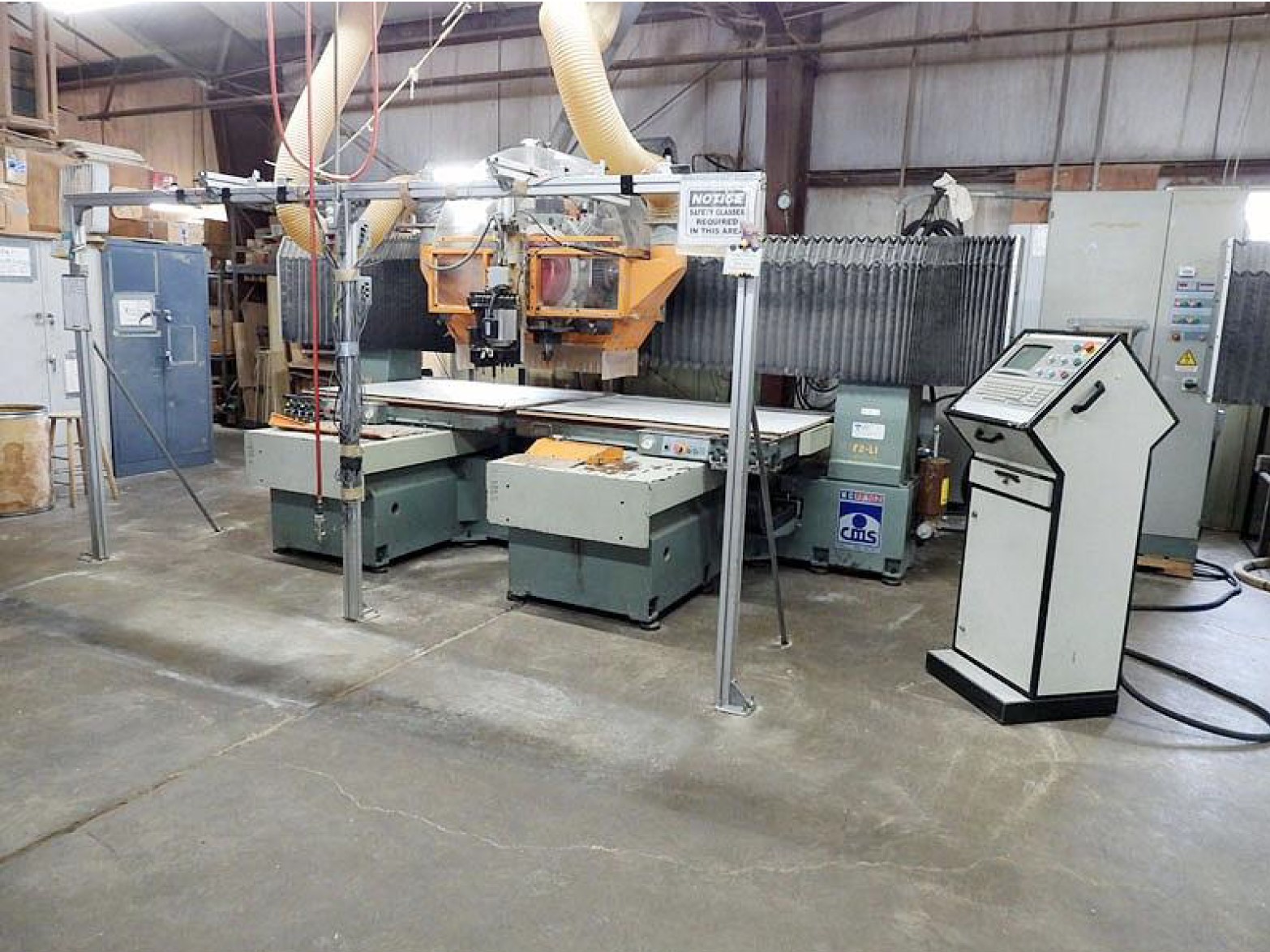

Fixed bridge style
Axes stroke – linear
X-3600mm (141.73”)
Y-1600mm (62.99”
Z-250mm (9.84”)
Working tables:
(2) tables 1500mm x 1500mm (59.03” x 59.06”) each

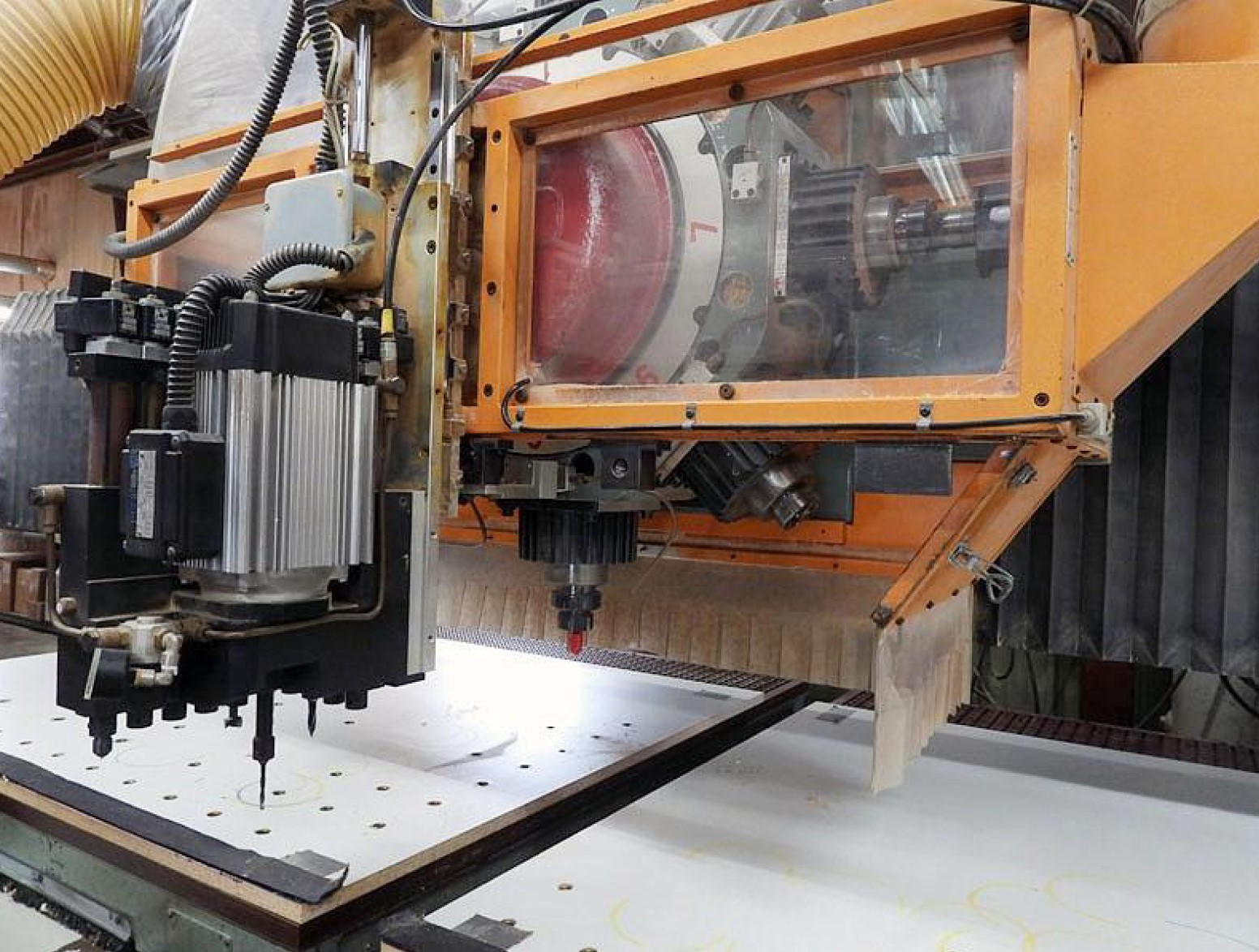

Working unit:
(1) head, type T8
Power:
(3) motors @ 7.4 kW at 18,000 rpm
(5) motors @ 6.6 kW at 9,000 rpm

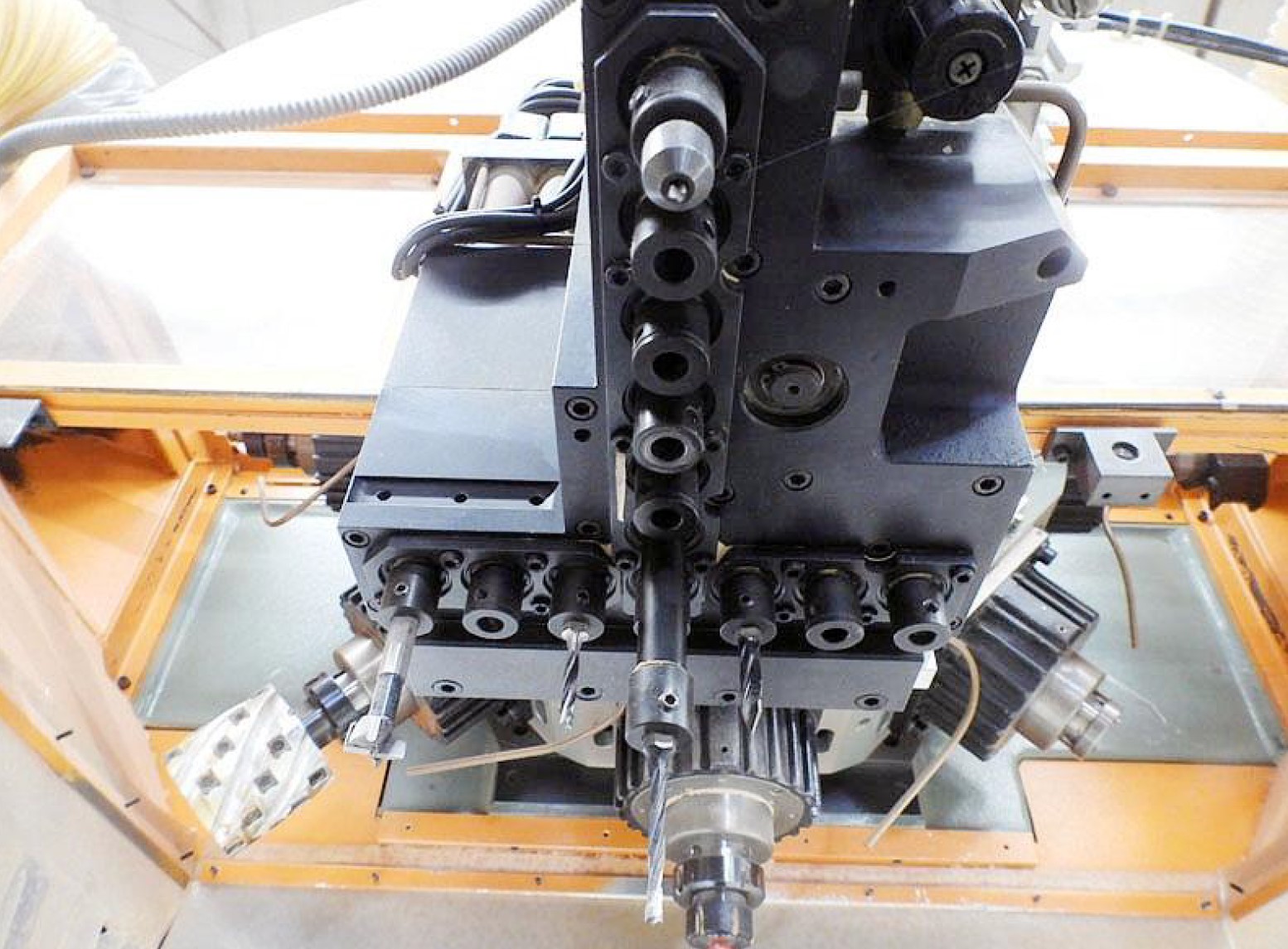

One point-to-point drilling unit with five parallel exits at 32mm centers and (8) additional exits
Static frequency converter: one at 11 kW
Rotation speed from 1,000 to 18,000 rpm
Numerical control
Allen Bradley type 8601 MC
Accessories: (8) tool holders type ETS-32
Modular sub-tables mounted to each table with eight oval pods and eighteen reference stops
