Good working order doing production runs, until the business closed earlier this year.

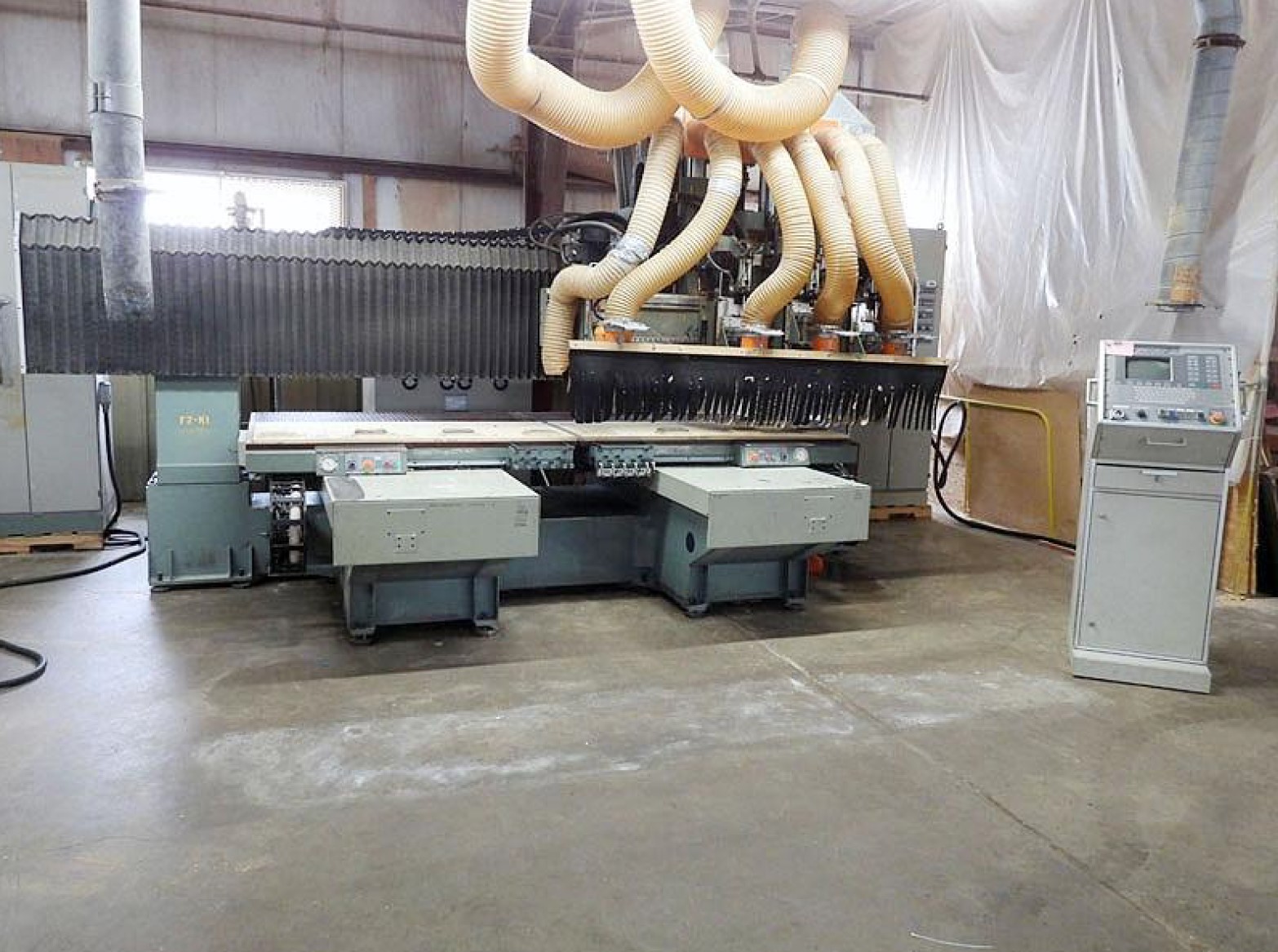

Fixed bridge style
Axes stroke – linear
X-3600mm (141.73” Y1)
Y2-1600mm (62.99)
Z-250mm (9.84”)
Working tables:
(2) tables 1500mm x 1500mm
59.06” x 59.06” each
10mm (0.39”) of daylight between them

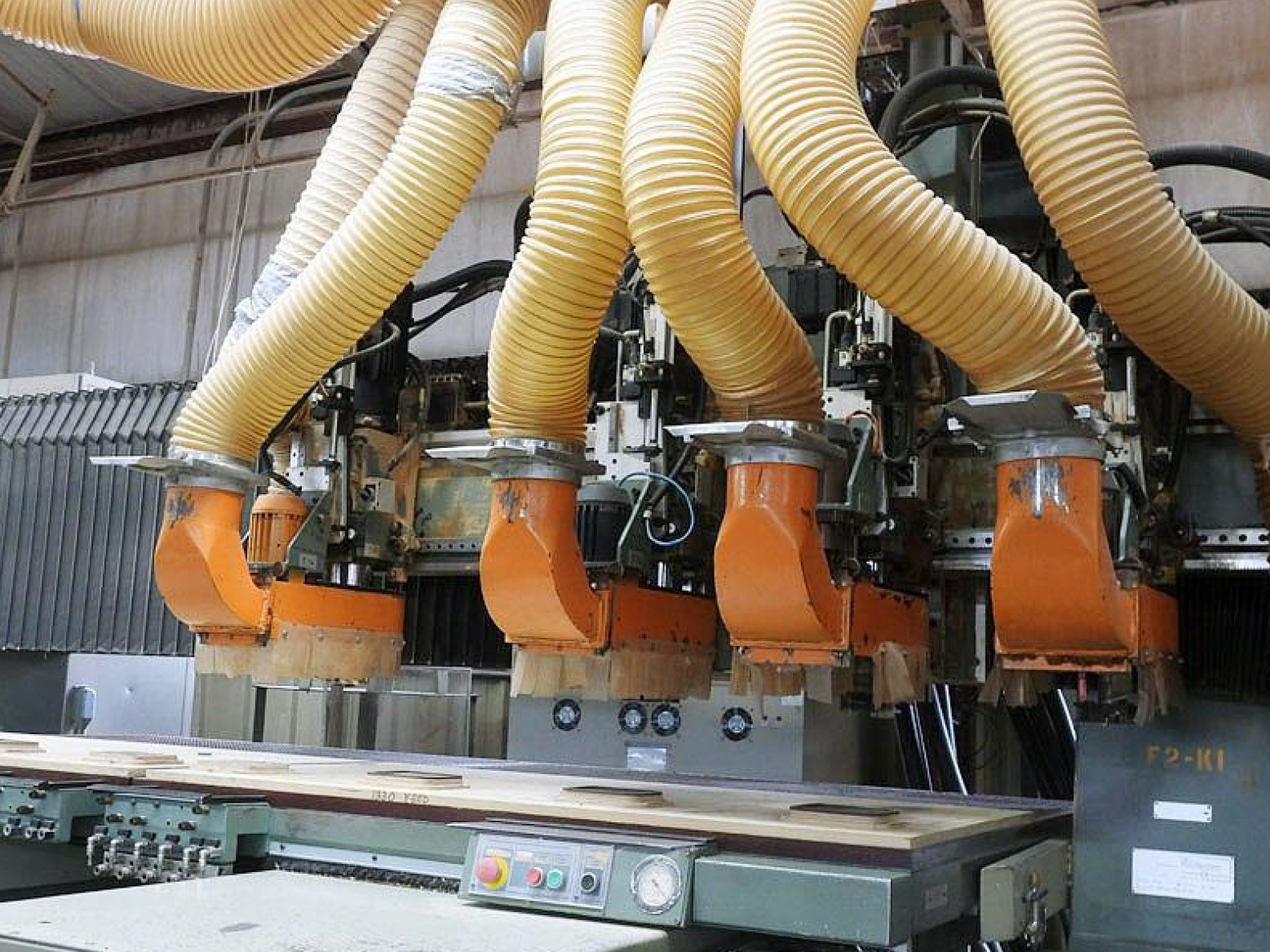

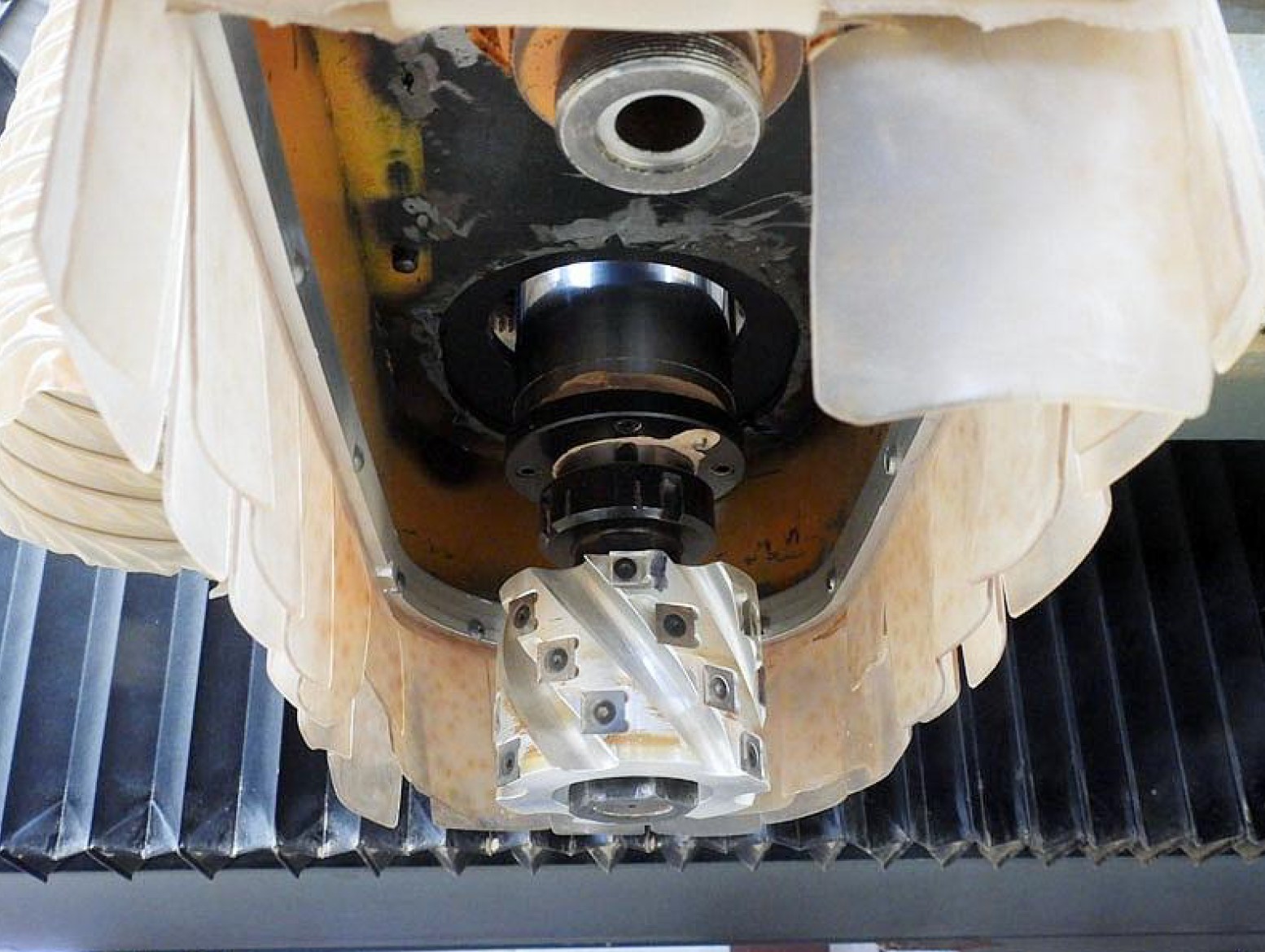

Working units: (4) heads, type M18
7.3 kW at 18,000 rpm, 300 hz, air cooled
(4) heads, Type T4/18
2.9 kW at 18,000 rpm, 300 hz, air cooled
Static frequency converters – two at 22 kW each
Rotation speed from 1,000 to 18,000 rpm

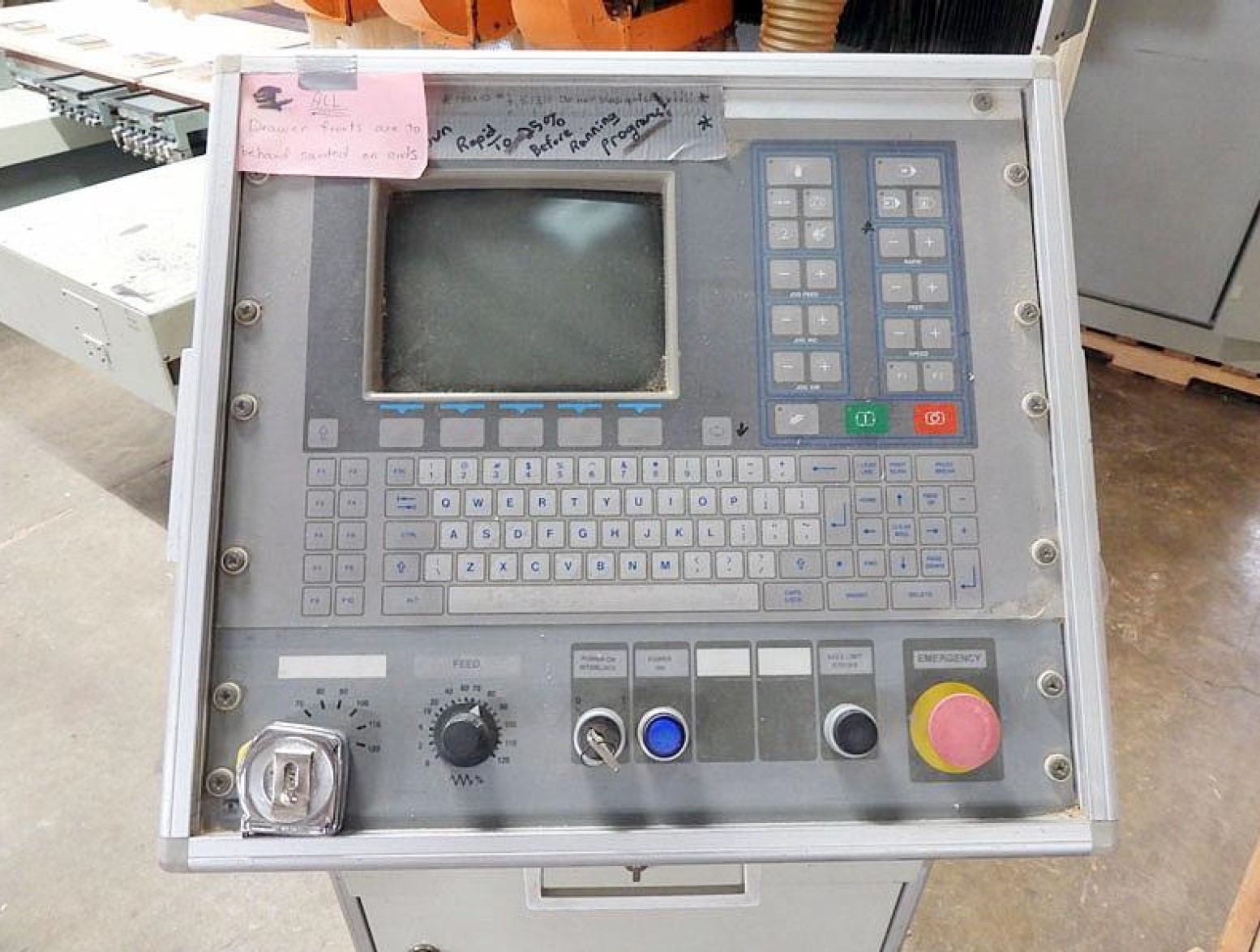

Numerical control
Allen Bradley/OSAI type 10/31.0
Vacuum plant
Two cubic meters per hour dry vacuum pumps
Compressed air feed pressure 6 kg per cubic centimeter (90 lbs. per square inch)
Electrical features: 480v, 3PH, 60 hz
1998
