Description
173" Overall cutting length, 173" Pull back; 3.3" (85 mm) max. saw blade projection, 12 HP (9 kW) main saw motor, 2.4 HP (1.8 kW) scoring motor.
Modular roller rear machine table, side aligning device and longitudinal aligners to accurately position book of panels on rear saw table prior to cutting.
Variable saw carriage travel speed from 0 - 197 FPM (0 - 60 MPM), return speed of 197 FPM (60 MPM).
Electronically controlled overhead program fence, rack & pinion driven, forward speed of 0 - 197 FPM (0 - 60 MPM), return speed of 197 FPM (60 MPM).
(9) Clamps (open up to 85 mm); AC Servo motor drives on both saw carriage and pusher fence.

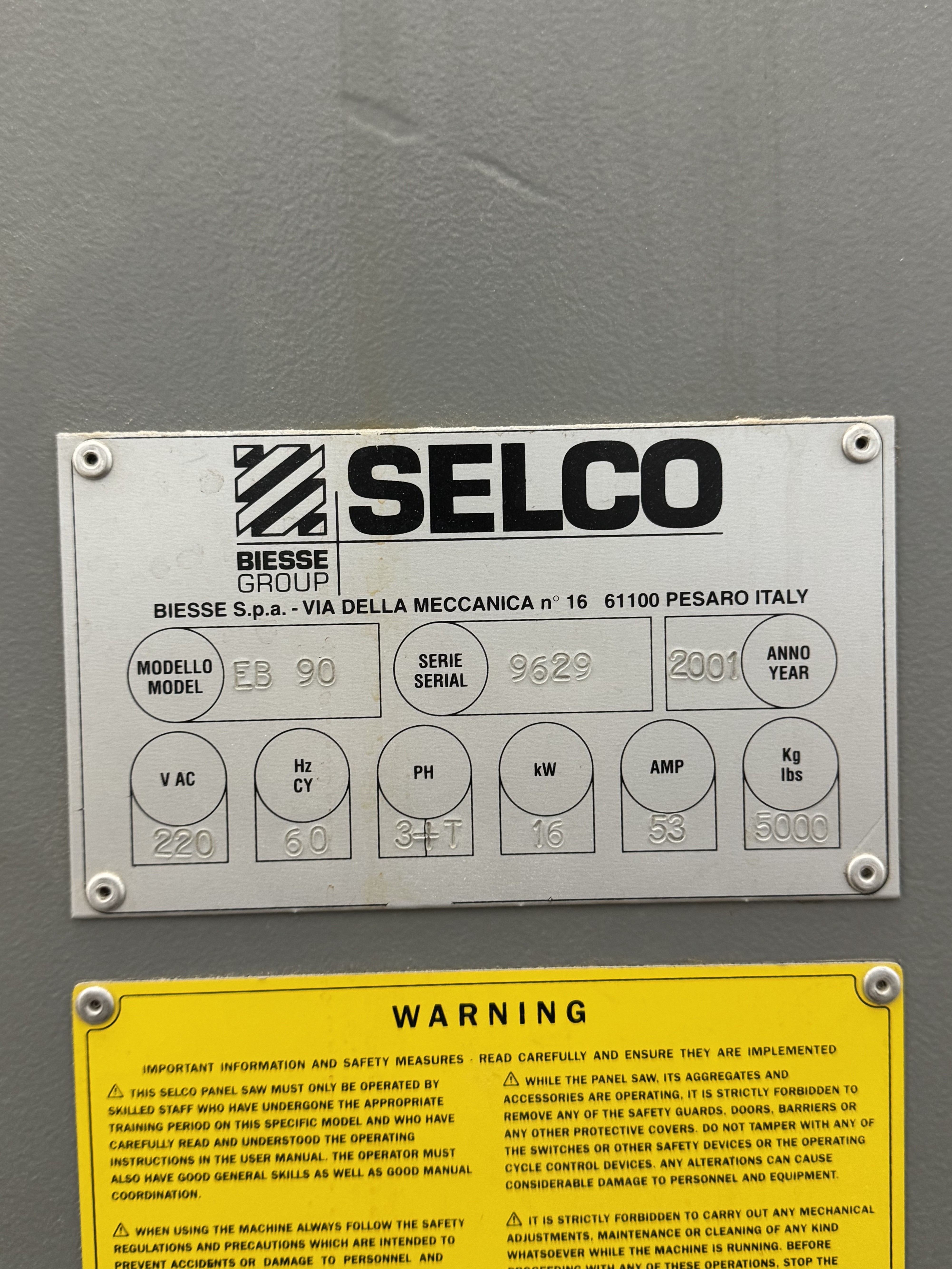

220 Volt, 3PH. 53 Amp.

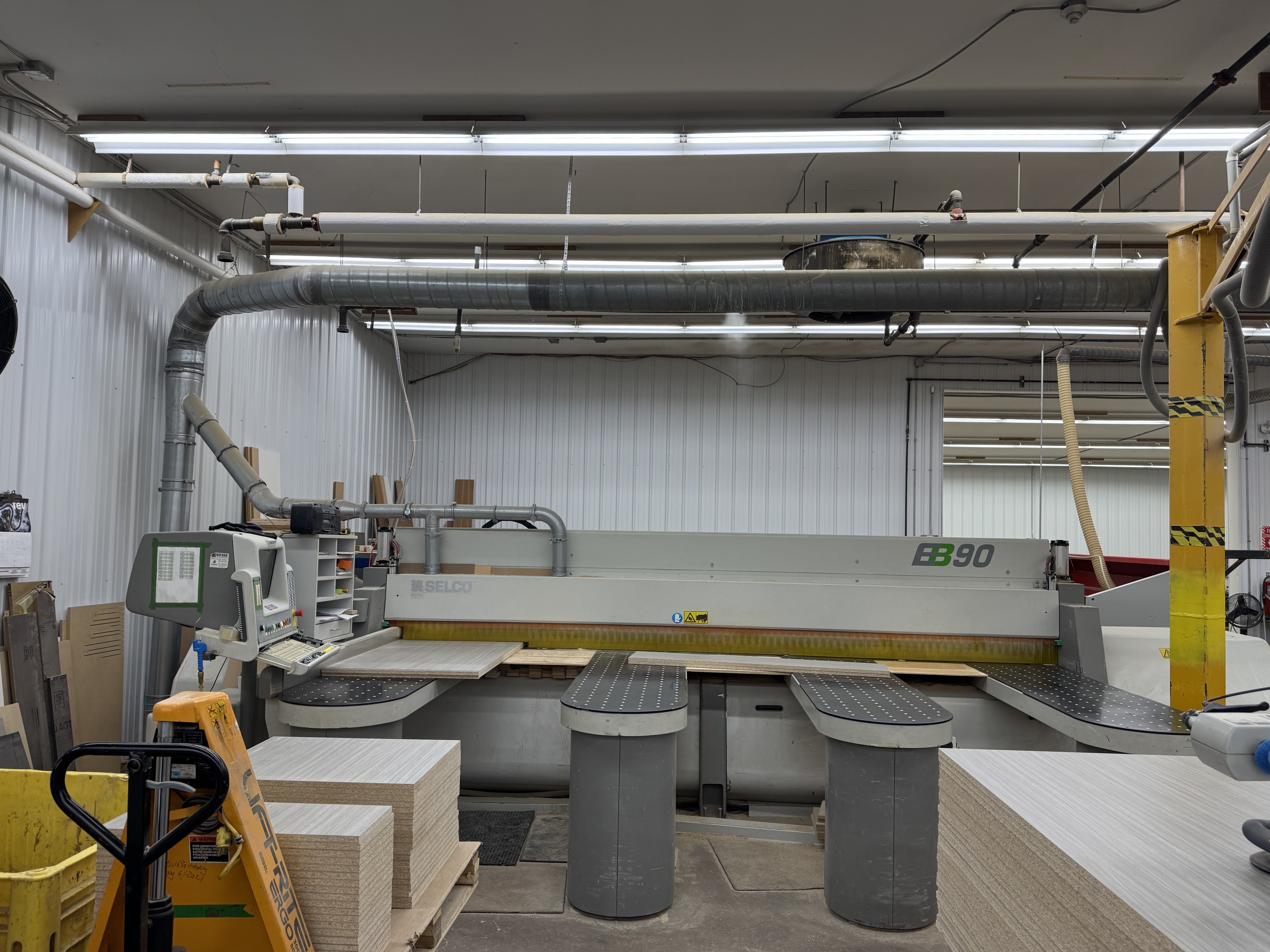

As shown in video, machine runs smoothly. The only reason behind selling is that we have upgraded it to other one and want this one to go to have more room for new machines.
Call for more information. Ask for Simon.
