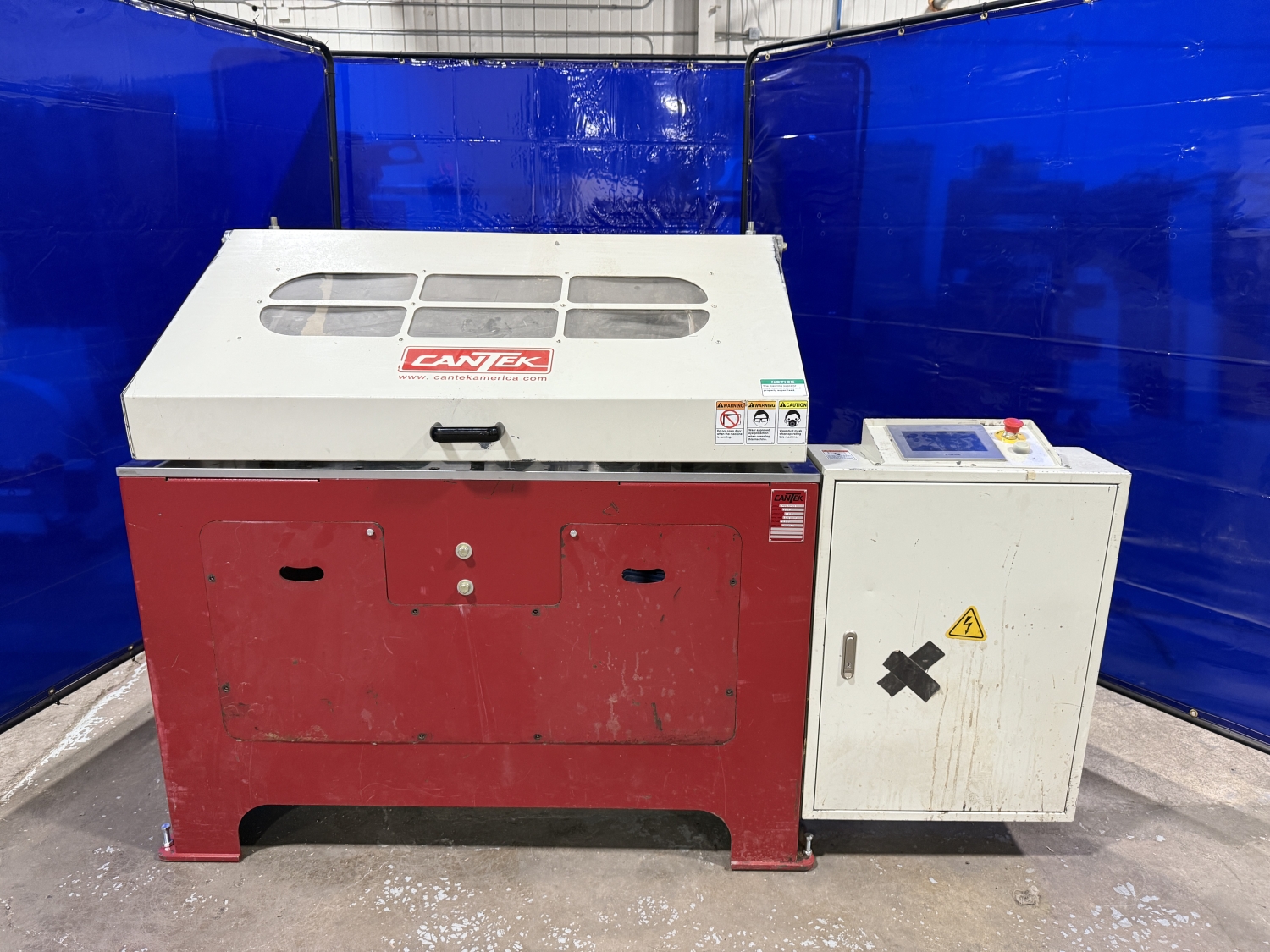

Cantek Model EM-12 Through-Feed End Matcher
Serial #:AW-075
Condition: As Is
Stock Number: 2658
Cutting Capacity:
Min/Max Board Width: ~1-1/2"(40mm) / ~12" (300mm
Min/Max Board Thickness: 3/8" (10mm)/ ~1-3/8" (35mm)
Min Board Length: 10-5/8" (270mm)

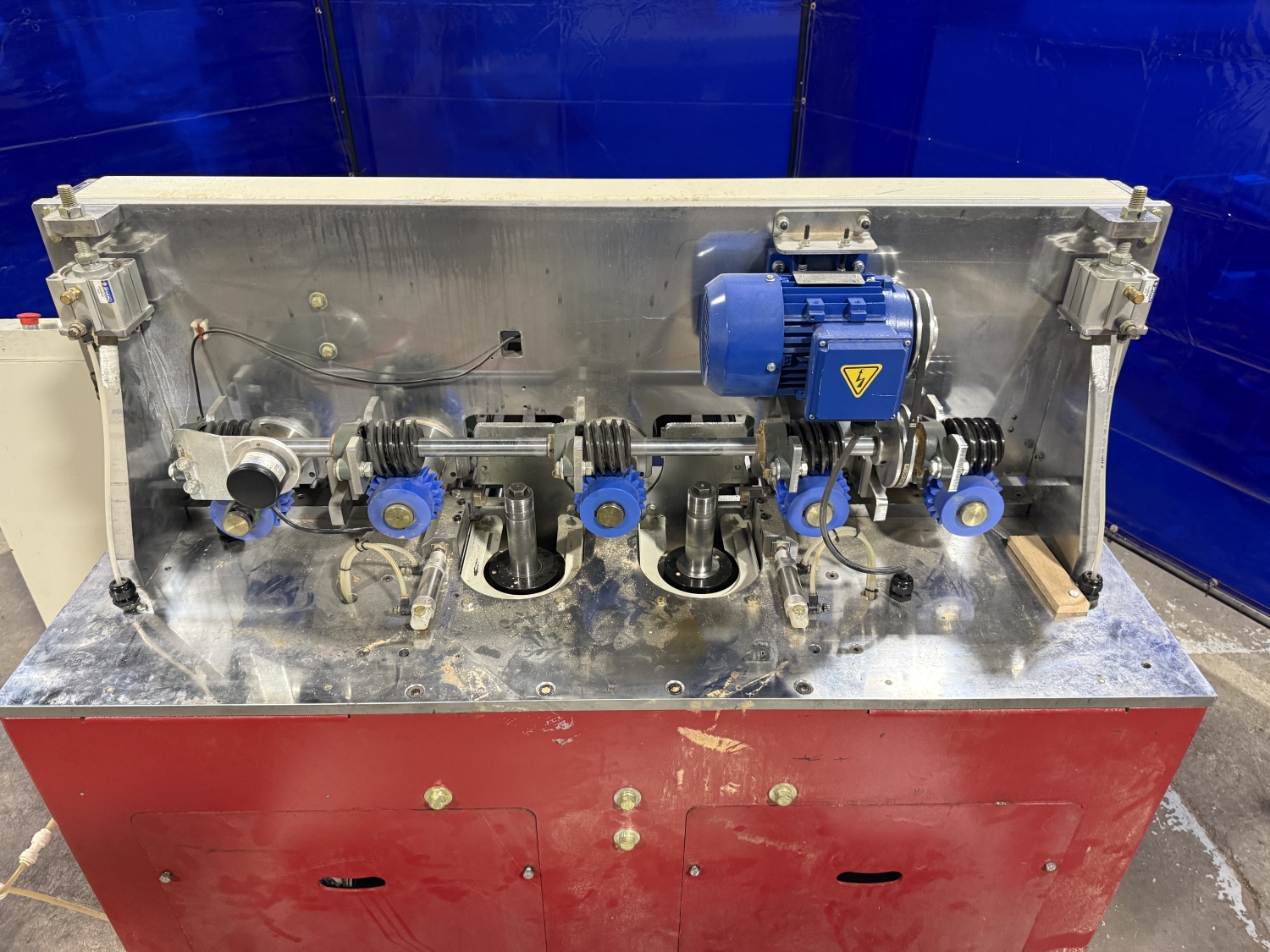

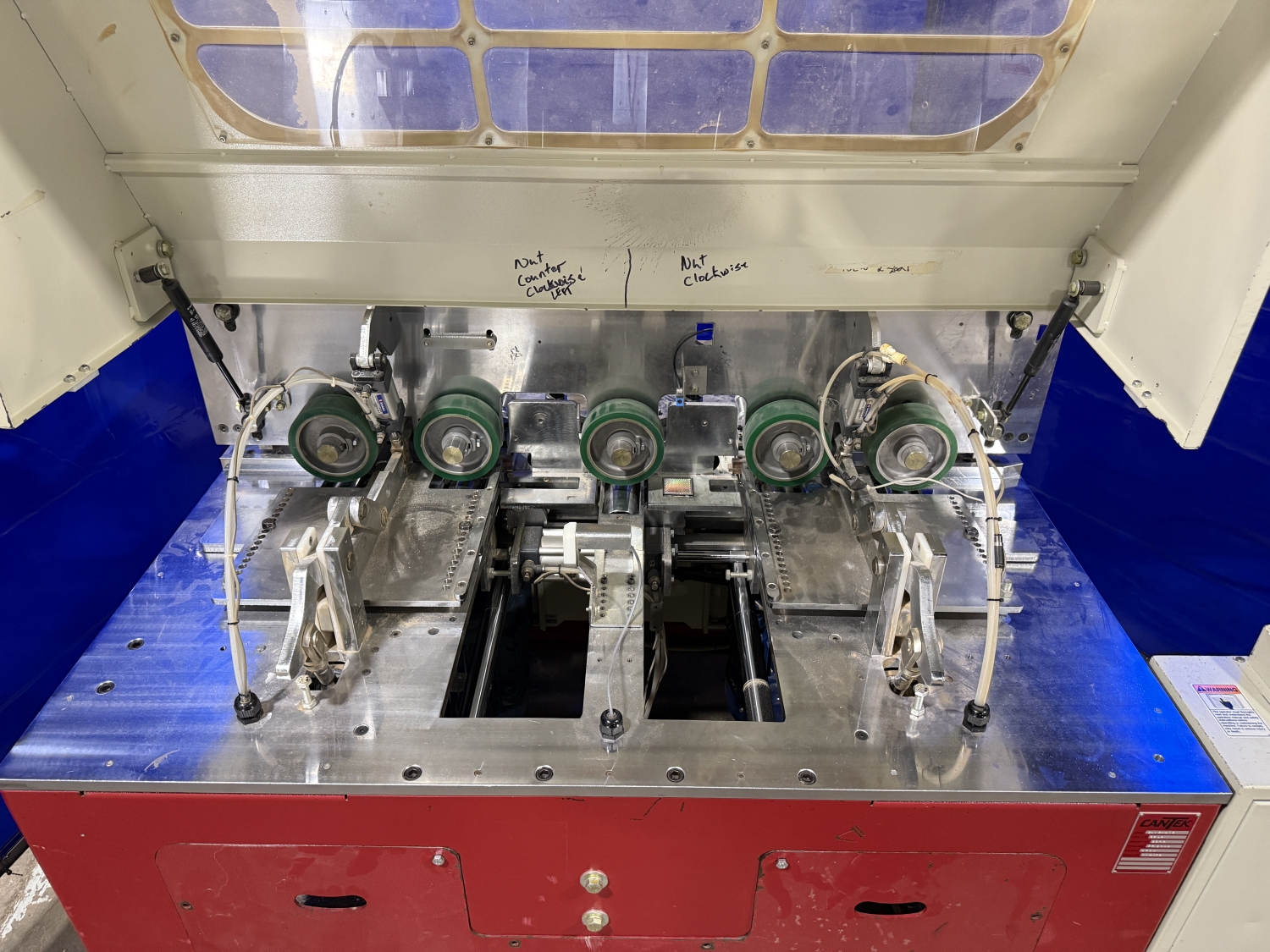

Cutterheads:
(2) Moving 5-1/2HP (4kW) Cutterheads
Spindle Size: 40mm
Spindle RPM: 7000RPM
Spindle Travel: ~12-1/2" (320mm)
Spindle Travel Motor: 1/2HP (.37kW)
Cutting Speed:
Feed System
Feed Motor: 1HP (3/4kW)
Feed Speed: 295FPM (90 M/min)
Cantek Model EM-12 Through-Feed End Matcher
