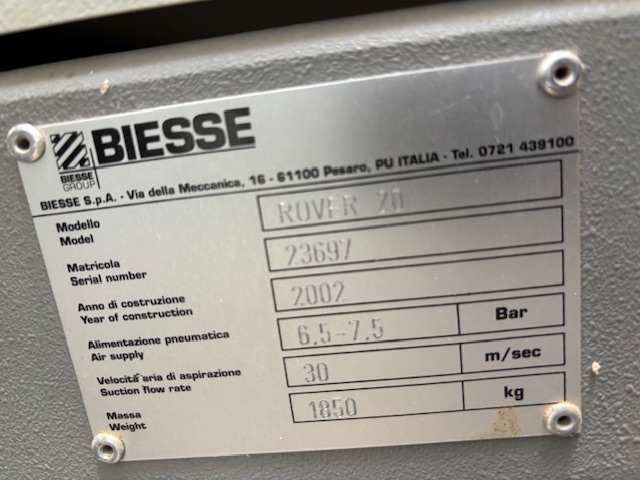

BIESSE - ROVER 20: CNC Machining Center (w/ATC/Boring)
Specifications:
• Working capacity: X-Axis: 2,885 mm (113.58"); Y-Axis: 898 mm (35.35") for boring; 950 mm (37.40") for routing; max. panel thickness: 65 mm (2.56").
• Positioning speed: X-Axis: 75 MPM (246 FPM); Y-Axis: 45 MPM (147 FPM); Z-Axis: 15 MPM (49 FPM).
Equipped with:

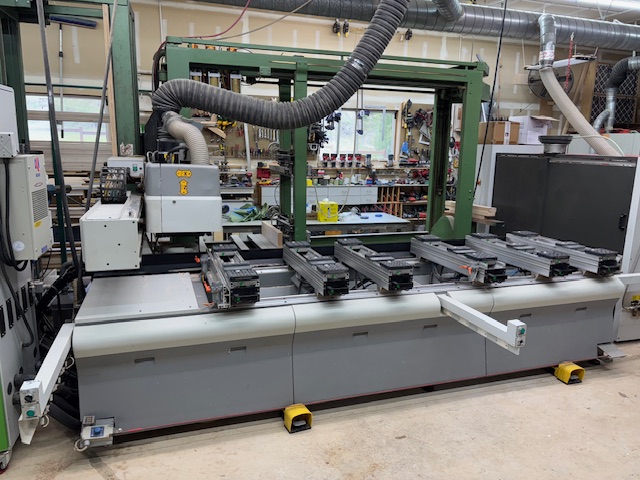

• Work area with (2) Working zones: (6) Manually positioned & pneumatically locked panel supports; each with: (2) 6” x 6-1/4” Vacuum pods; (6) backstops/clamps; left & right side stops; all pneumatic raised & lowered automatically by start/stop of machining cycle.
• High precision prismatic guides & ground helical rack on X-axis; hardened ground ball screws on Y- & Z-axes.
• Boring Unit: 1.7 kW (2.3 HP) - 5,135 RPM Motor; spindle speed: 4,000 RPM; (10) vertical independently operated spindles with: (6) In X-Axis & (4) in Y-axis; (6) horizontal spindles with: (2 + 2) In X-Axis & (1 + 1) in Y-axis; (1) grooving saw in X-axis with 120 mm (4.72") dia. blade & blade speed 5,200 RPM.
• Machining: HSD "ES 919A" 6.6 kW (8.9 HP) Air-cooled electrospindle with: ISO 30 Adapter; RH & LH rotation; spindle speeds: 1,000 - 24,000 RPM; 3-position rear-mounted on-the-fly automatic tool changer (ATC).
• Control: PC Front-End with: 15" Color display; pendant control; (2) foot pedal controls.
Complete with:
• BECKER "PICCHIO 2200" Vacuum Pump: 3 kW - 4 HP - 130 mbar.
Control Dimensions: 60" x 36" x 77" H.
Vacuum Pump Dimensions: 28 x 14 x 24 H.
Comment: Complete with Vacuum Pump!
