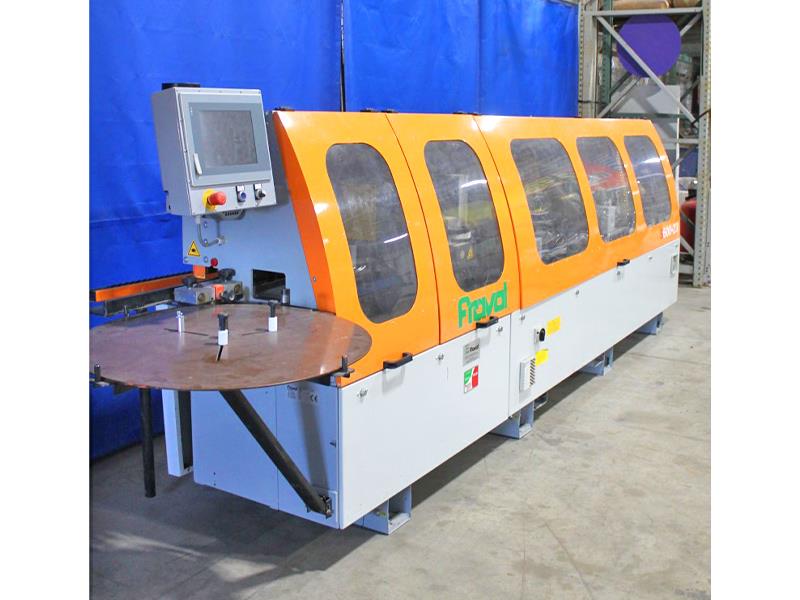

FRAVOL SMART S600-23 Edgebander w/Pre-milling & Corner rounding:
Edge & Workpiece Capacity: 0.4 - 8 mm (0.016 - 0.315") edge; 10 - 60 mm (0.394 - 2.362") panel thickness. 140 mm (5.512") min. panel length and 100 mm (3.937") min. panel width.
Feed-speed, 14 or 18 MPM (46 or 59 FPM.)
Front-End Equipped With: Pre-Milling Station (RT/S), (2) motors @ 1.1 KW (1.5 HP), 12.000 RPM, LH & RH rotation w/pneumatic programmable jump control for chip-free and clean panel edges. IR Panel Heat Lamp: Improves gluing bond especially during cooler ambient temperatures and humid conditions.

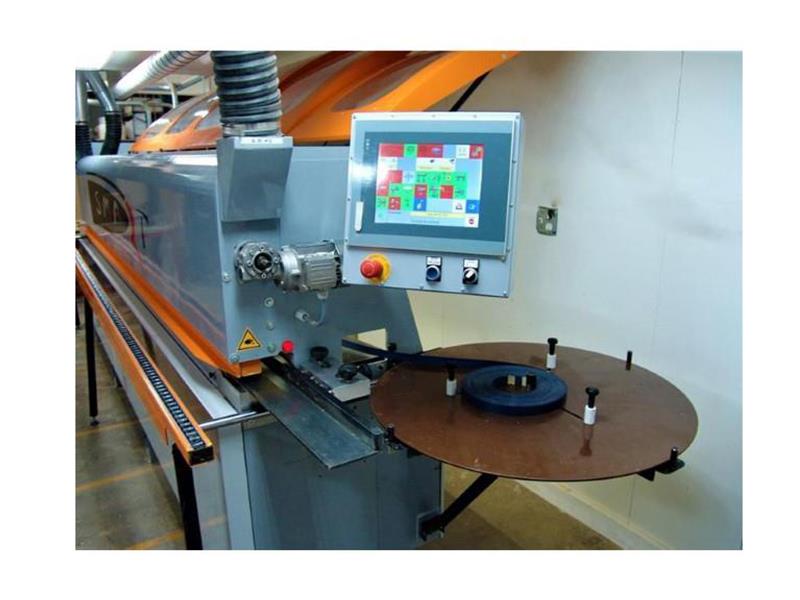

Automatic Edge magazine: For strips up to 8 mm & coil stock up to 3 mm thick PVC.
Duo Gluing System: For regular granulate Hot Melt (EVA) and easy conversion to PUR glue.
Side Pressure Section: (3) Pressure rollers, (1) motorized, (2) idle, pneumatic pressure control and programmable NC-positioning servo motor.
Work-stations: End Trimming (INT 2/S): (2) motor @ 0.50 KW (0.70 HP) 12,000 RPM, automatic pneumatic chamfer 0° - 15° or total exclusion from control panel. Glides 45° on prismatic linear hardened steel guides.

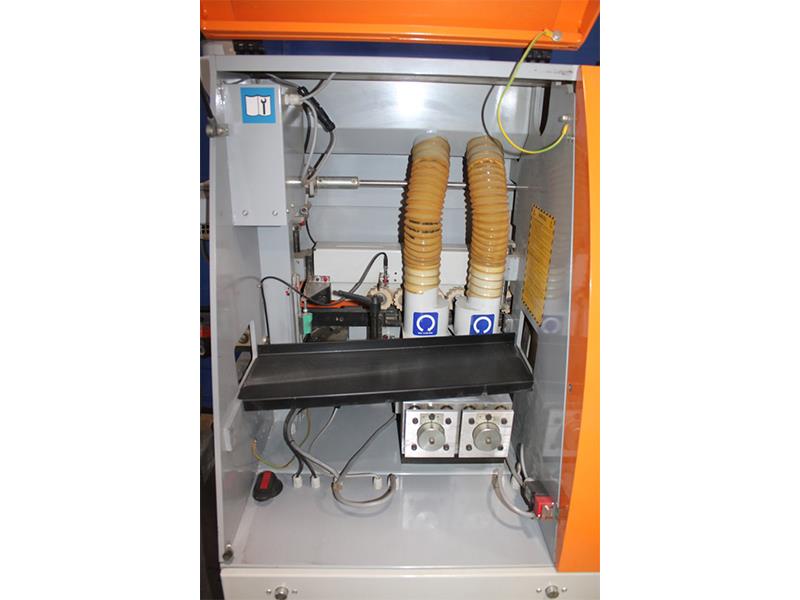

Trimming Unit (RF-S/S): Top/Bottom flush/bevel/radius milling unit, (2) motors, 0.73 KW (1.00 HP) 12,000 RPM. Pneumatic remote tilt in (2) positions, postion-1 for radius and thin edges up to 0.8 mm trimming, position-2 for flush trimming up to 8 mm edges.
Equipped with banding thickness gauge block feature for quick and easy set-up/changeover. Includes 1-axis NC servo control motors for programmable change-over from thin to 8 mm solid wood edges or incremental re-positioning of the cutter head.
Corner Rounding Unit (SYNCRO 1): Compact and easy to set up for leading & trailing edges, (1) motor 0.22 KW (0.295 HP) 12.000 RPM, electronically synchronized. Working capacity, min. 10 mm, max. 60 mm panel thickness.
Profile Scraping Unit (RB/S): Top & bottom radius scraping for PVC - ABS edges. Heavy construction to eliminate vibrations and guarantee superior edge quality. Air blow-off jets and chip collection box.
Clean Spray System: Top/Bottom spray nozzles applies edge cleaning solvent prior to buffing.
Glue Scraping Unit (RC/S): Top & bottom pneumatically operated glue scraping on flat panel surface to remove potential glue squeeze-out that otherwise would coat the cloth buffing discs.

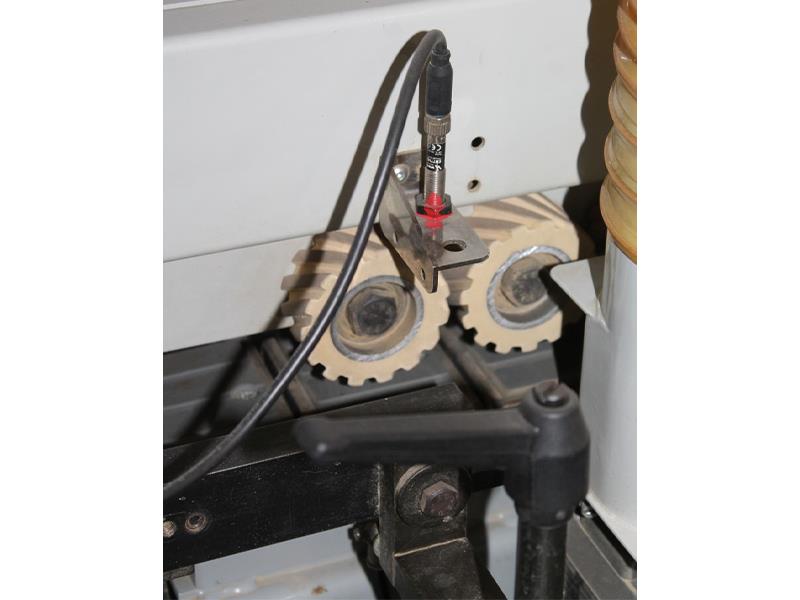

Buffing Station (GSI/S): Top/bottom (2) motors, 0.09 KW (0.125 HP) 2,800 RPM, manual, horizontal, vertical and tilting adjustment
Hot Air Unit PHON (GP/S): Top/bottom hot air blowers to restore PVC color after scraping.
