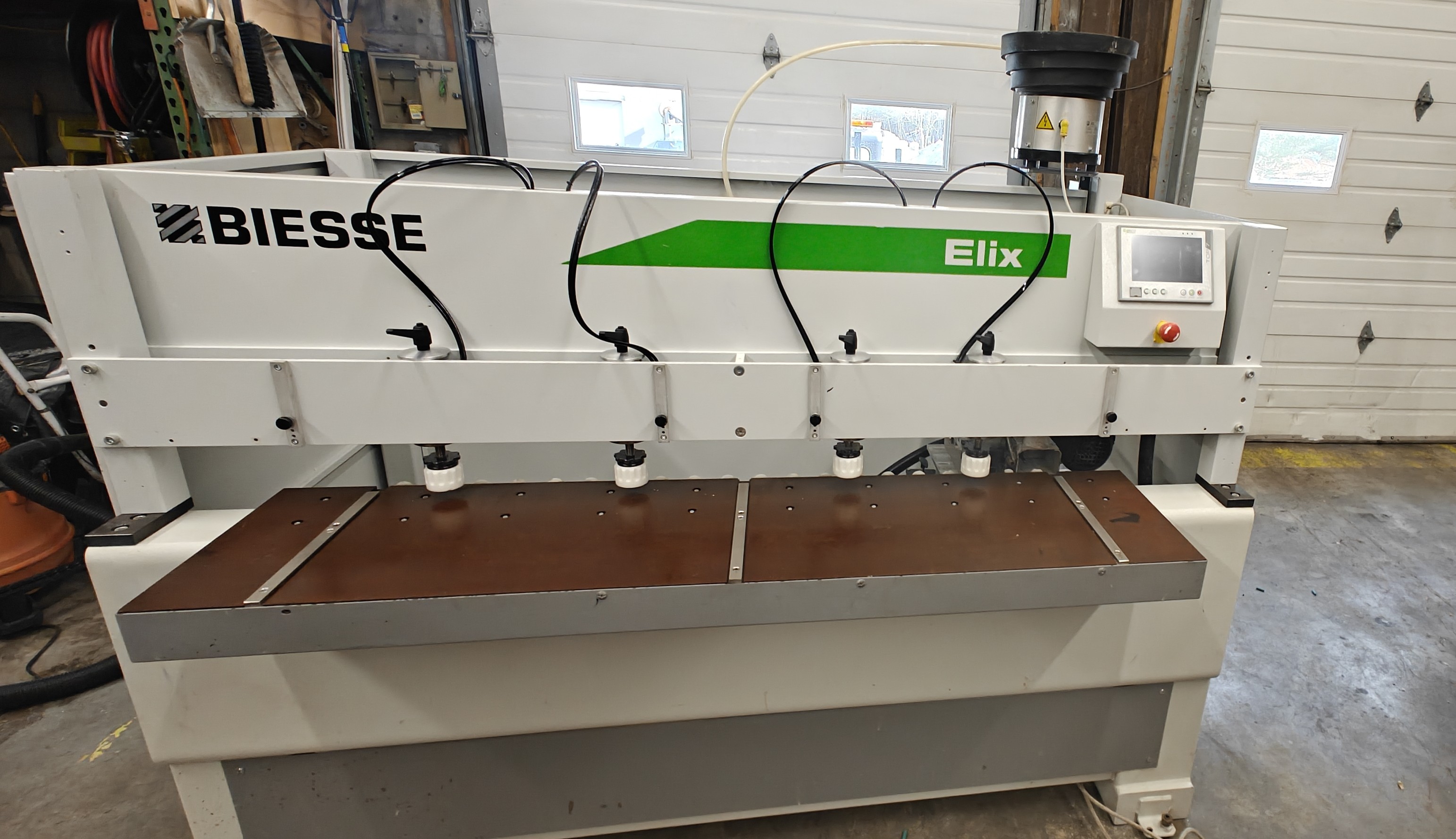

Machine Description:
Max. Width: 1300 mm
Thickness: 10-40 mm
Min. Depth: 120 mm
X Axis: Stroke: 1300 mm
Head Movement Speed: 40m/min
Z Axis Stroke: 40 mm
Boring Unit:
Rotation Speed: 6000 rpm
Depth: 30 mm
Max. Bits Diameter: 12 mm
Manual Adjustment of Boring Depth

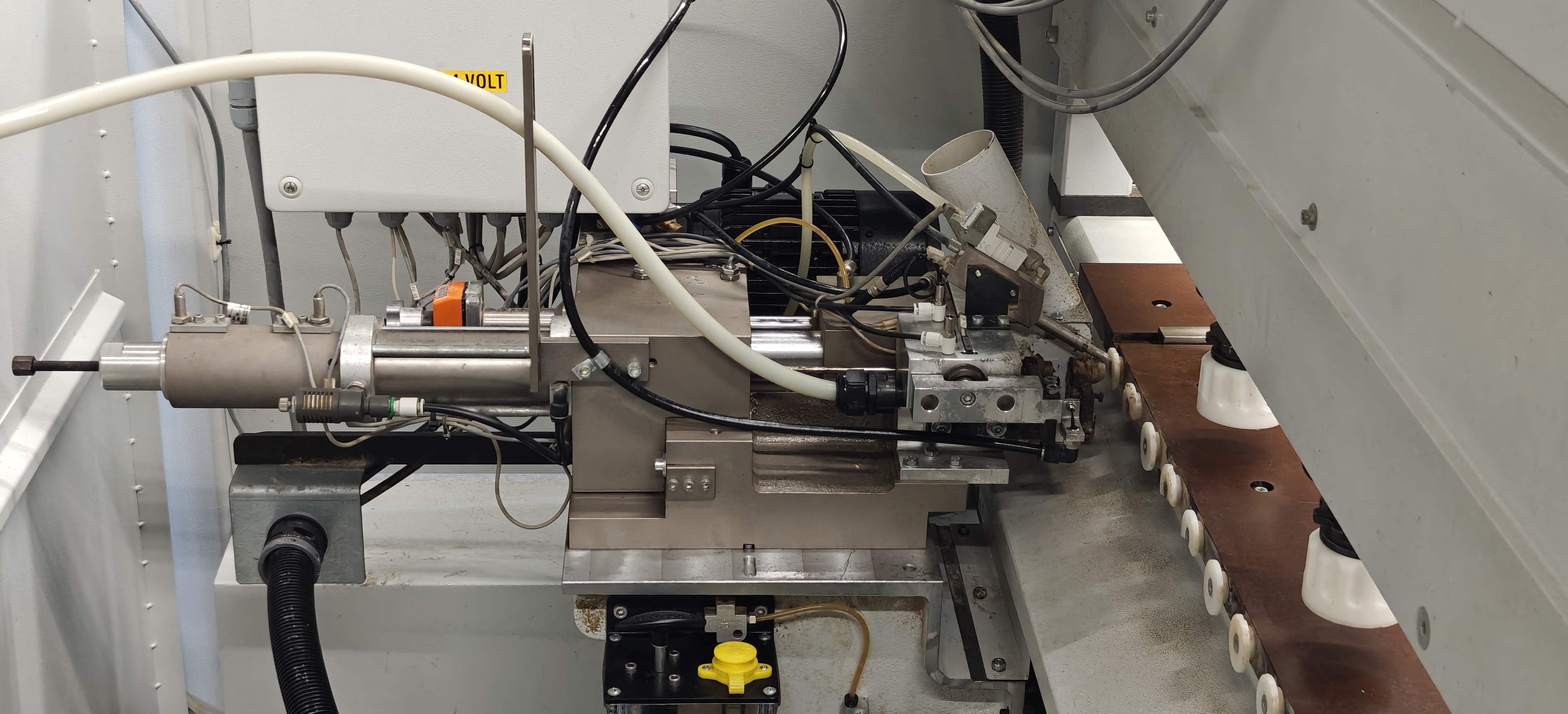

Dowel Insertion Unit:
Standard Dowel Dim: 8x30mm
Max. Dowel Projection: 14 mm
Dowel Unloading System
Glue System or Water for pre-glued dowels
Glue/Water Tank Capacity: 2@ 8 Liter
Max. Glue Density: 900 cps
Glue Electronic Proportioning
Equipped with Glue Injector Sensor
