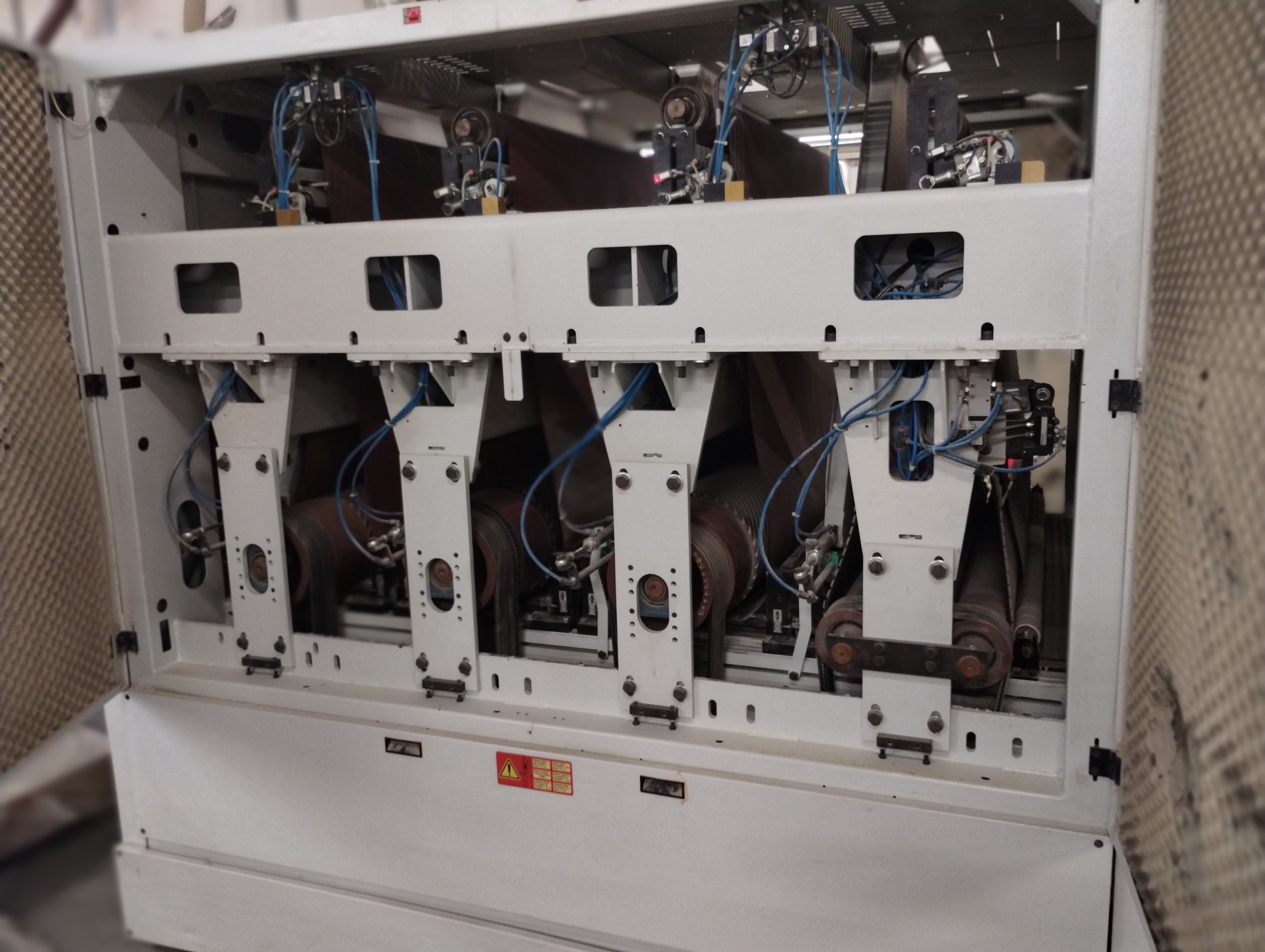

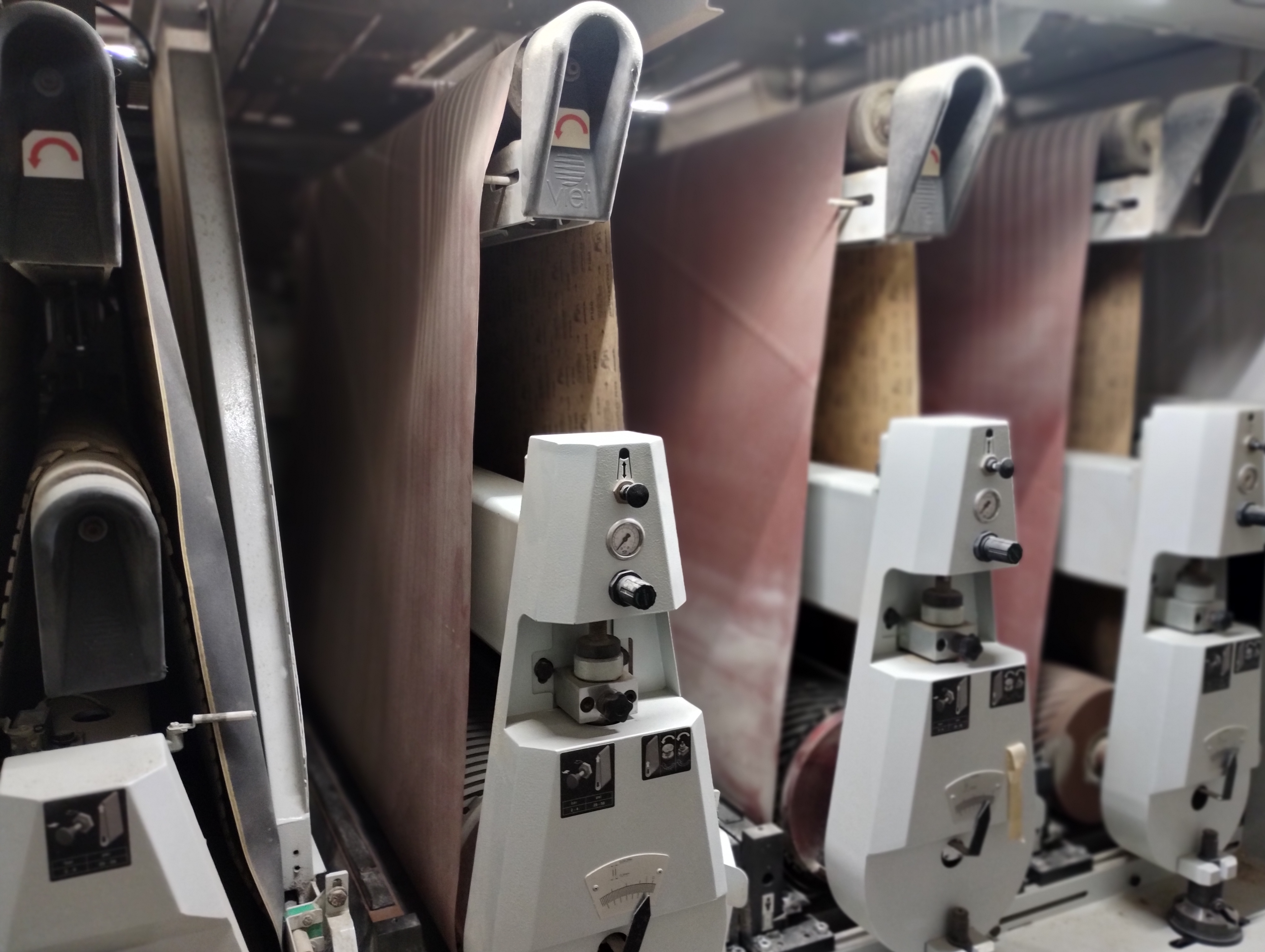

1st Working Unit - Drum Unit -
The roller working unit is characterized for the precision and
effectiveness of the work it does.
Main motor 22 kW (30HP)
Drum - 240mm - Steel
Linear blower cleaning sanding paper A.S.S. (Air Saving System)
Infeed pressure shoe
The pressure beam is used to guarantee the maximum
precision when calibrating and flattens the deformed or thin
pieces. The chromed anti-wear metal removable tips
Outfeed pressure shoe
2nd Working unit - Drum Unit
Main motor 18,5 kW (25HP)
Drum - 300mm - 70 Shore
Linear blower cleaning sanding paper A.S.S. (Air Saving System)
Infeed pressure shoe
Outfeed pressure shoe
3rd Working Unit - Drum Unit
Main motor 15 kW (20HP)
Drum ¯300mm-40 shore
Linear blower cleaning sanding paper A.S.S. (Air Saving System)
Infeed pressure shoe
Outfeed pressure shoe
4th Working unit - Superfinishing unit
The super-finishing pad is the evolution of the pad unit (Viet
patent, 1978). The pad unit has a "chevron belt" running
between the pad itself and the abrasive belt that guarantees
top-quality finishing and a longer performance to the
abrasive.
Main motor inverter 15 kW (20HP)
Pneumatic “air cushion” pad This pneumatic pad is the ideal tool to solve finishing
problems
Contact insert for pneumatic pad made of steel + felt + graphite
Linear blower cleaning sanding paper A.S.S. (Air Saving System)
Infeed pressure shoe
FEATURES
Working Width: 1350 mm (53.15")
Constant Pass (Fixed Table) - Heads adjust up/down by program)
Working Height: 200 mm (7.87")
Laser Electronic Positioning for working thickness
Motors with amp meters
IPC Compact 15" Color Touch Screen Controller
Vacuum Table with 7.5 HP Motor, Electronic System, IPC Control with feed speed up to 75 FPM.
50 Shore Rubber Conveyor
Vacuum bed for short parts
Front & Rear Extension Rollers (2 EACH)
