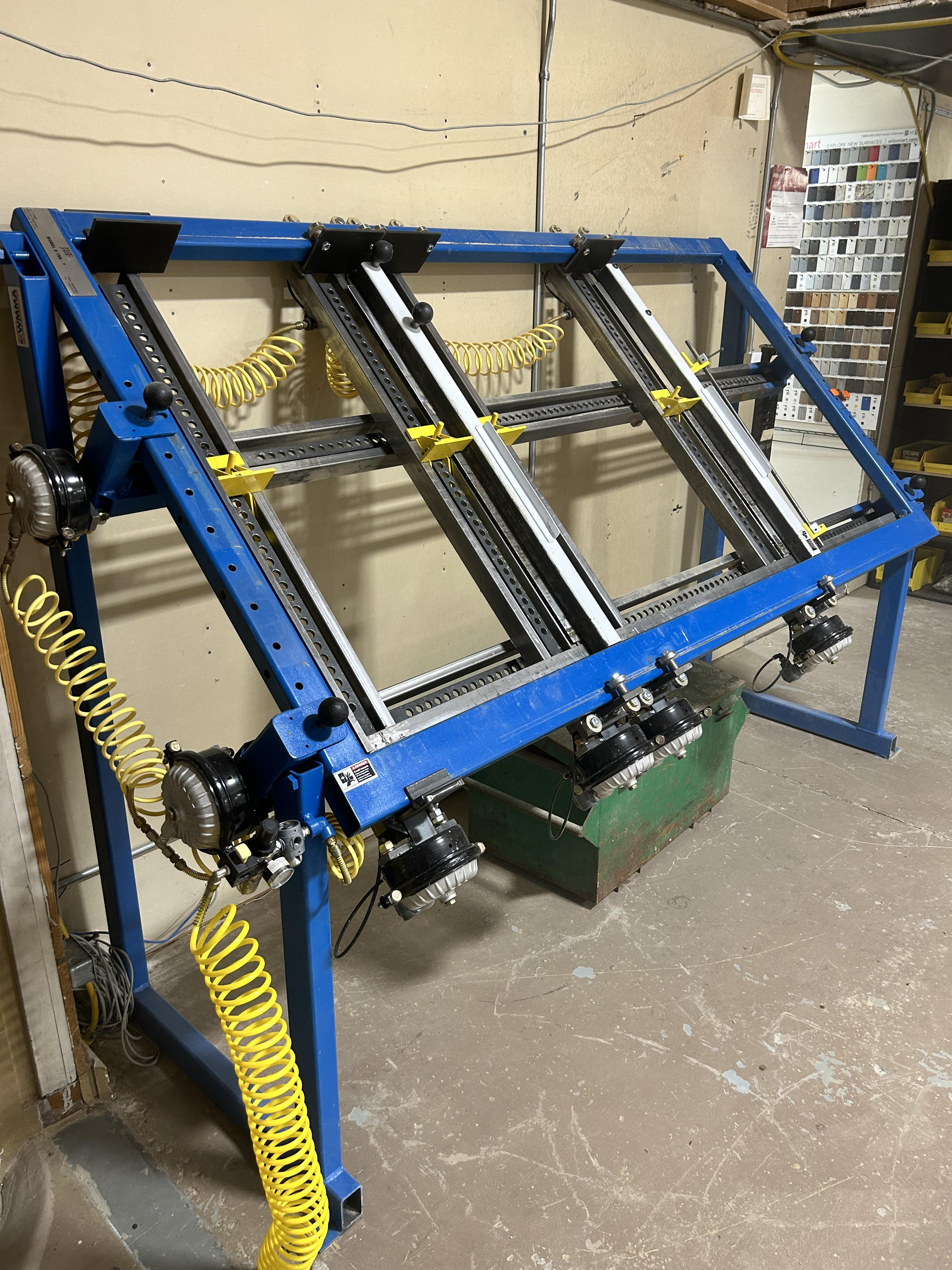

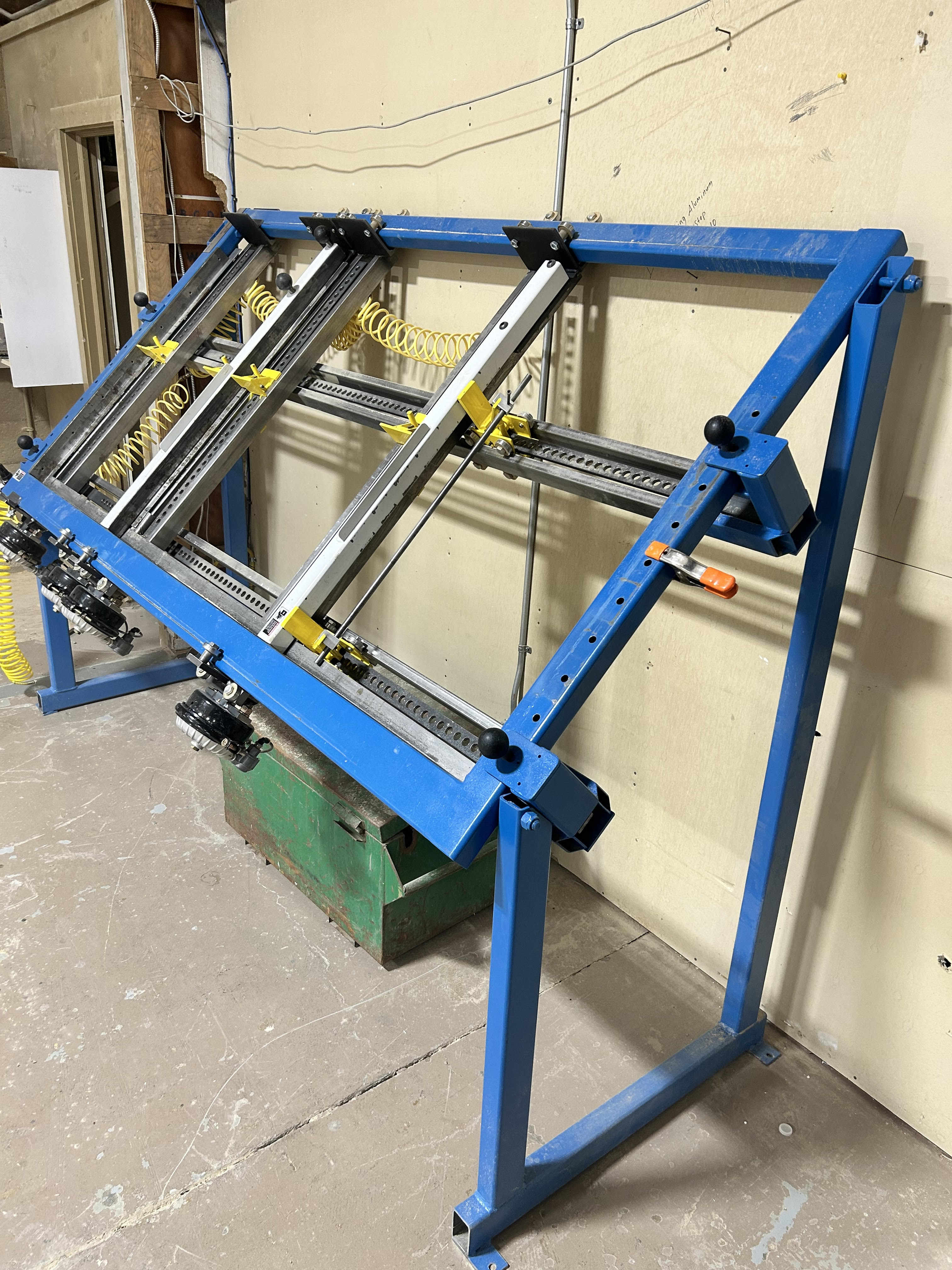

Squares and clamps a door or panel with pneumatic pressure
Clamp coped rail doors as well
26" x 62" Max Clamping Capacity
- 26" front to back, 62" left to right
4" x 12" Min Clamping Capacity
4 Large vertical pneumatic cylinders.
2 Large horizontal pneumatic cylinders.
Allows the corners to be easily adjusted at clamping time
Activate with a single lever
All cylinders are adjustable pressure via easy access regulators.
650 pounds (max) of clamping pressure in each direction
40psi of air required
