Specifications;

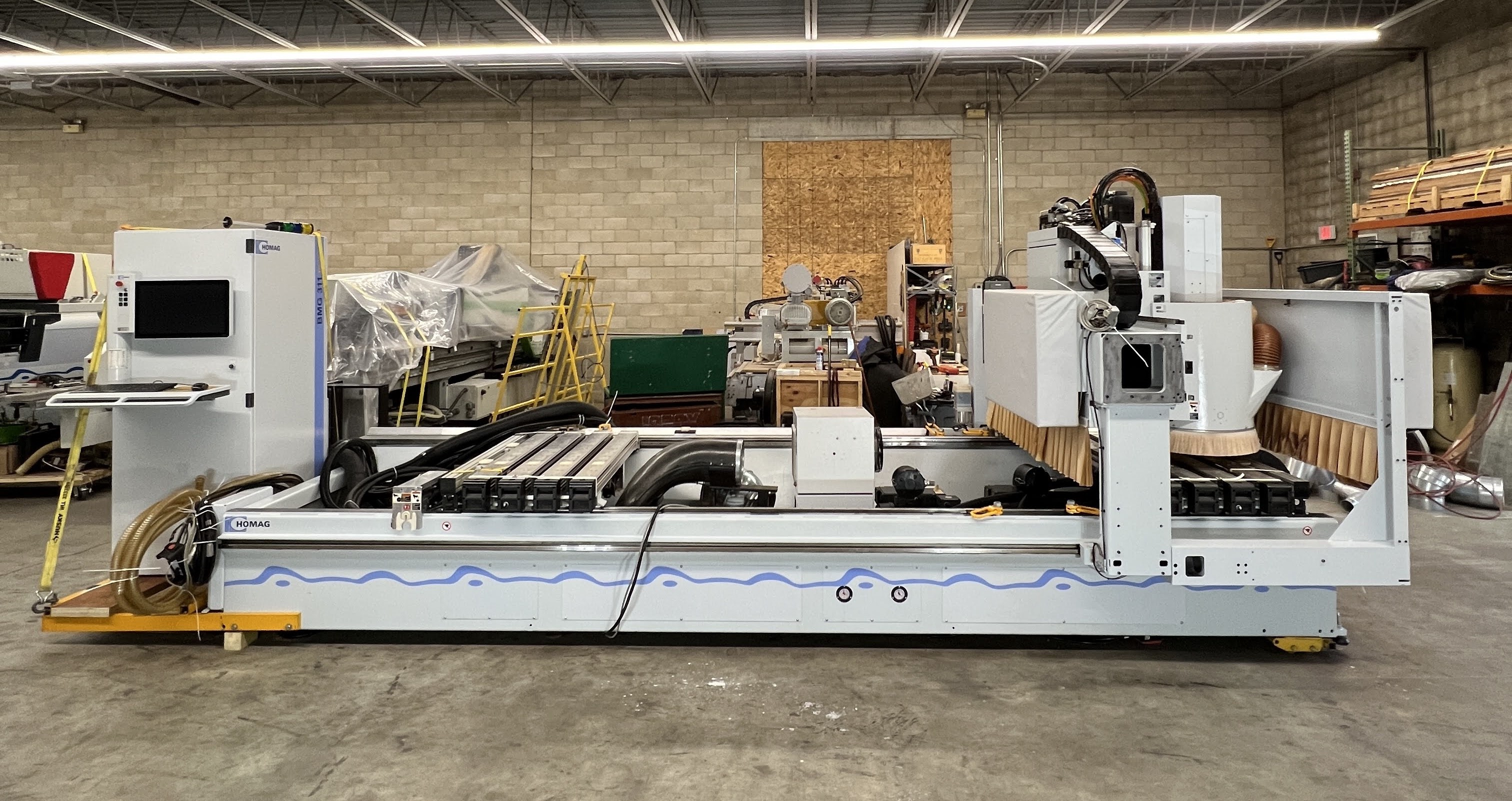

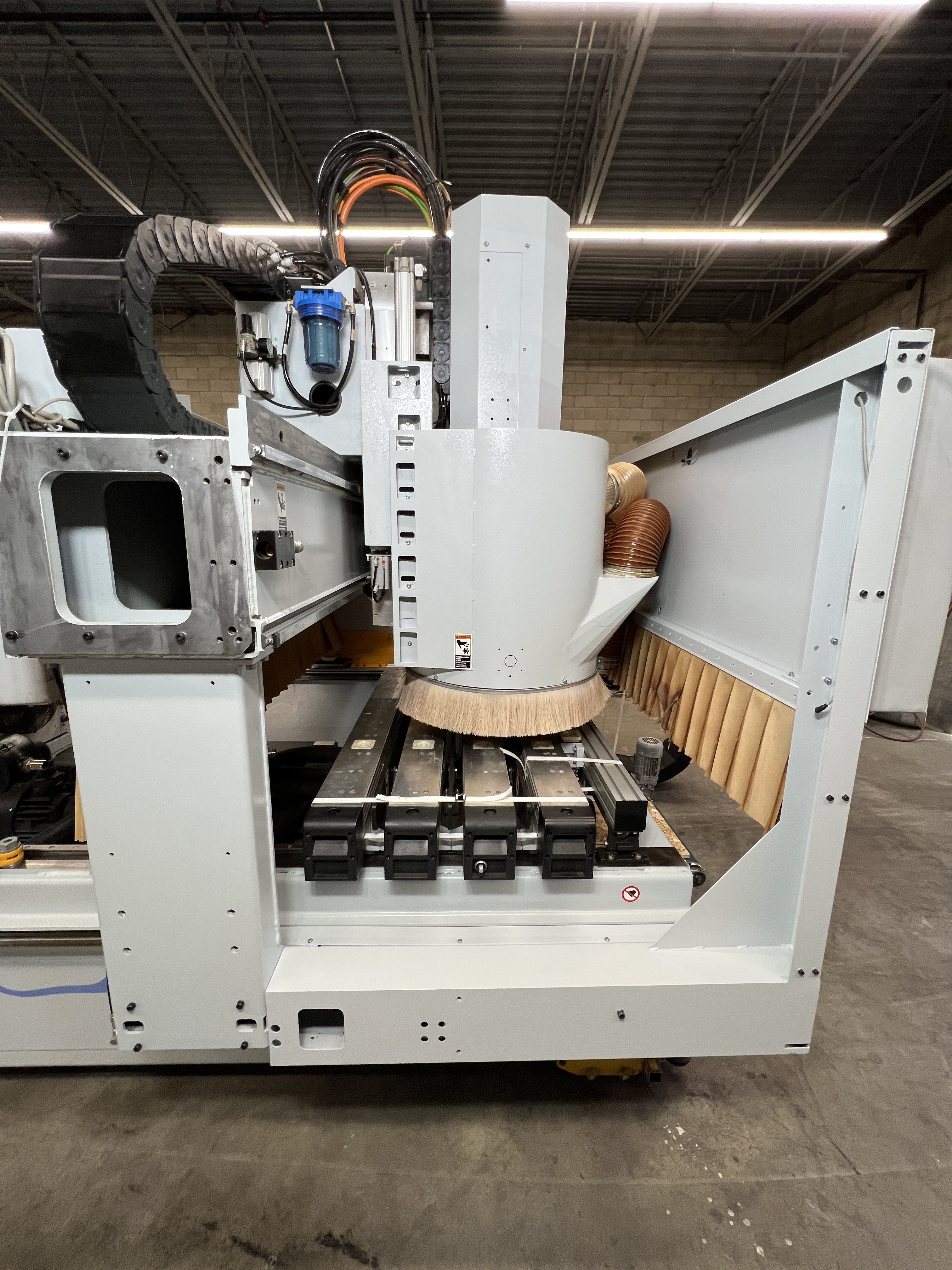

5 Axis Router Spindle - 12kw (16hp)
- Liquid cooled, Programmable 1,500- 24,000rpm, HSD Tool Holders
- Maximum tool weight of 6 kg (13.23 lbs.) including tool holder
- Maximum tool length of 230 mm (9-1/32") calculated from lower edge of motor spindle for boring and routing tools of 20 mm (25/32") diameter maximum
- Maximum tool length of 165 mm (6-1/2") calculated from lower edge of motor spindle for roughing or profile tools of 80 mm (3-1/8") diameter maximum
- Maximum tool diameter of 180 mm (7-3/32") for routing tools
- Maximum tool diameter of 350 mm (13-3/4") for using a saw blade in the optional saw blade chuck (#7942); with tool chuck "A" dimension of 50 mm
14 Position Plate-Type, Ride Along Tool Changer w/ Tool Transfer Spot
16 Spindle Boring Head (12vertical and 4Horizontal) (One grooving saw (works in X and Y) )
- Powered by 2.2kw (3hp) motor
- Programmable to 7,500rpm
Table Size 4200mm x 1340mm (165.4") x (52.75")
8 Vacuum pod support beams
LED Positioning System
Chip and Waste Conveyor
2 Busch Vacuum Pumps
WoodWOP 7 Software Package
This machine is sold without pods or vacuum clamps. They are available at BVC and/or Schmalz. Also, Stiles
