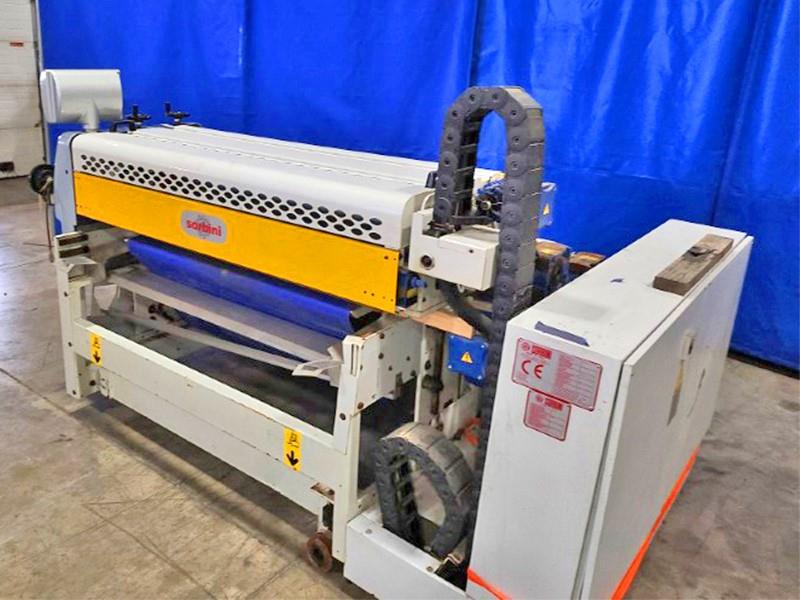

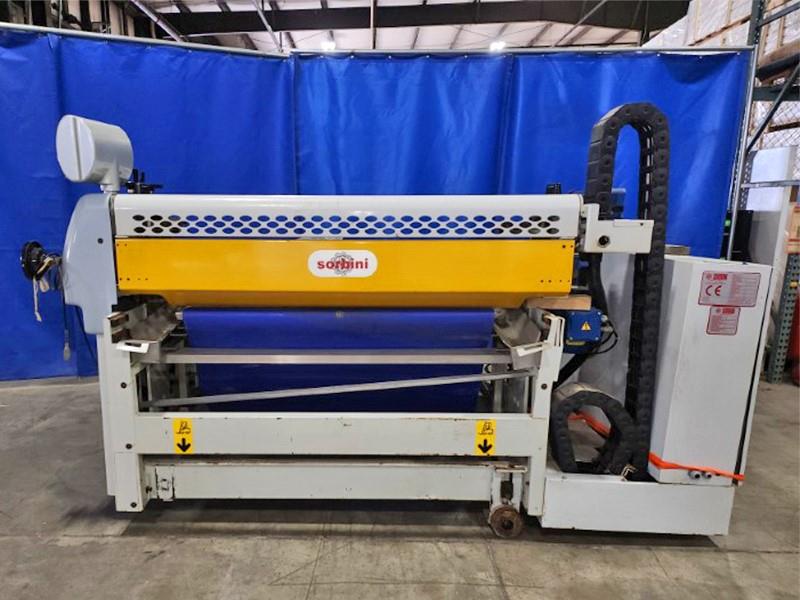

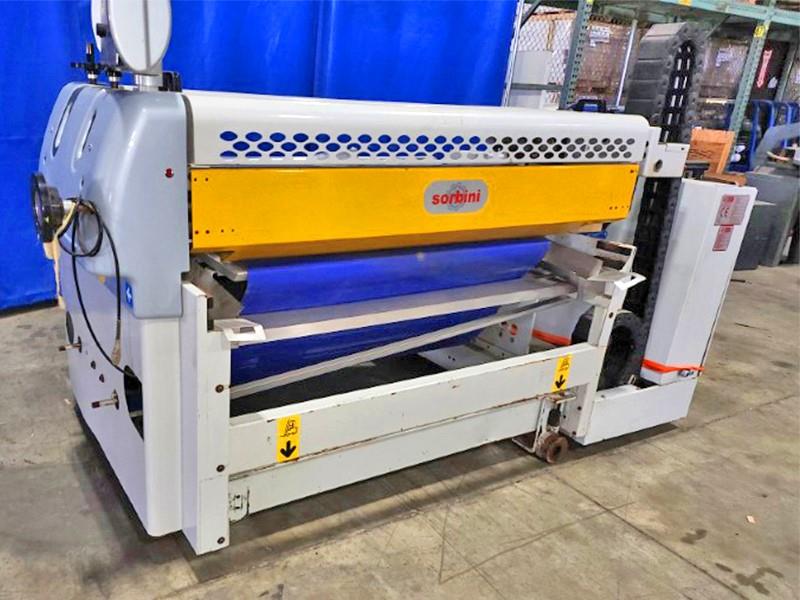

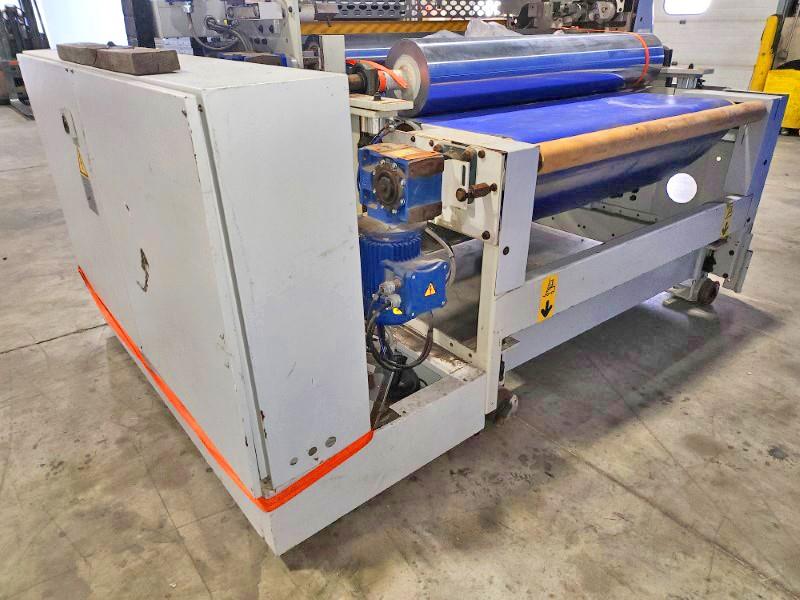

Combination Differential/Filling Machine SMARTCOATER with: 880 mm (34-1/2") Working/pass-through height; one of the best units ever produced.
Dual purpose machine can be utilized as:
1) A standard differential Roll Coater for application of UV sealer or top coat material; as a differential Roll Coater the 1st application head is independently utilized to for precisely controlled application.
2) A Filling Machine for application of H2O or UV filling material to calibrate substrates with porous veneer; as a Filling Machine, both heads are utilized for application and reverse smoothing or pressing of UV filling material.
Specifications:
(2) Heads, 53" width cap. - 1st Head: 250 mm (9-3/4") Dia. rubber coated applicator roller with separate doctor roller; doctor blades are oscillating.
2nd Head: 245 mm (9-5/8") Dia. chromium coated smoothing/reverse roller w/separate chromium doctor roll; all heads are floating to compensate for calibration errors & minimize damages from oversize parts.
Adjustable opening 0 - 100 mm (3-3/4"); thickness protection safety bar connected to pneumatic emergency lifting;
*** Please click the link for full description***
Sorbini SMARTCOATER-SP1 Roll Coater
