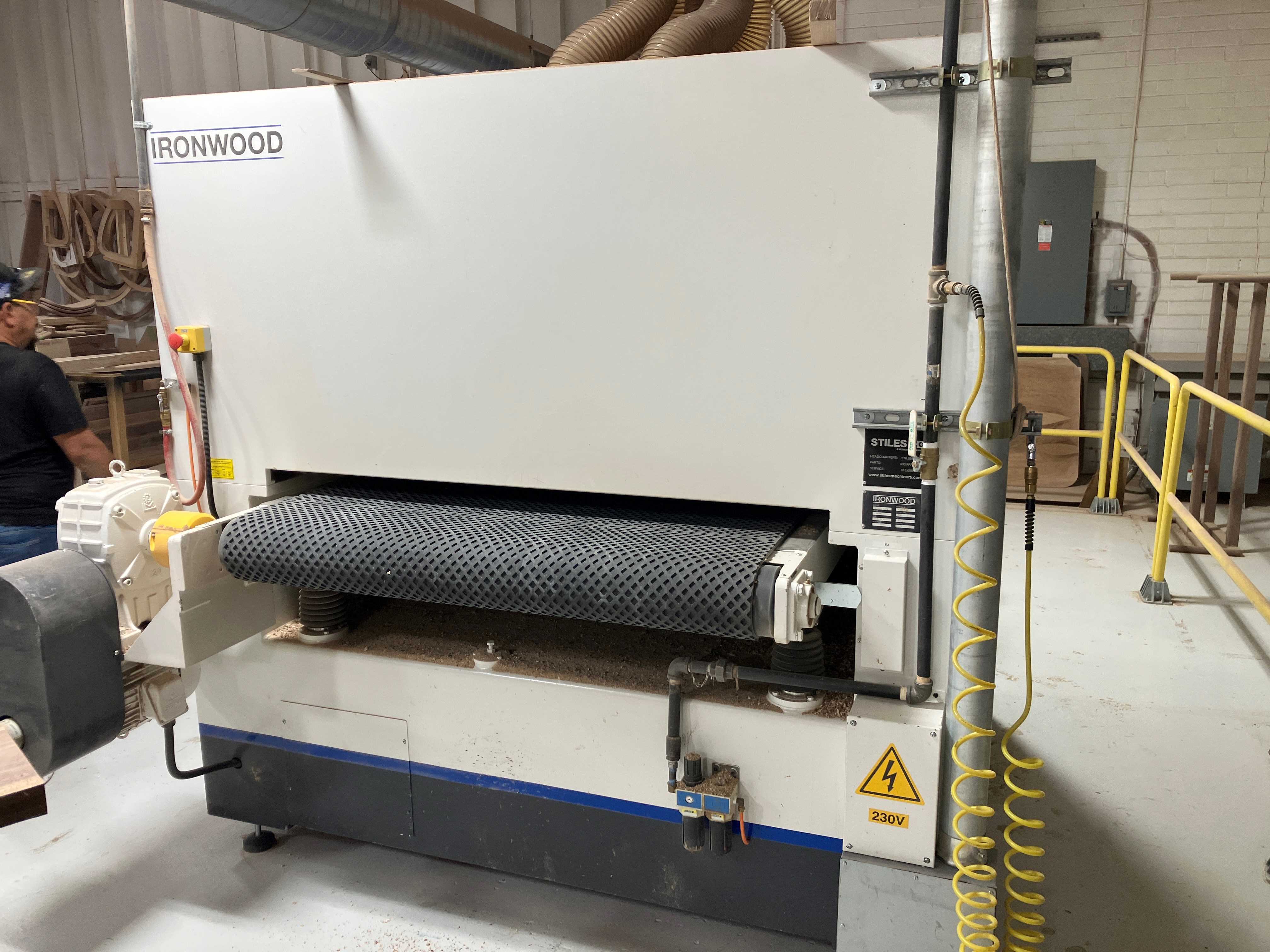

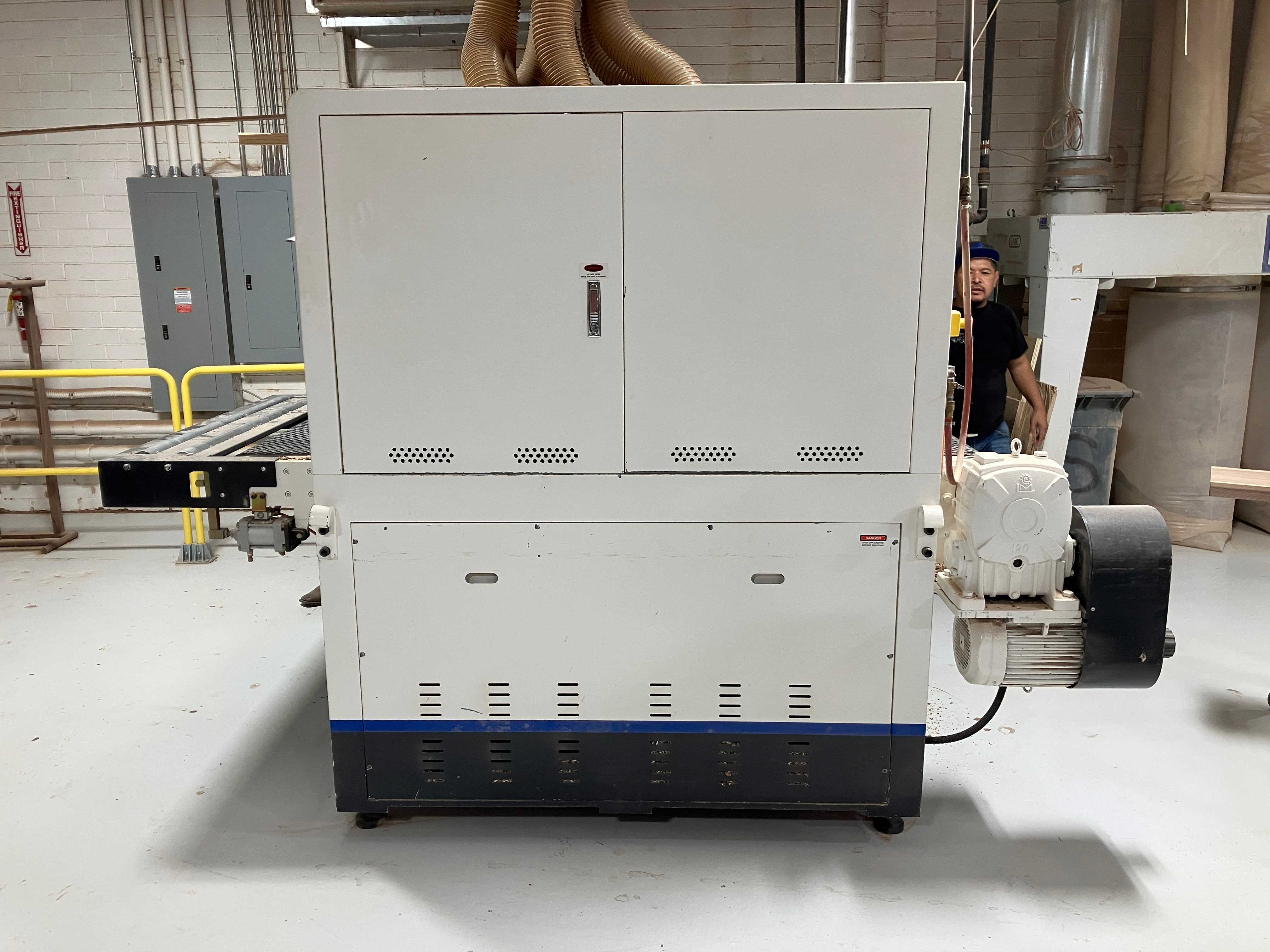

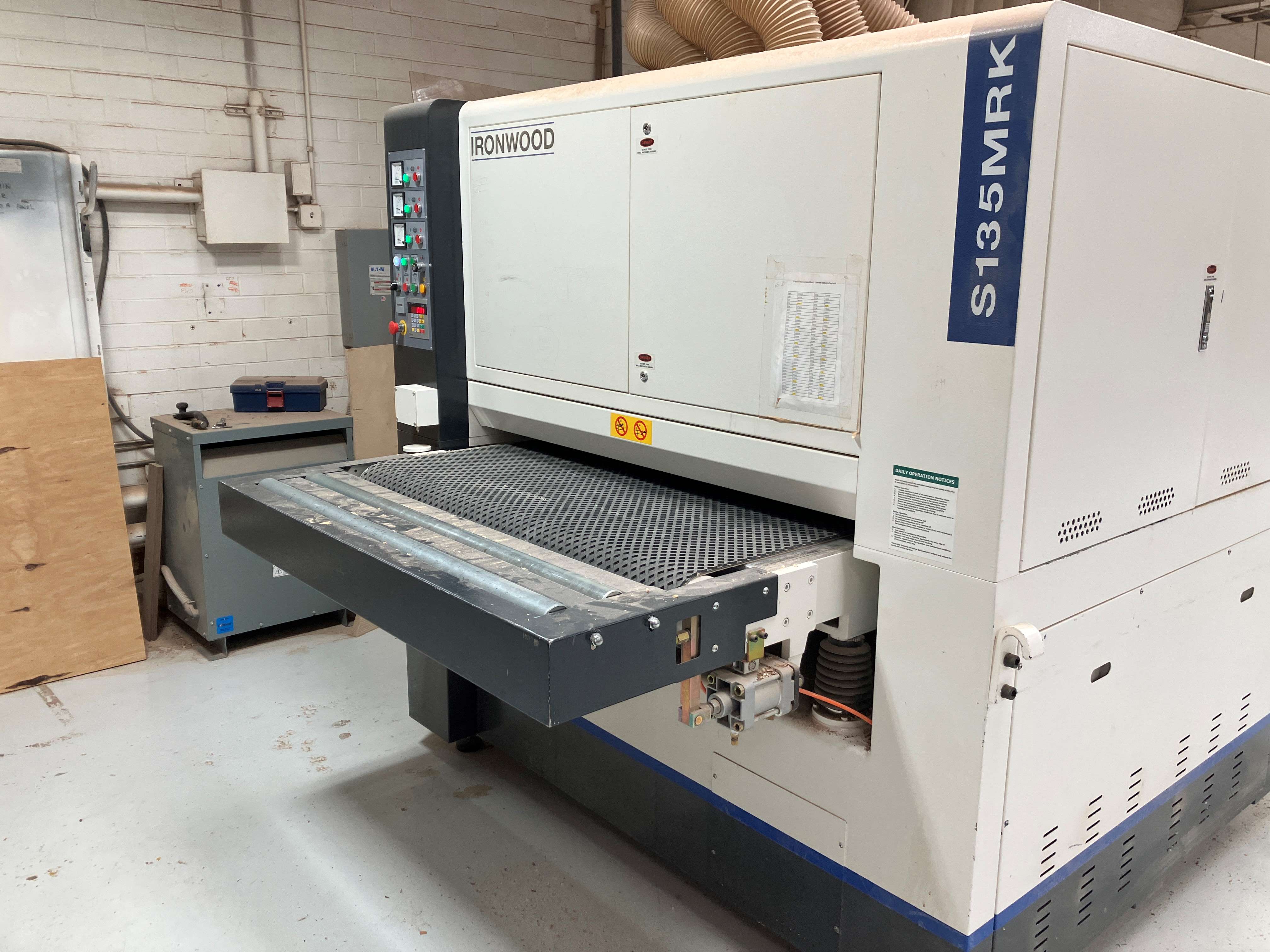

Technical Specifications
Working width max.
1270 mm (50)
Conveyor belt width
1270 mm (50)
Abrasive belt width
1320 mm (52)
Abrasive belt length
1900 mm (75)
Work piece thickness min.
9 mm (3/8)
Work piece thickness max.
125 mm (4.9)
Work piece length min.
450 mm (17.5)*
Max stock removal on planer head
4 mm (0.15")
Variable conveyor speed
3.6 14 MPM (12 - 46 FPM)
Feed motor
5 HP
Table rise/fall motor
½ HP

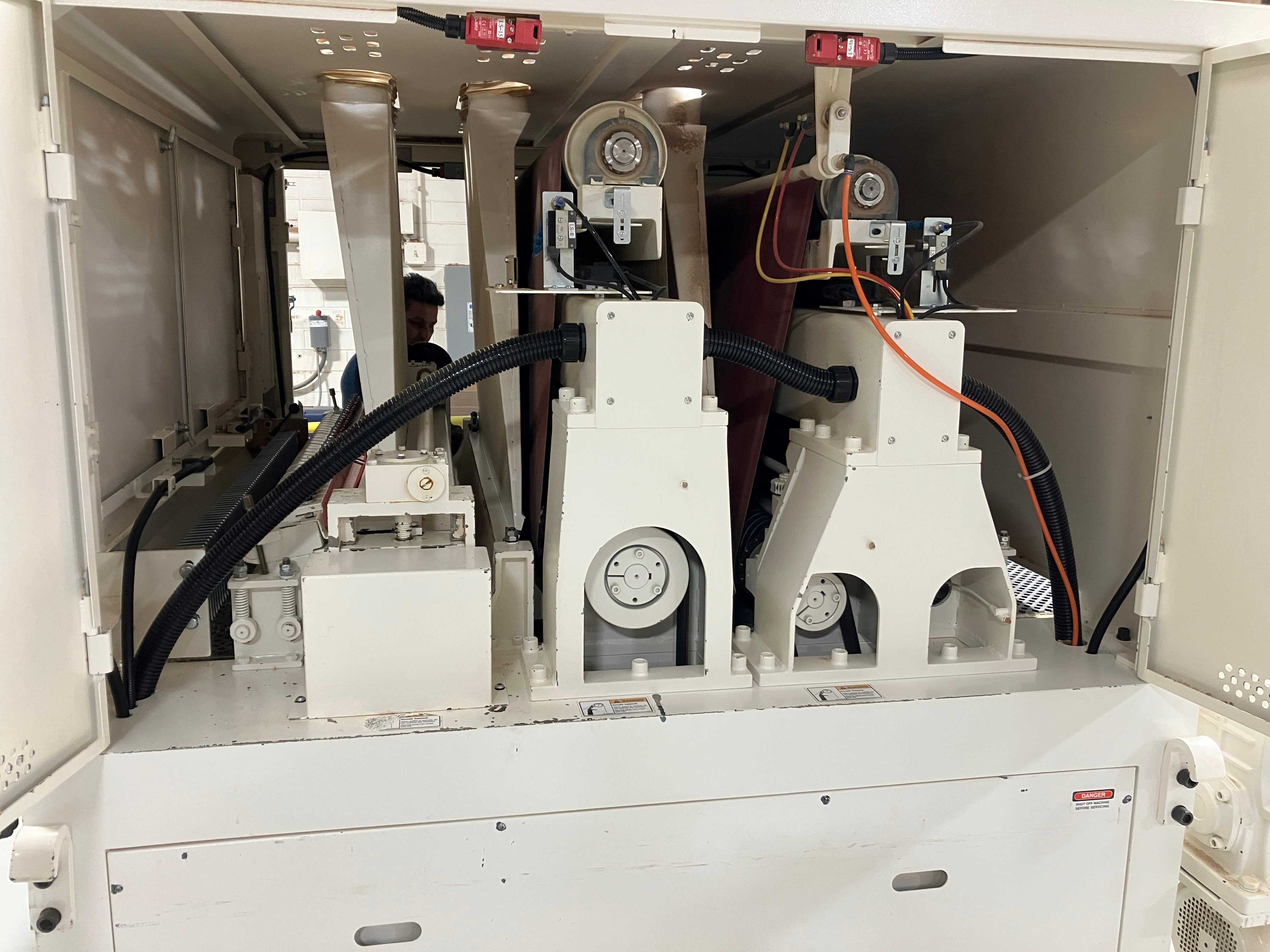

Head #1: Helical cutter head
25 HP 65 fps belt speed
Number of insert knives on planer head
195
Knife insert size
30 x 12 x 1.5 mm
Head #1: Rotation direction
Against feed
Head #2: 250mm Ψ 85 shore rubber contact roller
25 HP 65 fps belt speed
Head #2: Rotation direction
Against feed
Head #3: Combination head 140mm Ψ 65 shore rubber contact roller with felt pad
25 HP 40 fps belt speed
Head #3: Rotation Direction
Against feed
Electrical connection*
460V | 3-Phase | 60 Hz.
Dust collection requirements
4,298 CFM
Dust extraction ports
7 ports | 123 mm (5)
Compressed air requirements
90 PSI
Air consumption per cycle
4 CFM**
Air jet belt cleaning air consumption
24 CFM***
Machine net weight
4,450 kg (9,790 lbs.)
Machine gross weight
4,690 kg (10,318 lbs.)
Shipping dimensions (LxWxH)
115 x 91 x 89
There is an additional planer head (In Box Unused) See last pic
