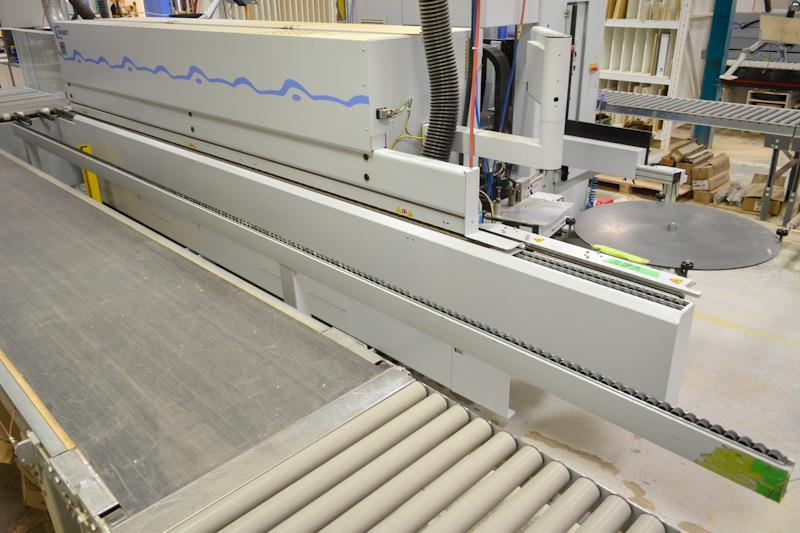

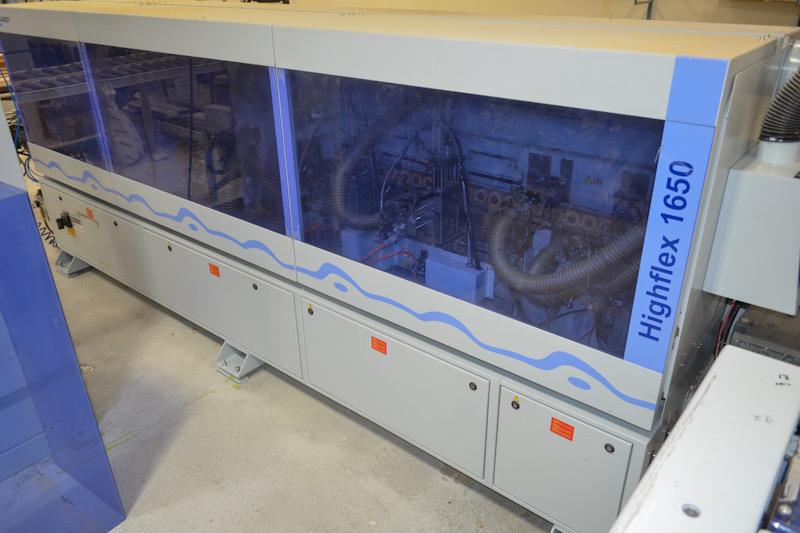

BRANDT KDF 650 (1650 HIGHFLEX) EDGEBANDER (W/PRE-MILLING & CORNER ROUNDING), with 3,339 Hrs. (As of 10/31/23):
0.4 - 12 mm (1/2") Edge cap., panel thickness 5/16" - 2-3/16", min. panel length 160 mm (6-3/8") and 65 mm (2-1/2") min. width; line control (NO limit switches) for workstation function.
Automatic height adjustment with top pressure beam for all work stations, equipped with digital height indicator.

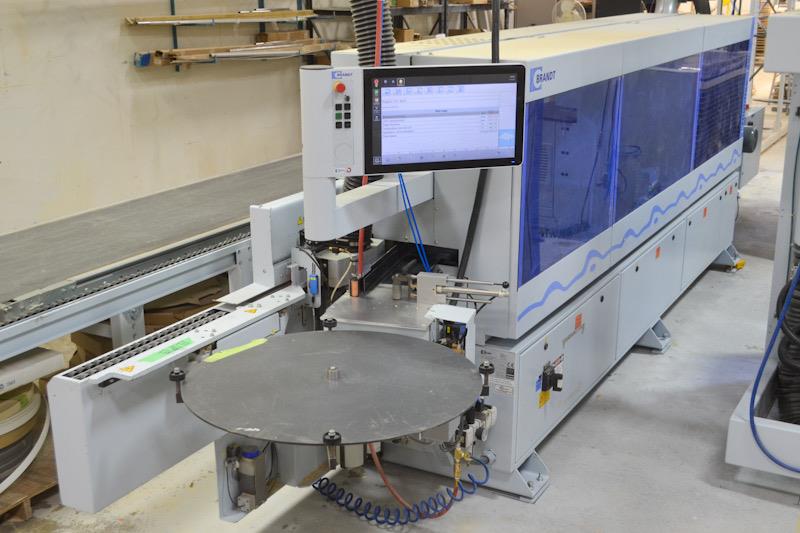

"PC-16" Program Control with: 21-1/2” Display, signal infeed light to ensure proper spacing between panels.
Equipped with: Pre-milling station for cleaning edges of the panel; "Quick change" glue tank for maintenance & glue color change.

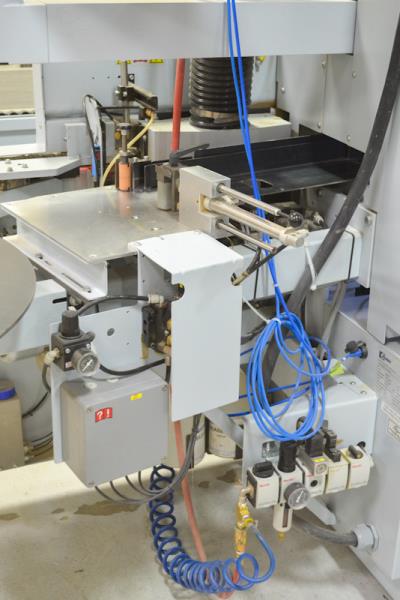

32” Dia. Coil table. Automatic magazine for strip & coil stock, 3 mm PVC guillotine, (1) drive plus (3) idle roll "pneumatically controlled" pressure sections with digital indicator for quick edge thickness changeover.
Workstations: End trim (0.33 HP - 12,000 RPM motors), chamfers 0° - 15°;
Top & bottom flush/bevel/radius trim, bevels 0° - 15° (0.5 HP - 12,000 RPM motors) with insert knives for 2 mm PVC radius. Vertical copy wheels are servo-controlled for quick changeover, programmable from the control panel.
2-Motor (4 corners) contour trim for profile corner rounding (two 0.5 HP - 12,000 RPM motors), with insert knives for 2 mm PVC radius.
Top & bottom scraping for 2 - 6 mm radius, pneumatically controlled blow off nozzles;
Top & bottom buffing (0.25 HP - 1,400 RPM motors).
End trim, flush/bevel/radius trim & corner rounding stations have HF motors with electronic brakes; feed chain track speed 42 FPM, 2 HP feed drive.
