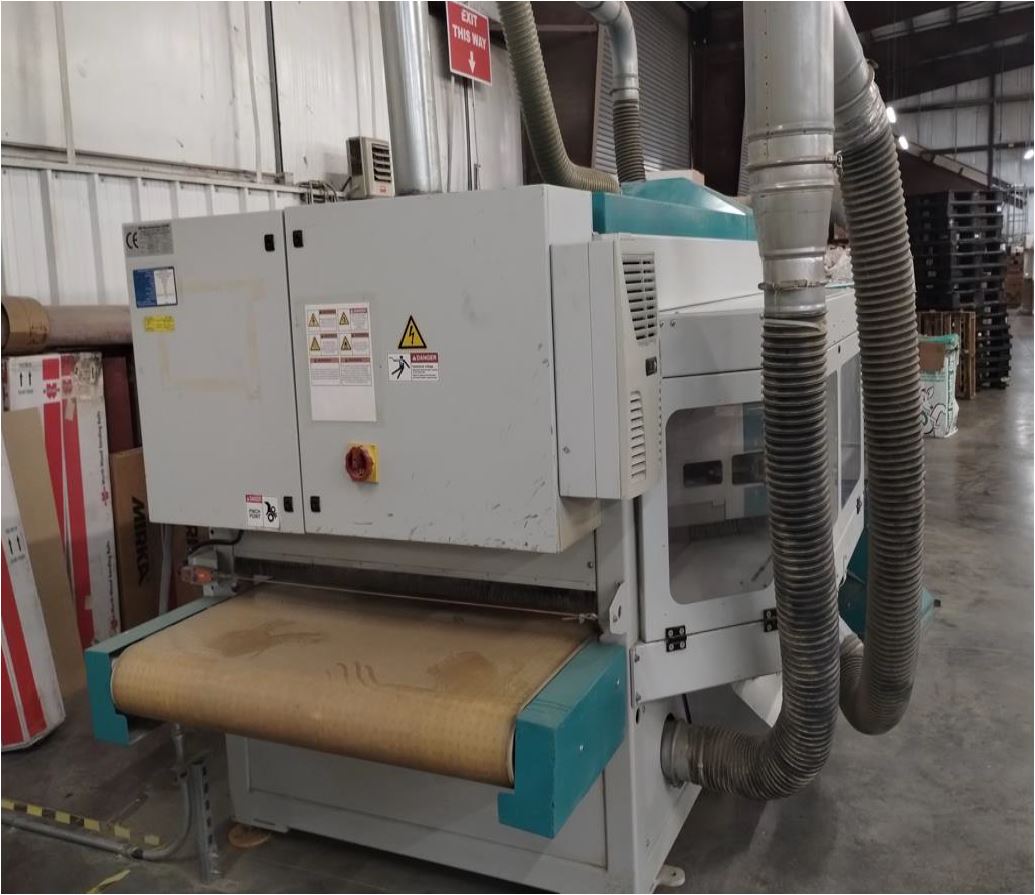

Vacuum Conveyor Belt (Part Hold-down)
Working width; 1300 mm (51”)
Feed; 1.5kW Infinitely adjustable feed 3.5 – 12 m/min (11.5-36 ft/min)
Vacuum blower 5.5kW
Cleaning Brush for cleaning the vacuum conveyor belt

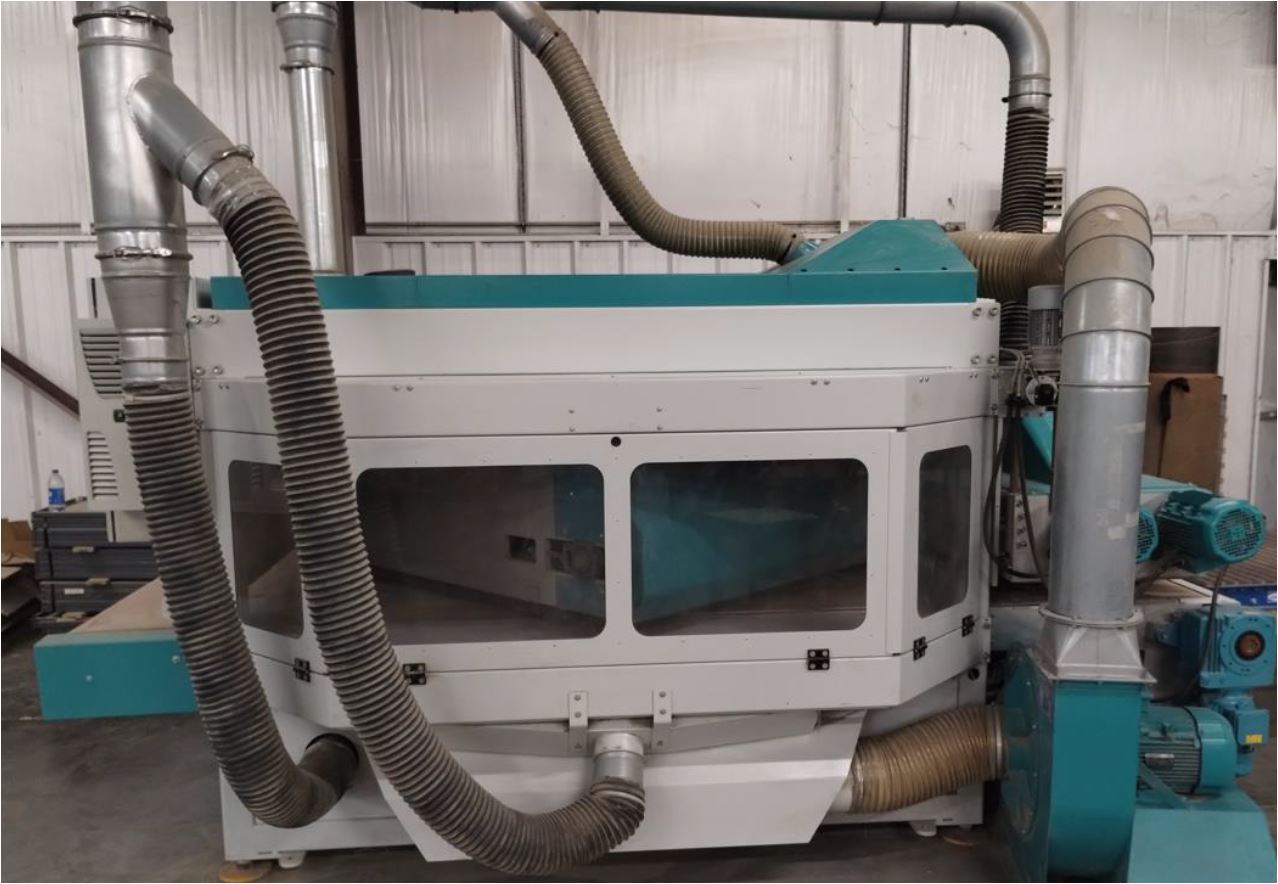

Rotational Brush Belt Sanding Unit consisting of:
Plug-in receptacles system for equipping with pc174 sanding segments.
Working Width 1300 mm (51”).
5.5 kW
Dual counter-rotating brushes on outfeed- Abrasive brushing or panel cleaning insert capable. Programable control from the input panel.
Sanding speed 30-140 m/min infinitely variable
Motorized height adjustment for brush belt sanding unit. Adjustment range programmable from 0 to 80 mm (3”) by machine control

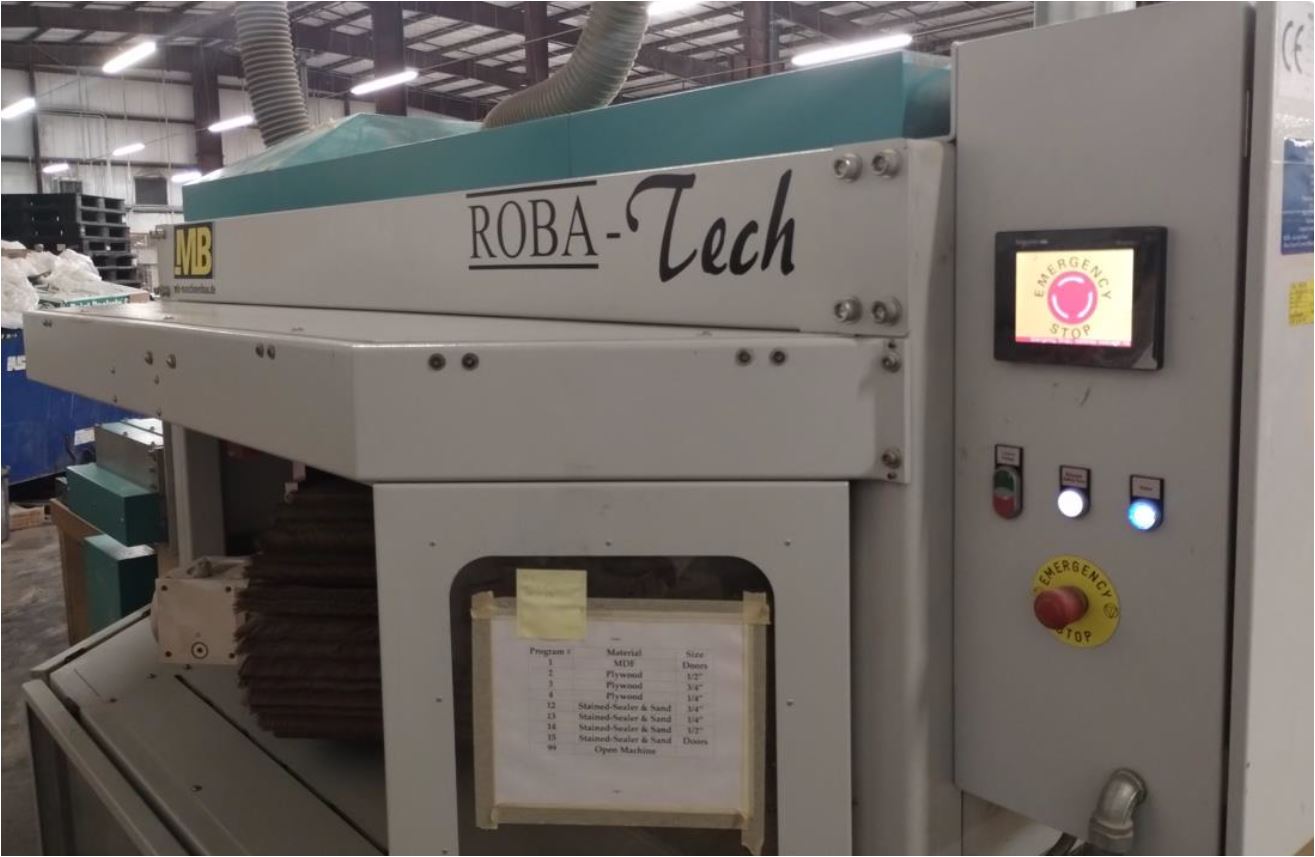

Programmable control for different sanding procedures:
a) Oscillation with free selectable oscillation angles between 10° to 45° for opposed sanding against feed direction
b) 360° rotation of the main sanding belt with automized adjustment to the feed speed
c) Belt sanding function for opposed sanding against the feed direction
Functions:
1) Input of external emergency shutdown interlinking.
2) Input of analog feed speed signal 0-10V.
3) Input of feed interruption for downstream machines.
4) Output of emergency shutdown interlinking.
5) Output of feed release for upstream machines
6) Ready for line operation output signal.
Machine Weight: 3.0 t.
Machine length: 152”.
Machine Width: 101.97”.
Machine Height: 80”.
Working Height: 33.5” – 35.5”.
Working Width: 51.18”.
Power Consumption: 14KW.
Full Load Amps: 40A.
Operational voltage for UL/CSA: 480Y/277V AC60hz.
Control voltage: 24V/DC.
Extraction Capacity: 4510 cfm.

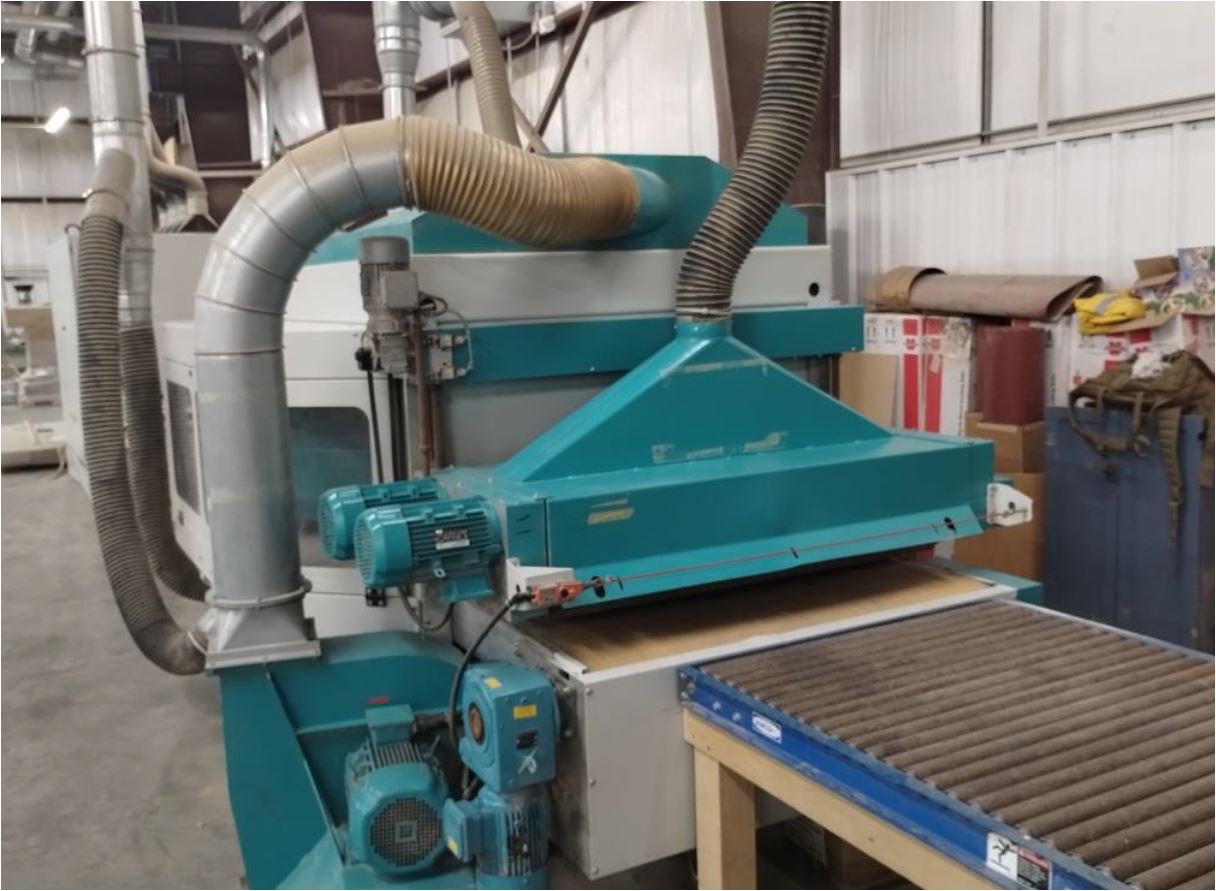

Suction hood (2x160 mm) 6.3” Split belt module.
Suction hood (2x140 mm) 5.51” Cross belt module
Suction hood (1 x 125 mm) 4.92” Rest air from vacuum transport.
