Description

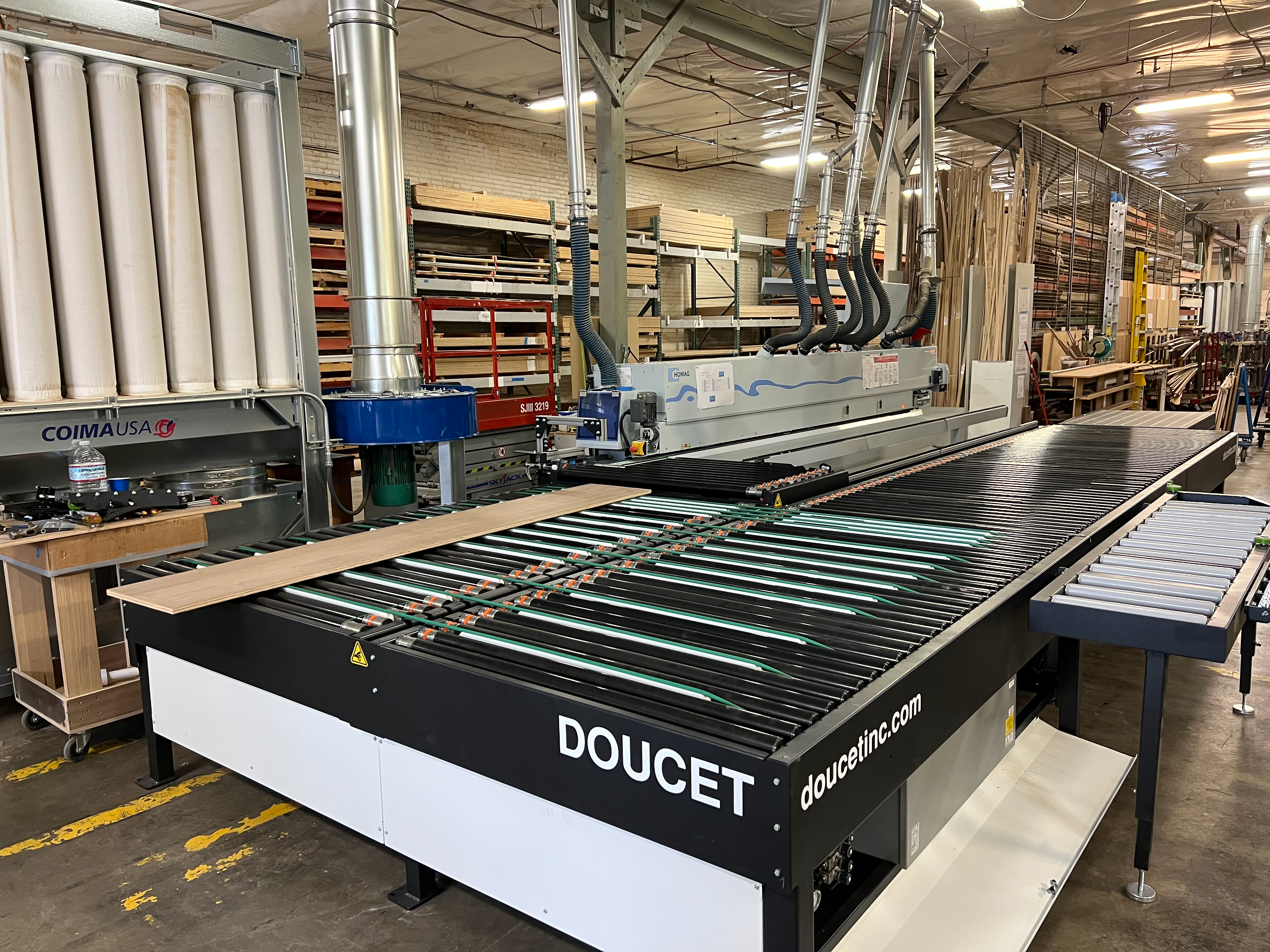

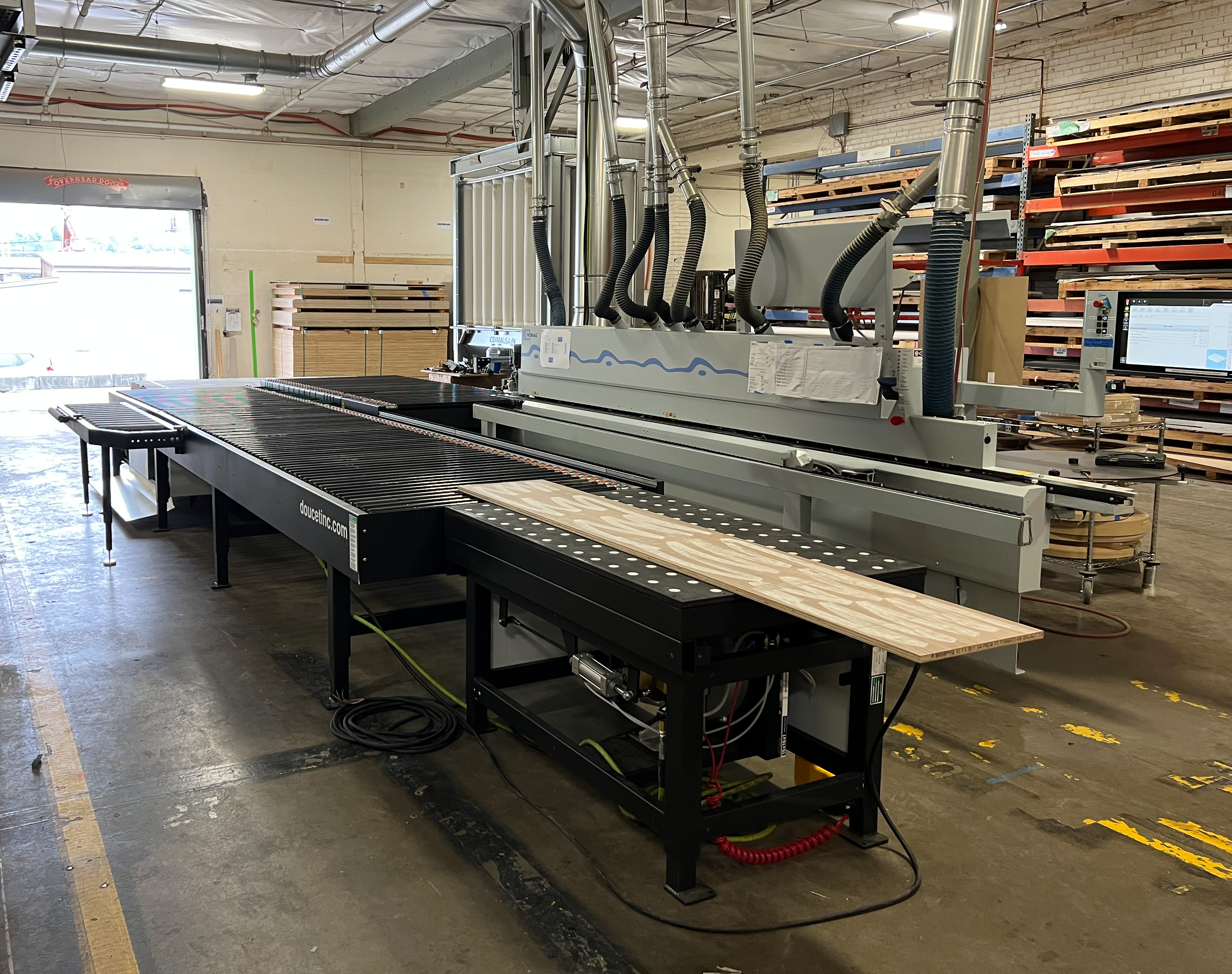

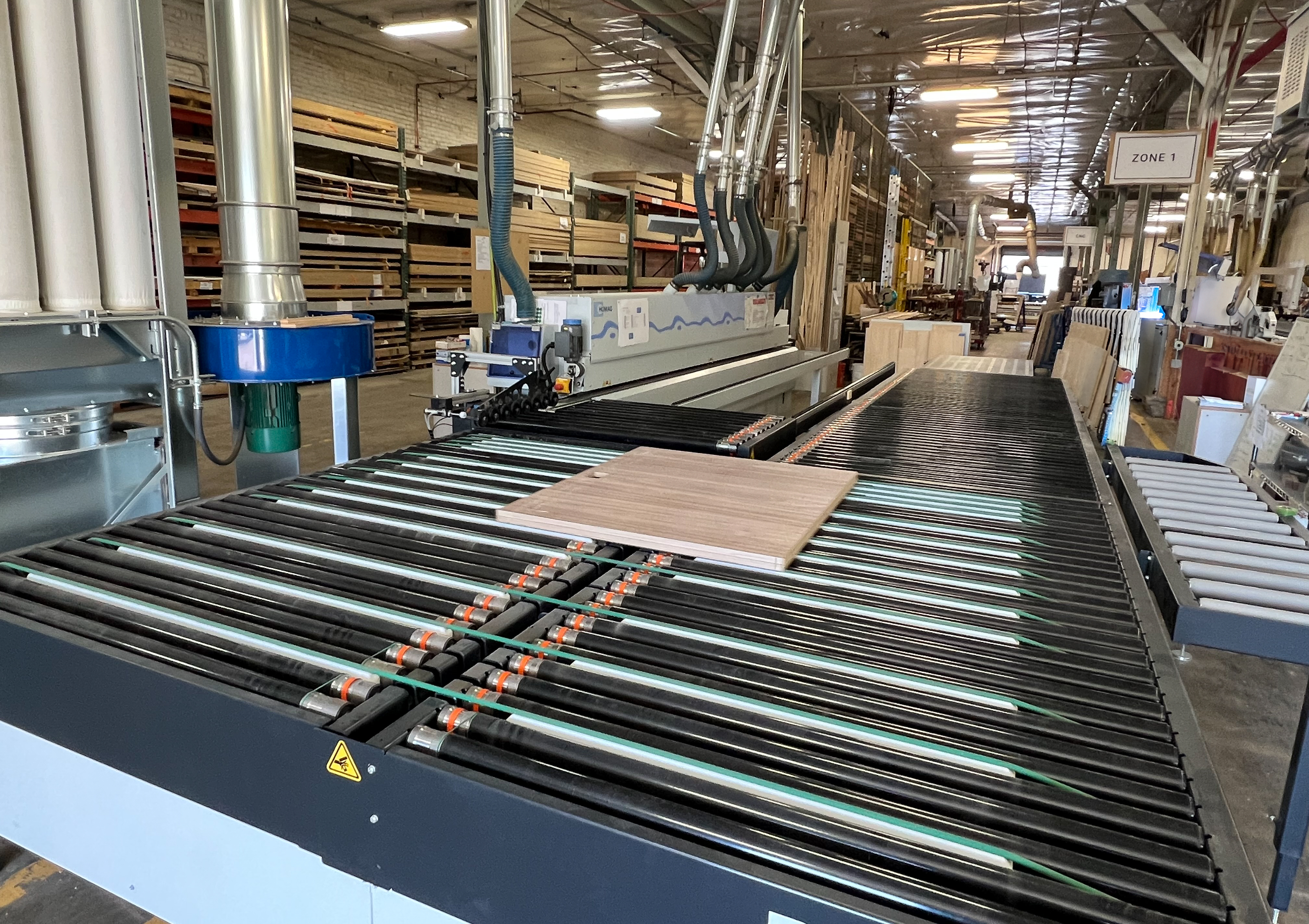

2022 Doucet SRH-48L-31-T left hand return conveyer. Equipped with pneumatic actuated downstroke transfer belts which raise and lower to transfer the receiving panel to the return conveyor rollers. The return conveyor was taken out of service due to the replacement of the edgebander it was ordered for. The return conveyor is in very good condition and has been lightly used.
Operating Speed
Variable conveyor speed 30 to 90 feet/min.
Belt transfer speed is fixed at 180 feet/min and return
Return conveyor speed is adjustable 60 to 180 feet/min.
Panel Specs.
- Min part sizes on conveyors: 12” x 12”
- Min part sizes on conveyors as equipped with panel deviator: 4" x 12"
- Max panel sizes feeding all 4 sides: 66" x 66"
- Max panel sizes feeding long sides: 66" x 96"
- Max panel weight capacity: 150 lb
Conveyor.
- Pass Height: 30-42”
- Receiving table Minimum speed: 9.14 meters per minute (30ft/min)
- Receiving table Maximum Speed: 27.43 meters per minute (90ft/min)
- Return conveyor speed 18-54 meters per minute (60-180ft/min)
- Belt Transfer Speed (fixed): 55 meters per minute (180 ft/min)
Description SRH-48L-31-T
- 48" wide x 5’ long receiving conveyor with 2" Ø steel rollers covered
with black vinyl, 10mm belt driven individually every 3" centers
- 48" wide x 31' long return conveyor with 2" steel rollers covered with
black vinyl, 10mm belt driven individually every 3" centers
- Belt transfer device 6" wide featuring 9 transfer belts
- Transfer by-pass switch
- Variable speed switch located on operator console
- One rail located along the return section of the conveyor to support long and narrow pieces, adjustable in height
- A panel deviator to redeploy narrow parts over several rollers
- PT-90 panel turner to return long rectangular panels lengthwise rather after finishing
- Voltage: 220 or 440 / 3 / 60, 8 amps
- Compressed air requirement: 10 cfm @ 90 psi
Stiles Colors:
- Frame and legs # RAL 7021 HOMAG black
- Skirts # RAL 9003 HOMAG white
The conveyor is located in Seattle and has been removed from service. Free local pickup. Seller will prep the conveyor for shipping and load it onto a conestoga or curtain van trailer for out of State buyers. Dimensional drawing of the return conveyor from Doucet available on request. The seller is the owner of the return conveyor, this not a consigned machine.
