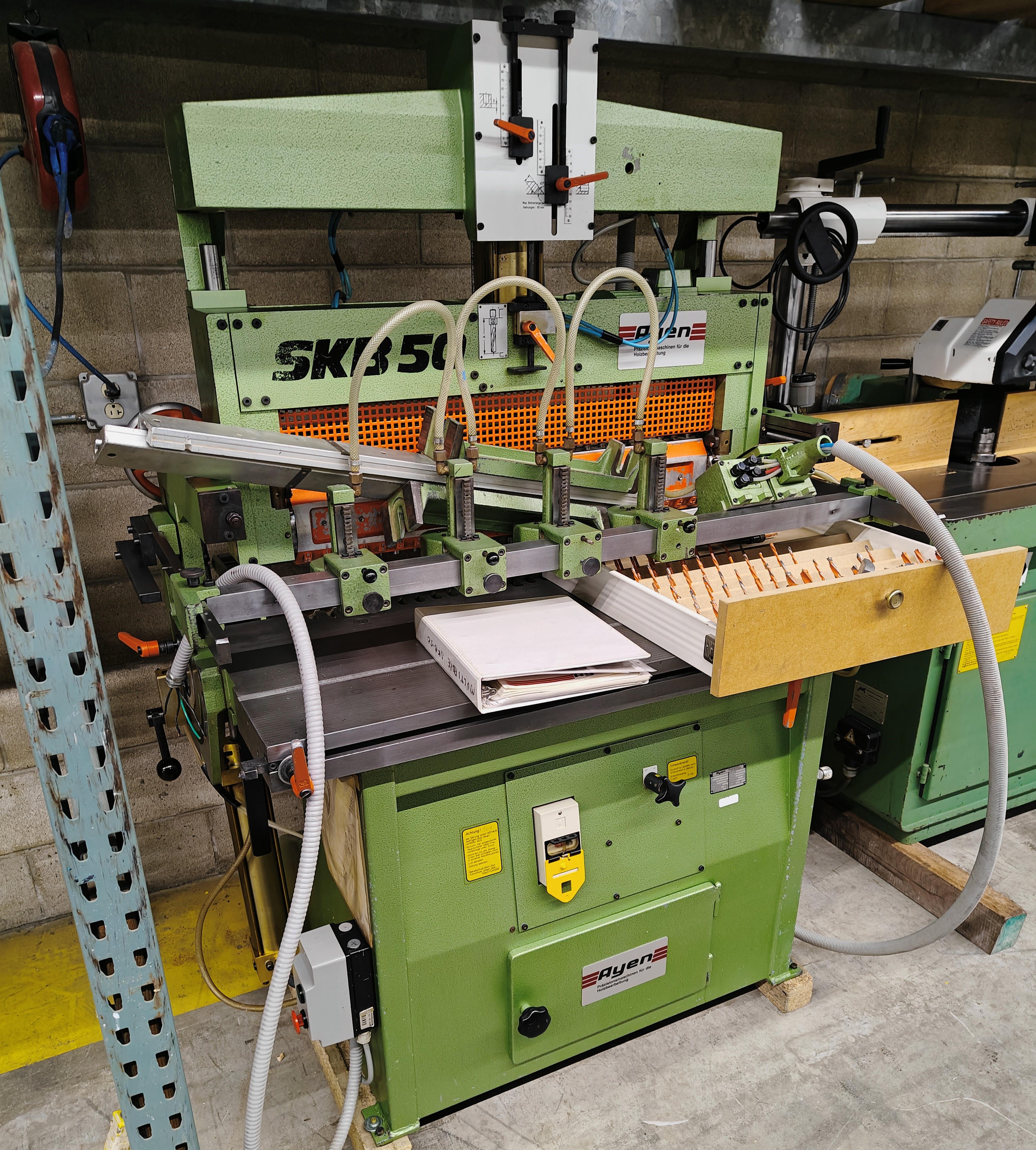

The most popular and respected boring machine, with the fastest change over.
Specifications:
50-Spindles
(2) swivel heads with (25) spindles each
0° - 90° drilling with a positive stop at 45°
50-Spindle swivel head assembly converts quickly into (2) 25-spindle heads for double line boring
5-1/8" min. distance between heads when line boring
3 HP motor at 3,450 RPM
39" panel width cap. with a 30-1/4" drilling width
(2) 39" Fences with flip-stops
(4) pneumatic "quick set" hold-down clamps
Foot pedal control for drilling cycle/head positioning
Drill bits
Operators manual
