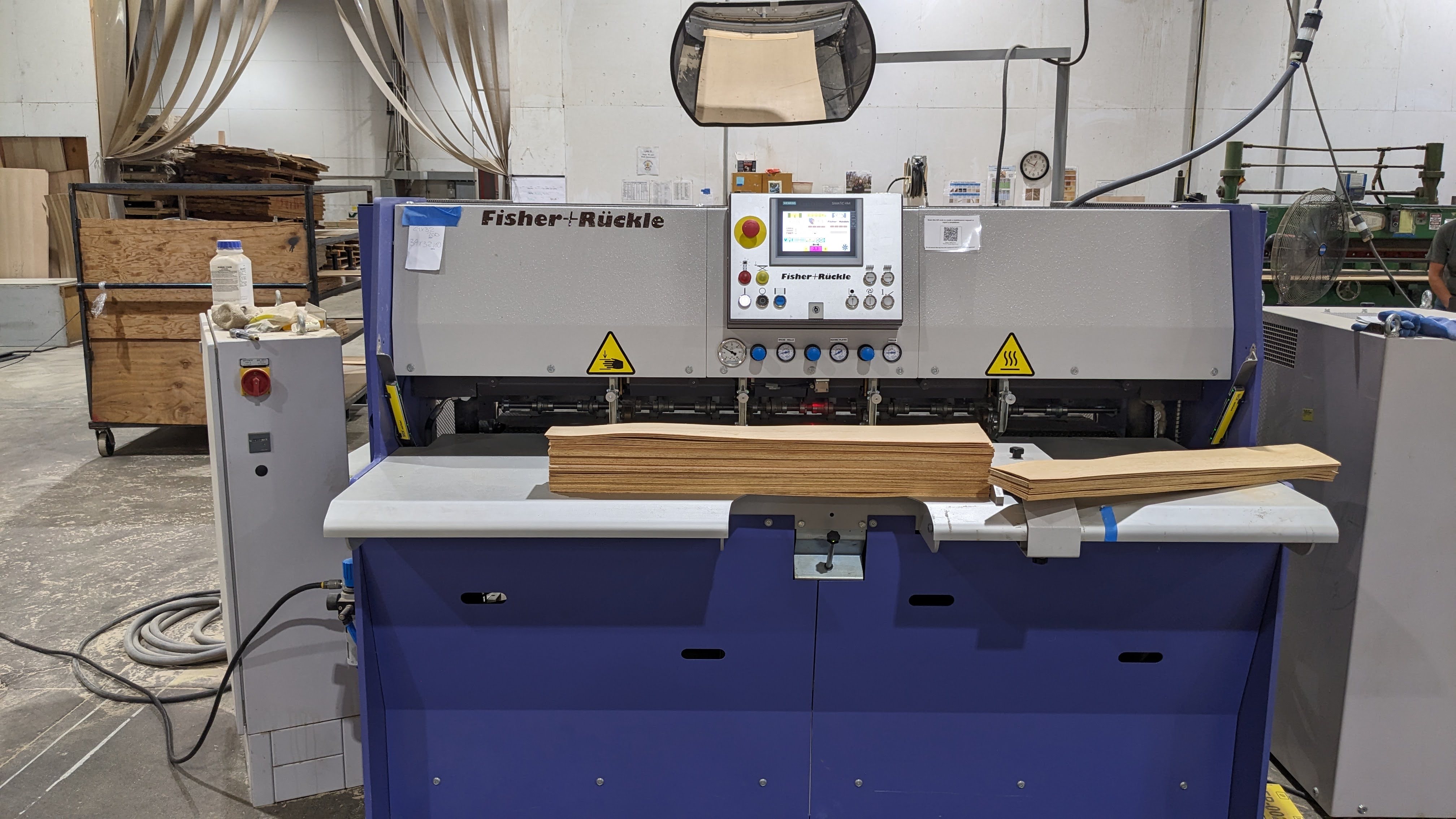

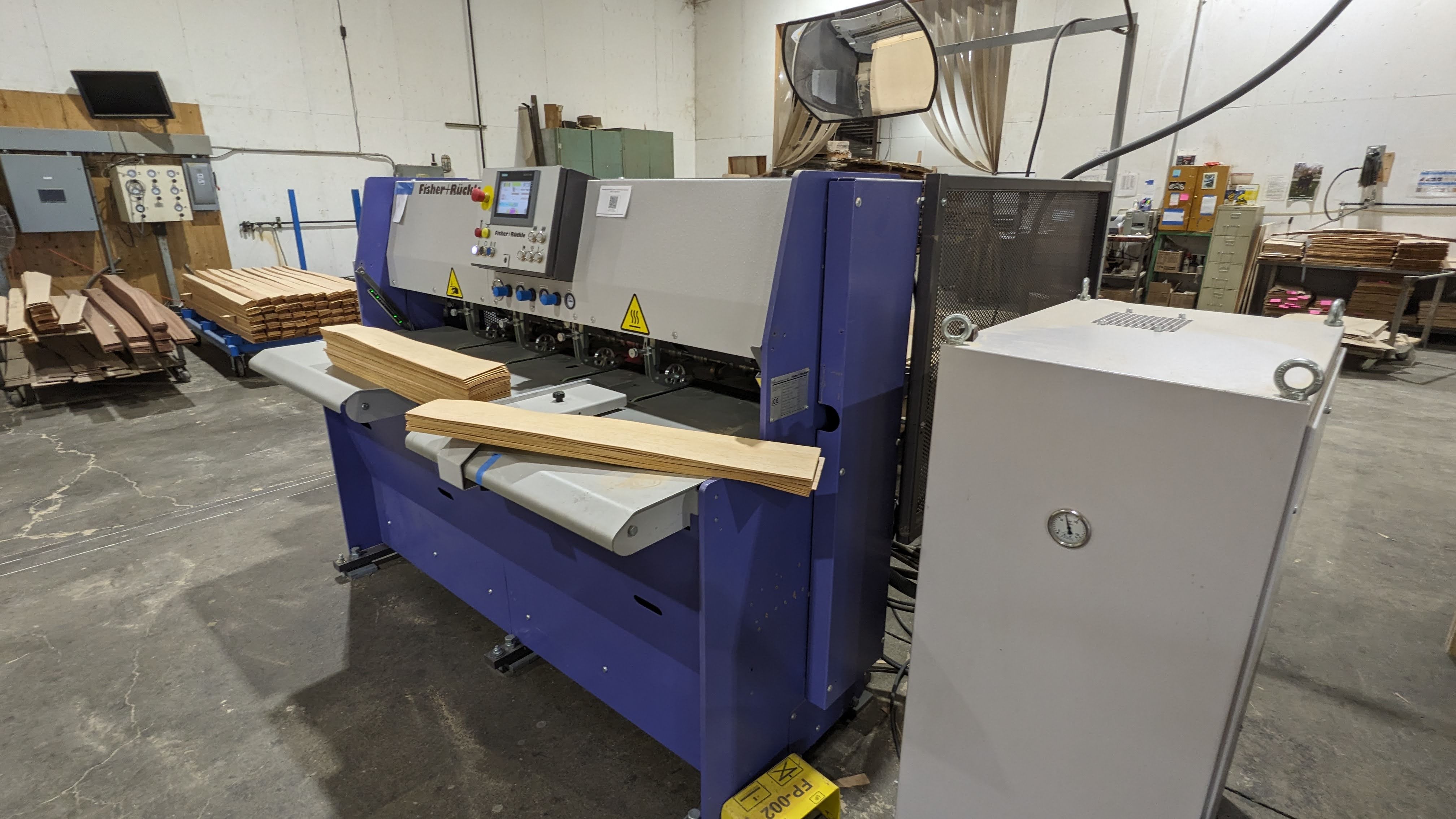

Fisher+Ruckle Model FZR-15 Crossfeed Splicing Machine
Condition: As Is
NEW in 2023 (LESS THAN 200 HOURS OF USE)
Stock Number: 10368
Effective Length of Heating Zone 1536mm ( 60")
Throughput Speed 33m/min. (108 Ft/Min)
Maximum Nominal Output / Machine Cycles - 30 Cycles/min
Average Production Speed is 17-20 Cycles/min (Based on Average Veneer Strip Width of 100mm, Cross Grain)
Veneer Strip Length (grain direction) 350 - 1500mm (13.8" - 59")
Veneer Strip Width (cross grain) 50 - 500mm (2" - 19.6")
Veneer Strip Thickness 0.4 - 1.5mm (0.015 - 0.059")
Veneer Face Width, Min 400mm (15.75")
Veneer Moisture Content, approx 8 - 12%
Glue Types: PVAc or UREA Based
Fisher+Ruckle Model FZR-15 Crossfeed Splicing Machine
