122" (3,100 mm) Cut length; 122" (3,100 mm) pull back; (80 mm) main saw blade projection; 12 HP (9 kW) main saw motor; 3 HP (2.2 kW) scoring motor; scoring saw adjustment from the "CADMATIC 4.0" control.
Saw Carriage. Travel speed from: 16 - 426 FPM (5 - 130 MPM); constant return: 426 FPM (130 MPM).

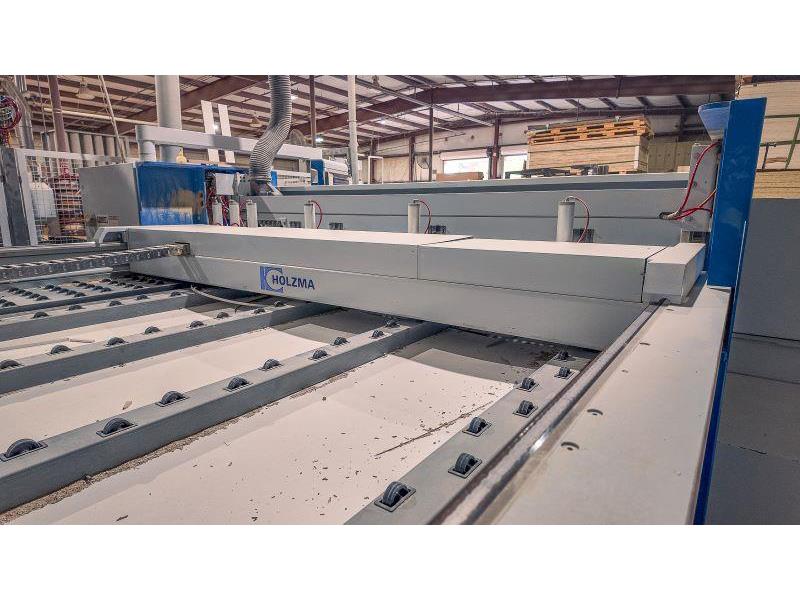

Pusher Fence: Overhead program fence with: (6) Gripper clamps; clamps open up to 90 mm (3-1/2"); rack & pinion drive on both sides; forward speed from 82 - 262 FPM (24 - 80 MPM); return speed: 262 FPM (80 MPM).

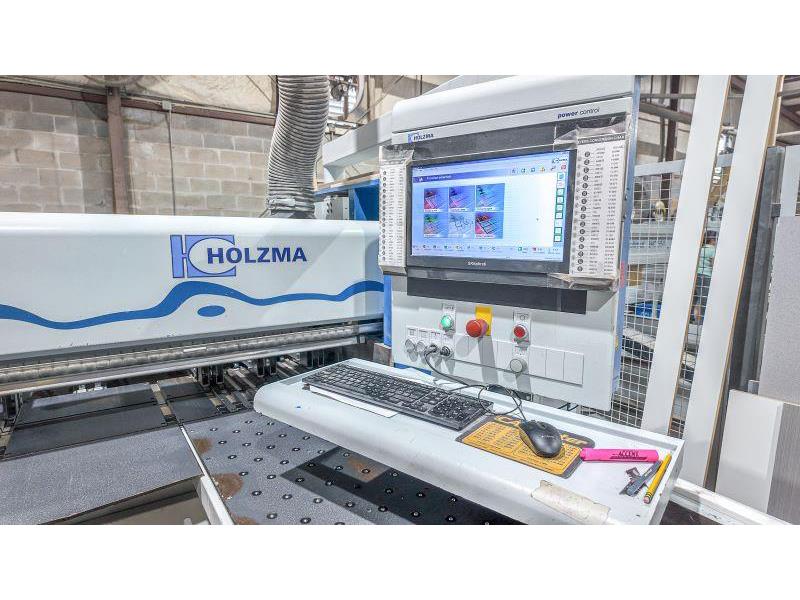

Operator & Machine Control: HOLZMA Power Control with: "CADMATIC 4.0" + "Windows XP" Operating System; virtually unlimited cutting dimensions memory; TFT 17" flat screen monitor; REAL TIME moving graphics; panel grooving & numeric display. Industrial keyboard: 1.44 MB Floppy & CD ROM drives;
Automatic "CENTRIC" side aligner with: front & rear forks holding ripped strips squarely against the right angle fence
*** Please click the link for full description***

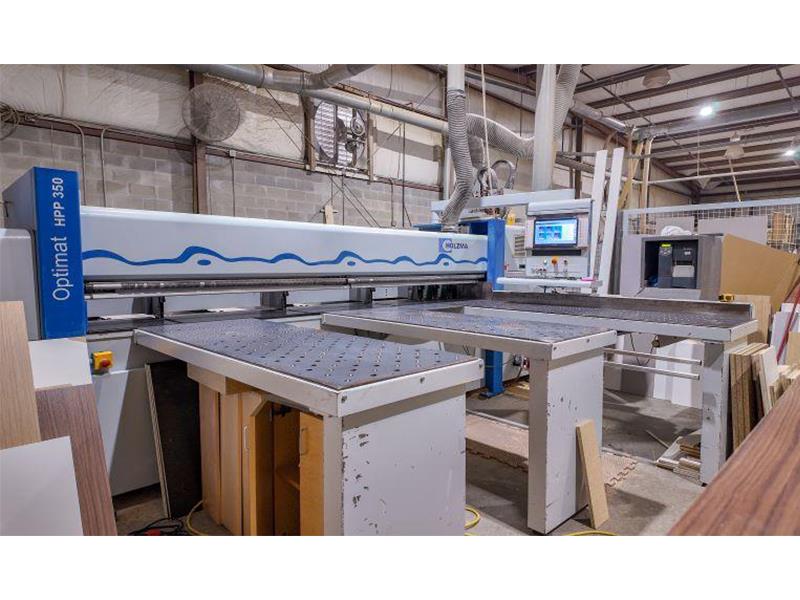

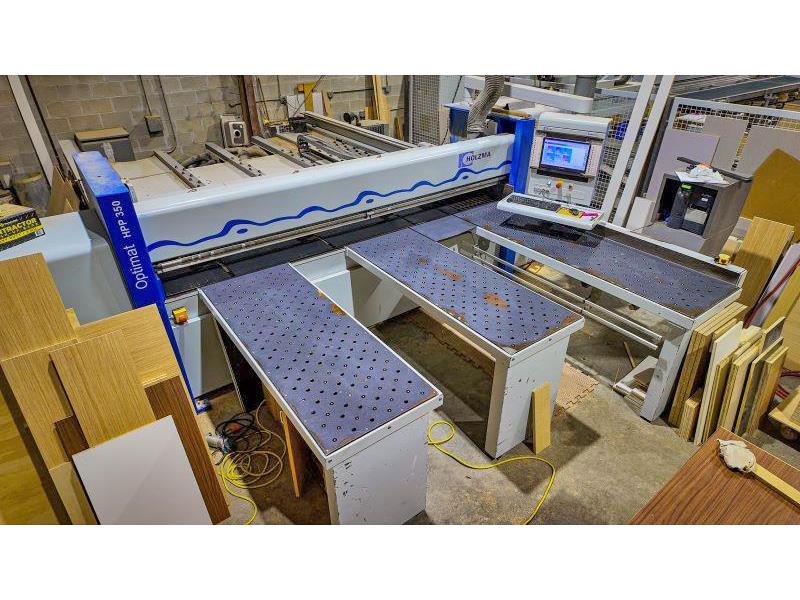

Hozma HPP 350 Front Load Automatic Panel Saw
