Description
Lightly used 2022 Hendrick Beam saw for sale. Purchased in 2022 but was only Installed in March of 2023. Not used very heavy, as we are a 2 man shop, so it didn't even run every day. It is located in Barwick, ON. I am willing to assist making connections with transportation/brokerage, if wanted!

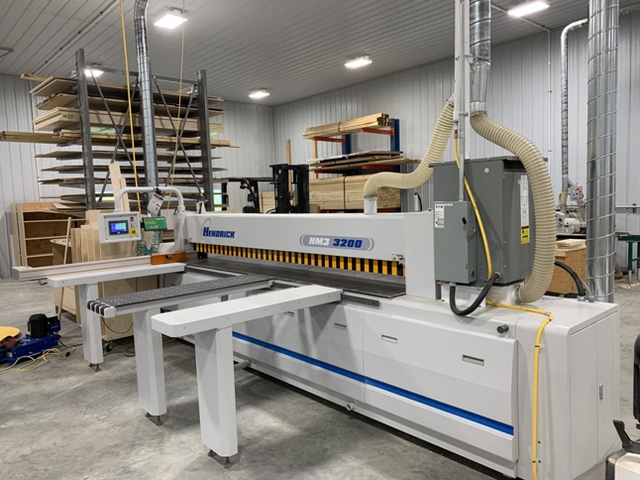

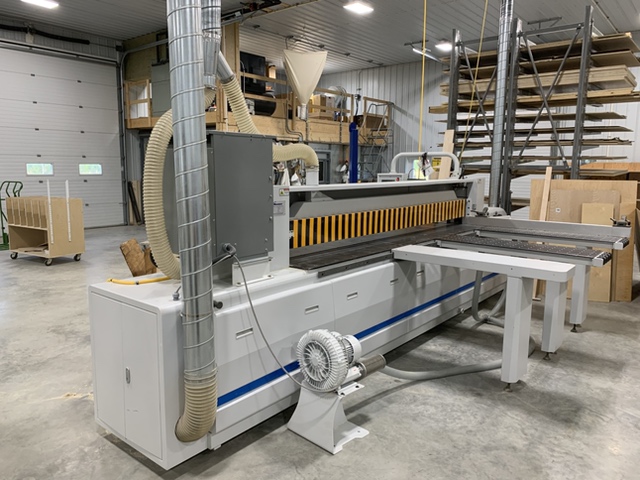

Model: HM3 3200 Automatic Beam Saw
Application(s): Configured for cutting solid or stacked wood sheet.

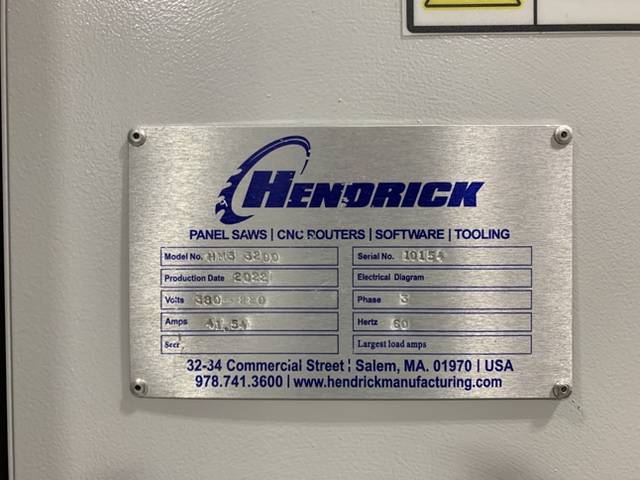

Power Requirements: 220V, 3 Phase, 60Hz, 60A
Length of cut: 126” +
Depth of Cut: 3” +
Main Saw Motor:
Powerful 15 HP, 3 Phase, 4 Pole
Carriage feed motor: 1.5 kW AC Servo System driving linear rack & pinion gear
system.
Main spindle speed: 4500 RPM
Scoring spindle speed: 6700 RPM
Max Feed Rate: 2,800 “/min.
Max cutting speed: 1,800 “/min.
Main saw blade size: 14” Diameter x 75mm Bore
Scoring saw blade size: 7” Diameter x 30mm Bore
Material support Air tables

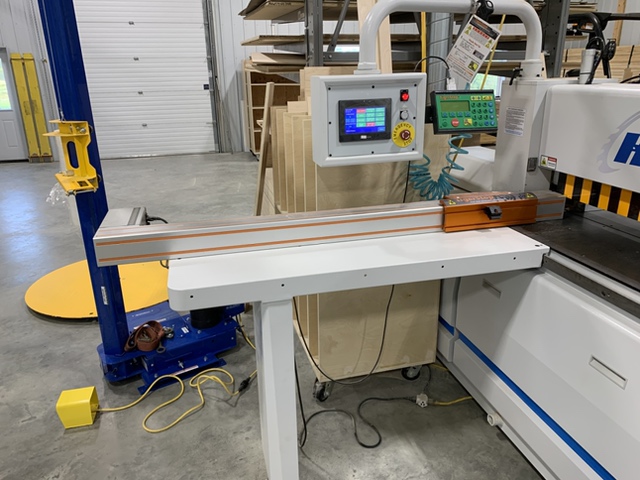

Selling as we switching to a different brand/model. Includes upgraded transformer, and a Tigerstop fence. Please contact me with questions or for more information. Price is in USD. Open to offers.
