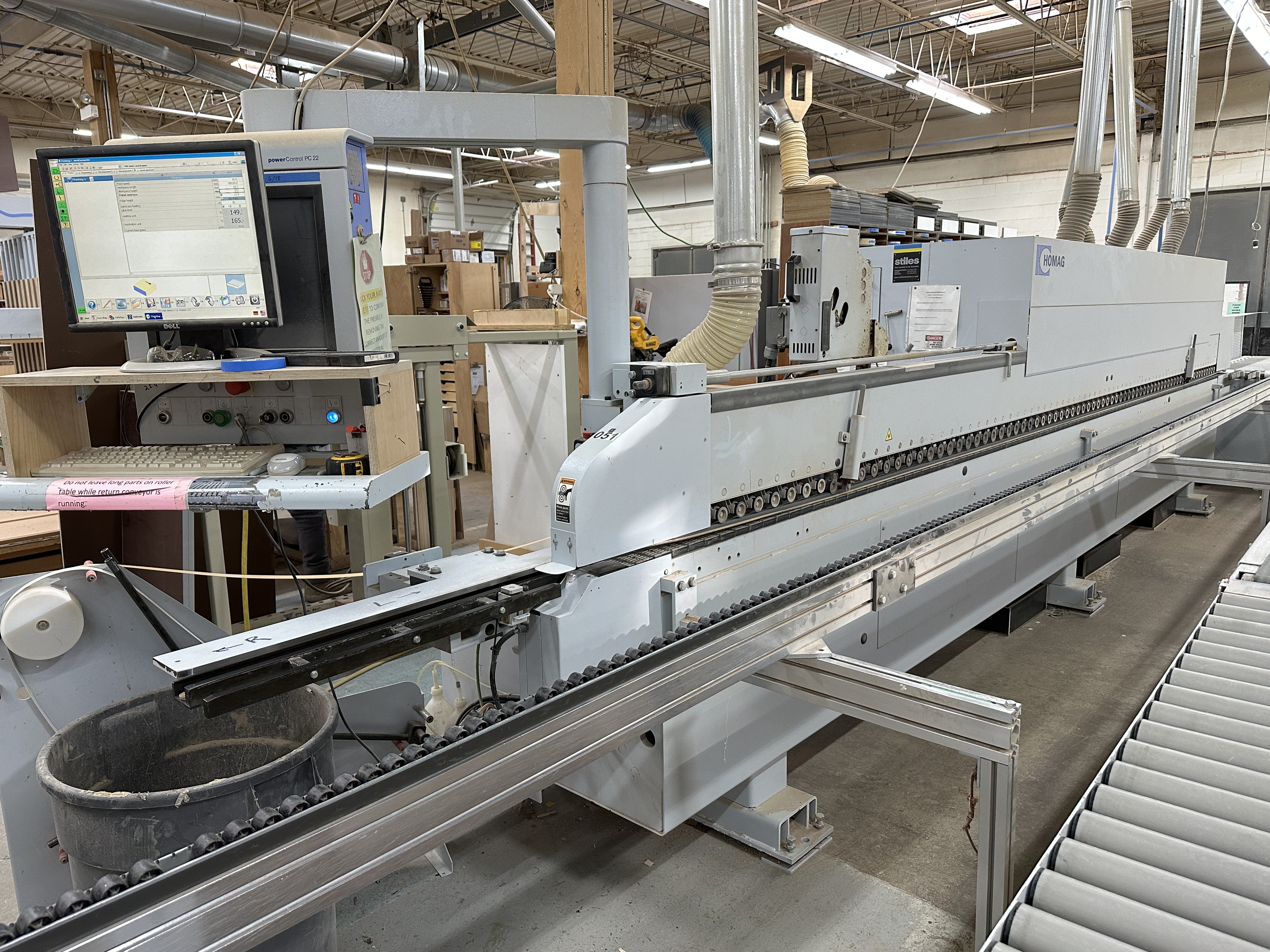

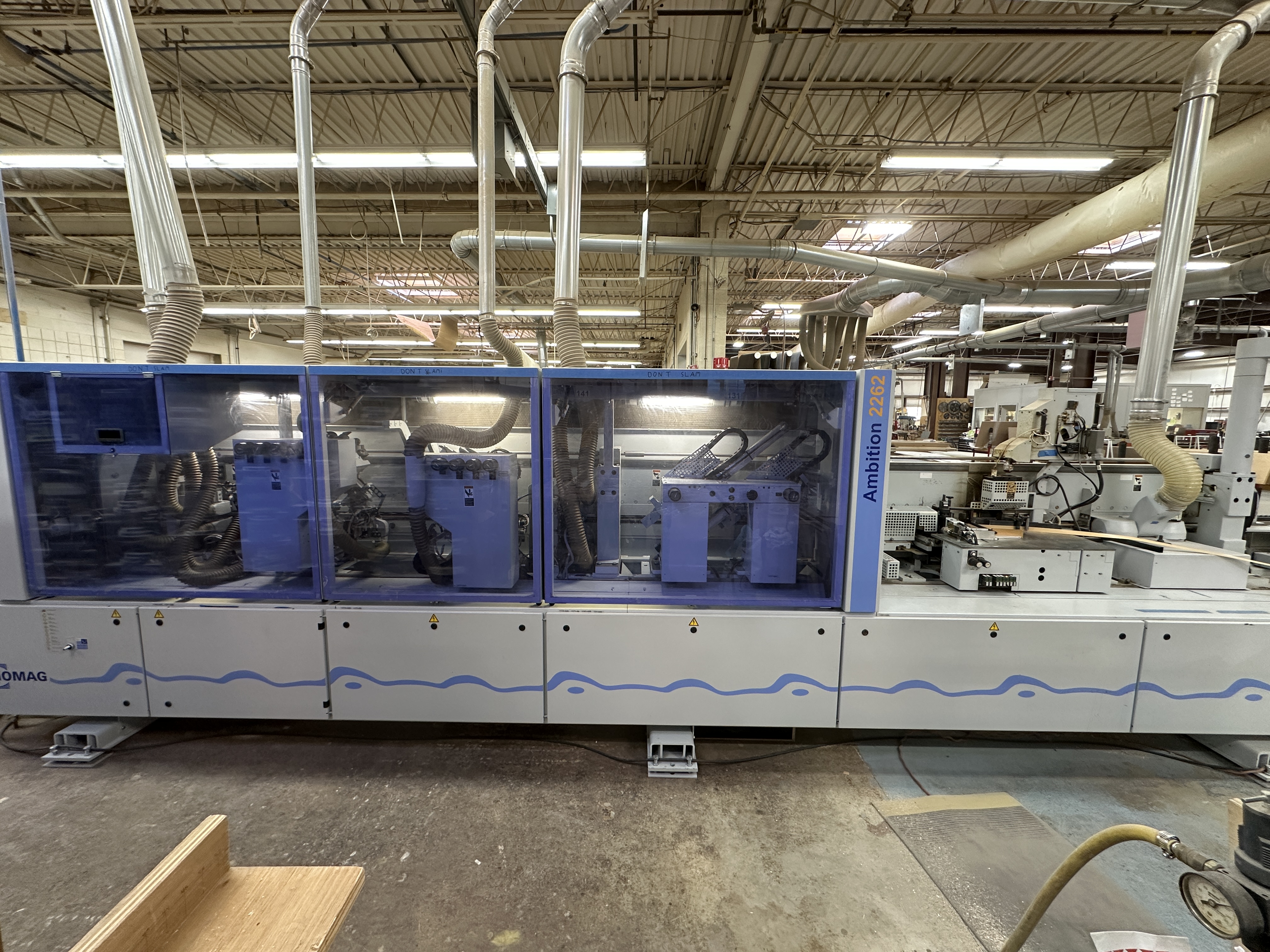

Homag Model KAL210 Ambition 2262 Edgebander
Serial #:0-200-09-7142
Condition: As Is
Stock Number: 25973
Working Level: 950mm (37-13/32")
Min/Max Workpiece Thickness: 12/40mm (15/32" / 1-9/16")
Edgebanding Thickness Capacity:
Strips - 0.4mm - 6mm (0.16" - 15/64") Coils - 0.3mm - 3mm (0.12" - 1/8")
Variable Feed Speed: 18-25 m/min (59-82FPM)
Adjustable Infeed Fence
Pre-Milling Unit: 2 Motors (3kW each) Max tool Diameter: 125mm (4-15/16)
Panel Pre-Heater
Quick Melt Gluing Unit - Melting Capacity: 12kg/h (26lbs/h)
Clipping Unit: Max Edge Thickness: 3mm (1/8) Max Edge Height 43mm (1-11/16")
Pressure Unit
Snipping Unit: 2 Motors (0.8kw each) Max Edge thickness: Chamfer - 3mm Straight - 6mm
Flush Trimming Unit: Top/Bottom
Profile Trimming Unit: Leading/Trailing/Top/Bottom (2) Motors - 0.4kW Each
Profile Scrapping Unit: Top/Bottom/Laterally
Glue Joint Scraping Unit: Top/Bottom
Edge Buffing Unit: Top/Bottom
Power Control PC22 with PLC Controls
Wired for 480V 3ph, Includes Transformer
