Integrated Refrigerated Dryer | VFD Soft Start | Tri-Voltage Capability

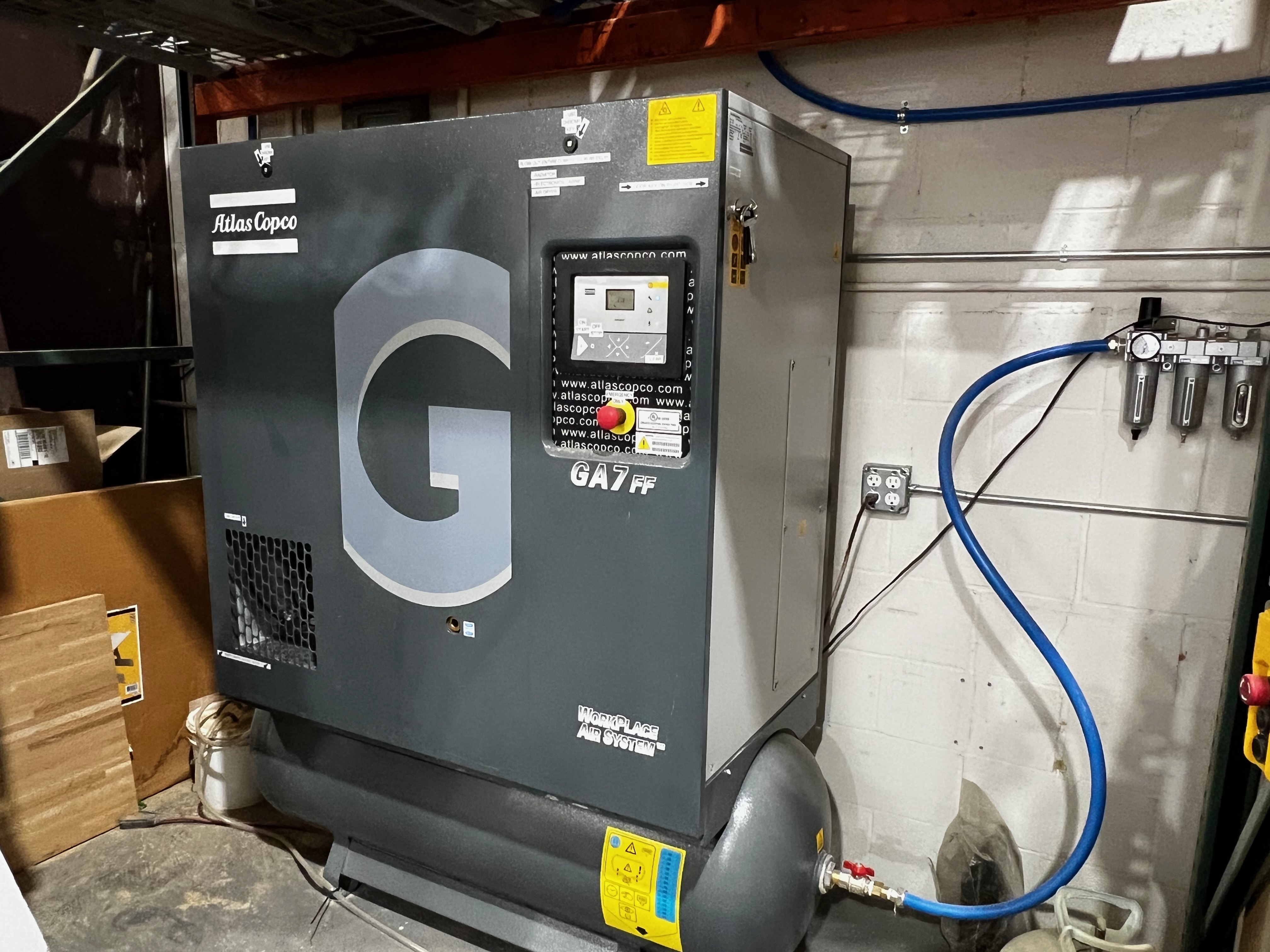

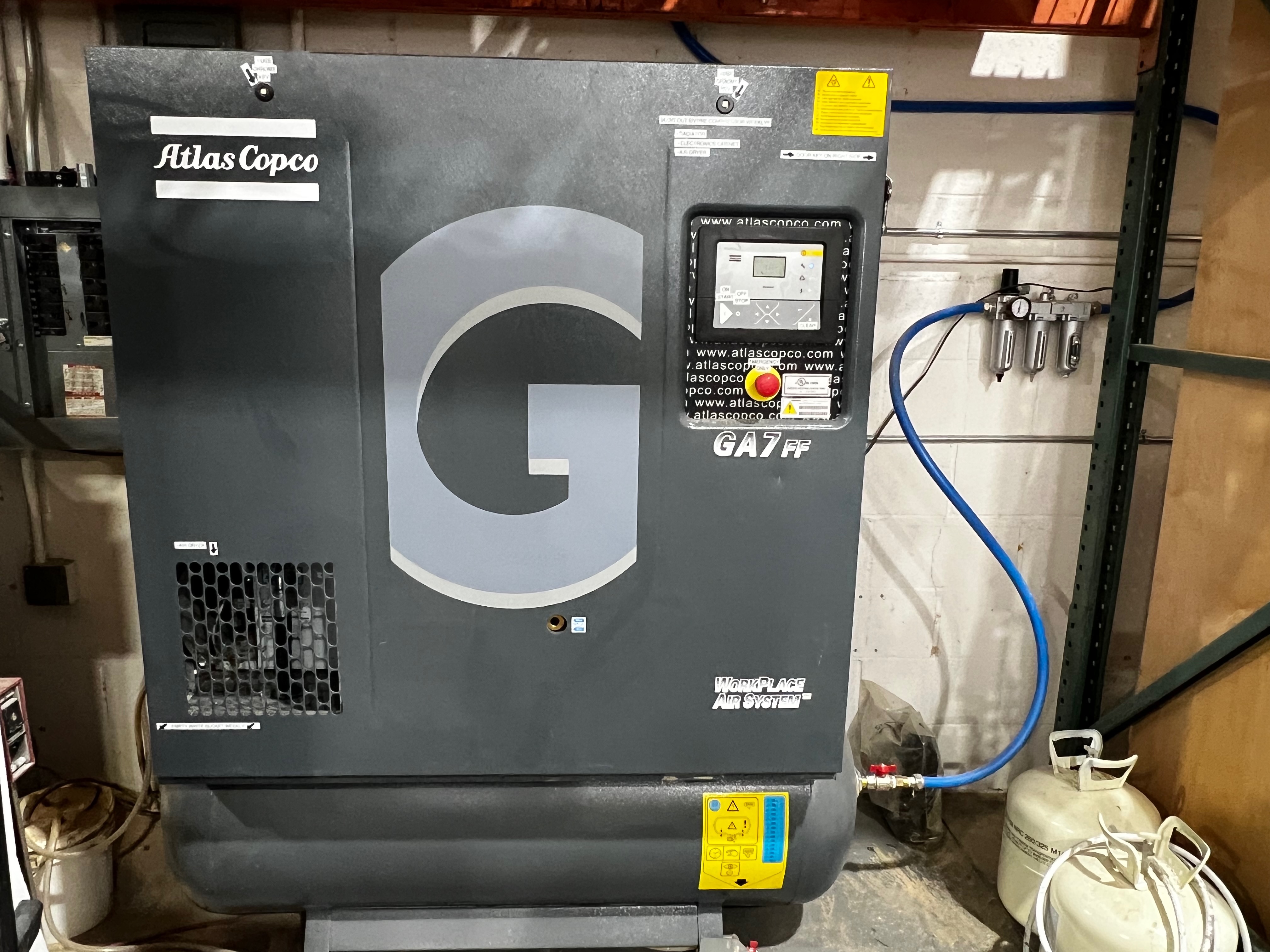

Selling a 2022 Atlas Copco GA7FF-125 rotary screw air compressor in excellent working condition. This is a 10 HP, tri-voltage (208230/460V) machine designed for continuous-duty operation in demanding shop environments. Fully enclosed, quiet-running cabinet with Elektronikon controller and built-in refrigerated air dryer.
The system includes the UD45+ non-cycling dryer with inPASS bypass manifold, allowing the dryer to be serviced without shutting down the system. Equipped with an integrated VFD soft start for smooth ramp-up and reduced electrical draw.
Ideal for CNC shops, widebelt sanders, finishing booths, or any application where dry, clean, compressed air is critical.
⸻
Compressor Specs:

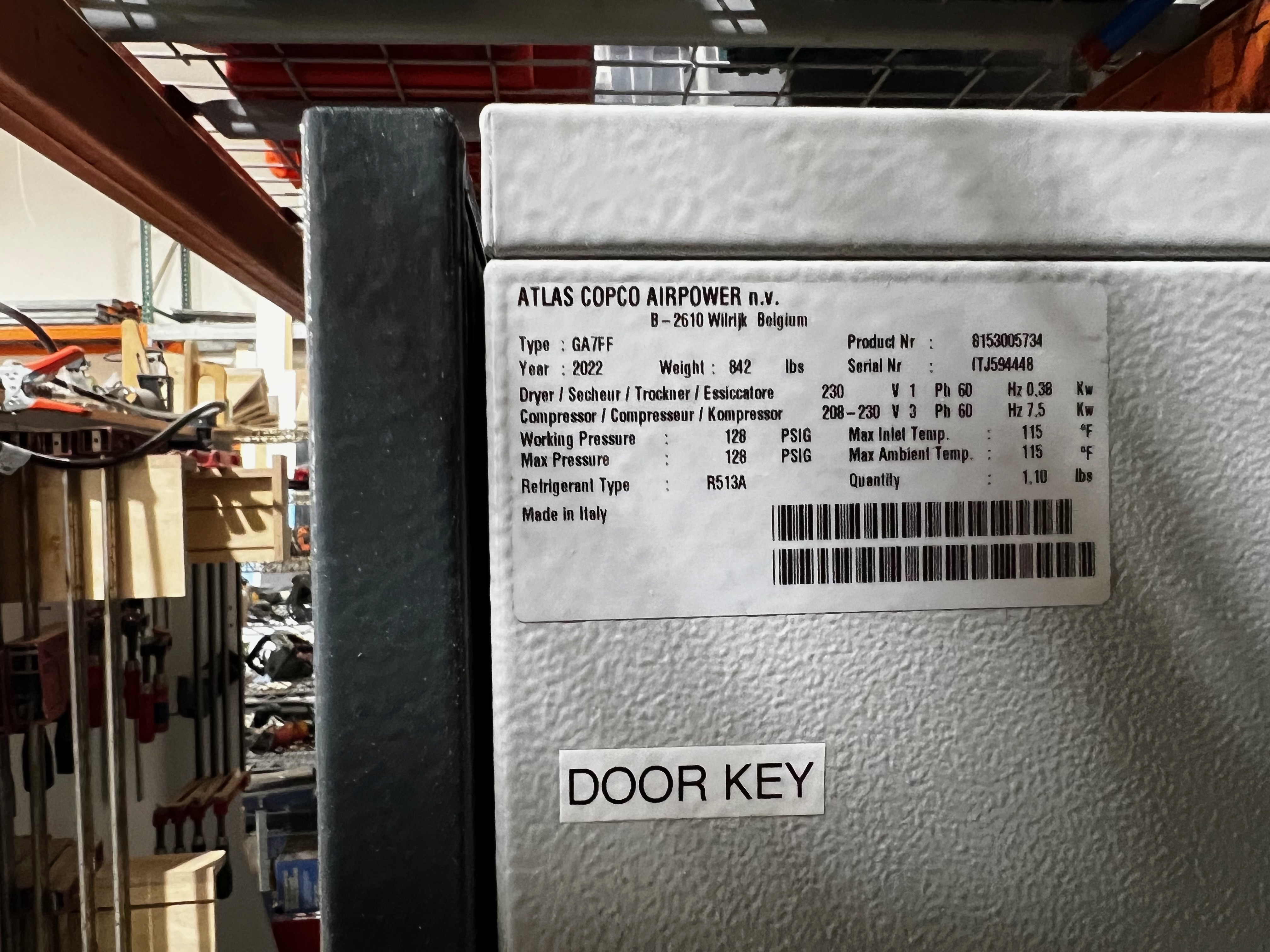

Model: GA7FF-125 APM TRI-V 60 TM RXD
Year: 2022
Motor: 10 HP rotary screw
Voltage: 208230/460V, 3-phase, 60 Hz
Max Working Pressure: 125 PSI
Sound-attenuated cabinet
Elektronikon APM controller
Air-cooled design
VFD soft-start system included
Dryer Specs:
Model: UD45+ (factory integrated)
Type: Refrigerated, non-cycling
Flow Capacity: 45 SCFM @ 100 PSIG
Max Pressure: 232 PSIG
Max Inlet Temp: 120°F
inPASS bypass manifold (service without shutdown)
Refrigerant: R-134a
115V internal power draw
⸻
Condition:
Standard industrial use
Excellent working order tested and operational
Dryer powers on and cools effectively

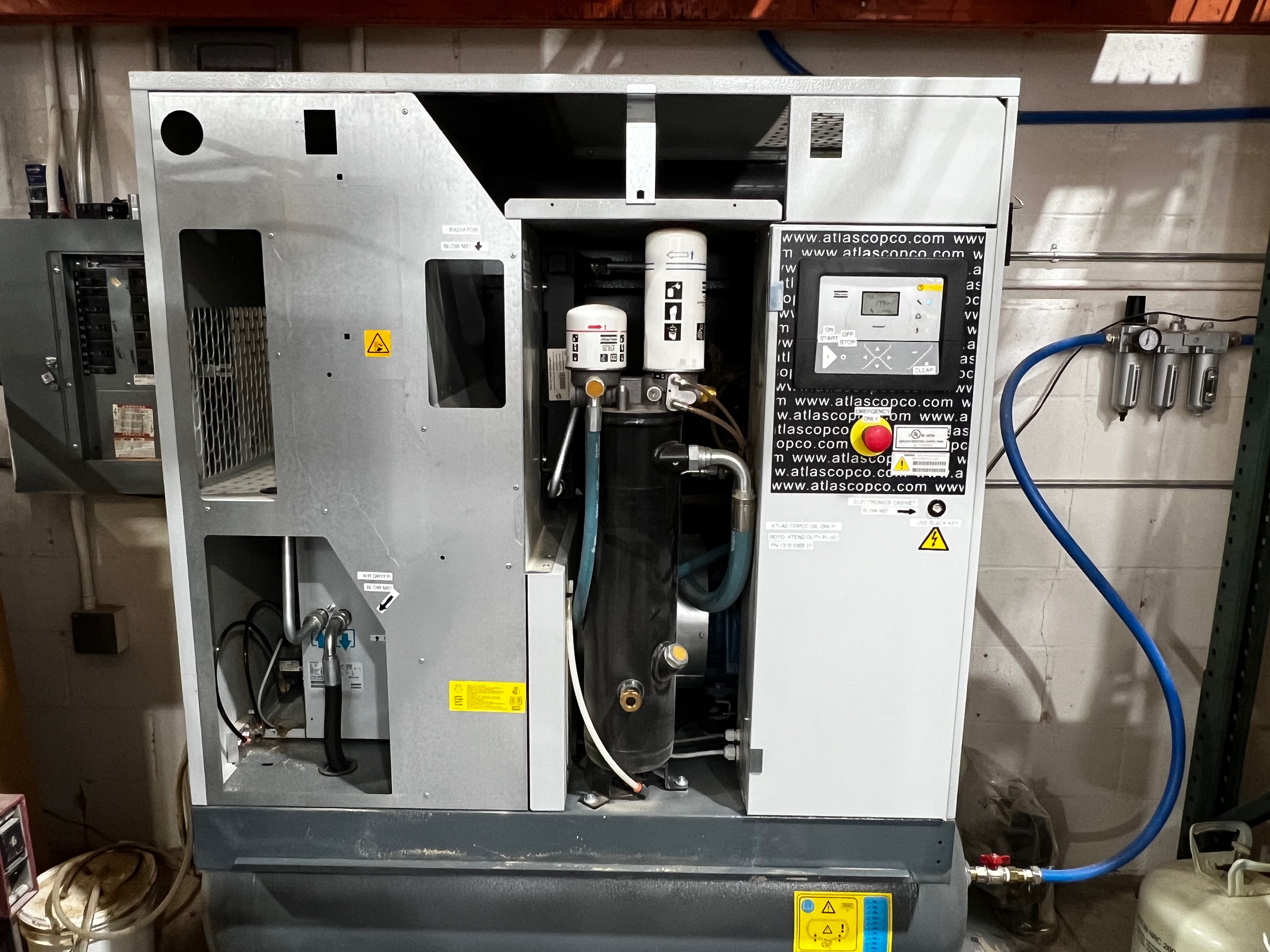

Clean internal cabinet and panels
Cosmetic wear only no known mechanical issues
Machine located in Las Vegas, NV. Forklift on-site for loading. More photos or video available upon request.
All information, including photos and videos, has been provided by third-party sources and is believed to be accurate. However, it is the buyers sole responsibility to verify specifications, condition, and all relevant details prior to purchase.
2022 ATLAS COPCO GA 7 FF
