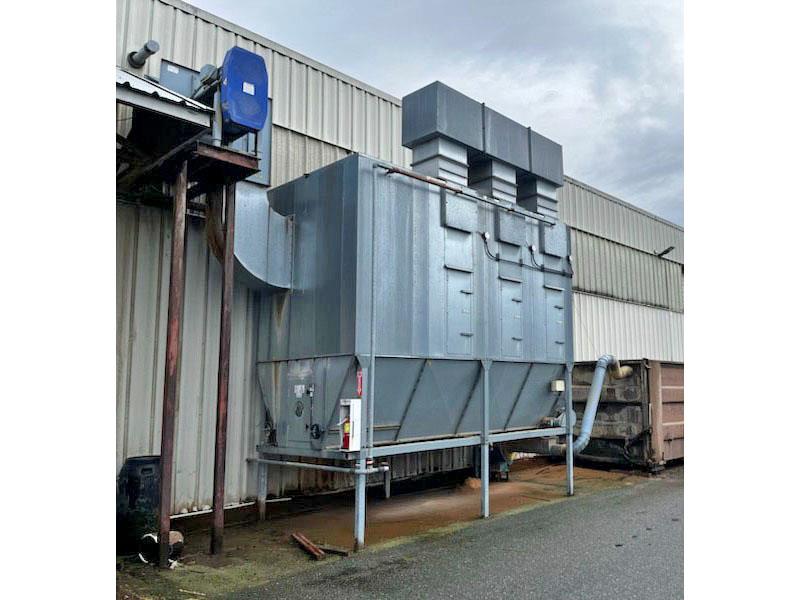

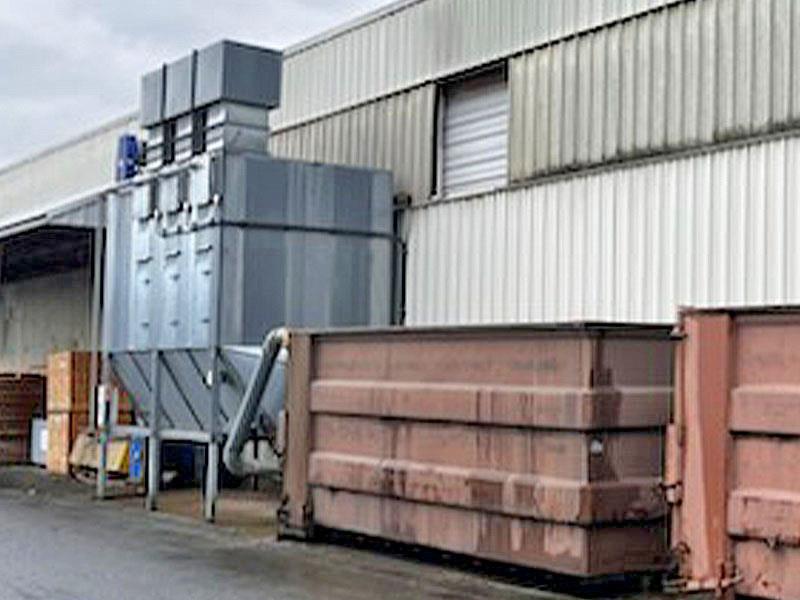

DISA CS-4 MAXI Dust collector with Rotary Air Lock. Approx. 16,000 CFM at 8.7:1 air-to-cloth ratio; 1,725 sq. ft. of filter area, with (128) filter bags filtering to 3-micron.
General Info: CS-4-M consists of (3) filter modules & one entrance module.

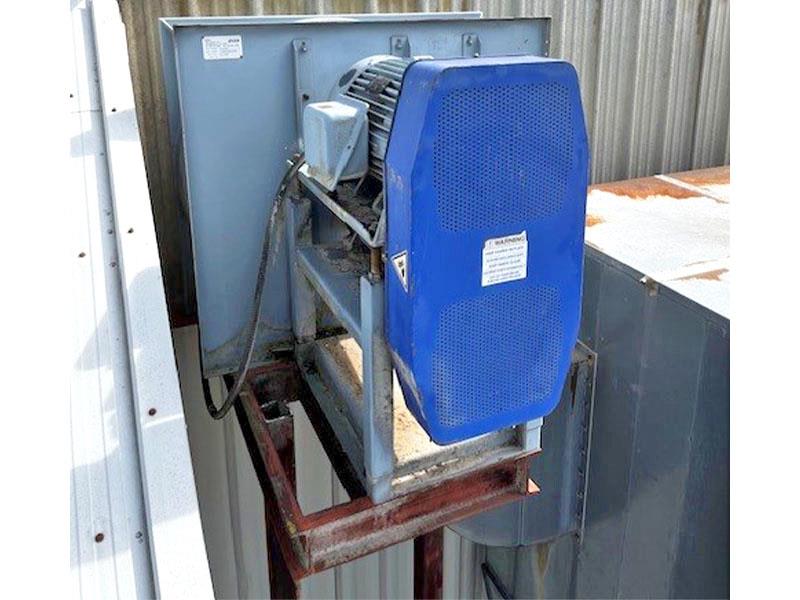

Comes with: DISA, S56-500 Material Handling fan powered by 50 HP TEFC motor. Fan nominal rating: 16,000 CFM @ 9" SP. Fan is currently mounted on elevated support but can be installed on the ground as well.
(3) Reverse air bag cleaning modules with motorized fans that clean the bags every (4) hours of operation automatically, each with 2 HP fan motor. A damper at inlet closes during cleaning cycle to prevent blowback.
*** Click the link for full description***
Disa CS-4 MAXI CLEAN SWEEP Dust Collector
