0.4 - 3 mm (1/8") Edge thickness cap., automatic coil & strip feed magazine, guillotine for 3 mm PVC banding, fast startup (12 Min heat up) glue system; reversible rotation glue applicator roller. Workstations: Vertical travel double motor front & rear end trim, 0.25 HP - 12,000 RPM motors. Top & bottom flush/bevel trimmers, bevel 0° to 15°, 0.35 HP - 12,000 RPM motors; top & bottom PVC scraping unit for up to 3 mm radius; top & bottom buffing unit, 0.15 HP - 2,750 RPM ea. motor.
Feed speed 30 FPM; digital height indicator on holddown beam.
Equipped with: Operator control panel at eye-level, electronic line control (no limit switches), electronic motor brakes on trimmers, 200 Hz electronic frequency inverter; used tooling & sound enclosure w/window.
*** Please click the link for full description***

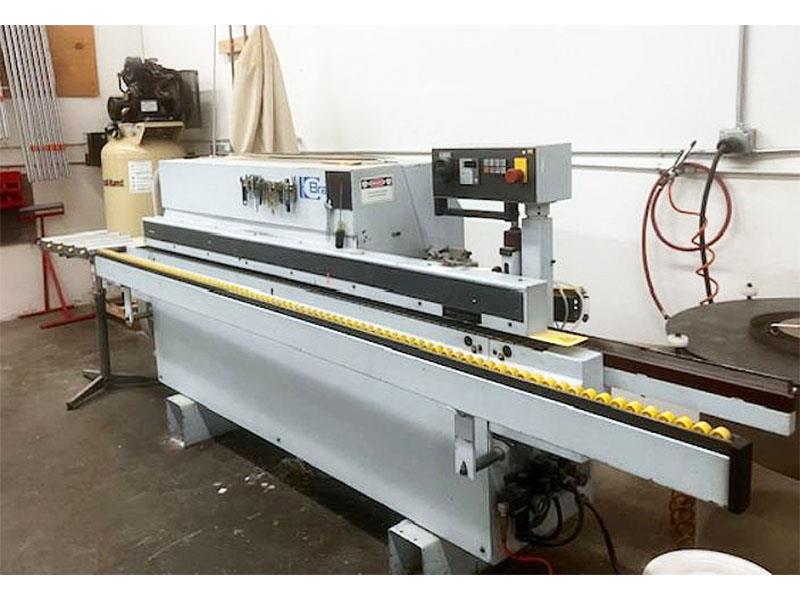

Brandt KD 56 Optimat Edgebander
