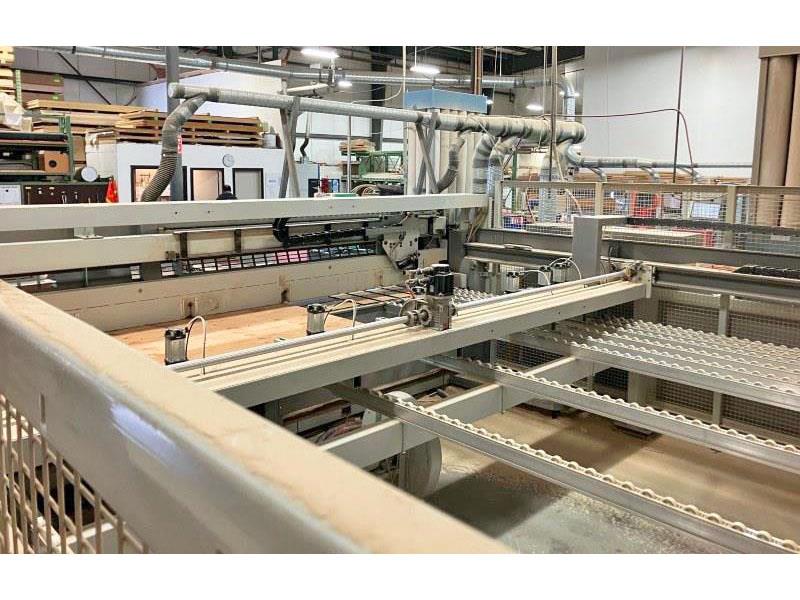

14.4' (4,400 mm) Overall cutting length & 4.7" (120 mm) max. saw blade projection; 18 HP main & 2.4 HP scoring motor; modular roller rear machine table; side aligning device; (2) longitudinal aligners to accurately position the book of panels on the rear saw table prior to cutting.
Variable saw carriage travel speed: 0 - 328 FPM; electronically controlled overhead program fence; rack & pinion driven; forward speed: 196 FPM; return speed: 196 FPM.
(6) Clamps (open up to 122 mm) of which: (3) Closely spaced in crosscut area; the other (3) are at equal distance in rip cut area. AC Servo Motor drives on both: Saw carriage and pusher fence.

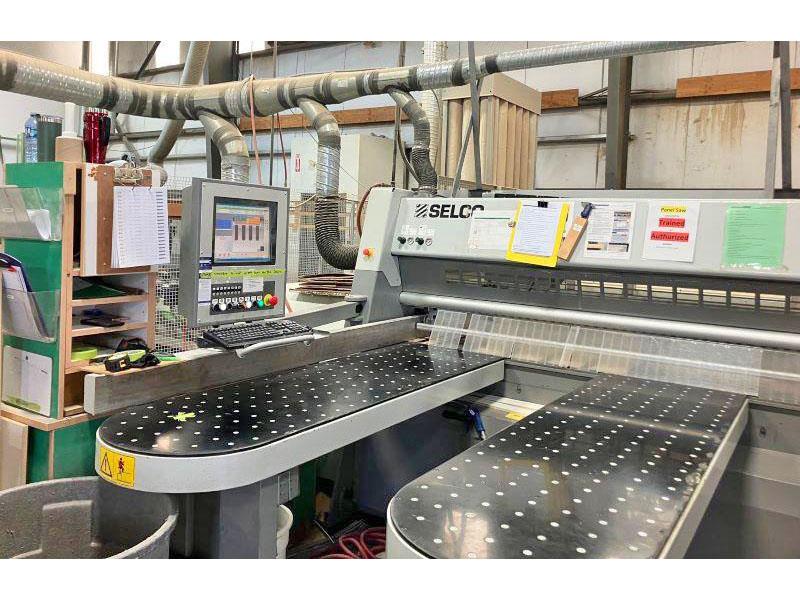

Operator & Machine Control: The front-end controlled by PC: Color monitor integrated into a "high-tech look" Operator control panel (which displays cutting dimensions & patterns); panel has virtually unlimited: Cutting pattern storage capacity; self-diagnostic. Data can be input by keyboard or downloaded directly from the office PC.
*** Please click the link for full description***

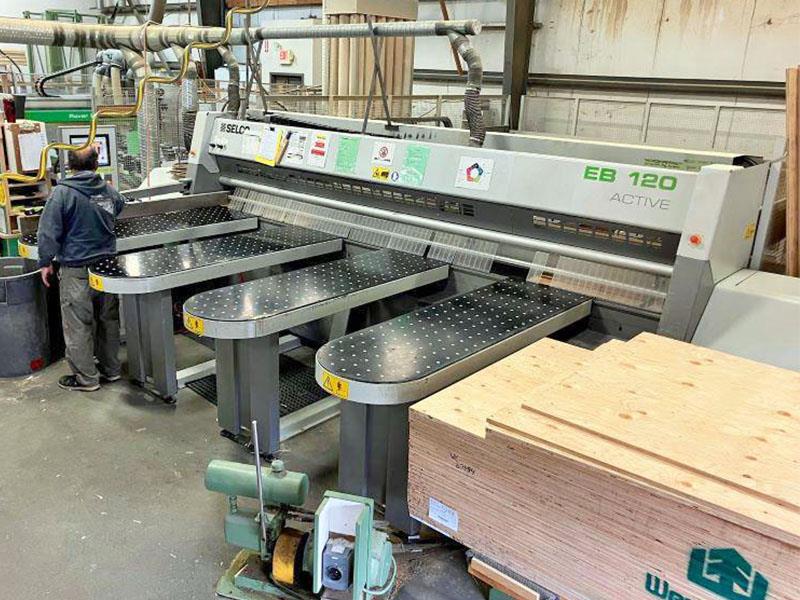

Selco EB 120L Front Load Panel Saw
