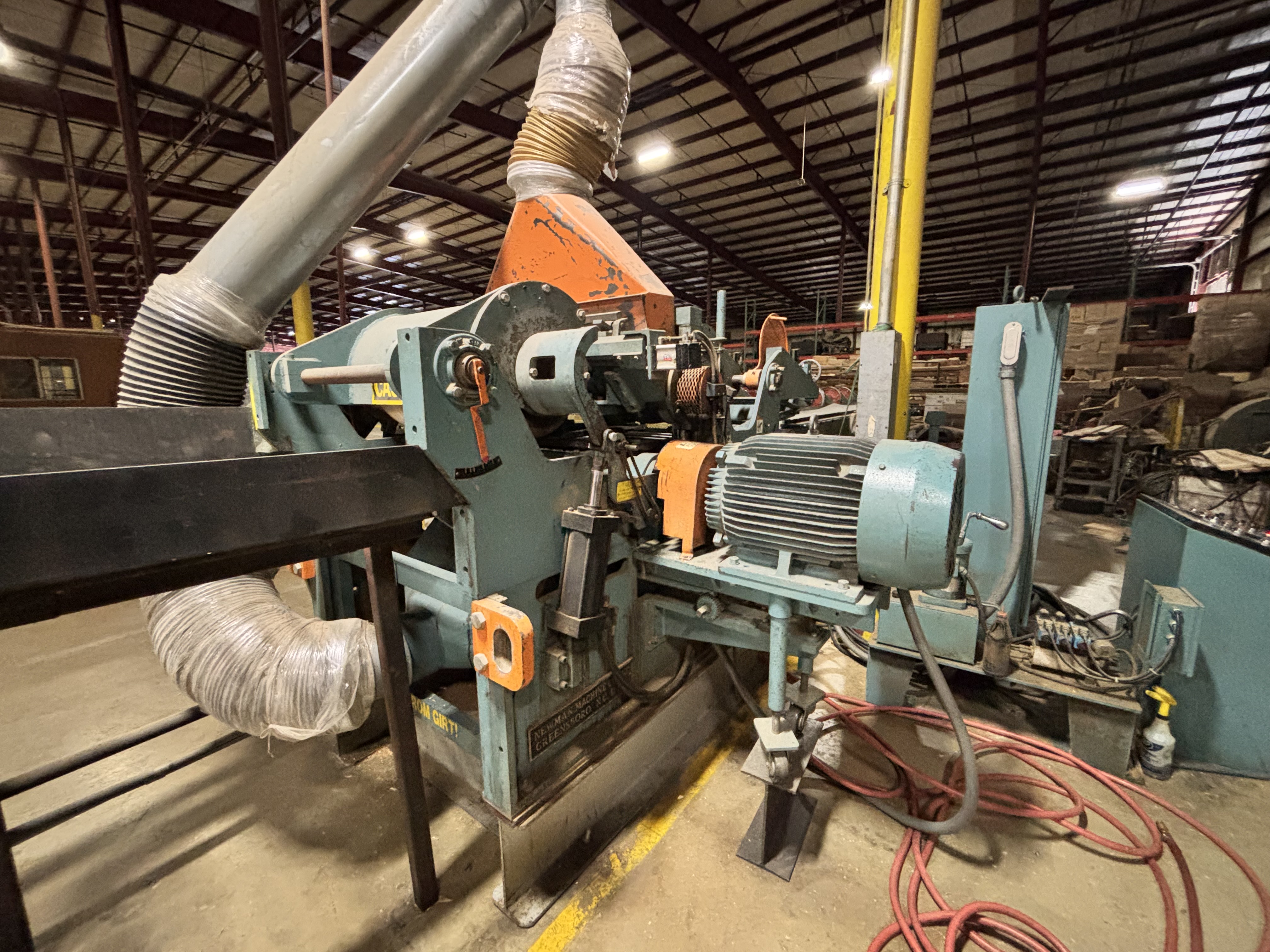

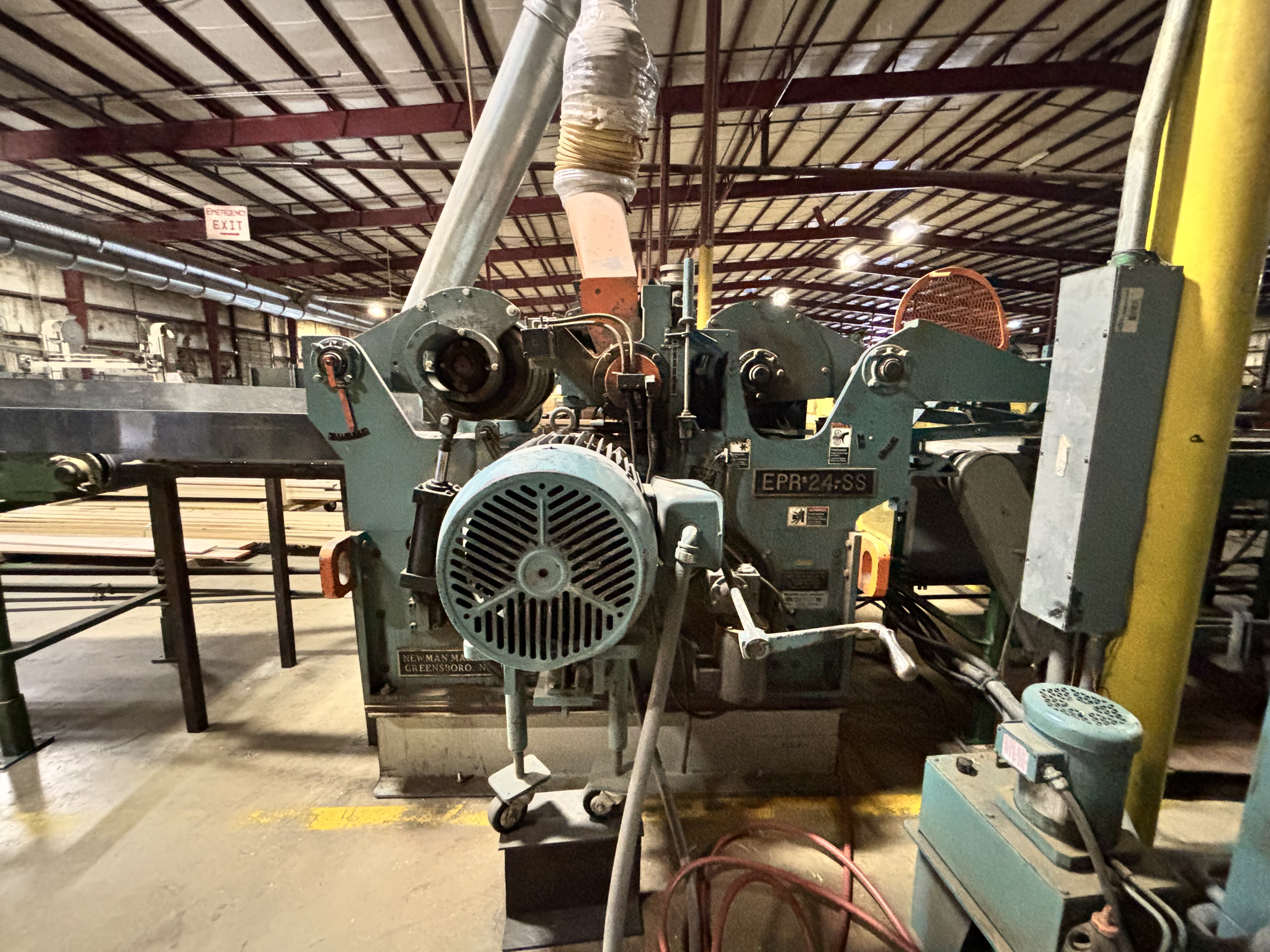

Newman Model EPR-24-SS Short-Stock Double Sided Surface Planer
Condition: Reconditioned
Year: 2003
Voltage: 460V 3Ph
Stock Number: 52165
THIS MACHINE IS OFFER REBUILT BY NEWMAN MACHIHNE COMPANY WITH A ONE YEAR FACTORY WARRANTY
Material Capacity: 24" W x 6" Thick
Minimum Stock Length: 42"
Newman "QuietCut" Heads
Top Cutterhead Motor: 60 HP, 3600 RPM
Bottom Head Motor: 50 HP, 3600 RPM
Electric Drive System for Top Feed Rolls, Pneumatic Tires (Non-Marking on the Outfeed)
Infeed & Outfeed 15 HP Motors Each w/ AC Frequency Controllers
Feed Speeds 80 - 350 FPM
Top Head Power Hoist
Hydraulic Power Unit for Top Roll Raise/Top Head Set Works, 1.5 HP
Air Operated Top Head Pressure Bar
Automatic Cut Control
Analog Tempsonic Top Head Setworks w/ Programmable Allen-Bradley Micrologix Controller

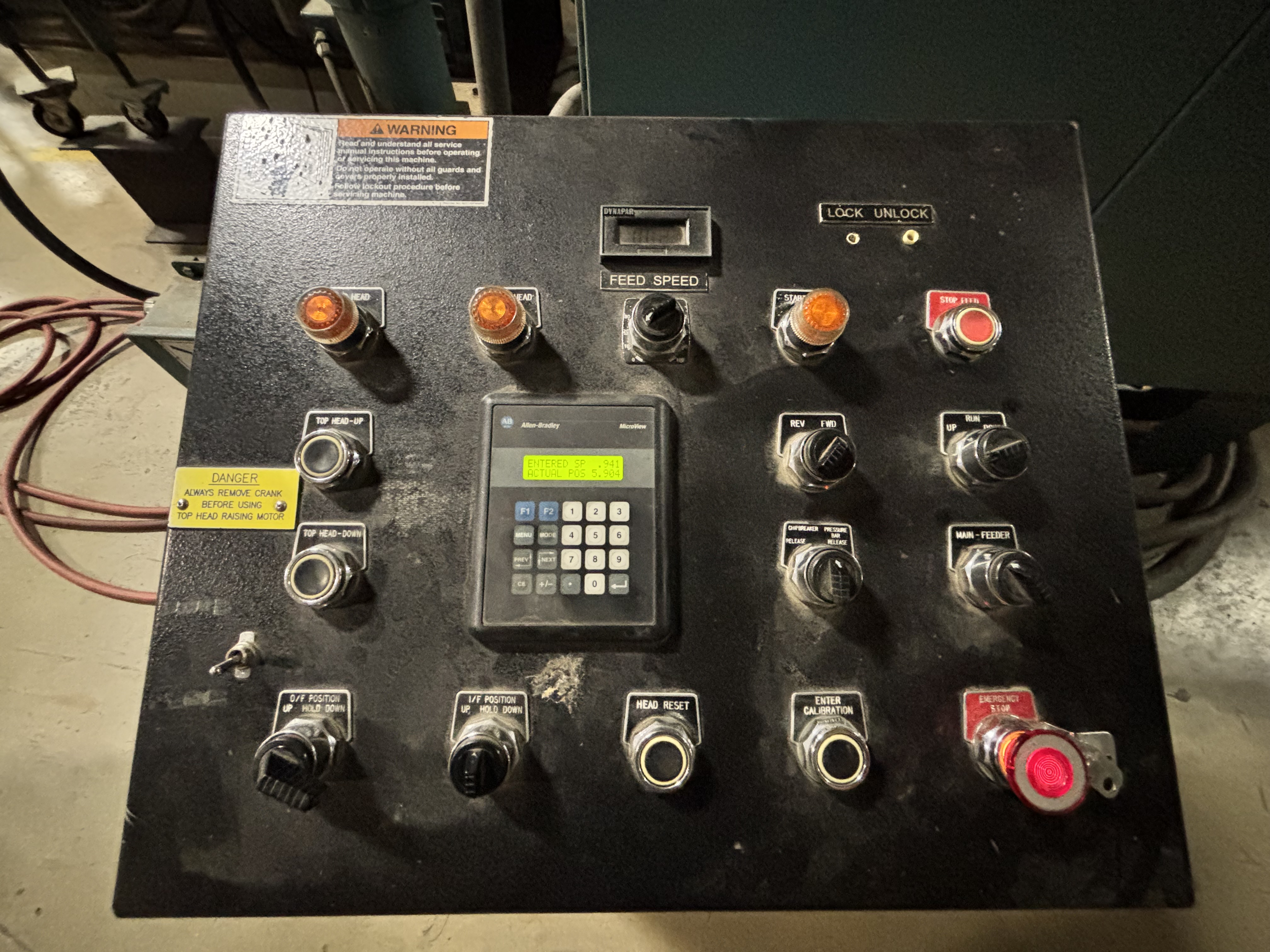

Stand-Alone Operator Control
Anti-Lap Device
Newman Model EPR-24-SS Short-Stock Double Sided Surface Planer
