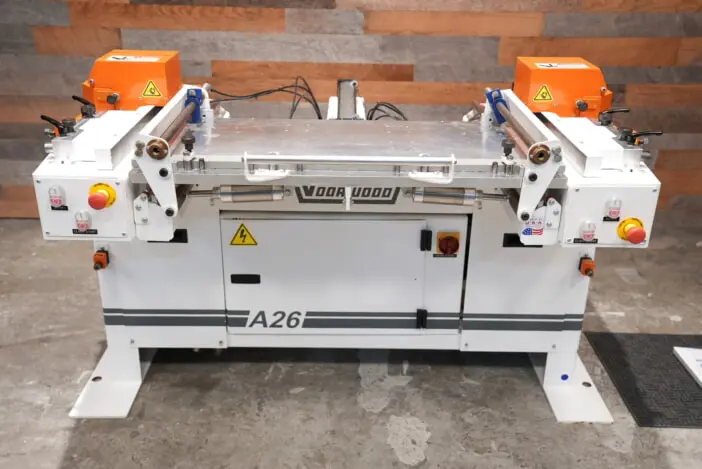

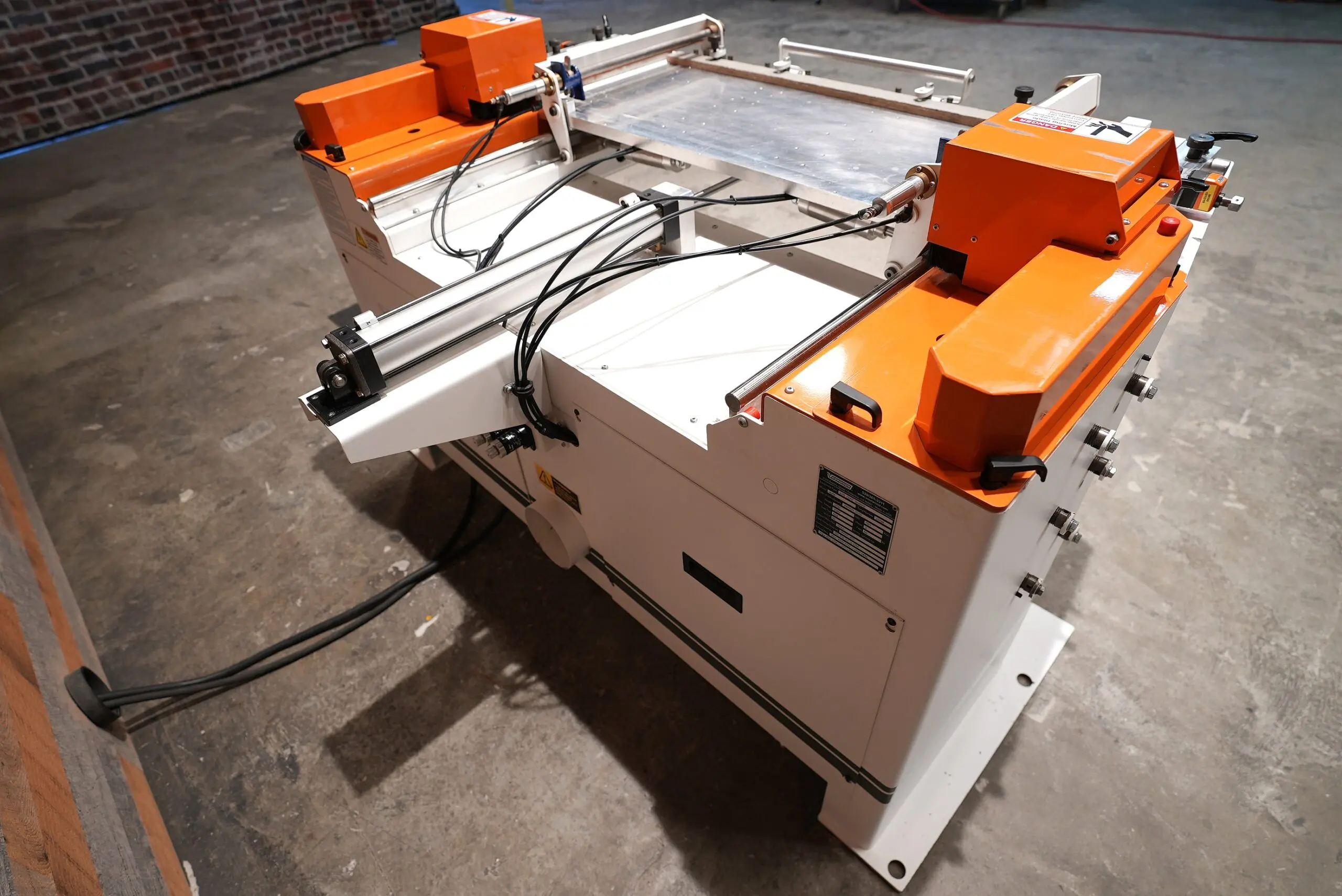

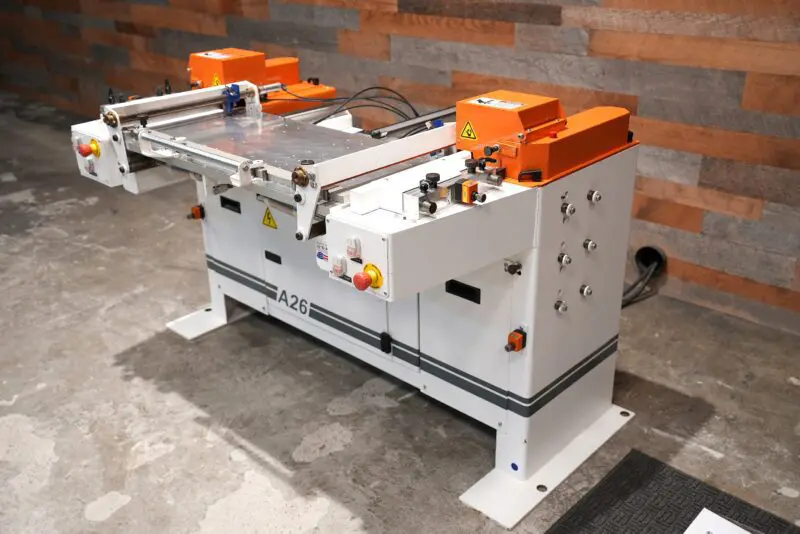

2020 Voorwood A26 Dual Spindle Coping Shaper (Unlimited Length)

Listing #553584 Listed on: 10/19
Details - Machine for Sale
Category:Door Mfg. Equipment
Price: $24,000.00
Type:Used - Excellent
Manufacturer:Voorwood
Model:A26
Location:Kingston, TN
Sale Type:Dealer
Seller:360 Degree Machinery LLC [Contact]
Phone:630-229-6705
Year:2020
Electrical:3PH
More Info:Link to more images and info at 360
Description



The A26 Cope Shaper is designed to shape single or multiple parts in one pass. Each shaping station is equipped with a precision-balanced drive motor and spindle. The counter-rotating spindles cut against the direction of feed. This particualr A26 is outfitted with optional quick change 1-1/4″ spindles. Parts can be quickly transferred from left or right shapers for end-to-end cope cuts (for tenon joint). Both edge guide assemblies are removable, and each spindle can drop below the table, which allows cope cuts on parts longer than 36”. Essentially allowing for unlimited length coping/tenons. Automatic power feed has two-handed cycle control for operator safety. The A26 Cope Shaper allows for a backer block to prevent blowout.

The pneumatic hold-down clamps with non-marring urethane pads are mounted at each end of the transport table to secure the workpieces as close to the cutting head as possible. Bi-directional clamping ensures consistently square cuts. The cope shaper produces parts similar to most double-side cope shapers.

Capable of producing 11 parts per minute
Backer blocks prevent blowout

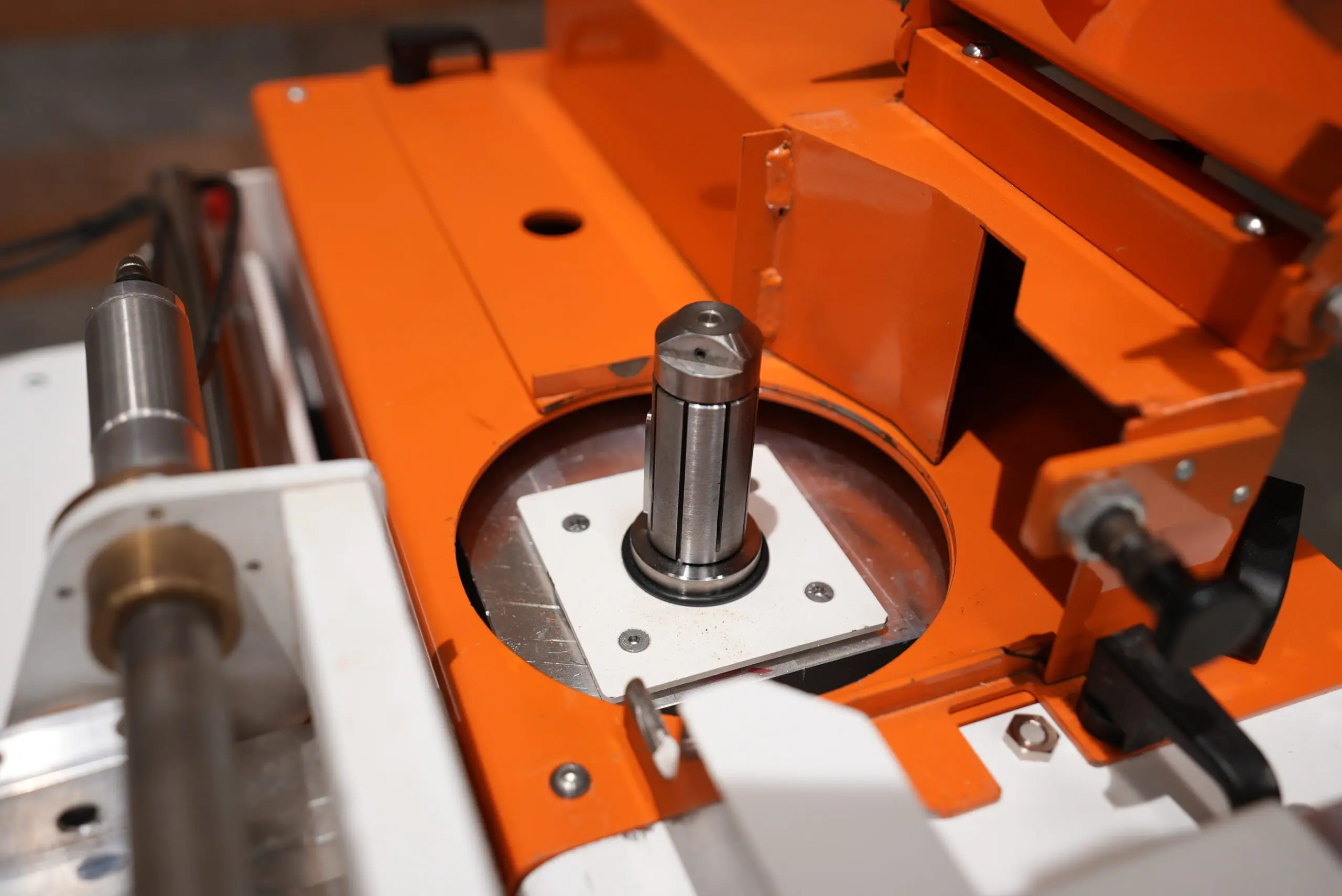

Spindles can be configured with quick change, HSK, or stacked tooling
Capable of processing parts of any length
Auto-feed
Spindle Diameter 1-1/4″
Spindle Length 2.5″
Min. Shaper head diameter 4″
Max. Shaper Head Diameter 6″
Vertical Head travel 4.25″
(2) 7.5 hp motors @ 6,100 RPM
This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.
