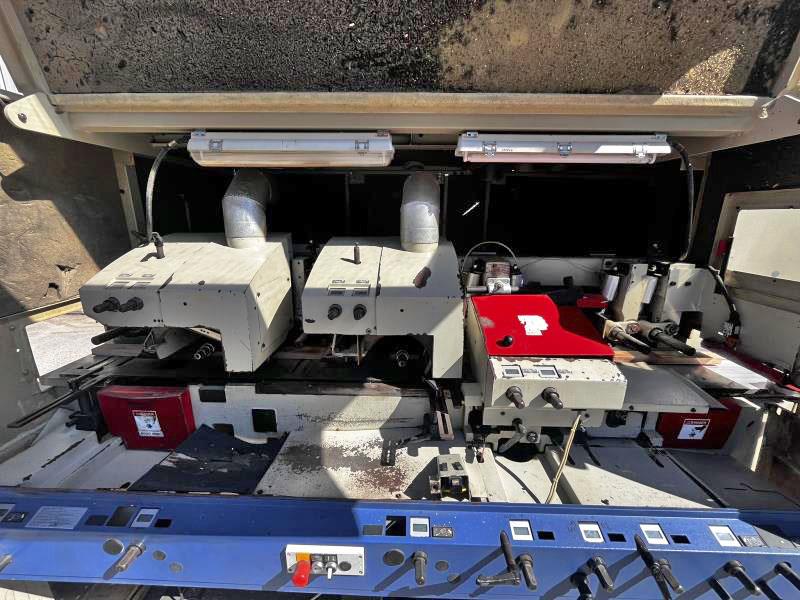

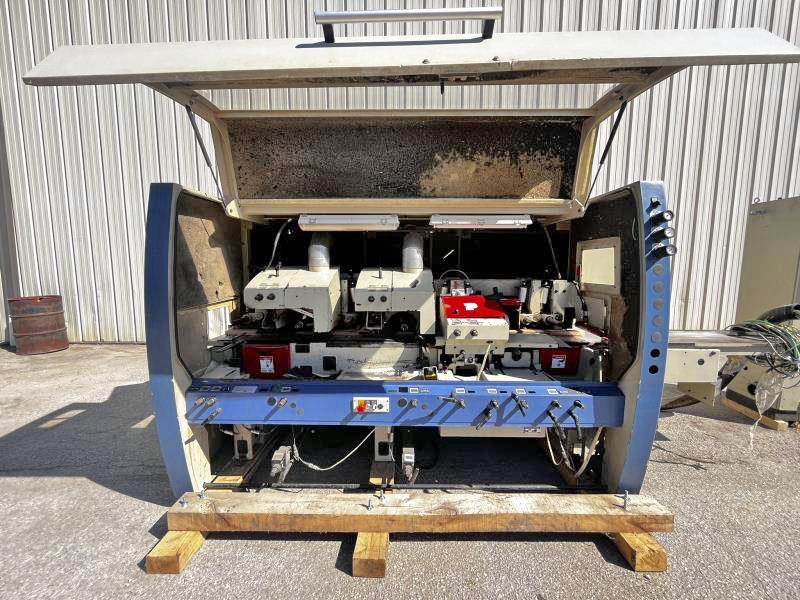

6-Head (B-R-L-T-T-B); working cap. of 9-1/16" x 4-3/4".
Head sequence: Bottom 10 HP; right 15 HP; left 15 HP; top 25 HP; top 20HP; bottom 20 HP motor. - All spindle motors with mechanical brakes.
WEINIG Memory Redial system allows for: Storage of over (200) separate profiles; electronic LED readouts for all spindles, chipbreakers; pressure elements.
Spindle dia. of 1-13/16"; spindle #1 at 6,000 RPM; spindles #2 - #5 at 8,000 RPM with high precision bearings; adjustment of vertical spindles: 3-1/8" Axially.
Motorized feed beam adjustment with independent adjustment of top head; cutting circles 8-7/8" on spindles #2 - #5.
Variable feed speed from: 20 - 118 FPM; 10 HP inverter controlled Cardan feed drive; overhead feed wheels with pneumatic pressure.
Vertical spindles with: Adjustable table plates to cutting circles; hardened infeed bed plates before & after 1st bottom head.
(1) Powered table rollers in bed at outfeed.
Infeed straightening table 2 M (6-1/2') with: Adjustable fence and adjustable table at outfeed;
chromed tables and fences.
*** Please click the link for full description***

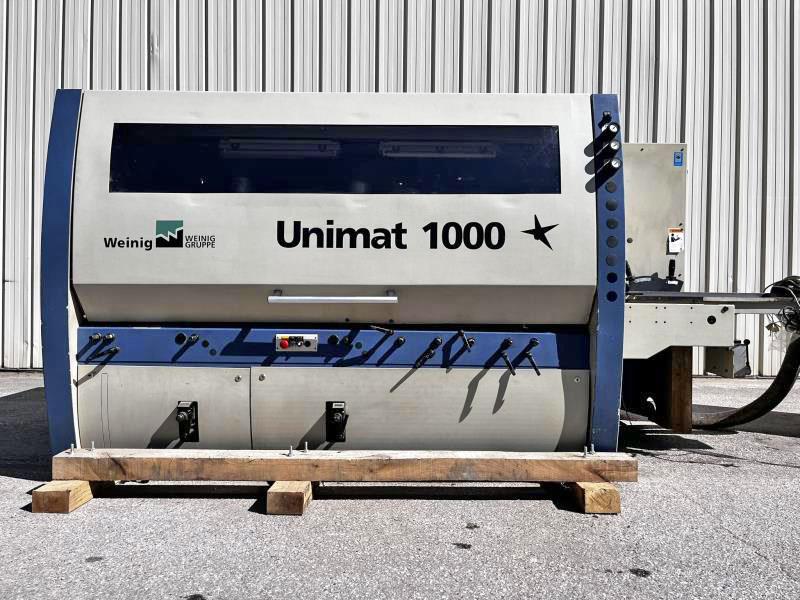

Weinig Unimat 1000 Feed Through Molder
