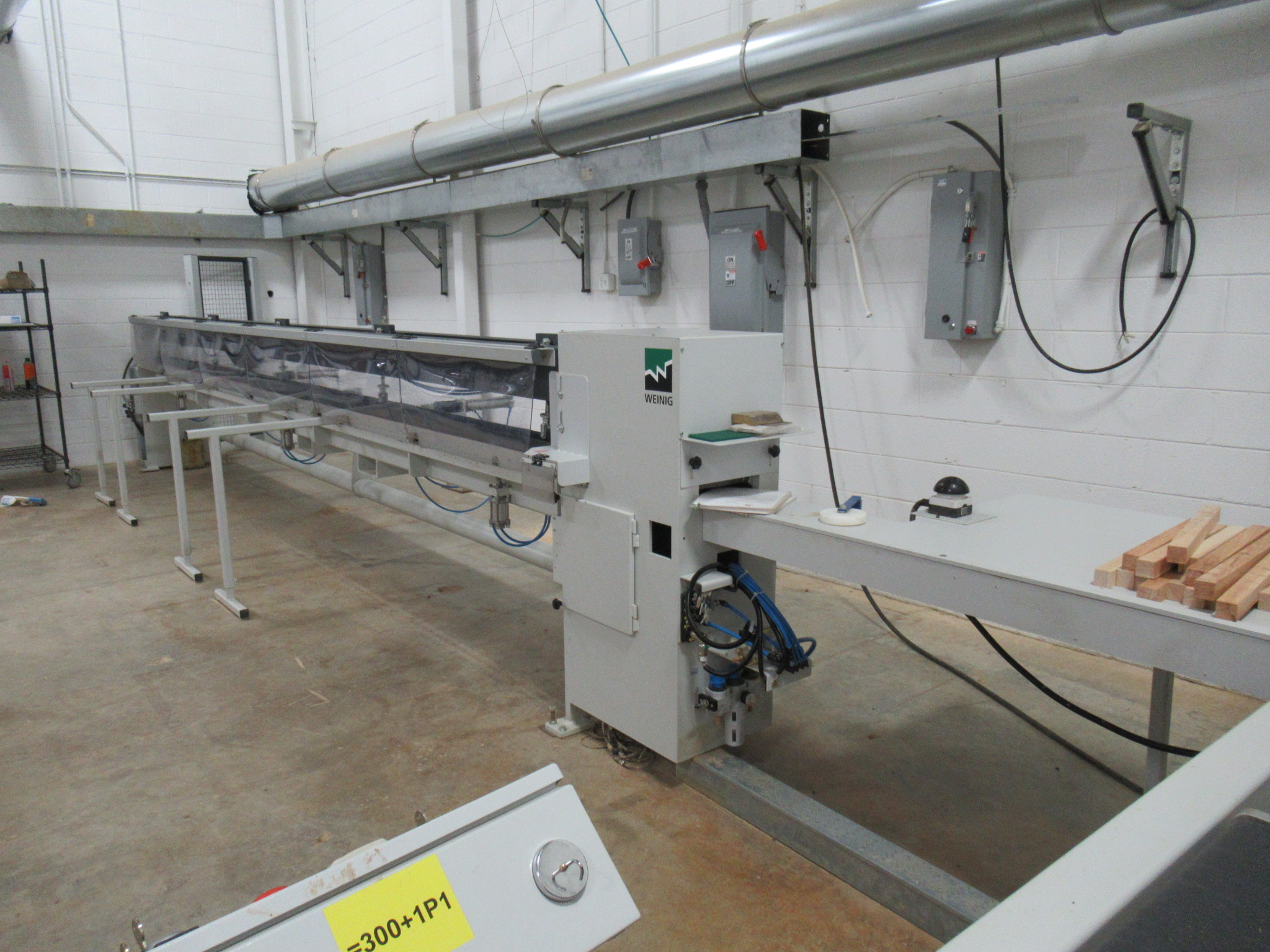

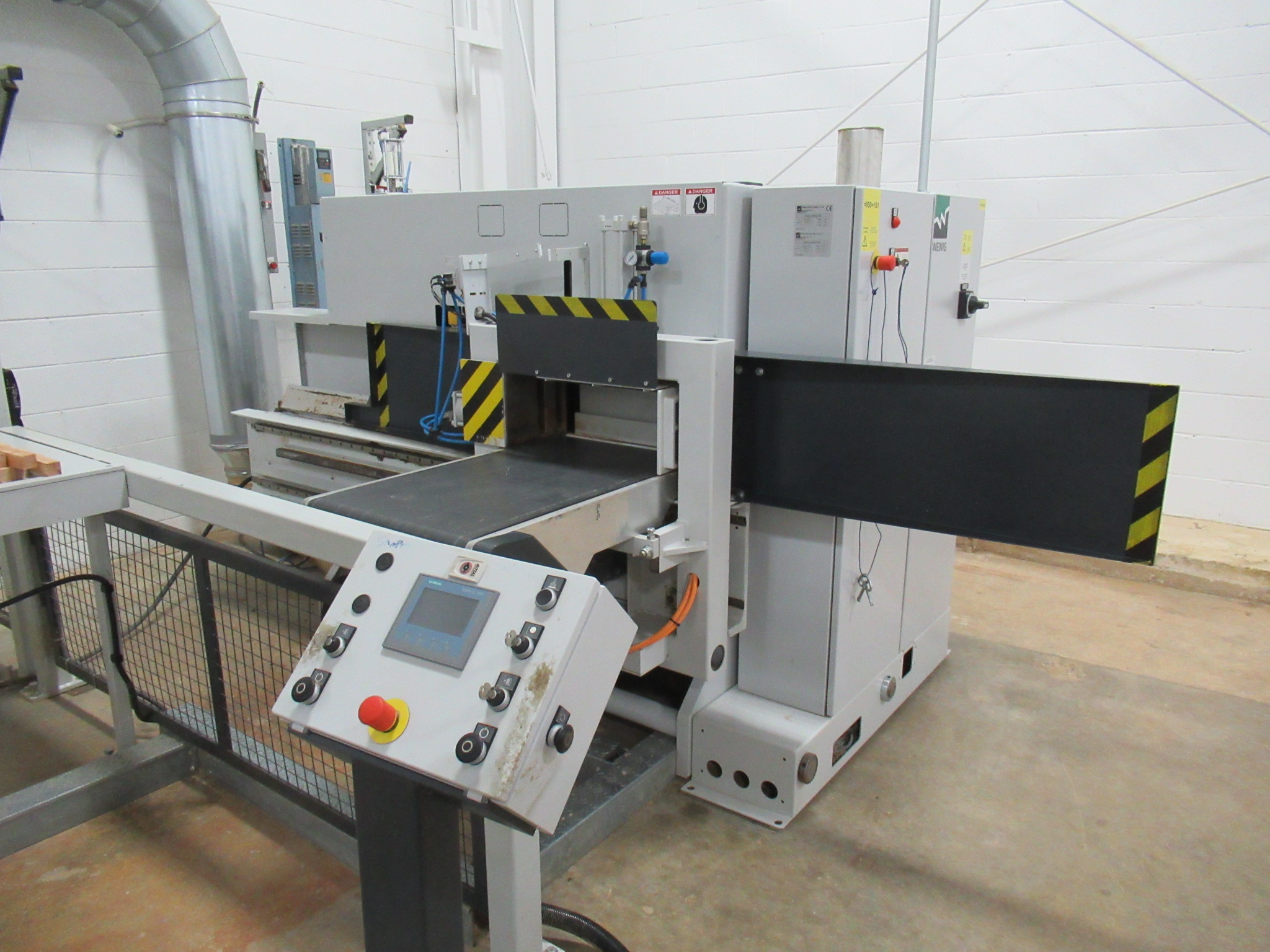

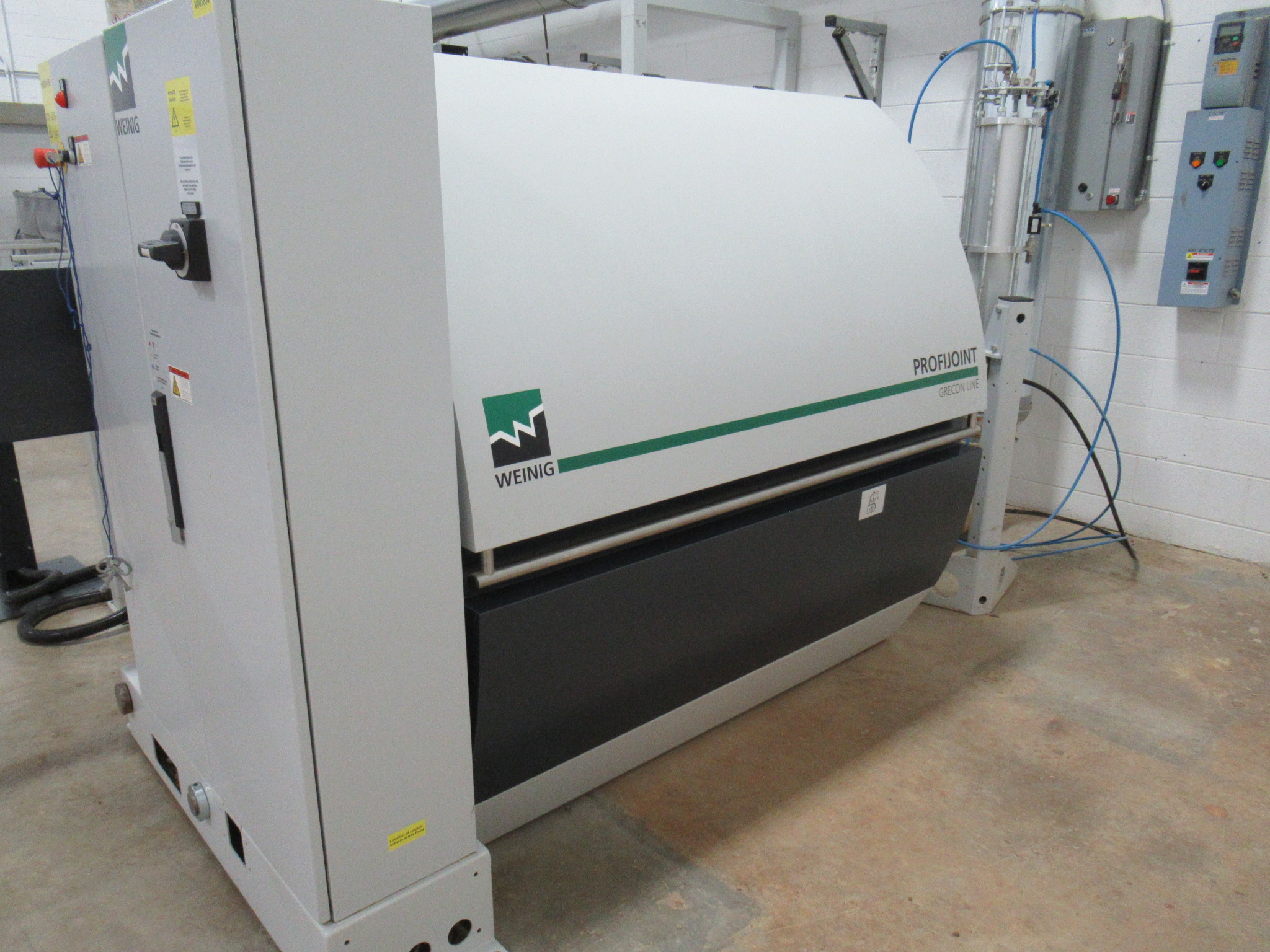

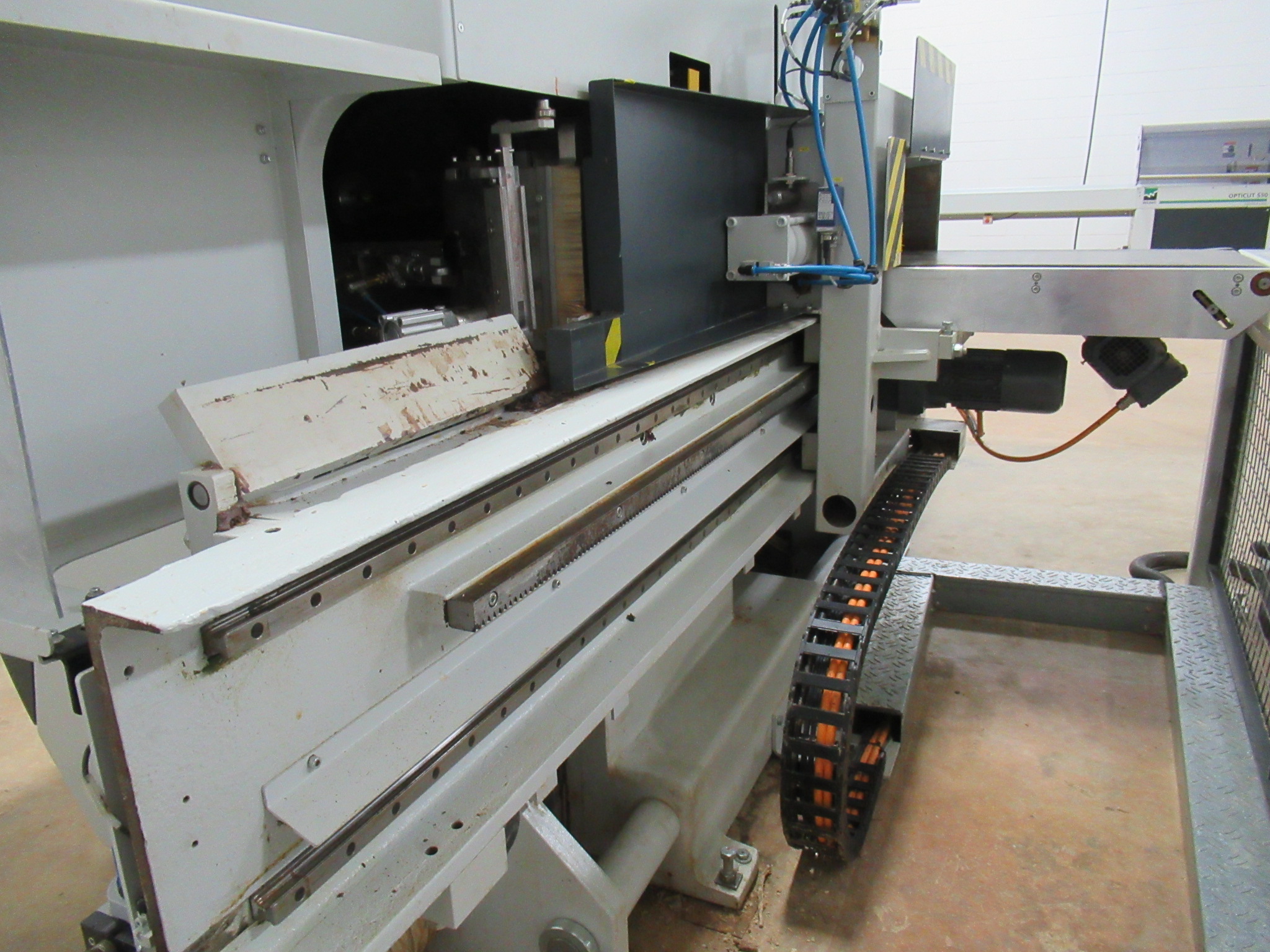

Weinig Model ProfiJoint Finger Jointer
Serial #:V001634
Condition: As Taken From Service
Stock Number: 2837
NEW IN 2023
Saw Motor: 22kW (30HP)
Hogger & Scoring Motor: 11.5kW (15HP)
Wood Entry Length (Min/Max): 150-700mm (5.9" - 27.55")
Wood Width (Min/Max): 25-150mm (1" - 5.9")
Wood Thickness (Min/Max): 19-50mm (.76" - 1.96")
Wood Exit Length(Min/Max): 3000-6100mm (118.11" - 240.15")
Max Timber Cross Section with Finger Joint Length of 10/11mm (softwood): 83x83cm
Max Timber Cross Section with Finger Joint Length of 10/11mm (Hardwood): 67x67cm
Performance (Vertical Finger Joint) with 30mm x 90mm x 400mm: 11.51m/min
Performance (Horizontal Finger Joint) with 22mm x 50mm x 350mm: 6.01mm
Feeding System: Feeding Line
Specifications Are From the Manual and Will be Confirmed
Weinig Model ProfiJoint Finger Jointer
