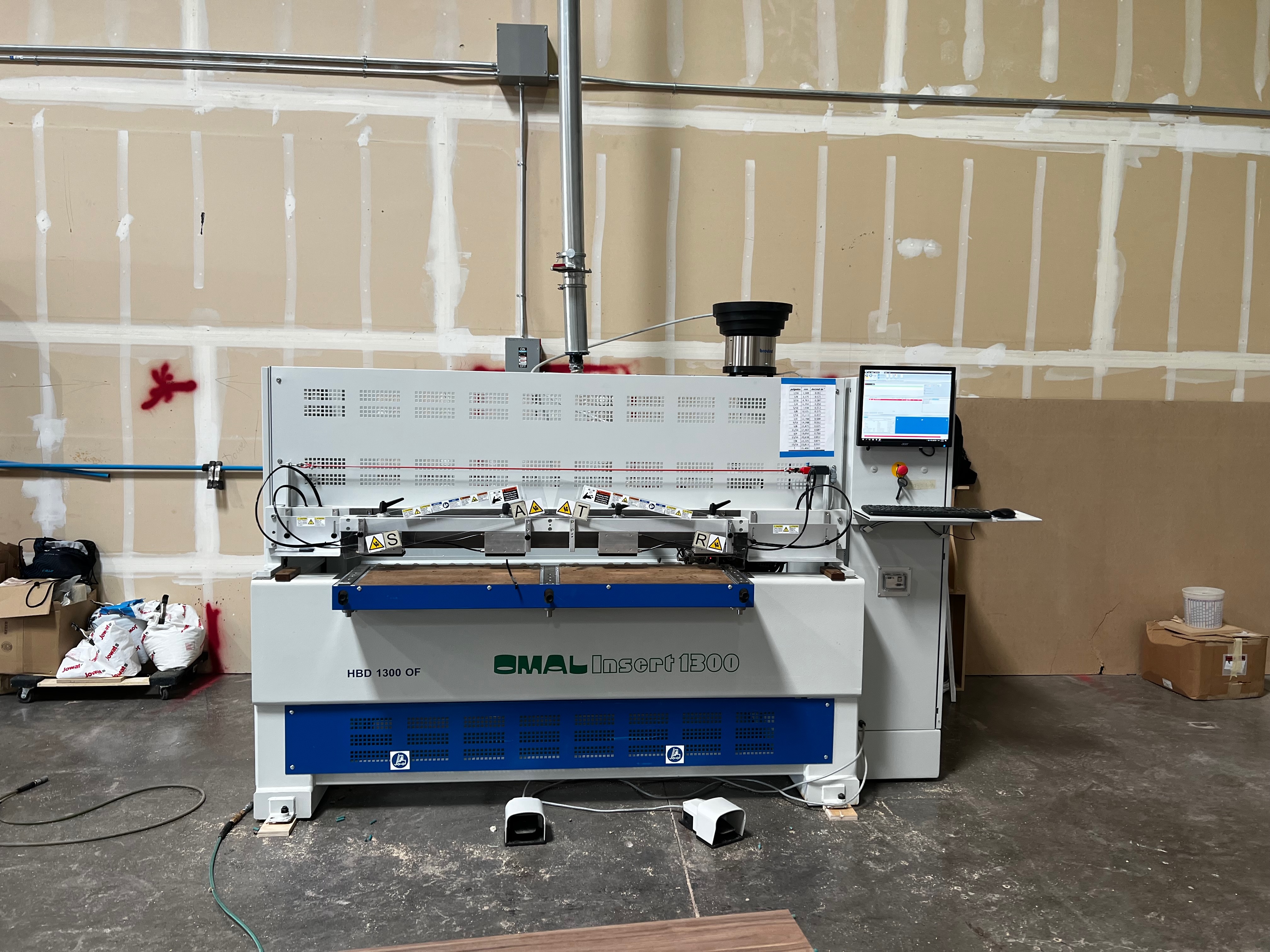

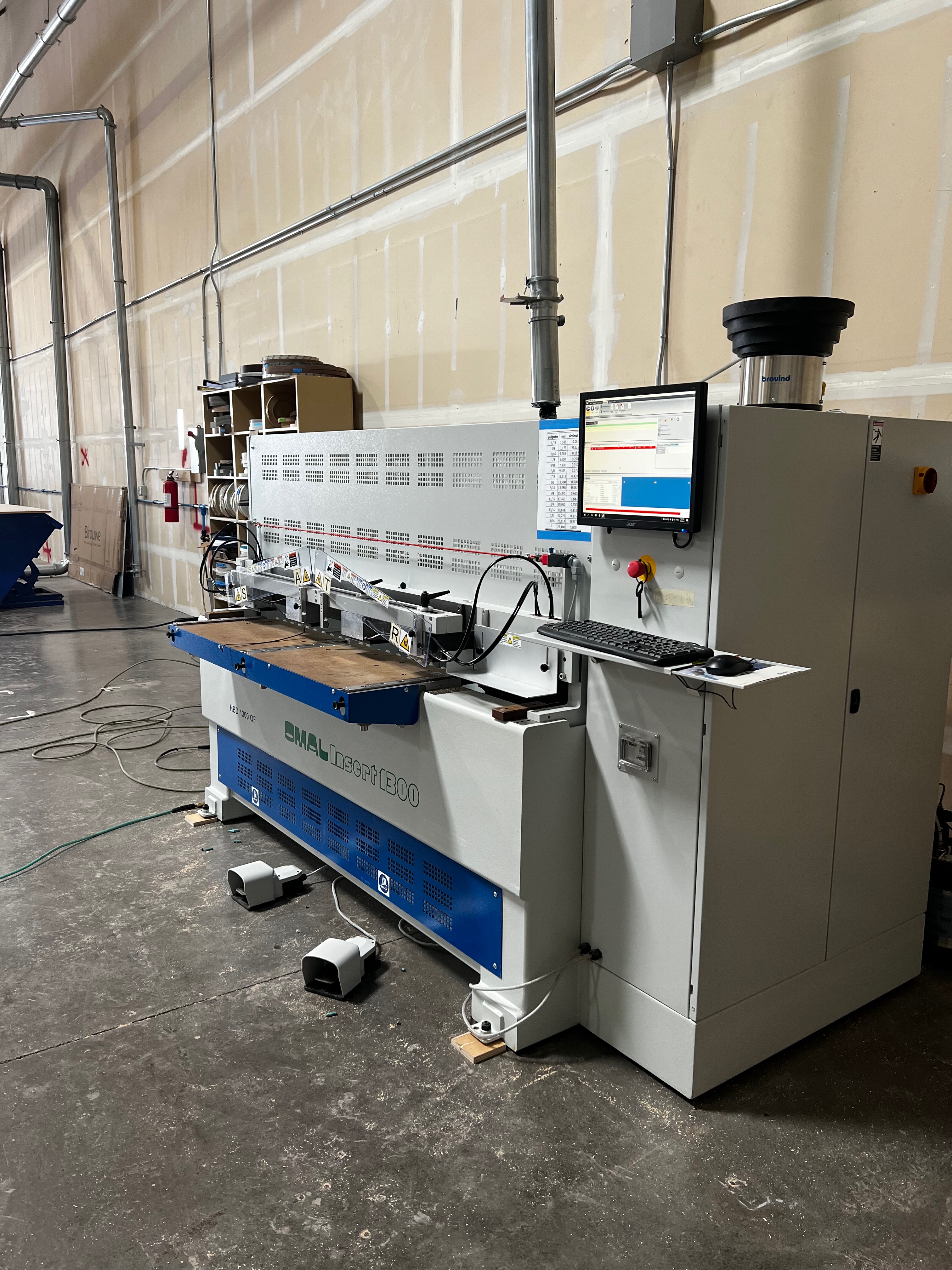

For sale is a 2020 OMAL HBD 1300 OF horizontal bore, glue, and dowel insertion machine made in Italy by OMAL macchine e sistemi. This open-frame model combines drilling, gluing, and dowel insertion in a single automatic cycleideal for precision case construction, cabinet assembly, and furniture manufacturing. The machine has seen light use, has been fully tested, and is in excellent working condition.
Specifications:

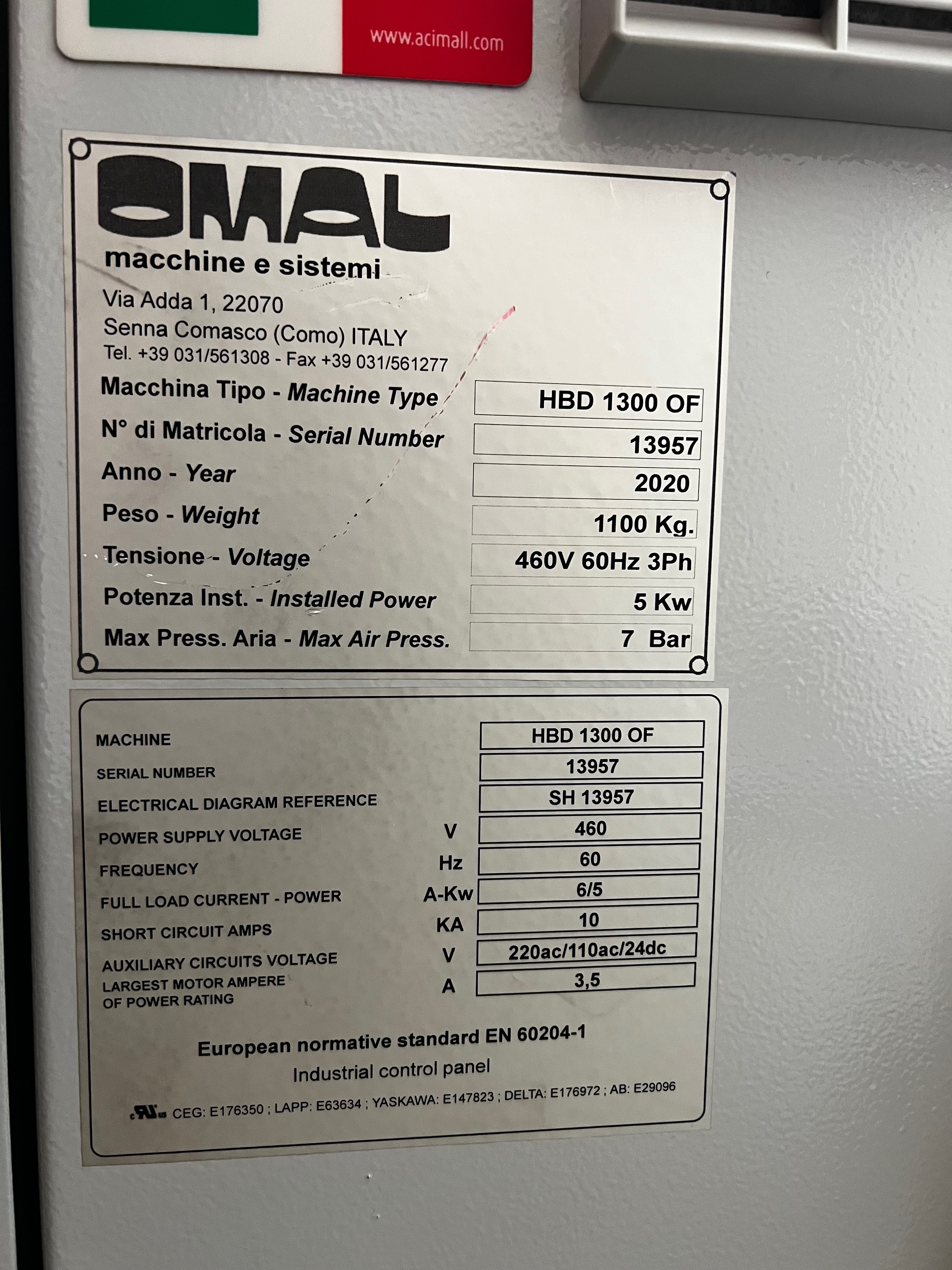

Model: HBD 1300 OF (Open Frame)
Year: 2020
Serial Number: 13957
Weight: 1,100 kg (≈ 2,425 lb)
Voltage: 460 V / 60 Hz / 3-Phase
Installed Power: 5 kW (≈ 6.7 HP)
Full Load Current: 6 A / 5 kW
Auxiliary Voltage: 220 VAC / 110 VAC / 24 VDC
Air Pressure Requirement: 7 bar (≈ 100 PSI)
Control Panel: EN 60204-1 Industrial Control Panel
Features:
Automatic boring, glue application, and dowel insertion in one cycle
Fast 1-second cycle time (dowel ready)
Touchscreen HMI for parameter setup and diagnostics
Precision linear guide assemblies for exact bore alignment

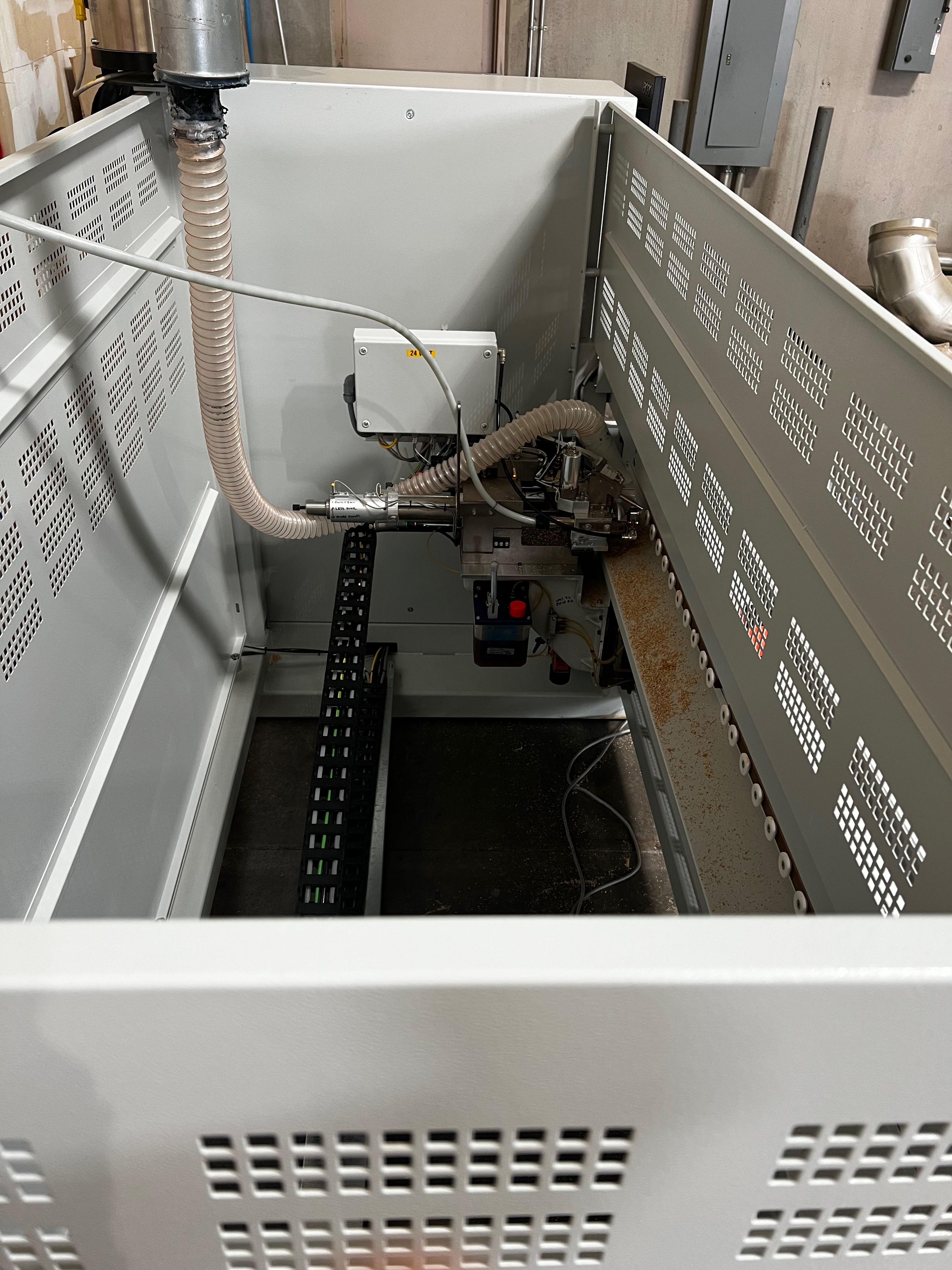

Open-frame design allows quick part loading and operator access
Compatible with 6 10 mm dowels (8 mm standard)
Cleaned, serviced, and fully functional
Condition:
Used excellent. Machine was maintained in a controlled shop environment, glue system flushed, all safety guards intact. Ready for immediate production use.
Location:
Las Vegas, Nevada
All information, including photos and videos, has been provided by third-party sources and is believed to be accurate. However, it is the buyers sole responsibility to verify specifications, condition, and all relevant details prior to purchase.
