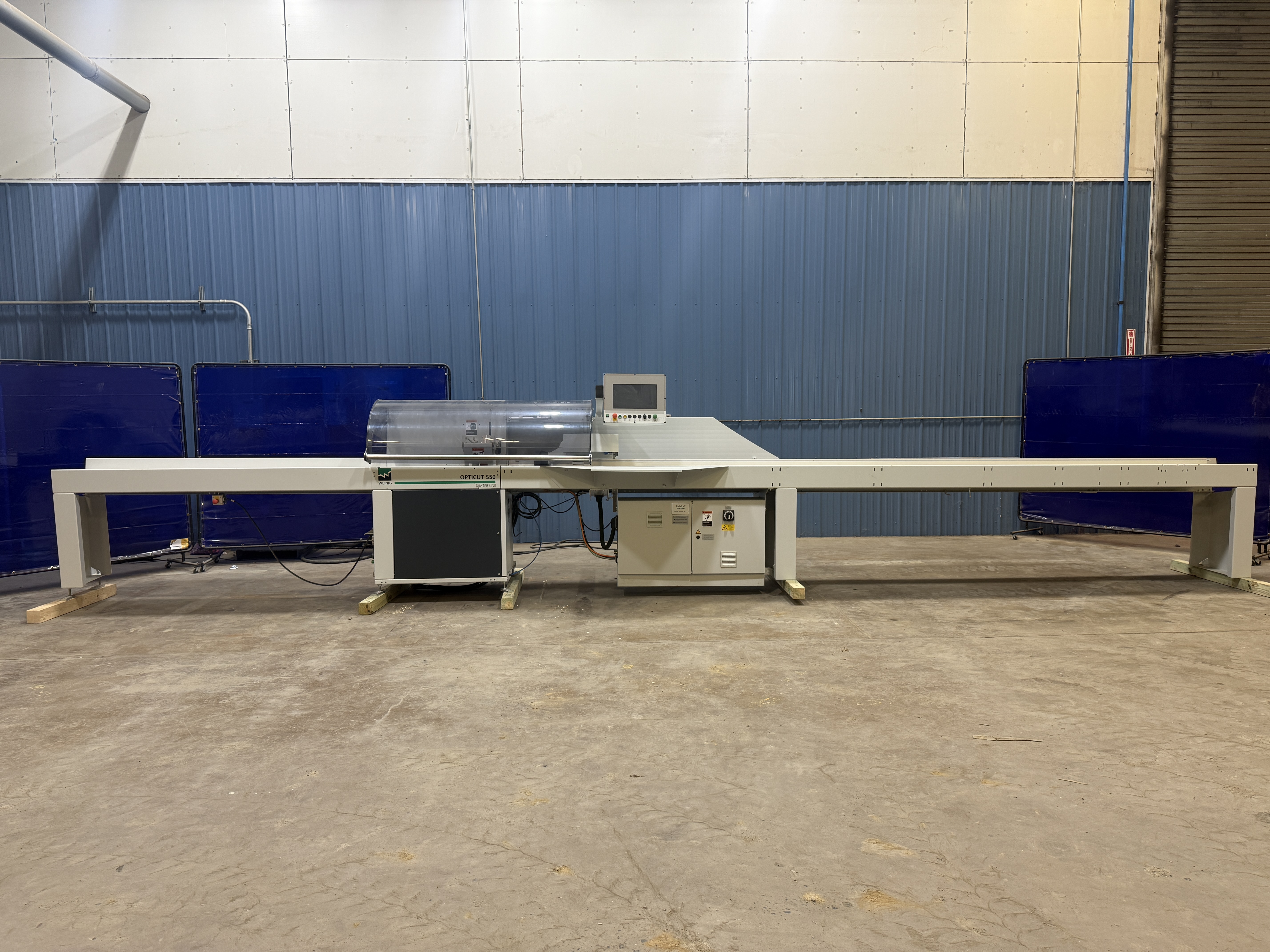

Weinig/Dimter Model OptiCut S50 Optimizing Crosscut Saw
New in 2022!
Condition: As Taken From Service
Stock Number: 813846
Incoming Lengths up to 45000mm (14'-9 1/3")
Widths: 20mm - 300mm (0.787" - 11.81")
Thickness: 10mm - 100mm (0.394" - 3.937")
Minimum Crosscut Section: 10mm x 20mm (0.394" x 0.787") and Maximum 100mm x 300mm (3.937" x 11.81")

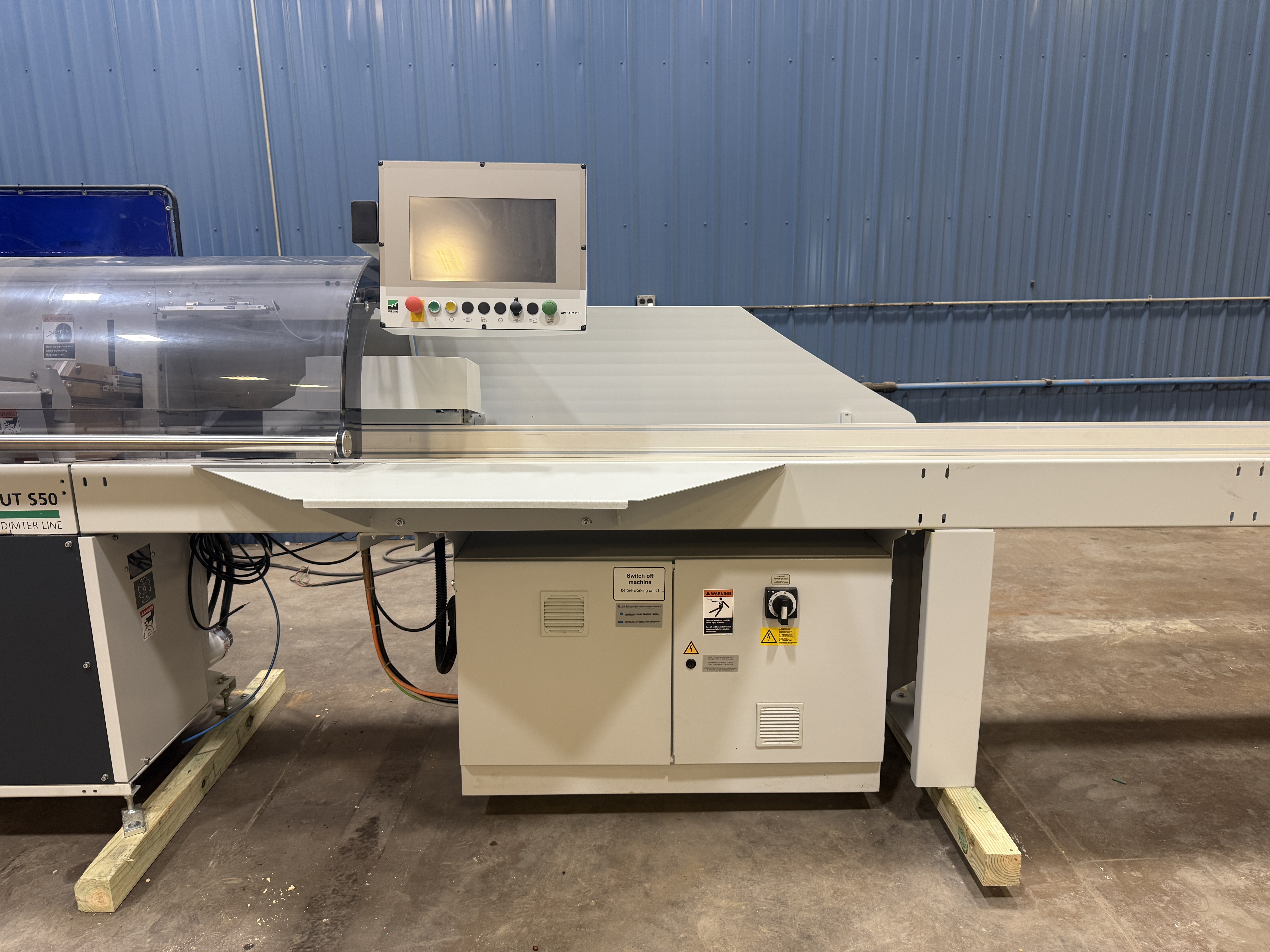

Opticom Pro Operating System
Saw Motor: 6.6kw (9HP)
Saw Blade Diameter: 500mm (19.685")

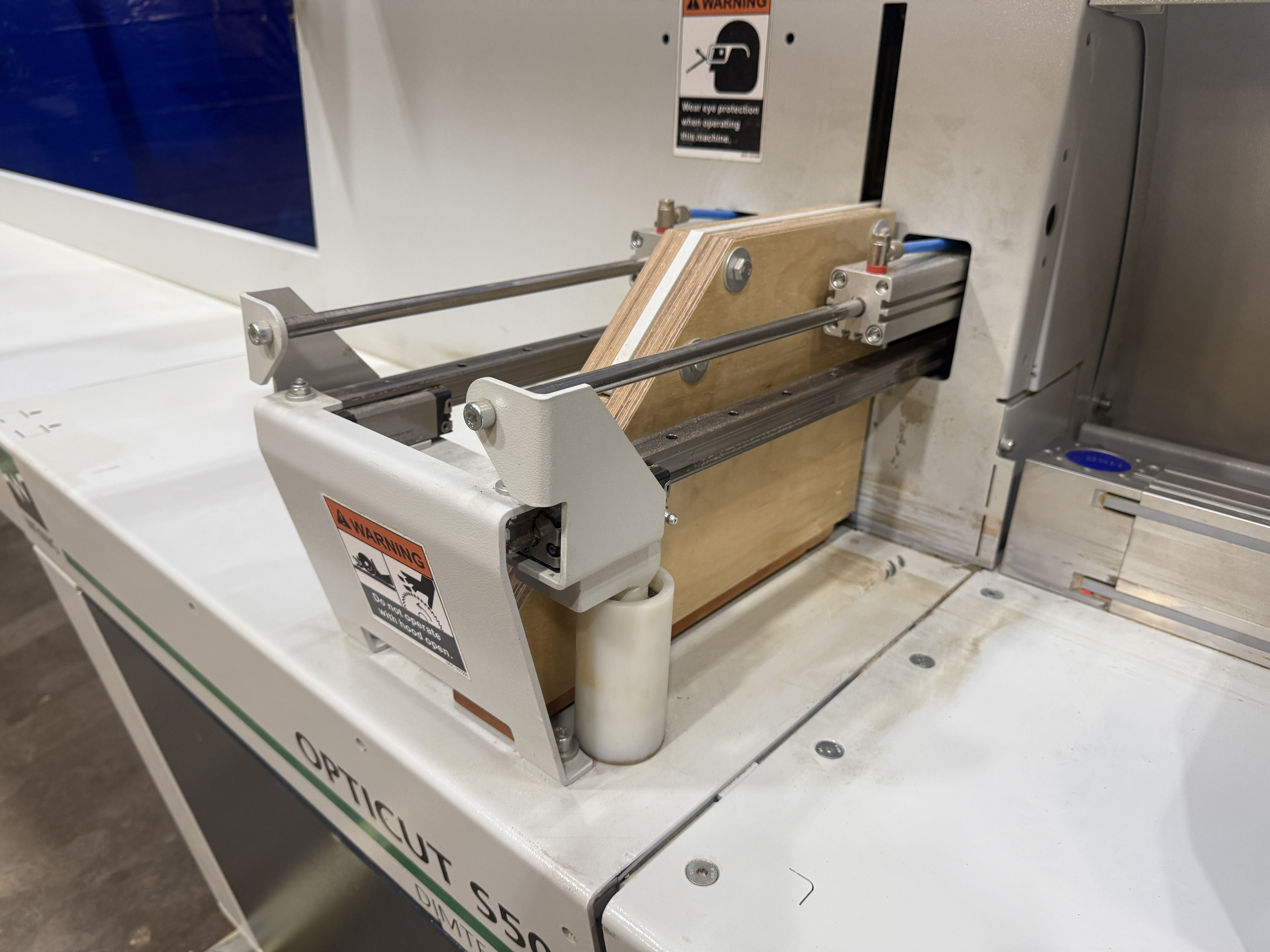

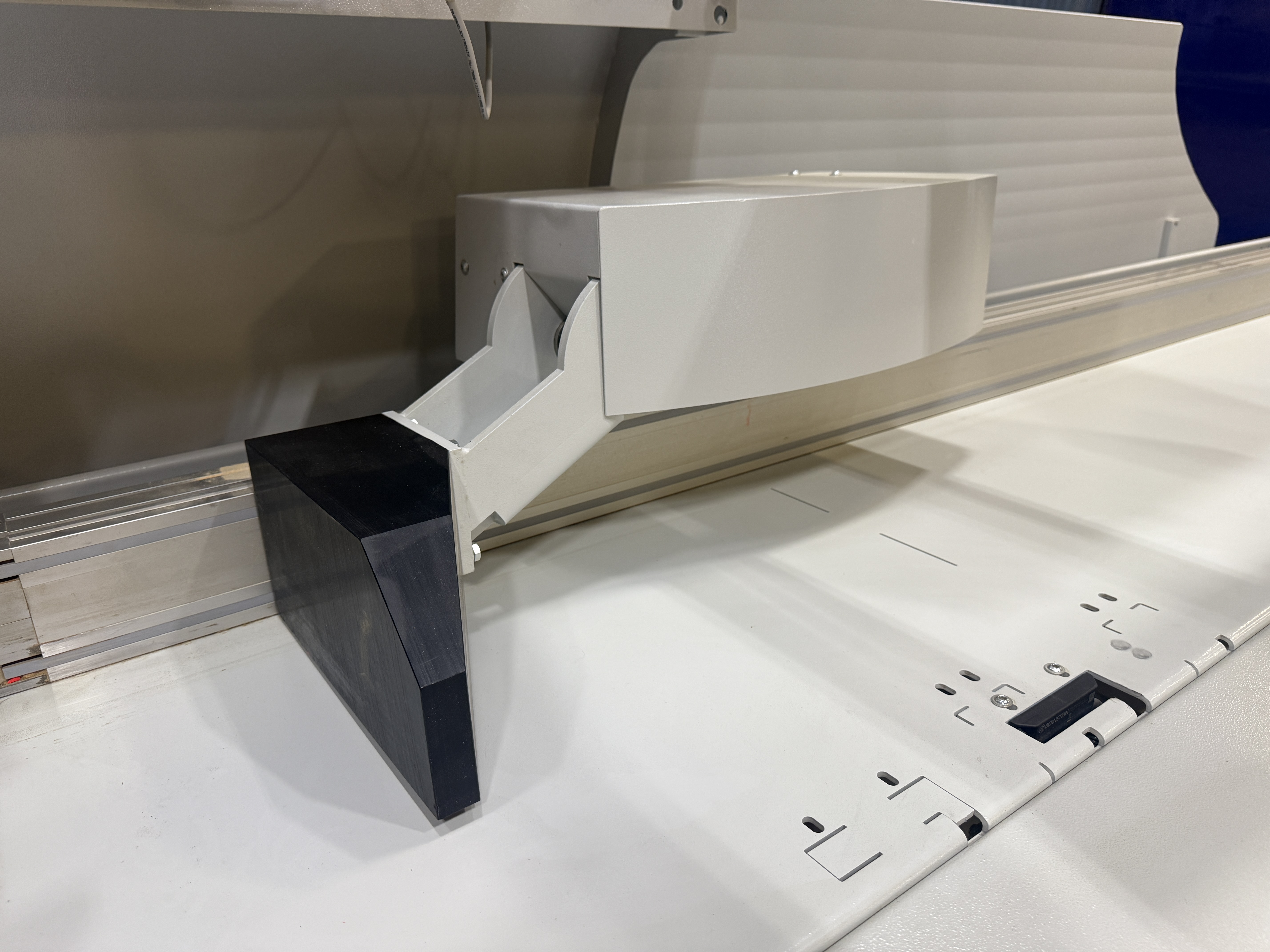

Swiveling Positioning Pusher Including Laser Photo-eye for Automatic Length Detection
Lateral Pressure Unit for More Dynamic Positioning and Rectangular Cut
Advance Speed up to 60 m/ min (197FPM).
Accuracy Package for Positioning of Pusher +/- 0.5mm
Wide Infeed Table with crayon marking station
2.4m (94.49") out-feed table
Weinig/Dimter Model Opticut S50 Optimizing Crosscut Saw
