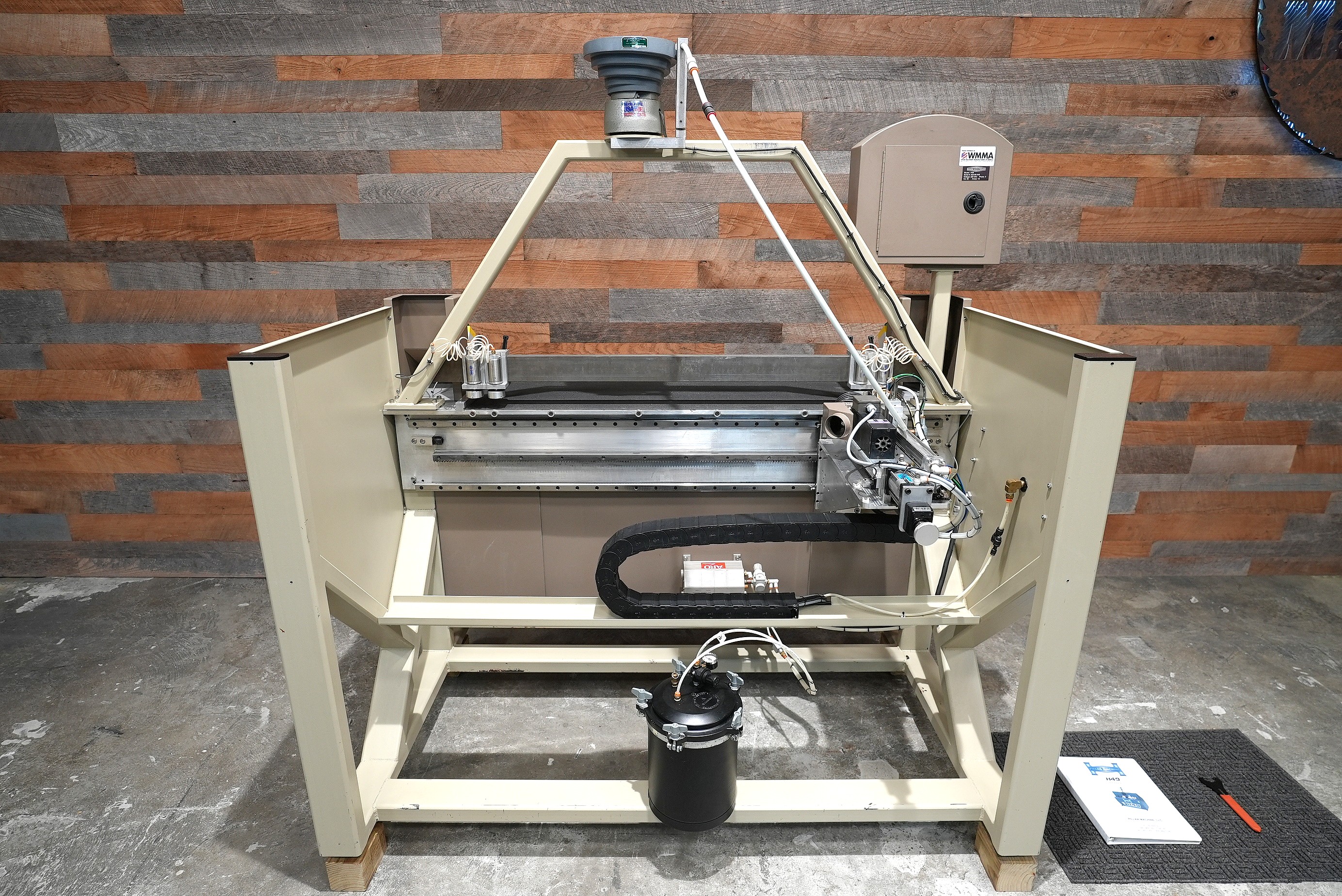

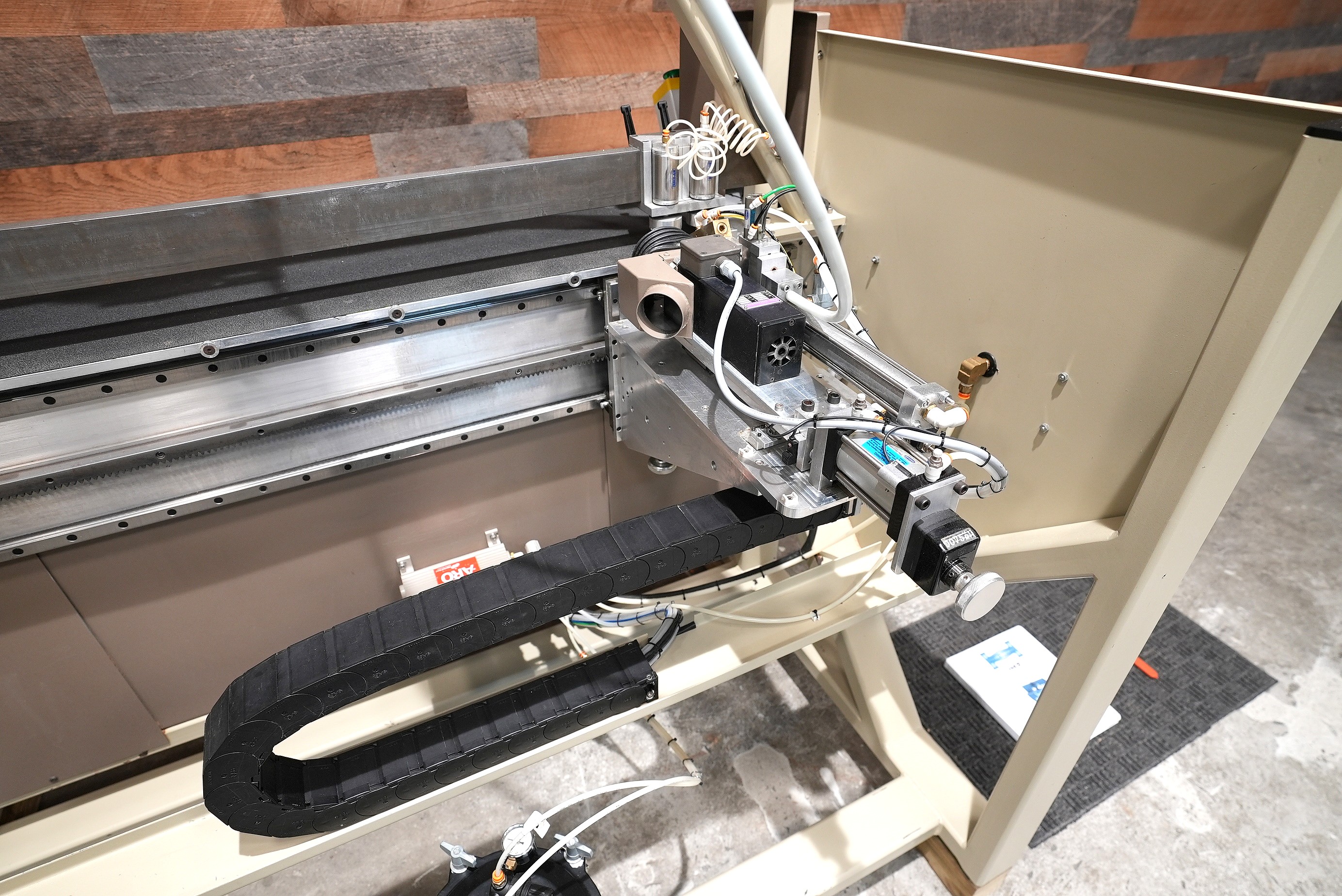

This H49 Horizontal Bore & Dowel Insertion Machine started out as a 2009. It was rebuilt and certified on February 14, 2019 by Pillar machine. The computer, motion controller, the servo and the servo drive were replaced. The bearings were gone through and any bearing that was worn or damaged was replaced. The rack and pinion was gone through and if there was wear or damage it was be replaced. It was cleaned, tested, and repainted. The machine will shoot glue or water. It has seen very little use since being rebuilt. Extremely clean and updated……and we mean extremely clean!
This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.
Horizontal bore and dowel
49″ wide worktable of 1/2″ thick machined aluminum
to ensure a true and reliable reference point
1.5 HP 18,000 RPM single spindle drill
Cycle time of approx. 1-1/2 seconds for each bore
glue and dowel insertion when the holes are spaced at 64 mm intervals

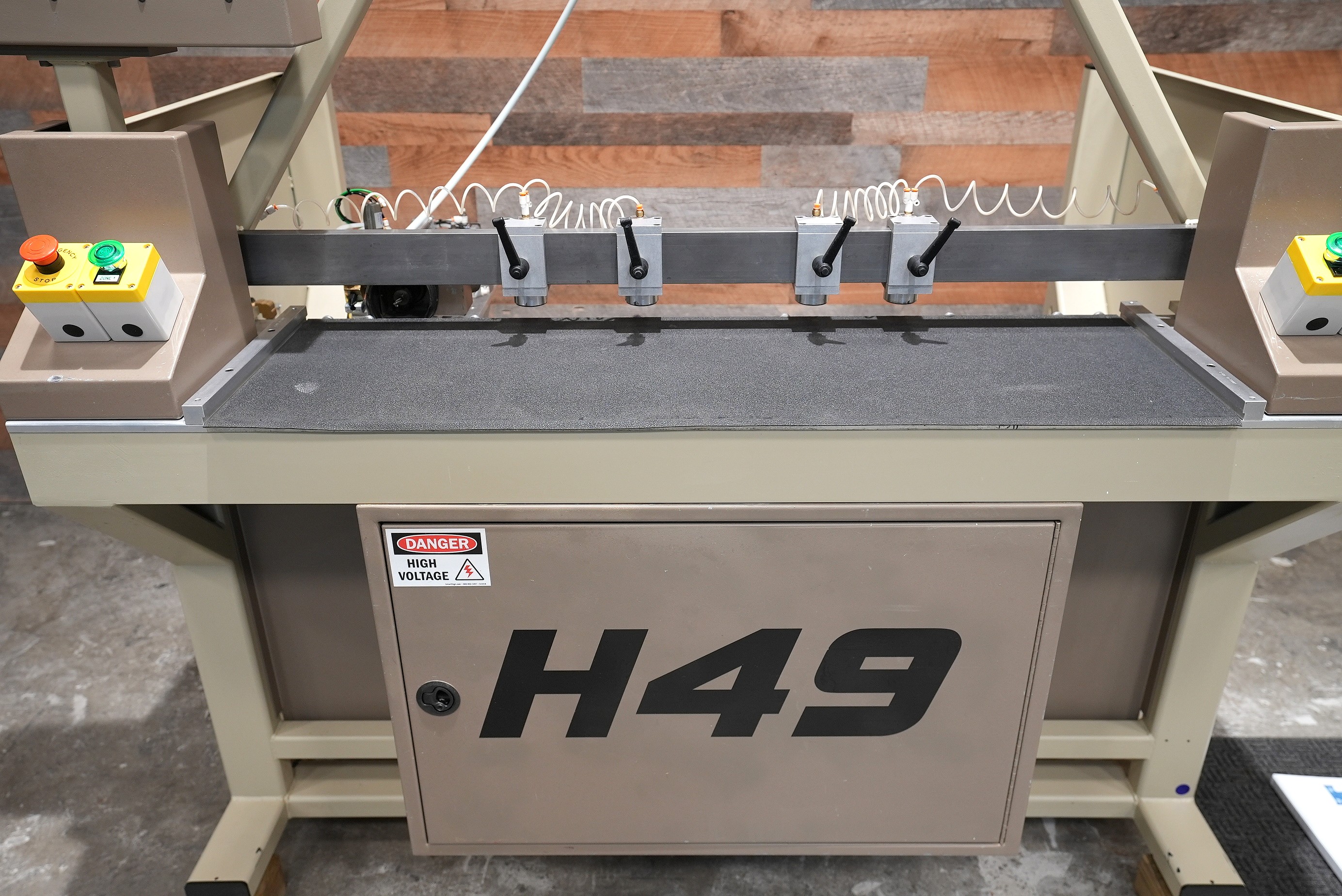

(4) quick adjust vertical clamps
Adjustable back fence
1/2″ min. material thickness
Glue inserter with water or glue capability
“Direct Reject System” dowel inserter
8 mm dia. vibratory dowel bowl

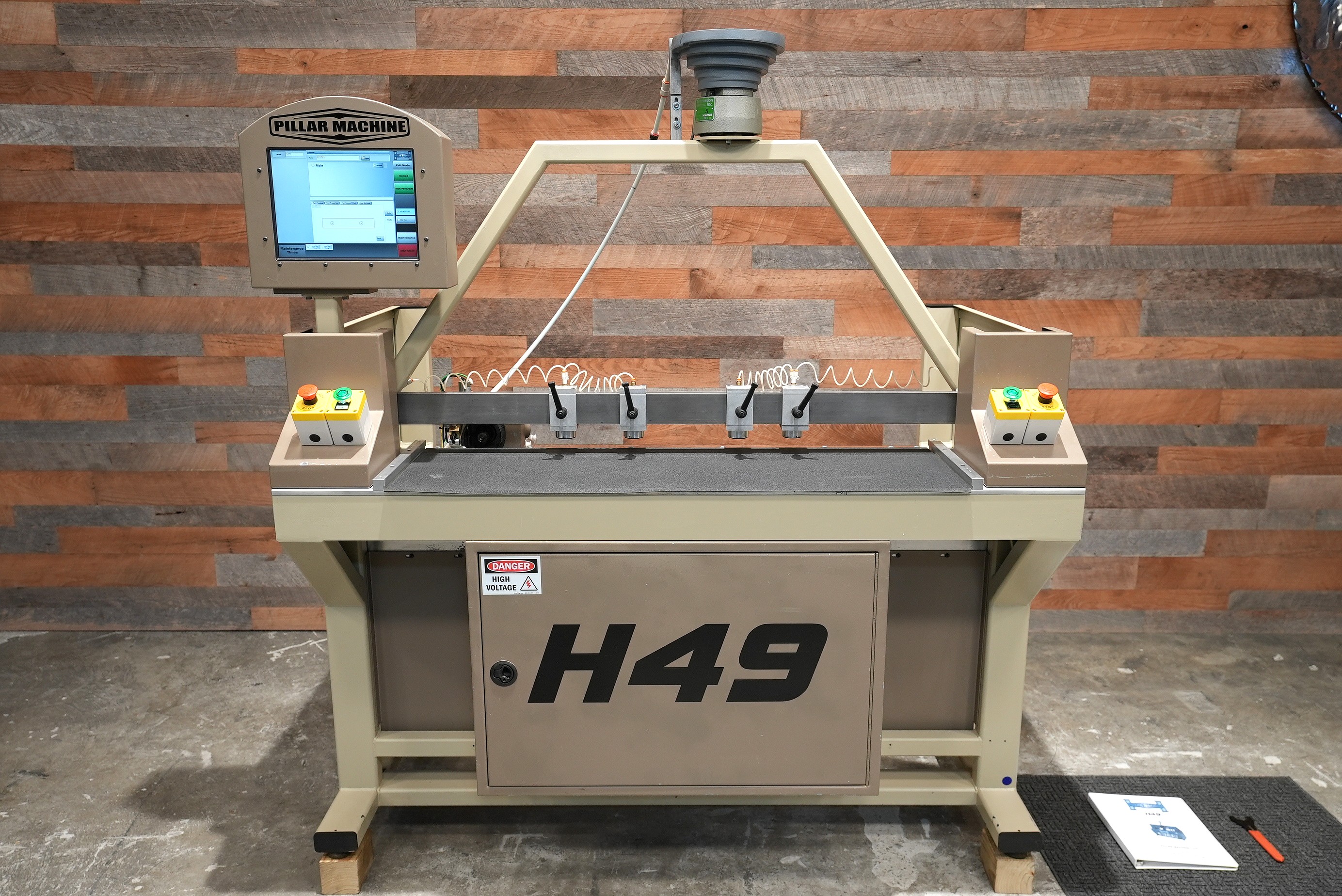

PC operator interface with 12″ touchscreen
2 work zones allowing for pendulum processing
The H-49’s operator interface has been designed to allow
for quick programming at the machine
Typically your operator can create and activate a
new program in less than one minute
