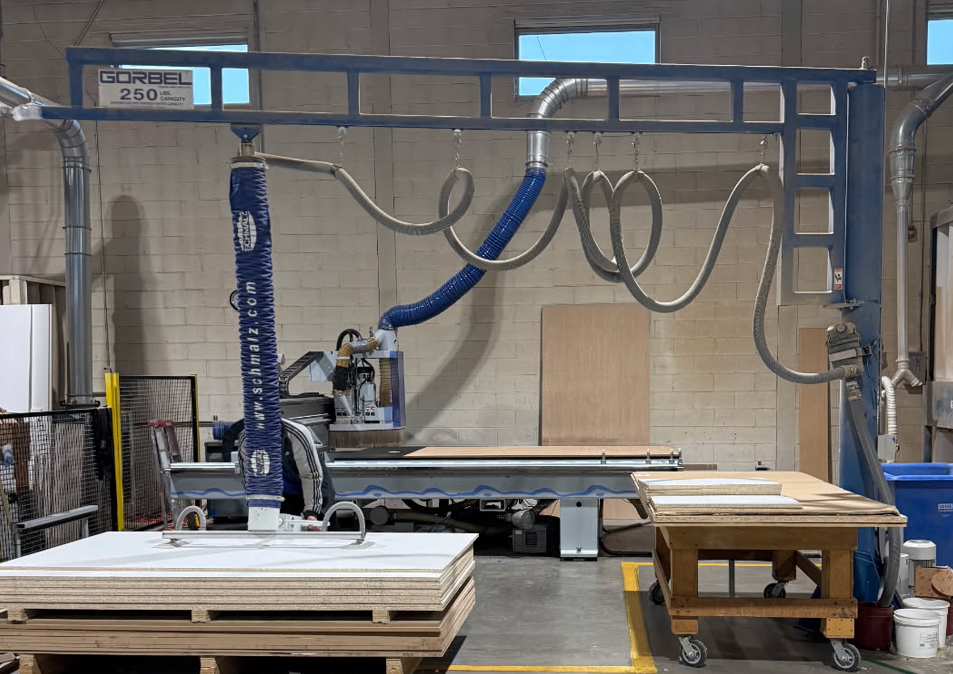

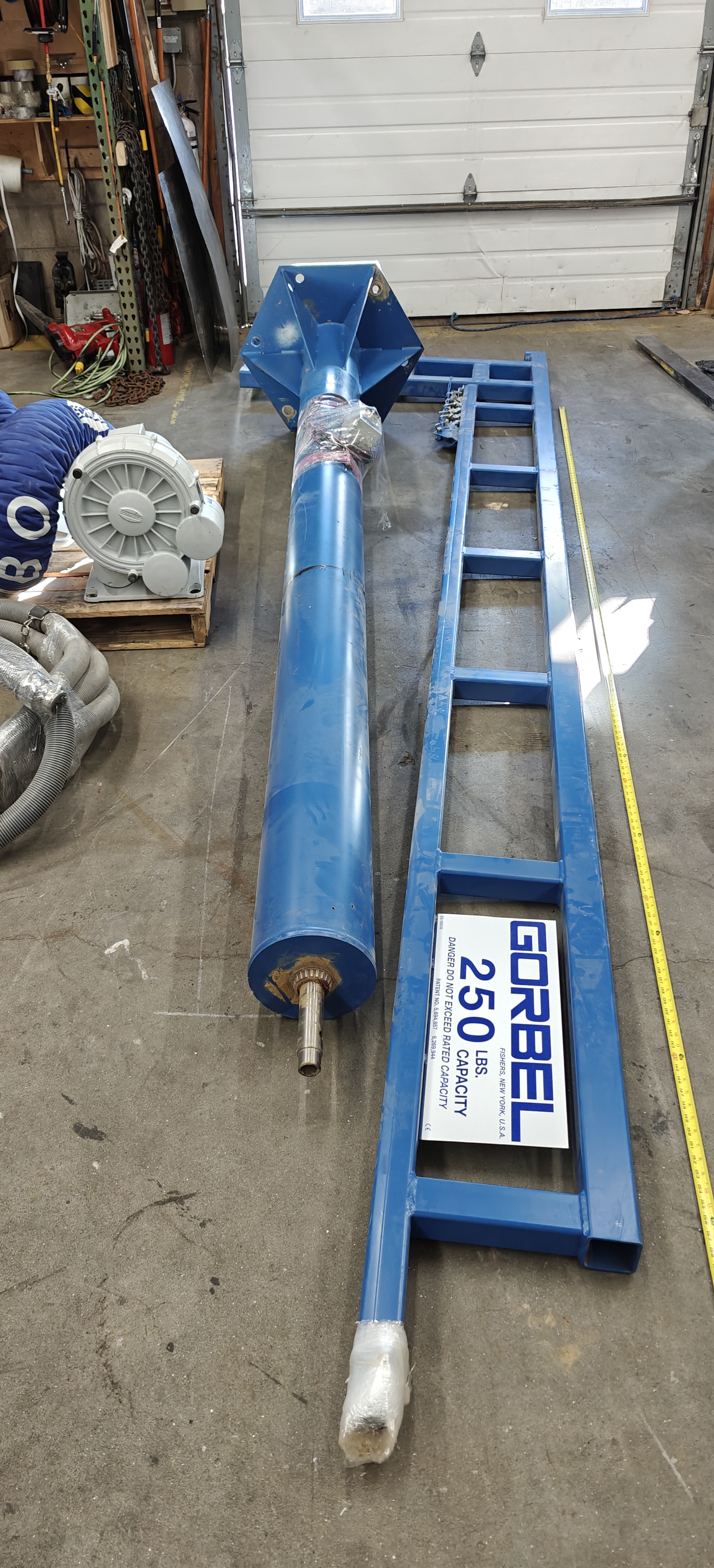

Gorbel 250 lb Jib
11' 6" tall
10' to underside of arm
14' or projection on arm

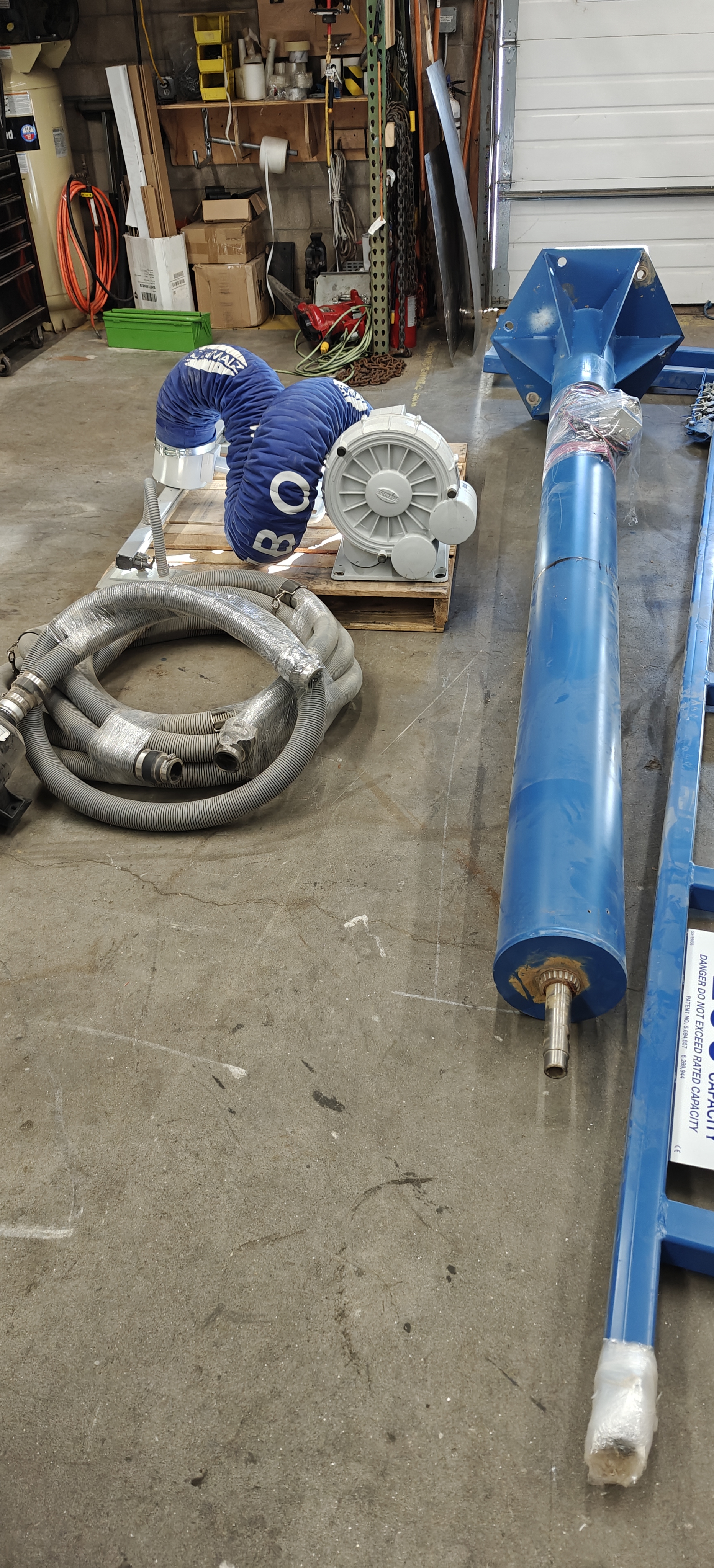

Schmalz 85kg Vacuum tube lifter;
185 lb. lift capacity on non-porous material;
175 lb. lift capacity on porous material;

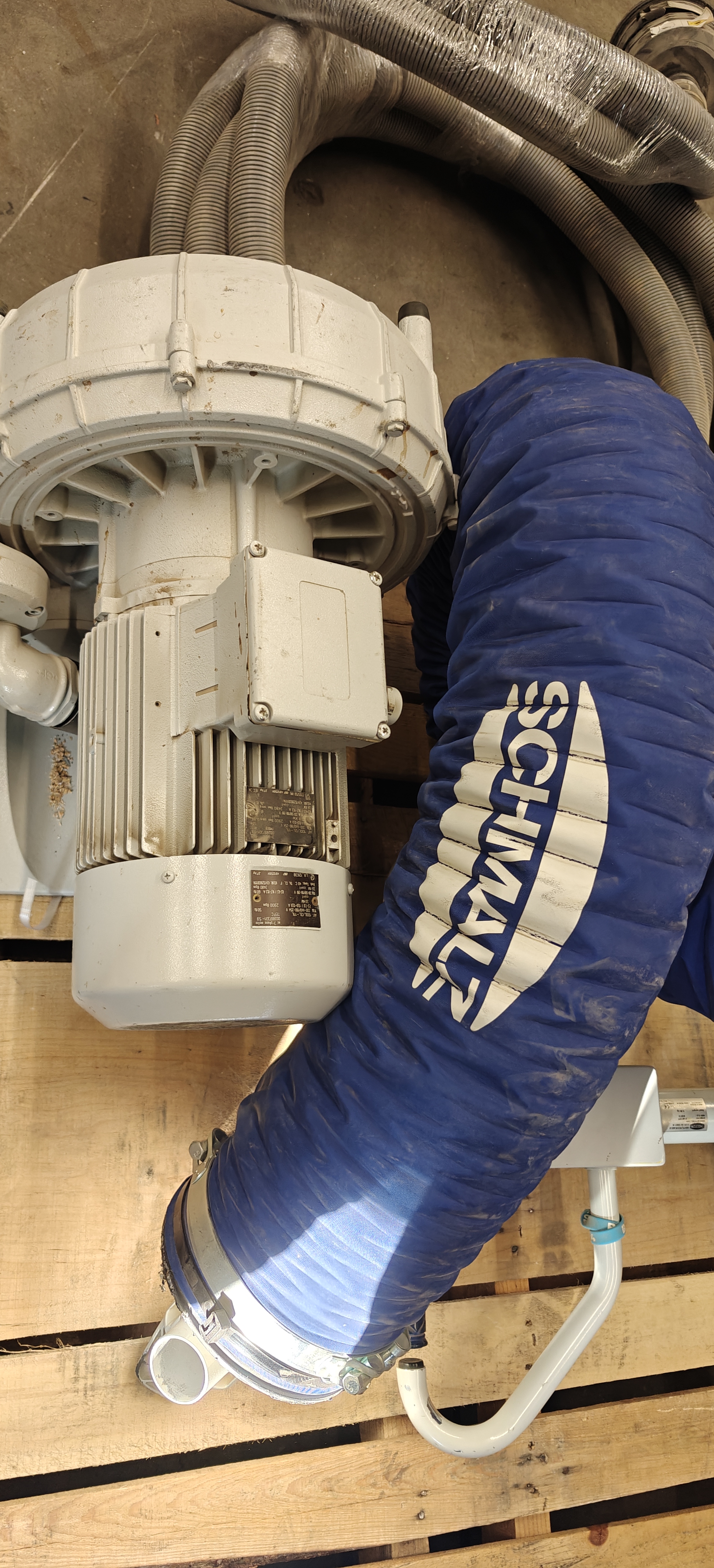

4.8 HP blower with 110 CFM airflow and 14.7" Hg vacuum
30' of 60mm ID vacuum supply hose
dust filter with replaceable cartridge
7" dia. wire-reinforced PVC lift tube with 74" stroke for 10' high crane (protective blue nylon cover)
ergonomic twistgrip operator handle for variable speed control
automatically compensates for changing weights.
