Description –

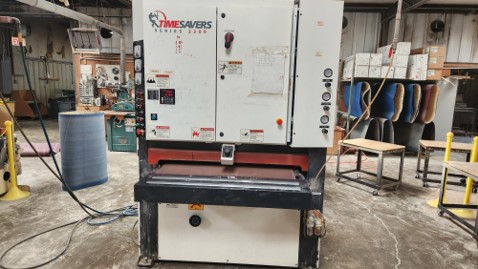

•Three Head Wide Belt Sander
•43″ Wide
•Model #: 2331-24-001
•Serial #: 31233
•Year of Manufacture: 2008
Specification –
•Abrasive Belt Size: 43″ x 75″
•Main Motors: 25,20,15HP
•Max Width Stock: 42″
•Max Part Length: 15″
•Max Thickness Opening: 5″
•Infeed Loading Area: 14″
•Feed Speed: 15-45 FPM
•Voltage/Phase/Frequency: 460/3/60
•Full Load Amps at 460V: 93
•Motor Type: TEFC
•Passline Height: 33″ – 38″
•Dust Extraction: 4,500 CFM (5″ static pressure)
•Compressed Air Usage: 6 CFM @ 90 psi

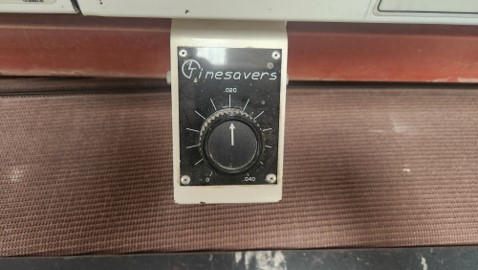

•Auto Panel Thickness Adjustment
•New Feed Belt Installed 2024
