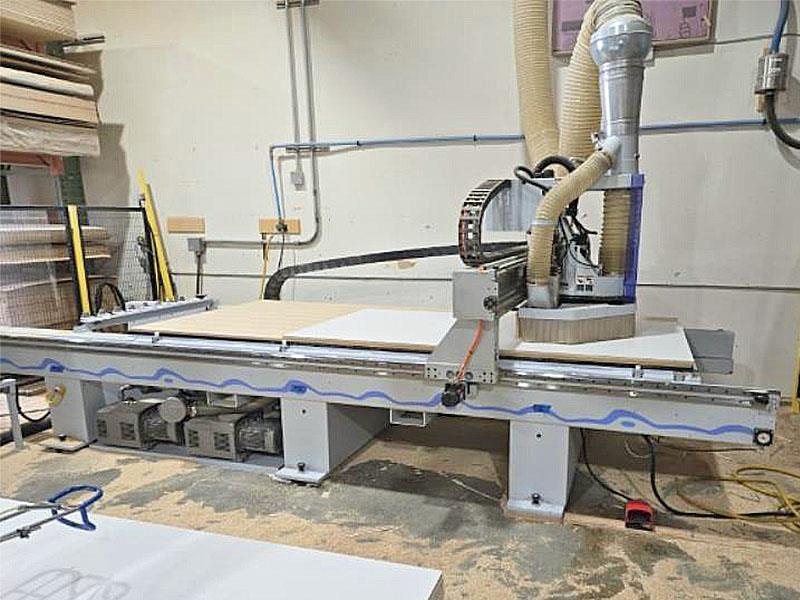

5' x 12' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table.
Working Capacity
"X" Axis 156.7" (3,980 mm); "Y" axis 61" (1,550 mm); "Z" axis stroke is 9.6" (243.8 mm); max. material thickness is 3.9" (99 mm).
Positioning Speed
"X" & "Y" Axes 315 FPM (96 MPM); "Z" axis is 82 FPM (25 MPM).
The head travels via AC brushless drives & THK linear motion guides on all axes.

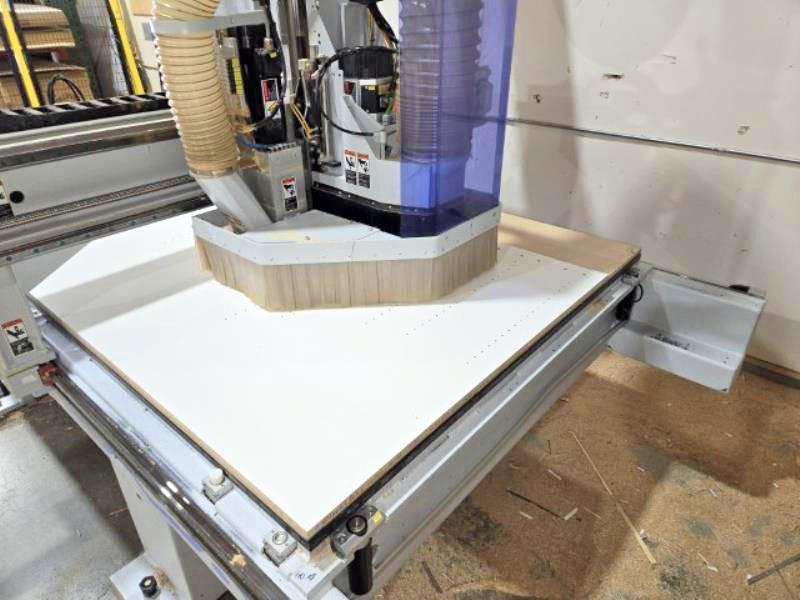

Worktable: User-Friendly "S/C Tech MATRIX" grooved phenolic vacuum table for easy vacuum pod placement.
(6) Pop-up pneumatic locator/positioning on the front side & (1) on the back side in "X" axis & (2) pop-up pneumatic locator/positioning pins on RHS facing side in "Y" axis.
(4) Vacuum Table work zones can be used independently or together for full table area foot pedal vacuum zone controls.
Boring Unit: 2 HP (1.5 kW) motor; 3,450 RPM motor with: (7) Independent vertical spindles; (4) in "X" axis & (3) in "Y" axis.
Machining: (1) 12 HP (9 kW) High speed constant duty, variable speed electro-spindle router with "HSK F 63" adaptor.
Router is programmable from 1,250 - 24,000 RPM, RH or LH rotation.

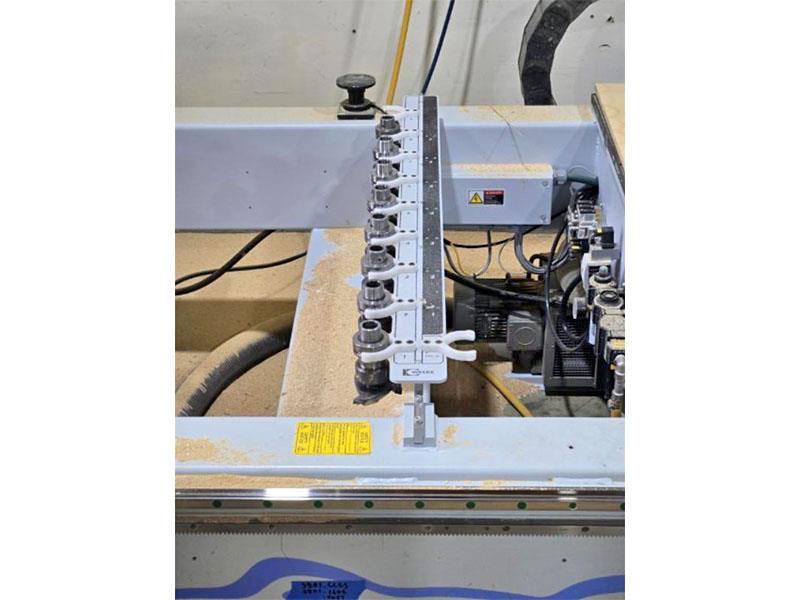

(1) 10-Position ATC rack located at the end of machine.

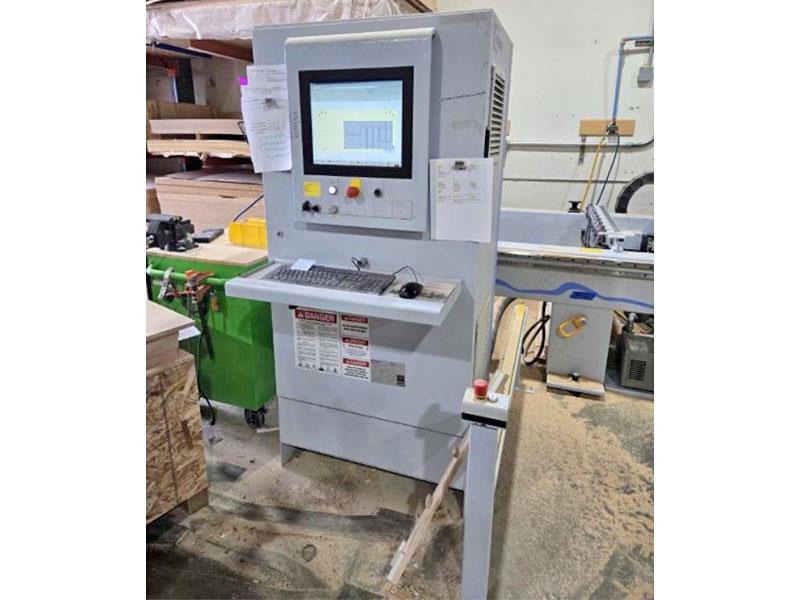

Operator Interface: PC Front-End with: WEEKE "PC 85T" + "Windows XP" + WoodWOP Operating System.
*** Please click the link for full description***
Weeke VANTECH 512Flat Table Machine
