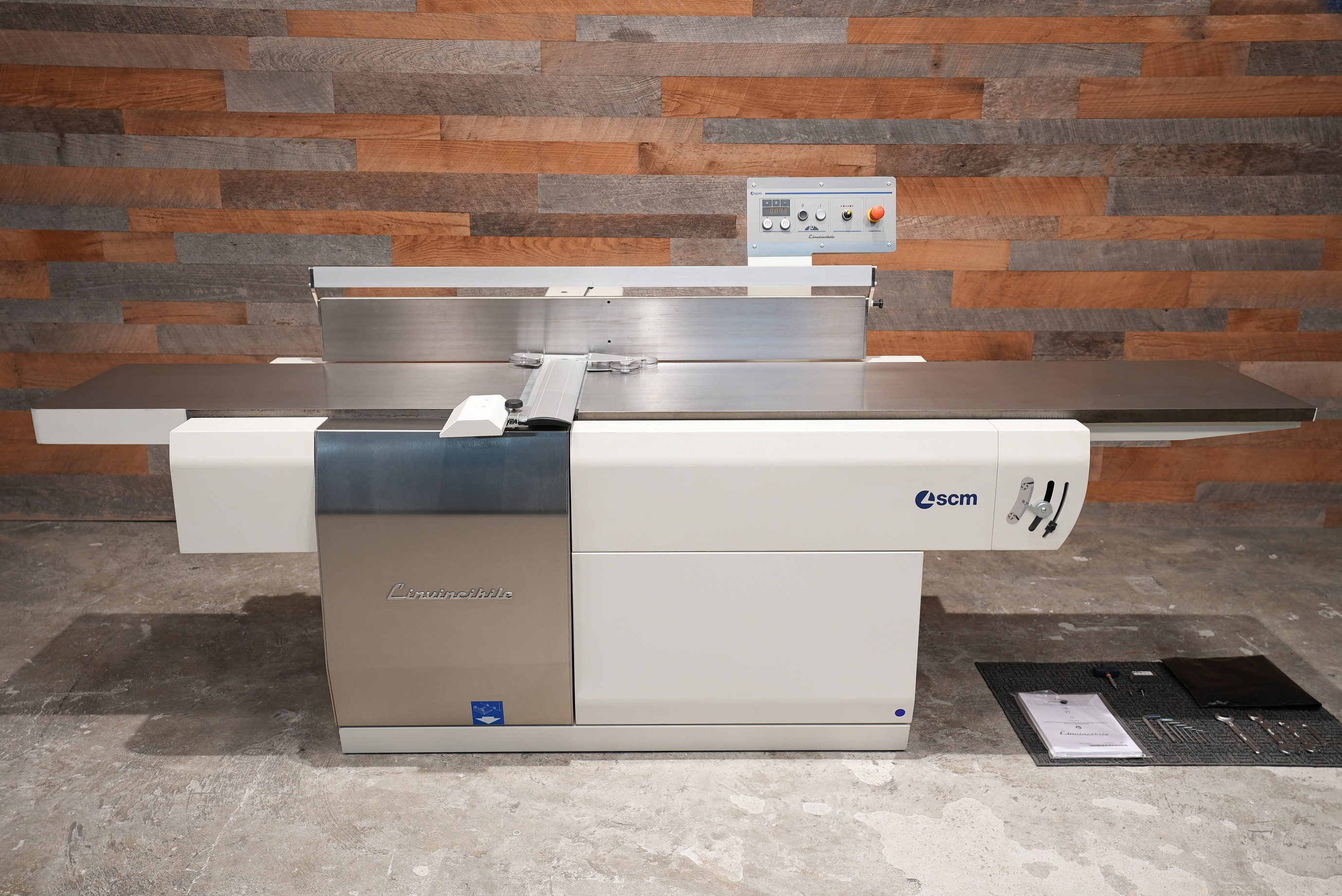

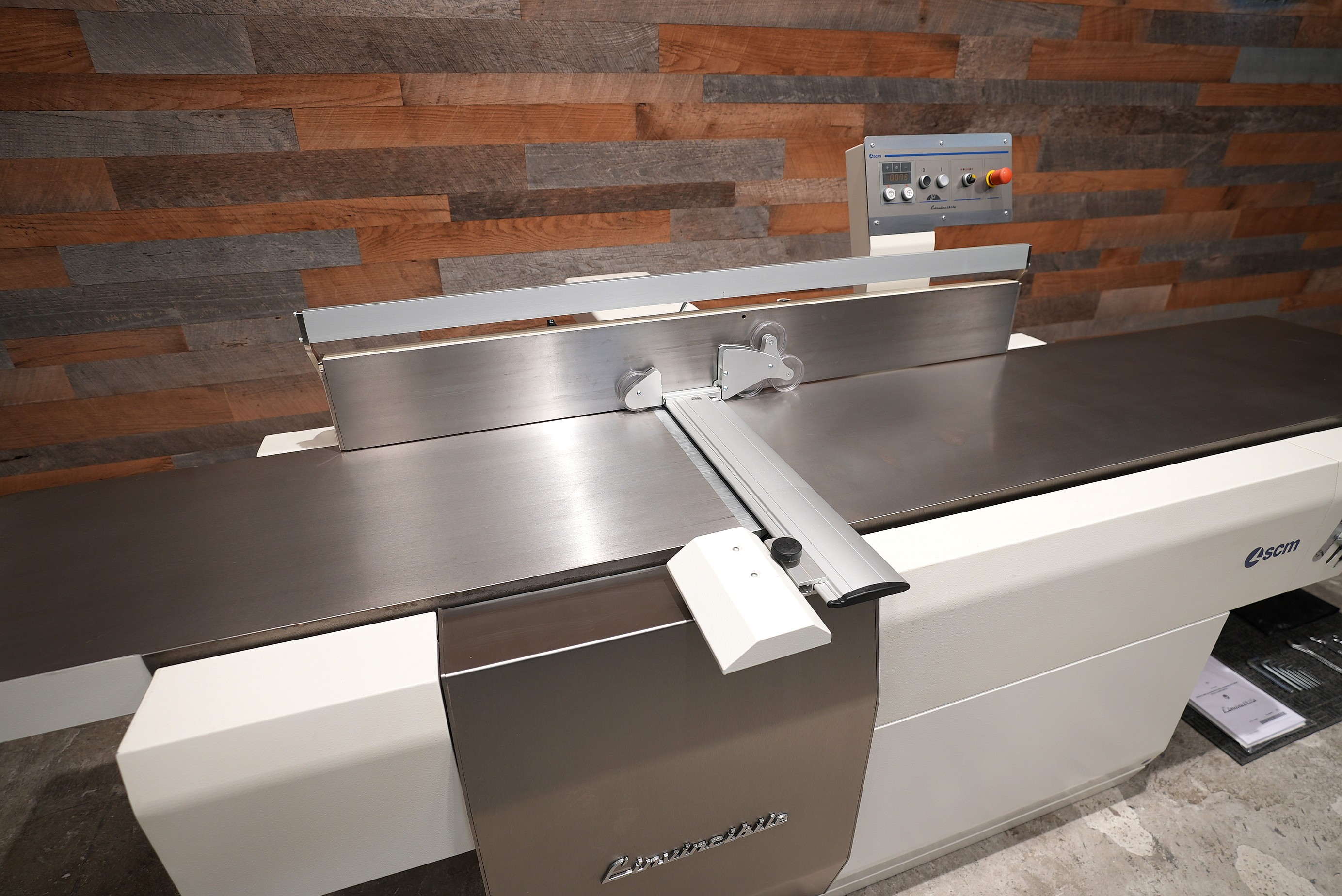

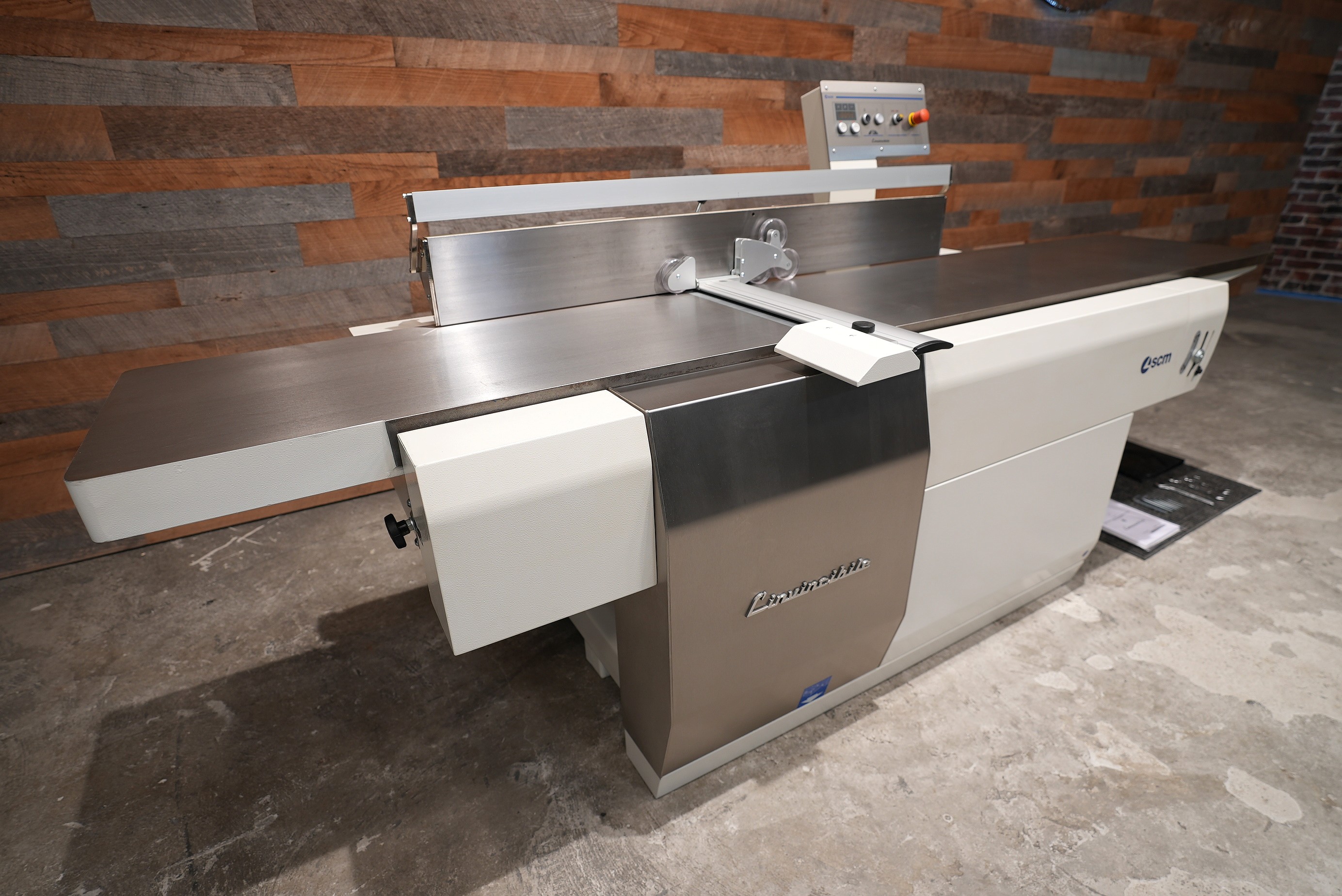

Very hard to find, 2019 SCM 20″ L’Invincibile F7 Long Bed Jointer with Xylent Head. Bigger and Better in every way over the Nova f 520. Some of those differences are 70″ long infeed table (9″ longer than a f 520), longer fence (11″+ longer than a f 520) , Additional overturning fence for processing thinner pieces, better adjustability and movement of fence, electrical movement of infeed table with digital readout of cutting depth and over head controls, modified Euro-guard that folds and it’s guide wheels can be placed at 0 and 90 degree. 118+ Inch long table length with ribbed cast tables with a smooth finish.
Features:

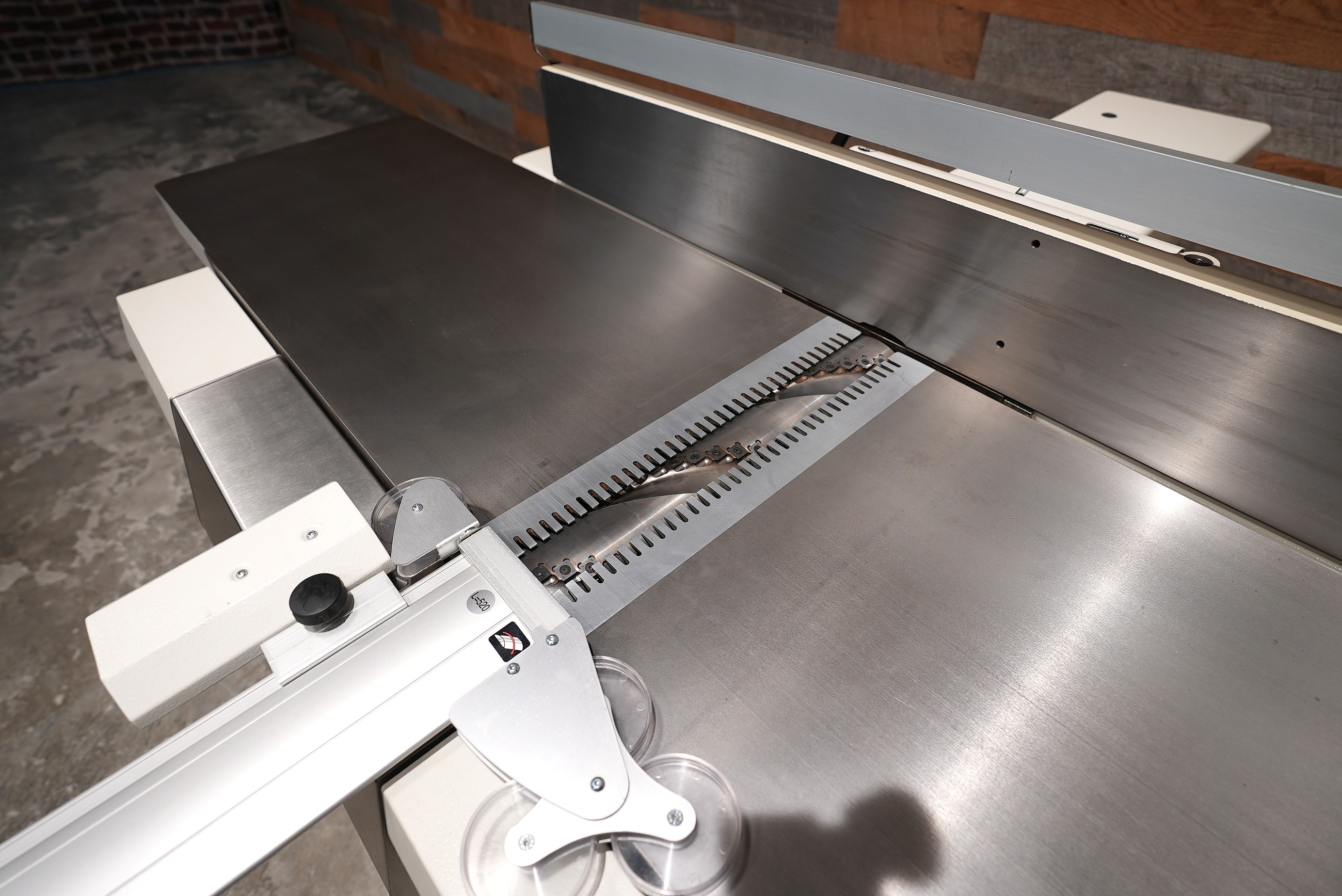

XYLENT insert head with quick change knives
Overhead Control Panel
Electrical movement of infeed table with digital readout of cutting depth
Additional Overturning fence for processing thinner pieces.
Magnetic starter with overload protection
Heavy Cast-iron jointer fence and tables
Smart Lifter cutterhead guard planer protection
118+ Inch long table length with ribbed cast tables
Parallelogram movement of tables
Dust hood
Specs:
Motor Horsepower: 11hp
Total Table Length: 118-1/4” (3,008 mm)
Infeed Table Length: 70” (1,775 mm)
Outfeed Table Length: 46-1/2” (1,180 mm)
Table Width: 20-1/2” (520 mm)
Working Capacity: 118” x 20-1/2” (2,750 mm x 520 mm)
Max. Depth of Cut: 5/16″ (8 mm)
Cutter Head Diameter: 4-3/4” (120 mm)
RPM: 5,000
No. of knives: 84
Knife Dimensions: 15 mm x 15 mm x 2.5 mm
Fence Size: 59” x 7” (1,500 mm x 175 mm)
Fence Tilt (degrees): 0° – 45°
Dust Hood Diameter: 120 mm
Noise Level (dB): 75
Overall Dimensions: 119″ x 56″
Shipping Weight: 2,250 lbs.
Net Weight: 1,875 lbs.
Electrical Requirements: 220V
Dust Extraction: 980 CFM
This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.
