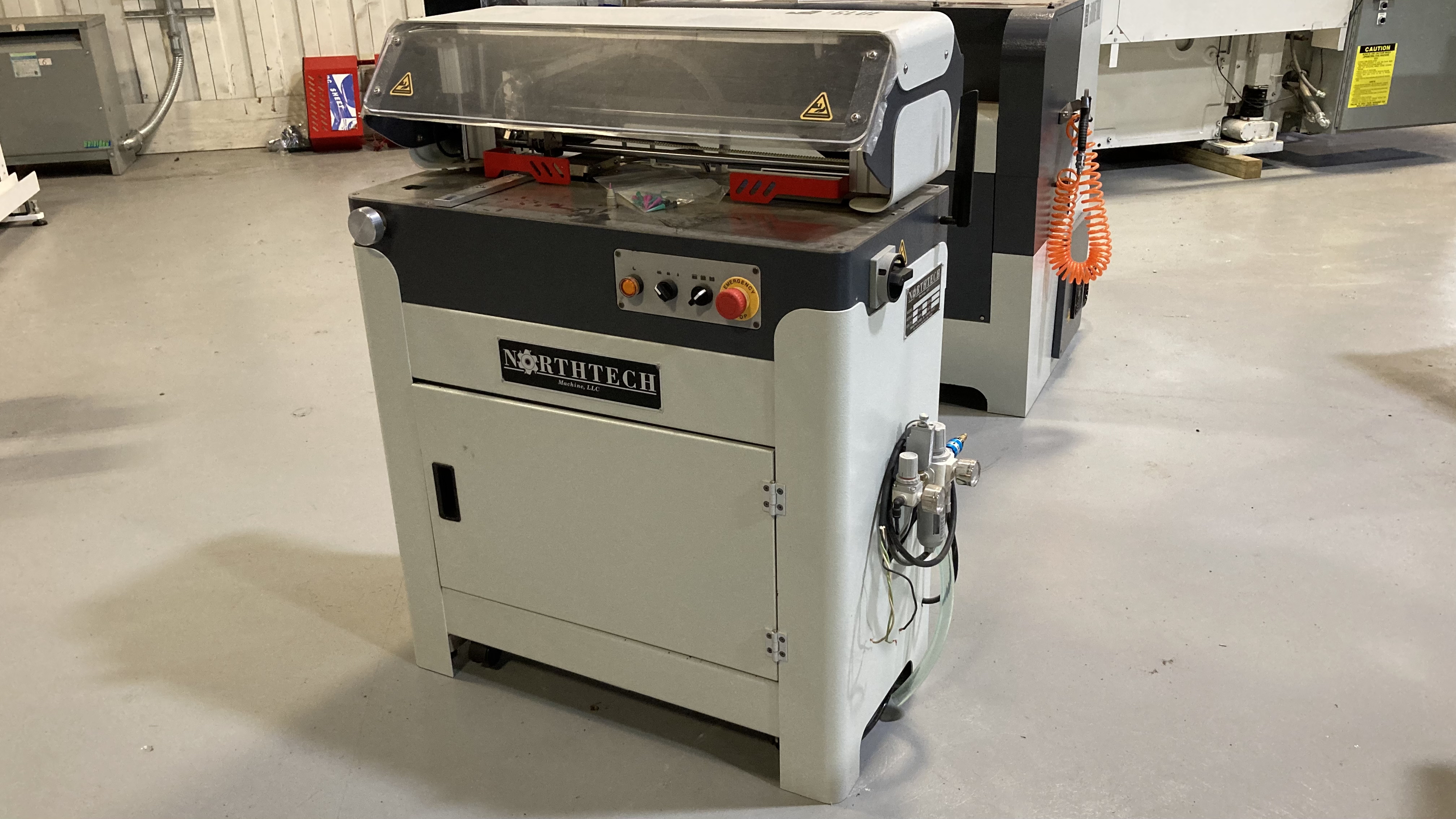

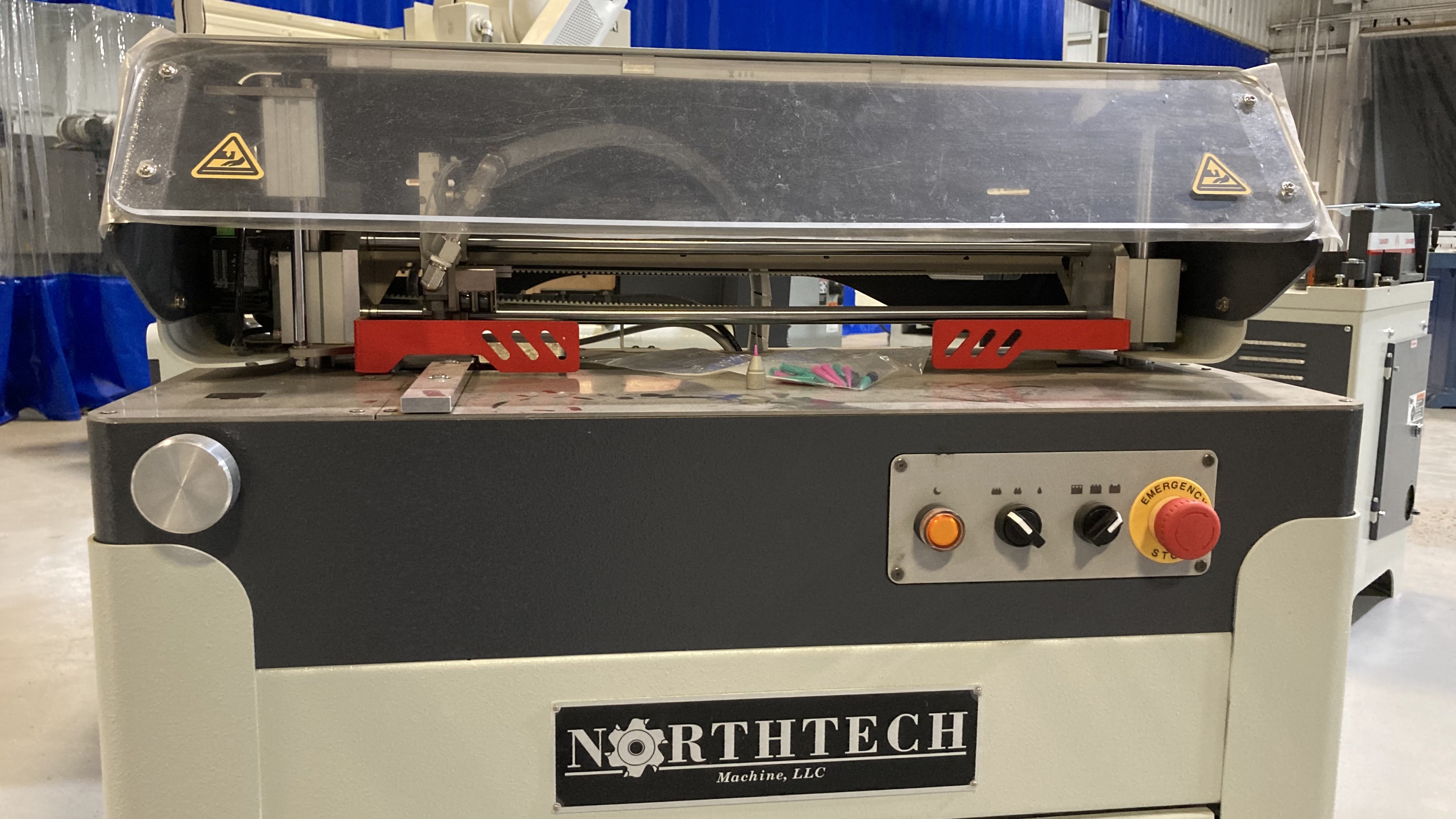

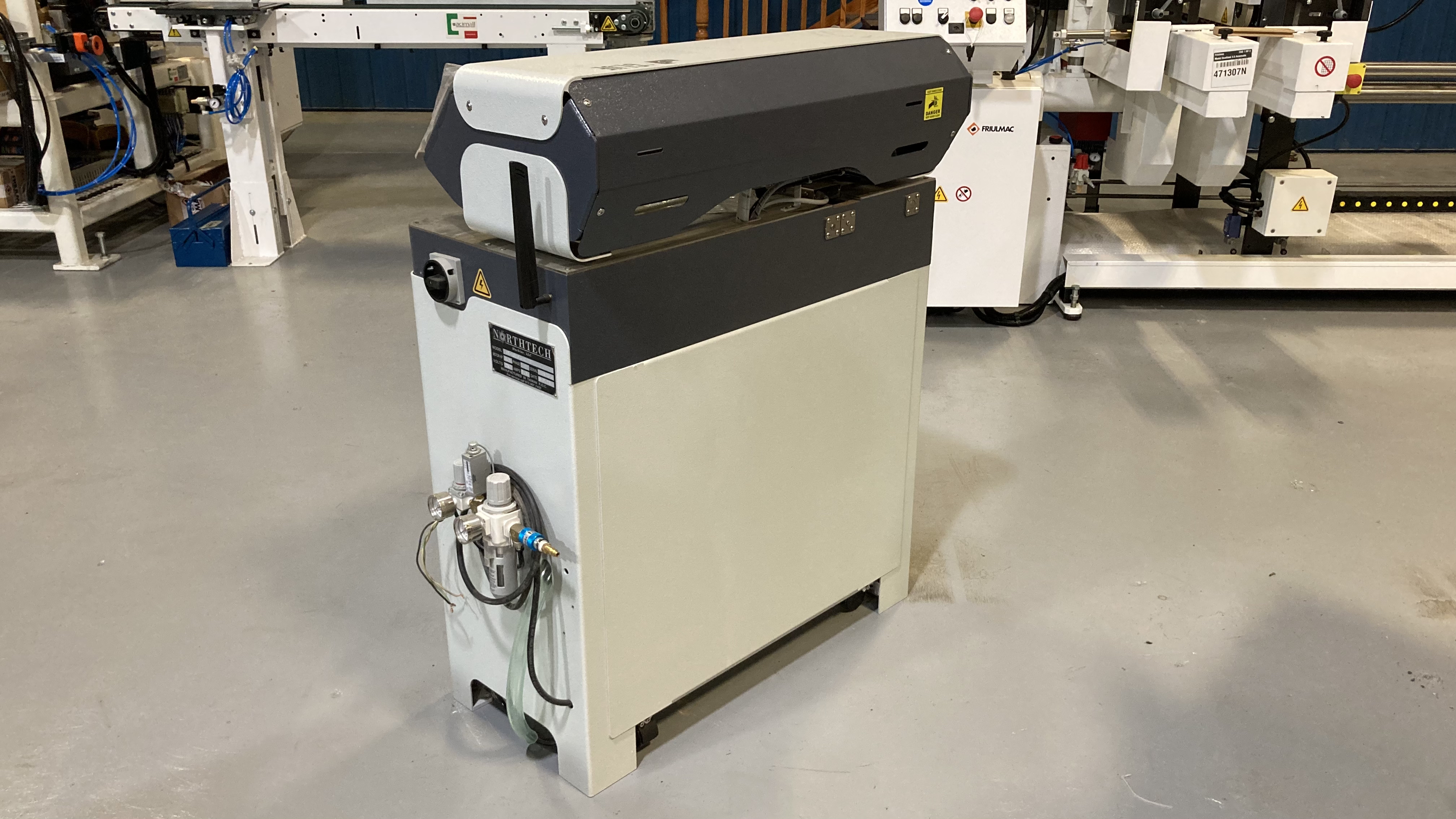

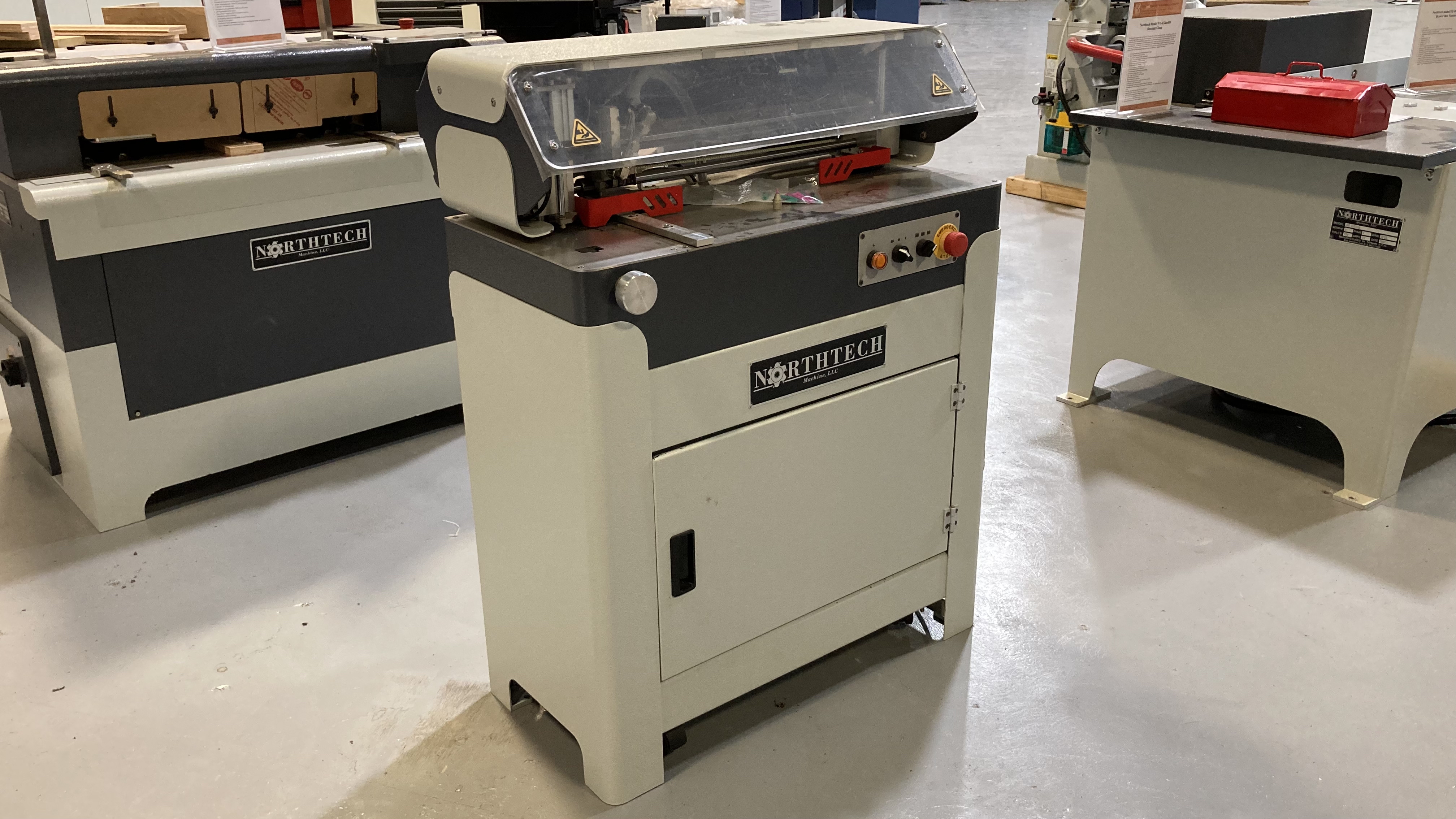

Northtech Model NT-iGlue450 Automatic Dovetail Gluer
Serial #:M557056
Condition: As Is
NT-iGlue450 Dovetail Gluer Automatic 18" The Northtech Glue is the revolutionary new gluer that quickly and accurately applies glue to dovetail and similar joinery. You literally just stick your part in and the iGlue scans and applies glue all in one pass and all in seconds with no required setups, no mess and no wasted glue. This machine has auto thickness compensation and is able to apply glue to either the mortise or tenon at the rate of over 100 dovetails/minute.
The iGlue even comes with an automatic waterbath sleep mode that keeps the glue tip fresh and ready to go. This machine works with standard PVA white glue and can be used for any material.
The Northtech iGlue and Dovetail are patent pending and the only new innovations in the dovetail market.
Working width: 450mm (18")
Working thickness: 5-50mm (3/16" - 2")
Working length minimum: 100mm (4")
(3) Programmable working speeds
Maximum operating speed: 1.4in/s
Multiple glue nozzle applicators for varying customer needs
Siko counter fence depth setting
Removable glue catch basin
Replaceable no drip nozzle
Glue and water pot on an internal cart system that pulls outside the machine for easy access
LED Illuminated working area
Automatic sleep mode will place the nozzle into a water bath after 5 minutes without use to keep glue tip fresh
Auto cleaning mode fl ushes glue out of system easily
Single pneumatic connection with FLR included
Easy smartphone integration for parameter adjustments and maintenance alerts
Glue reservoir: 10L Adjustable pressure glue pot included
Water reservoir: 4L Adjustable pressure water pot included
Recommended glue type: Water soluble PVA glue 8,000mpa s
Machine / Shipping weight: 436lbs / 528lbs
Machine / Shipping dimensions (LxWxH): 38" x 44" x 18" / 44" x 54" x 26"
230V/460V 60HZ 3PH; 200W; 1Amp
- RT Stock No. 21832N
Northtech Model NT-iGlue450 Automatic Dovetail Gluer
