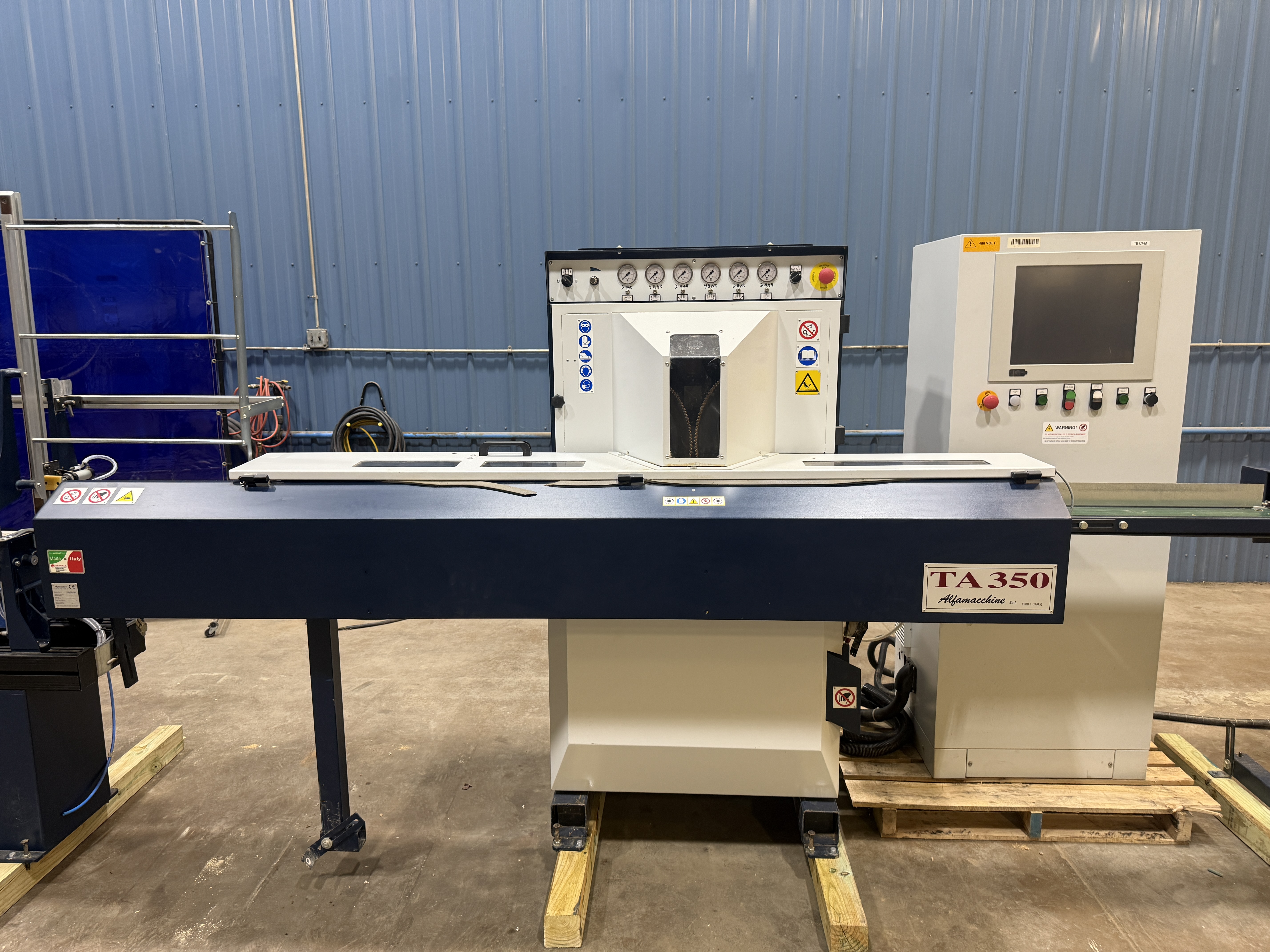

Alfamacchine Model TA-350 Double Miter Saw
Serial #:430.21.039
Condition: As Taken From Service

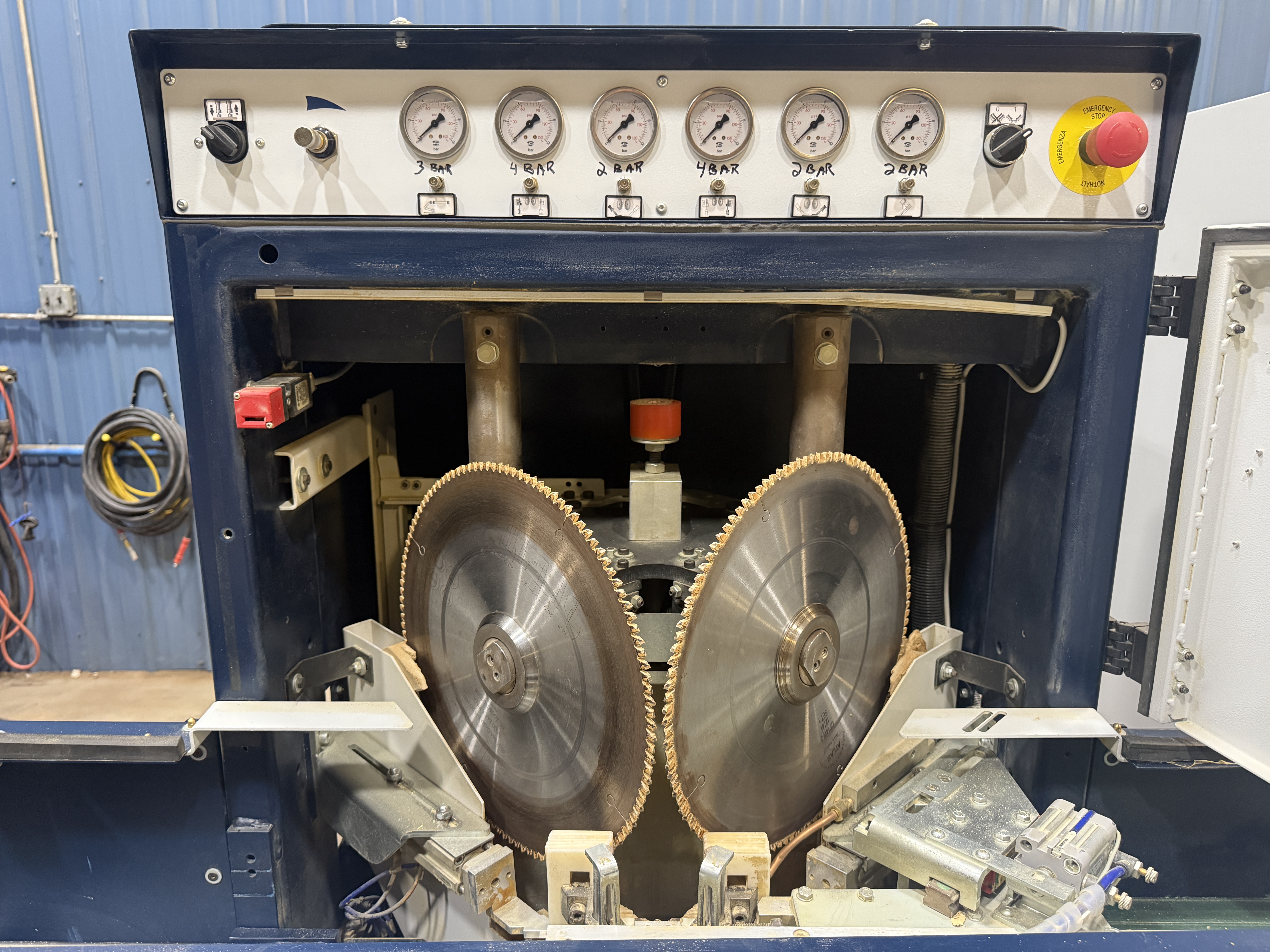

Saw Blade Motors - (2) x 1.7 kW (2.2HP)
Saw Blade Size - 350mm Dia (13.78")
Saw Blade Bore - 30mm Dia (1.18")
Saw Blade Speed - 3000RPM
Saw Blade Stroke - 275mm (10.83")
Max Cutting Height - 80mm (3.15")
Max Cutting Width - 80mm (3.15")

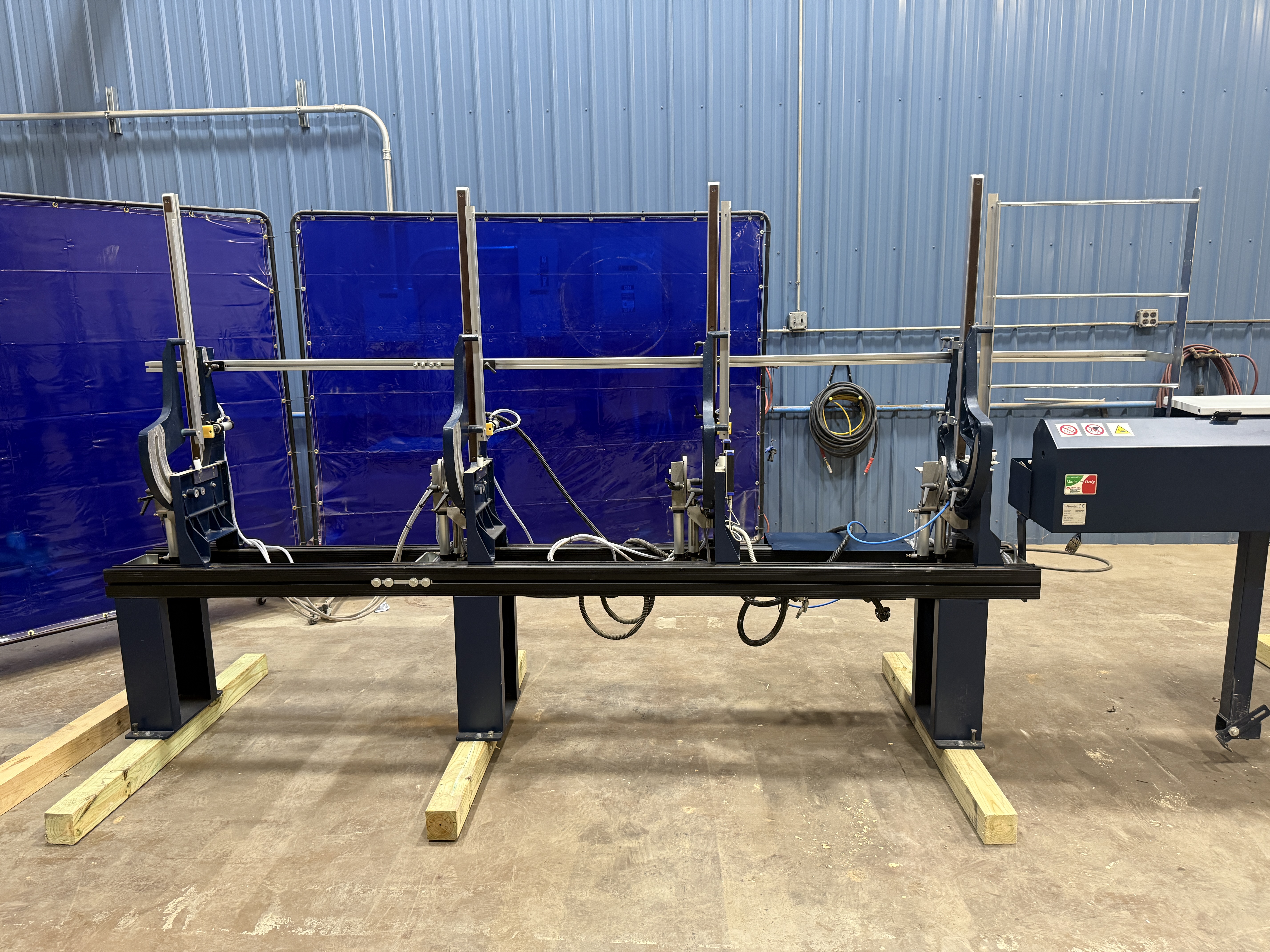

Equipped with Vertical Feeder for Lengths up to 3000mm (118”)
Uses a Dual Gripper System to Move Material from the Hopper to the Saw

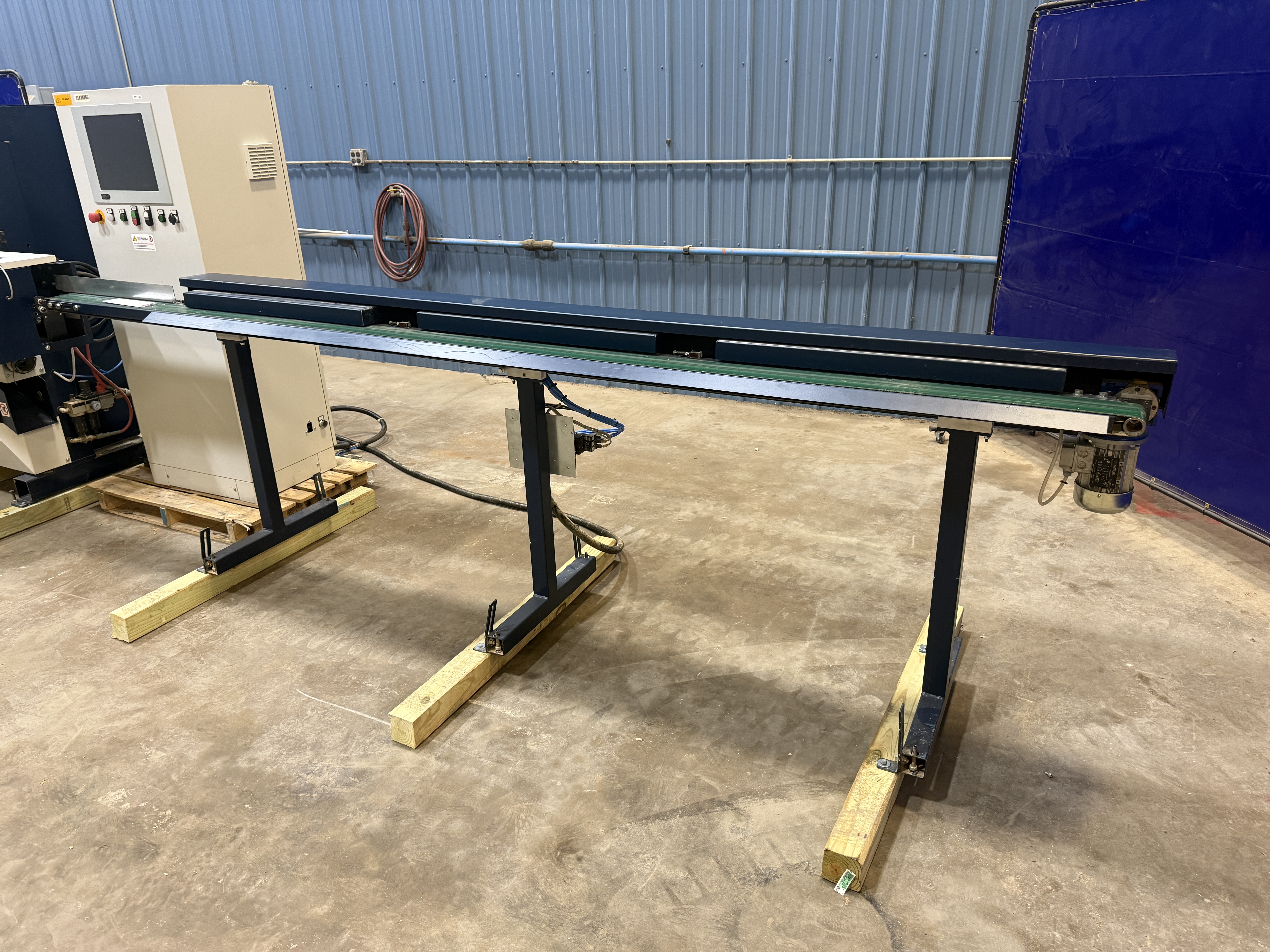

Also Equipped with Outfeed Conveyor 4” x 144”
Outfeed Conveyor supplied with Three (3) Pneumatic Kickers for Sorting Cut Lengths
- RT Stock No. 813848
