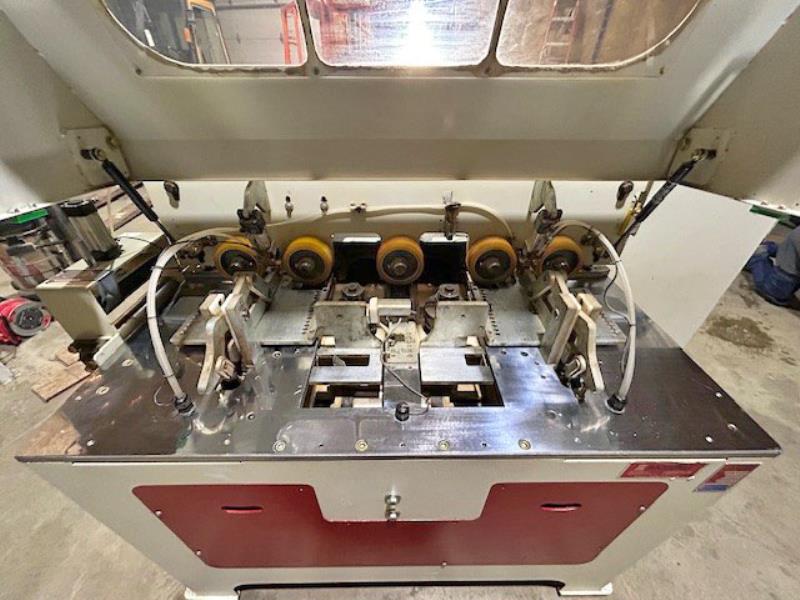

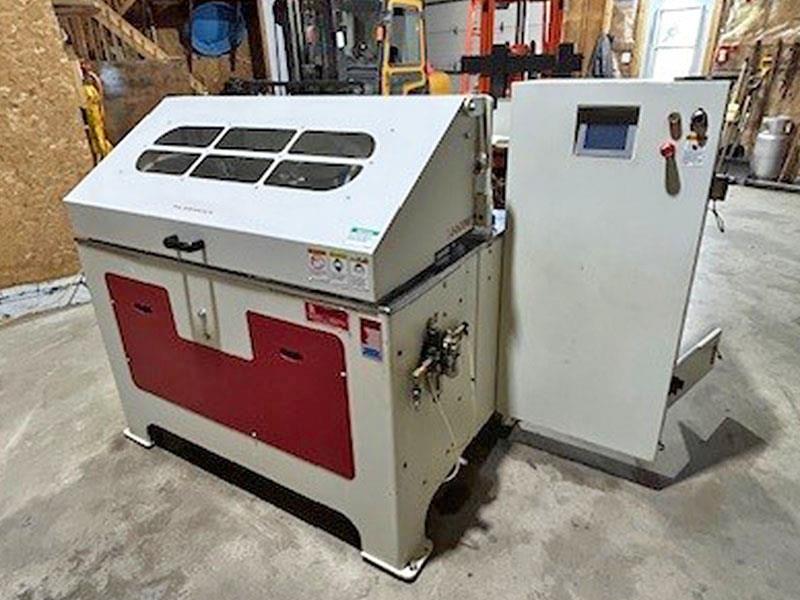

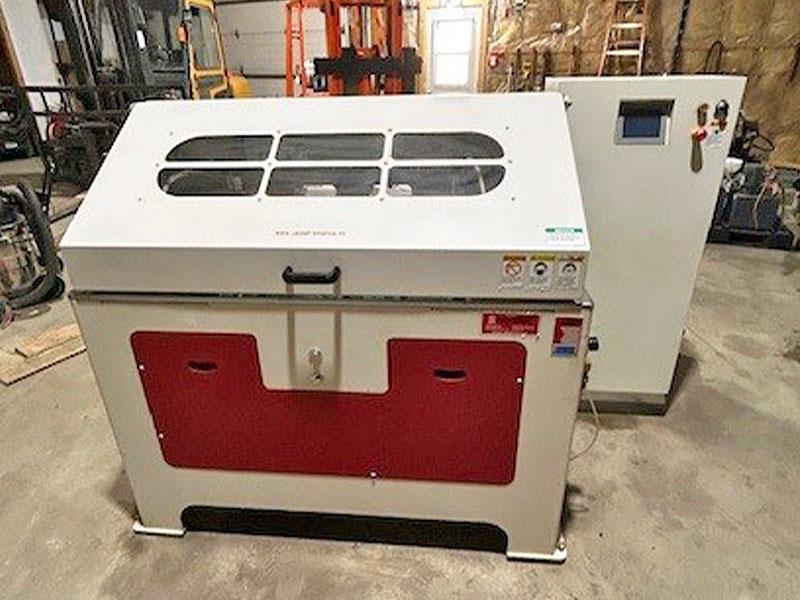

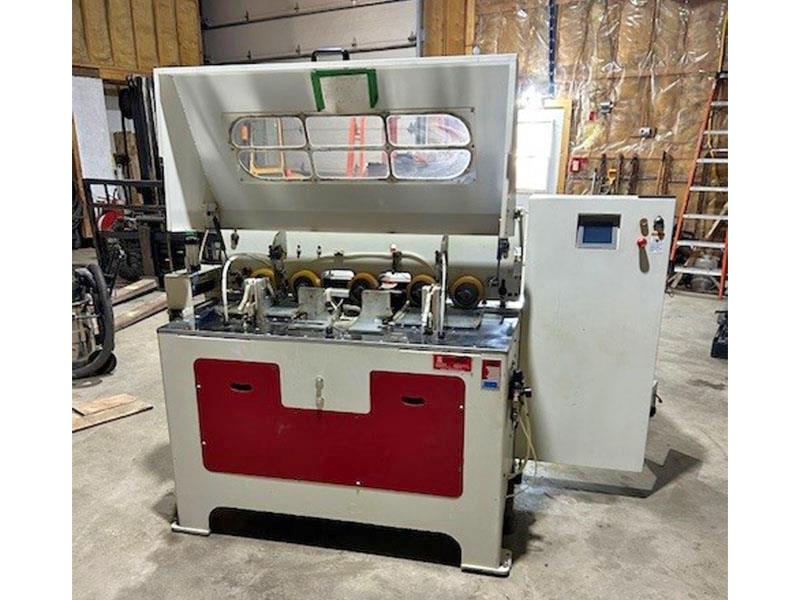

CANTEK - EM-10: Finger Jointer / End Matcher.
Price $ 23,500 CAN, approx. US-$ 17,200.
Machine arranged to finger joint but can be easily converted to end match.
1.6" - 10" Width x 3/8" to 1-3/8" thickness x 10.6" min. length capacity; unlimited lengths possible.
Feed speeds: To 295 FPM with approx. production speeds of 77 FPM (based on 6-1/2" incoming boards).
With standard 60" long infeed table and standard 60" long outfeed table.
(2) 7-1/2 HP Cutterhead motors; 40 mm spindle diameters; 1 HP feed motor; 1/2 HP motor drive to cutterhead carriage; clamping pressure from top & side.
Standard Equipment & Features
Heavy-Duty self-supporting main frame; compact design requires minimum floor space; capable of processing material as short as 11" to an unlimited length.
Variable speed through-feed system is controlled by: Frequency inverter; through-feed system allows the fingers to be cut simultaneously on the tail of (1) board and the leading edge of the next board....
Please click the link for full description***
CANTEK - EM-10: Finger Jointer / End Matcher
