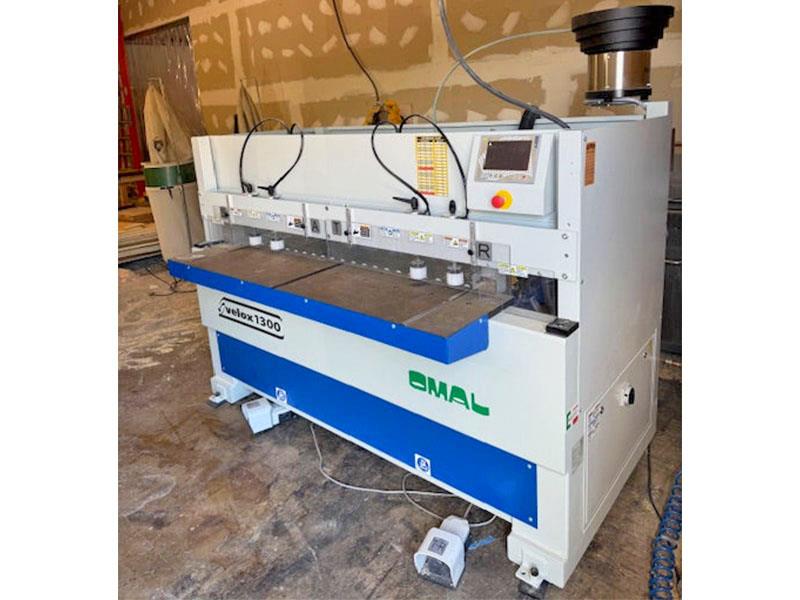

OMAL - VELOX 1300: CNC Bore, Glue & Dowel Inserter + Optional Laser Measuring Device
"Optional" Auto Laser measuring device with: Parametric Control & Touchscreen PLC Control.
Working Capacity:
51" (1,300 mm) In "X" Axis work area; 1.57" "Y" Axis stroke with: Manual depth setting; 1.57" "Z" Axis stroke with: Manual vertical settings. 10 mm - 30 mm (0.39" - 1.18") Material thickness capacity in the "Z" axis. Machine is currently set up for: 8 mm Dia. x 30 mm long max. dowel dimension.
Work Areas:
(2) Loading zones with: Cycle time of (1) second for each bore, glue and dowel insertion when holes are on 32 mm intervals. Equipped with: Brushless motor; ball nut & ball screw for quick positioning.

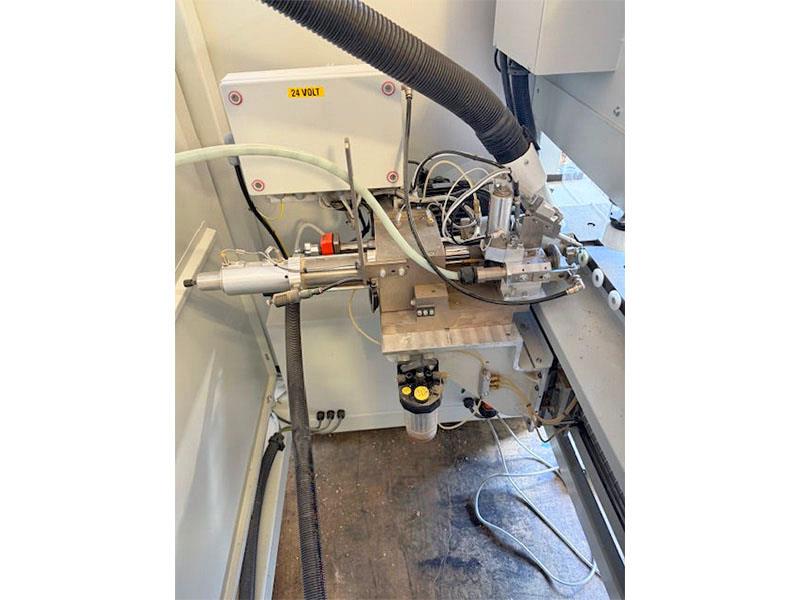

Dowel Inserter:
OMAL "SURE SHOT" Revolver System guarantees: Dowel is inserted every time. (1) Dowel insertion unit with: 8 mm Diameter dowel capacity.
Standard dowel dimension: 8 mm x 35 mm; max. dowel length: 40 mm; max. dowel projection: 14 mm.

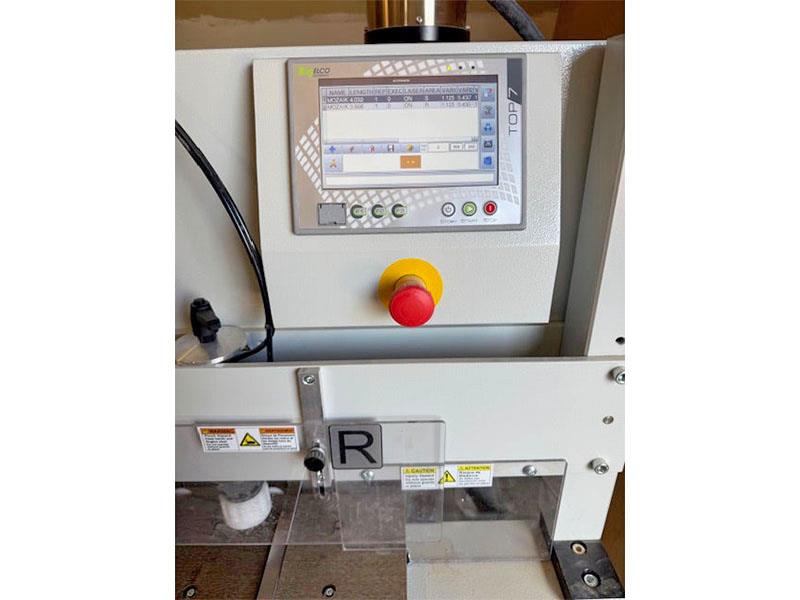

Operator Interface:
Touchscreen control for: Writing & storing programs and is programmable in the "X" Axis.
Graphics programming 2.5 D with: Simultaneous working display; automatic mirror image (left & right) programming; parametric programming; graphical aid.
*** Please click the link for full description***
Omal VELOX 1300 CNC Bore, Glue & Dowel Inserter
